Condition:
-
Warranty:
- Weight: 11.45 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 56102X-3W
- Phone: (800) 232-2670
Frequently asked questions
Are different wallboard sizes offered?

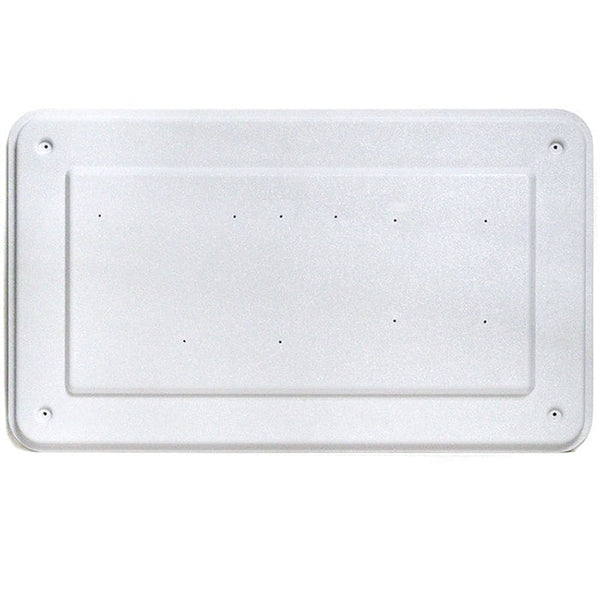

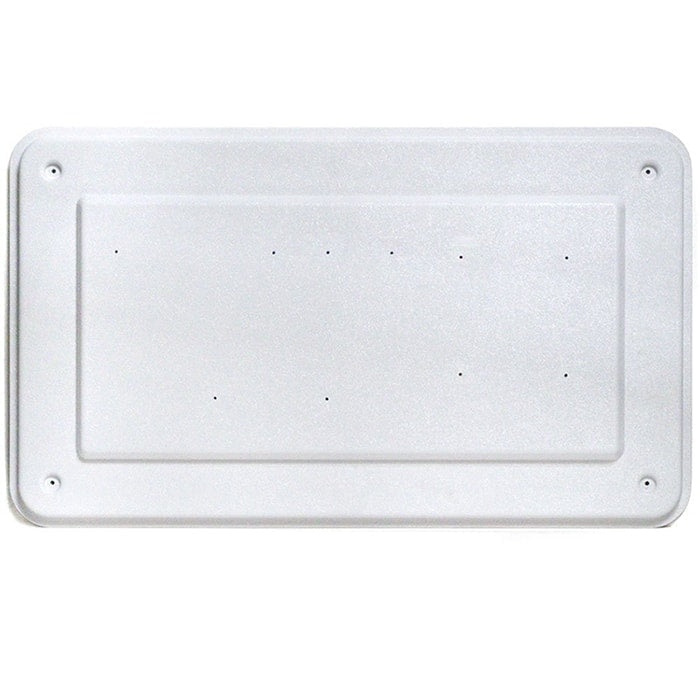

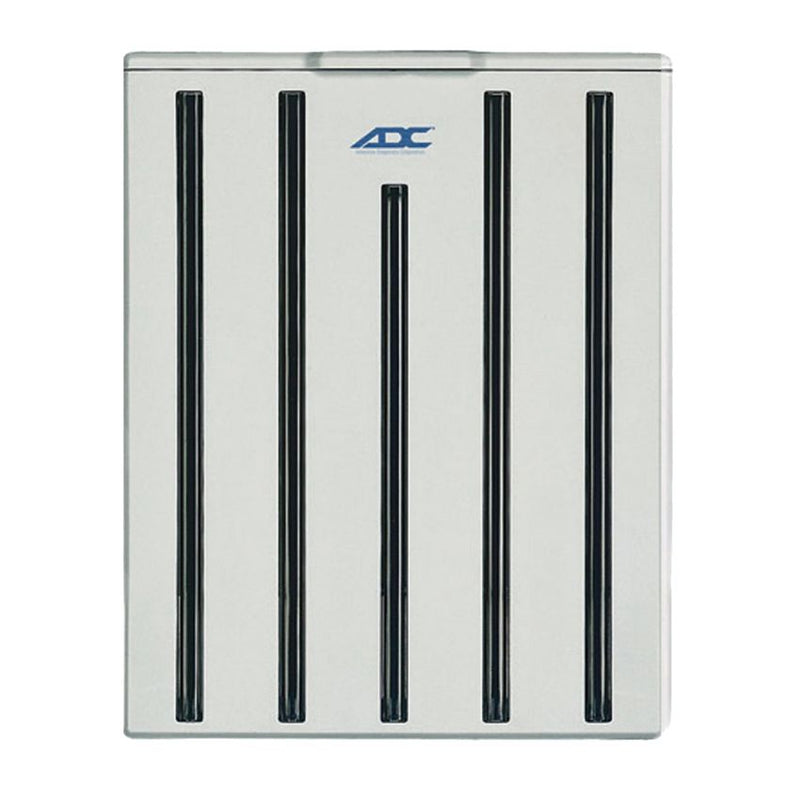

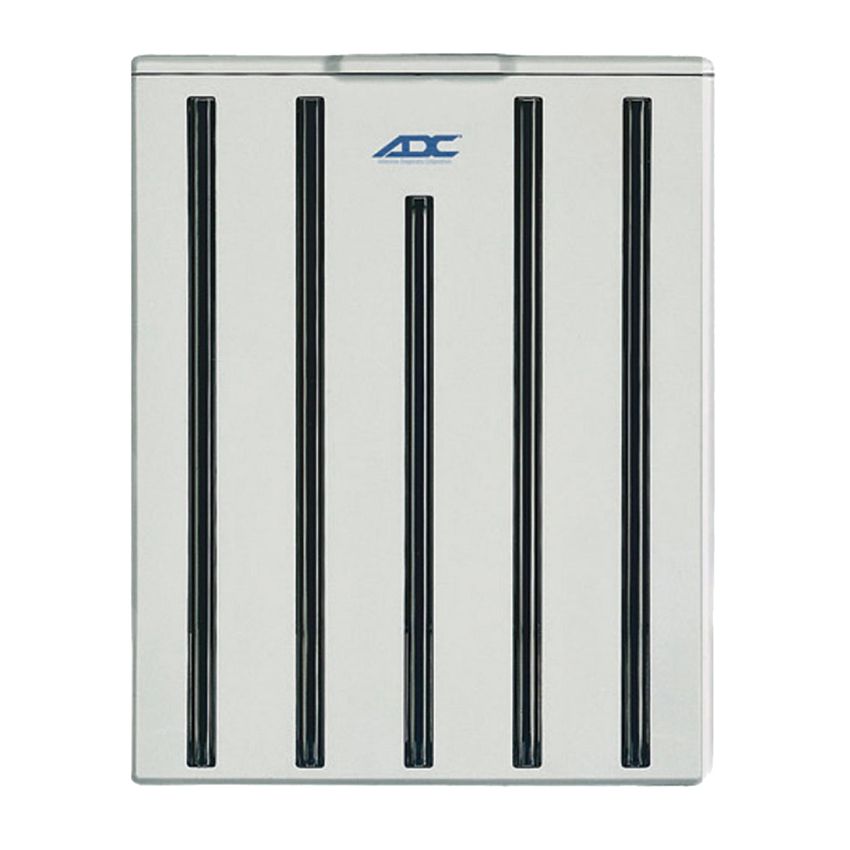

Yes, the ADC Adstation wallboard is available in two sizes
—Small and Large. The size required is determined by the specific configuration you choose, particularly if you integrate optional components like the wall aneroid sphygmomanometer or infrared thermometer.
The wallboard is constructed from long-lasting ABS with acrylic for enhanced durability and UV stability.
The available dimensions are:
- Small Wallboard: 23.25 in x 13.63 in x 1 in (59.06 cm x 34.62 cm x 2.54 cm)
- Large Wallboard: 32.75 in x 13.63 in x 1 in (83.19 cm x 34.62 cm x 2.54 cm)
Are high-performance LED or Xenon lamps available?

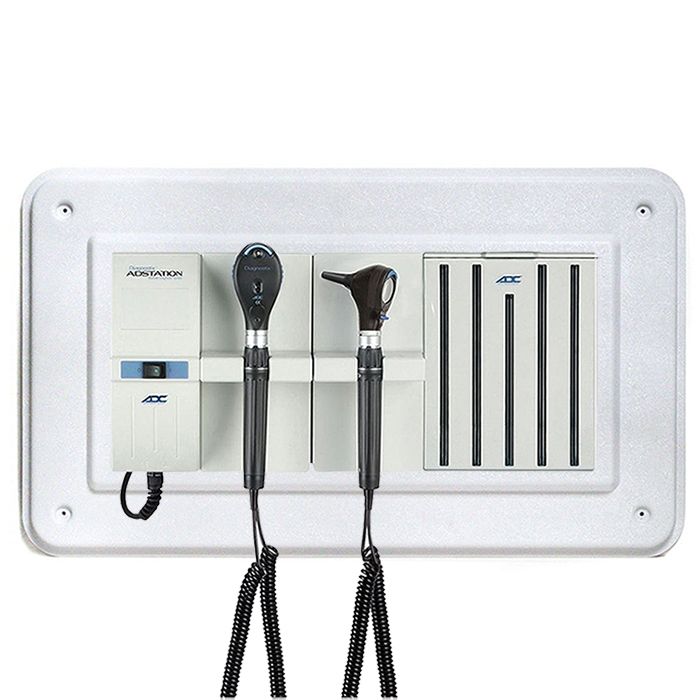

Yes, this wall-mounted diagnostic set is highly modular, allowing you to choose the preferred high-performance illumination for both the otoscope and ophthalmoscope heads. You have two excellent options:
- Advanced AdLED Illumination: This option provides highly efficient, durable, and superior light output. A major advantage of choosing AdLED is the Lifetime Warranty offered on the lamp.
- Xenon Illumination: This delivers a traditional, bright white light spectrum for accurate visualization. The Xenon lamps and instrument heads are covered by a 2-year warranty.
The system is fully configurable, allowing you to select any combination of these illumination types across the two instrument heads included in the set.
Is the optional sphygmomanometer latex-free?

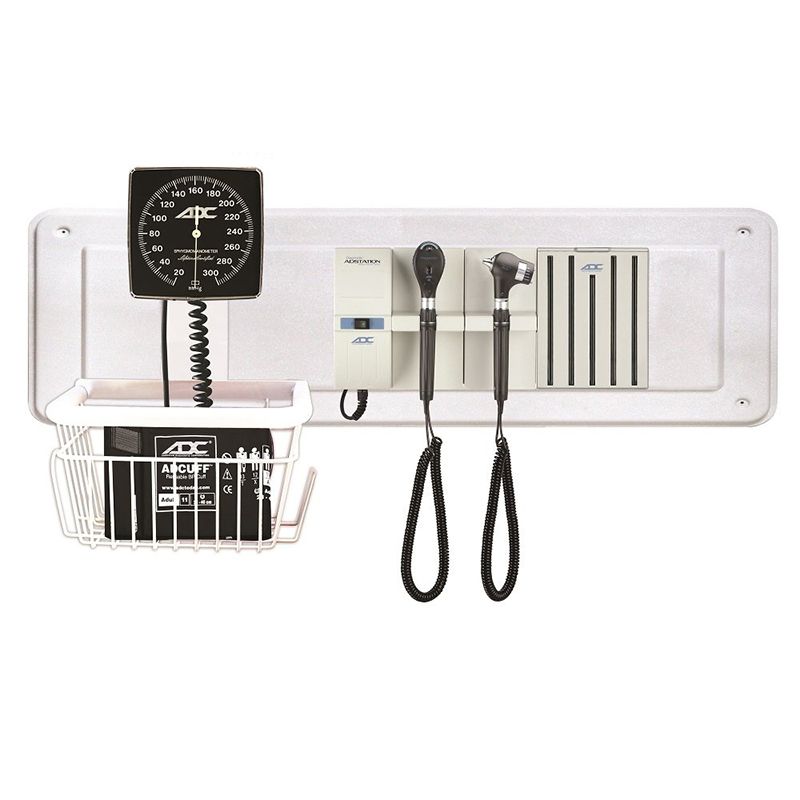

Yes, the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer includes latex-free components.
Specifically, the eight-foot coiled tubing is explicitly manufactured to be not made with natural rubber latex, making it suitable for use with latex-sensitive individuals. The unit also comes standard with Adult and Large Adult size Adcuff Nylon Cuffs.
What is the magnification of the otoscope head?

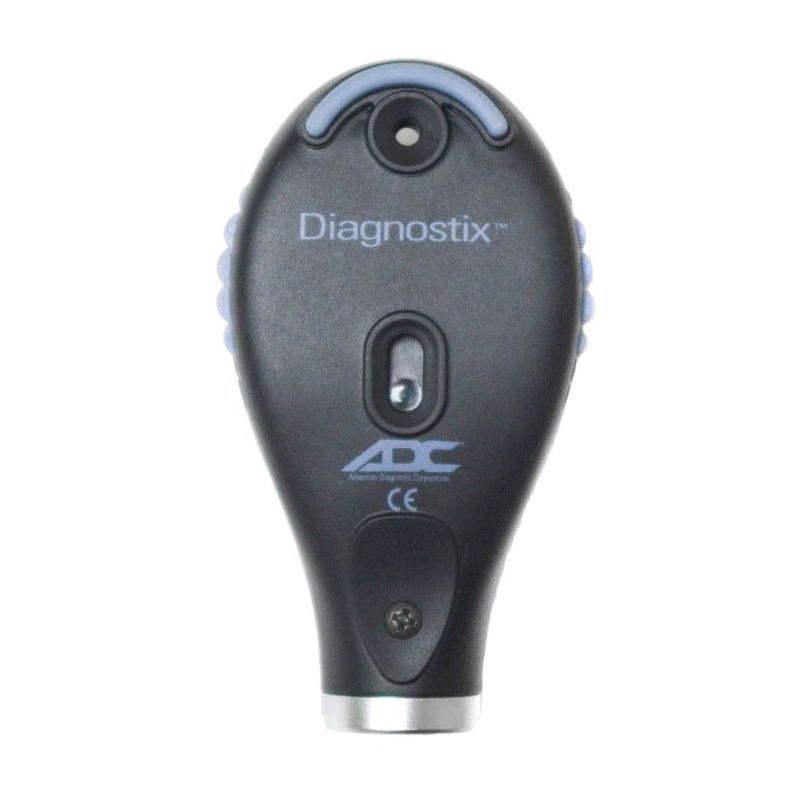

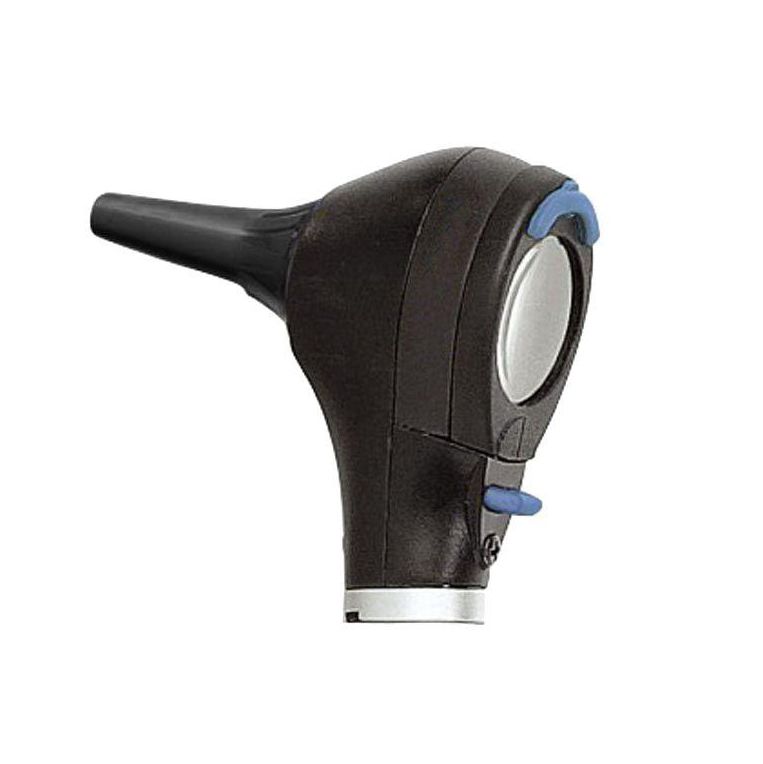

The otoscope head features 3X magnification, providing a clear view for examinations.
What is the warranty period for the wall transformer?
The wall transformer comes with a 5-year warranty.
What is the lens range of the ophthalmoscope?

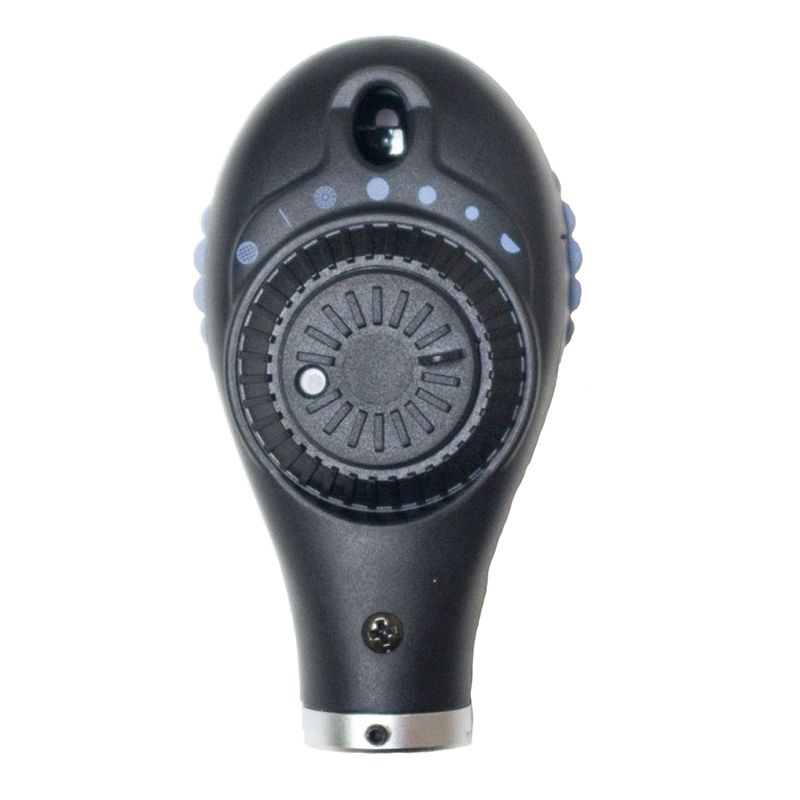

The ADC Diagnostix 5442 Coax Plus Ophthalmoscope provides an exceptionally wide range of 89 viewing lenses for precise focusing during examination.
Ophthalmoscope Lens Specifications
- Total Viewing Lenses: 89 lenses
- Positive Range: +1 to +45
- Negative Range: -1 to -44

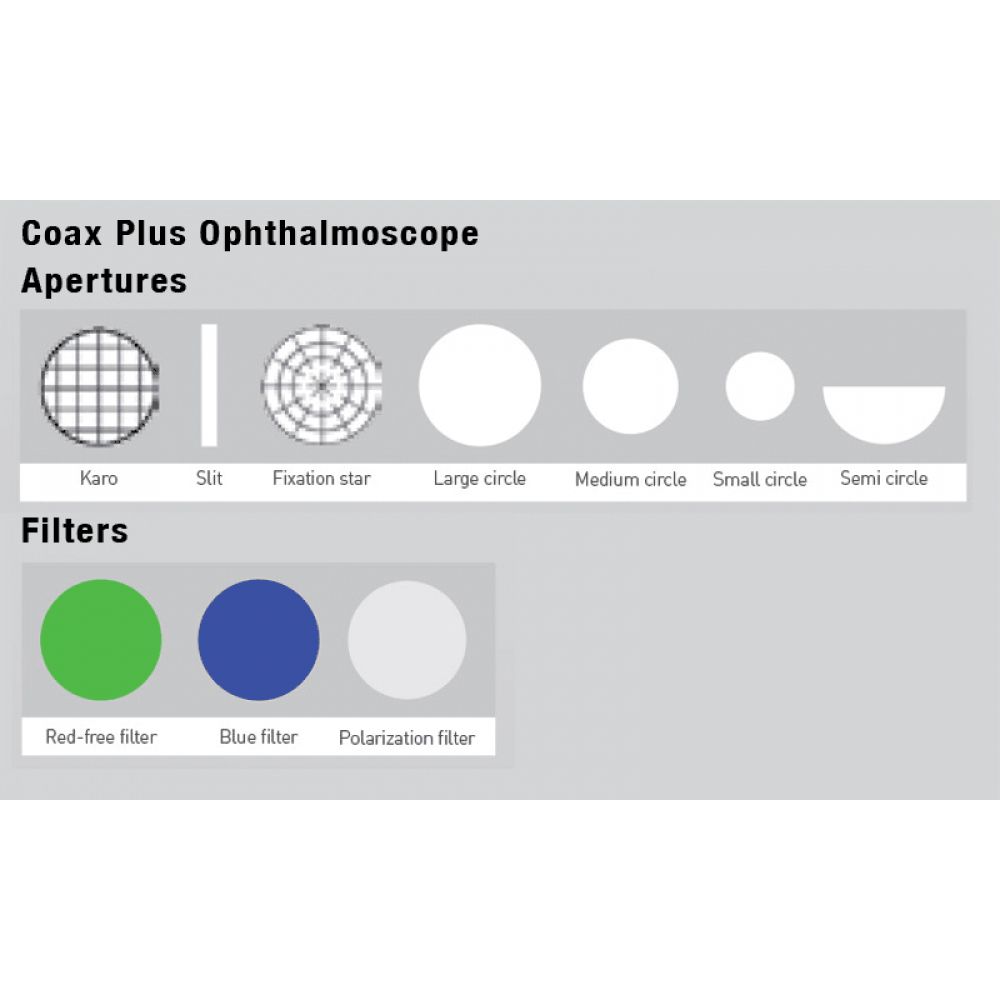

Furthermore, the unit features advanced optics, including a high-performance aspherical condenser lens to minimize corneal reflection, and offers a total of 7 apertures and 3 filters (Red free, Cobalt, and Polarizing) for comprehensive diagnostic flexibility.
What cuff sizes are included?
If you choose the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer add-on, the included Adcuff Inflation System provides two cuff sizes:
- Adult Nylon Cuff
- Large Adult Nylon Cuff
Is the optional thermometer fast and non-contact?
Yes, the optional ADC Adtemp 429 is a Non-Contact Infrared Thermometer designed for rapid, hygienic temperature measurement.
Key features and benefits of this component include:
- Hygienic and Safe: It uses an infrared sensor that requires no skin contact, effectively reducing the risk of cross-contamination.
- Fast Results: The thermometer delivers a temperature reading in approximately one second.
- Integrated Storage: A dedicated wall cradle is included for secure mounting onto the Adstation wallboard.
Do the instrument heads use a universal bayonet mount?
Yes, the instrument heads are designed for broad compatibility within professional standards. Both the ADC Diagnostix 5420 Otoscope and the 5442 Coax Plus Ophthalmoscope heads utilize a universal bayonet mount, a common connection standard for diagnostic instruments. Additionally, the Otoscope head is compatible with Welch Allyn specula, offering flexibility in accessory selection.
Does the wall transformer feature automatic shut-off?
Yes, the 3.5V Wall Transformer utilizes the advanced Adtronic electronic system for efficient power management, which includes an automatic shut-off feature to protect the lamps and conserve energy.
Key power management features are:
- Automatic Shut-Off: The Adtronic system automatically cuts power after two minutes if the instrument handle is not returned to the cradle.
- Magnetic Activation: Power is instantly activated the moment an instrument handle is removed from its cradle, ensuring immediate readiness.
- Rheostatic Light Control: The system provides precise electronic rheostatic control (Adtronic) for smooth and infinite adjustment of light intensity during examination.
