ADC 802ST Tactical Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer

Key Features

SKU: ADC-802ST
Condition: Factory New
Warranty: Lifetime
Weight: 0.44 lb
Learn more:

Contact The Manufacturer

MFR: American Diagnostic Corporation Ships from MFI Medical

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 802ST
Phone: (800) 232-2670

$37.14

Est. Delivery:

Quantity

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Description

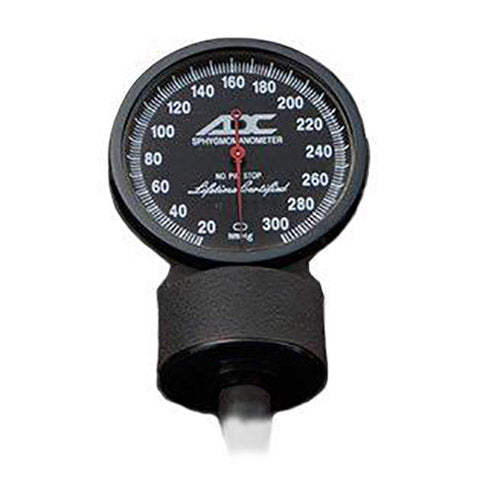

The ADC 802ST Tactical Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer (#802ST) is a precision crafted 300 mm Hg Japanese engineered manometer with a tactical finish that exceeds industry performance standards.

Warranty: Lifetime calibration warranty.

Features

ADC 802ST Tactical Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer Features

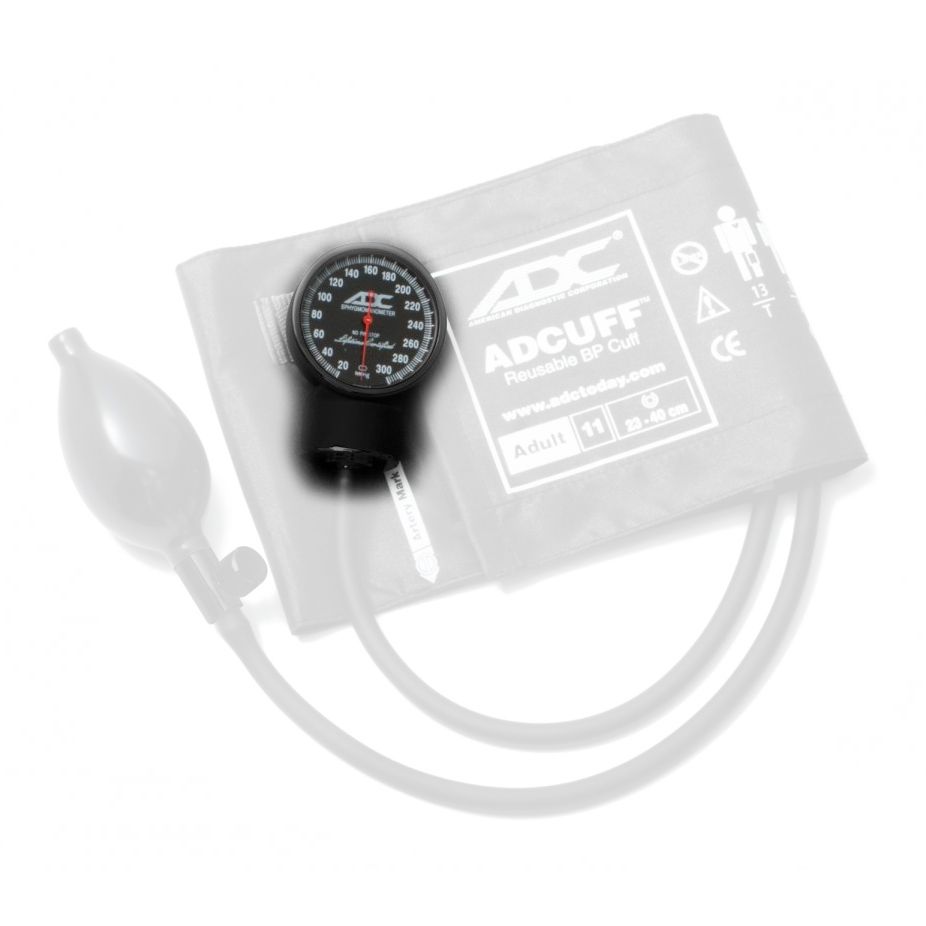

This ADC 802ST Tactical Gauge is designed for use on the following Sphygmomanometers and Sphygmomanometer Kits:
- ADC Diagnostix 720 Pocket Aneroid Sphygmomanometer - Tactical (#720-11AST).
- ADC Pro's Combo V 728-609 Pocket Aneroid/Adscope-Lite Scope Kit - Tactical (#728-609-11AST).
Extended scaleplate graduation marks reduce parallax for easier viewing from virtually any angle.
Meets or exceeds ANSI/AAMI/ISO 81060-1.
All gauges individually boxed.

Specifications

ADC 802ST Tactical Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer Specifications

Sphyg Type: Pocket.
Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
Sphyg Accuracy at Extended Temperature Range: +/-3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
Valve Type: Adflow.
Number of Tubes Used: 2.

Media and Literature

ADC 802ST Tactical Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer Media and Literature

ADC 2017 Product Catalog

ADC Aneroid Sphygmomanometer Accessories Instructions for Use

ADC Diagnostix Aneroid Sphygmomanometers Instructions for Use

Frequently asked questions

Which sphygmomanometers is this gauge compatible with?

The ADC 802ST Tactical Gauge is designed specifically as a replacement manometer for the following ADC models and kits:

ADC Diagnostix 720 Pocket Aneroid Sphygmomanometer (Model #720-11AST)
ADC Pro’s Combo V 728-609 Pocket Aneroid/Adscope-Lite Scope Kit (Model #728-609-11AST)

What is the accuracy of the ADC 802ST Tactical Gauge?

The ADC 802ST Tactical Gauge has an accuracy of +/-3 mm Hg at temperatures between 50 degrees F (10 degrees C) and 104 degrees F (40 degrees C). At extended temperature ranges (below 50 degrees F or above 104 degrees F), the accuracy is +/-3 mm Hg or 2%, whichever is greater.

What is the temperature range for storing the ADC 802ST Tactical Gauge?

The recommended storage temperature range for the ADC 802ST Tactical Gauge is -4 degrees F (-20 degrees C) to 131 degrees F (55 degrees C).

Does the ADC 802ST Tactical Gauge come with a warranty?

Yes, the ADC 802ST Tactical Gauge comes with a lifetime calibration warranty.

What standards does the ADC 802ST Tactical Gauge meet?

The ADC 802ST Tactical Gauge meets or exceeds ANSI/AAMI/ISO 81060-1 standards.

What is included with the ADC 802ST tactical gauge?

The ADC 802ST Tactical Gauge is supplied individually boxed and includes two key components designed for easy replacement:

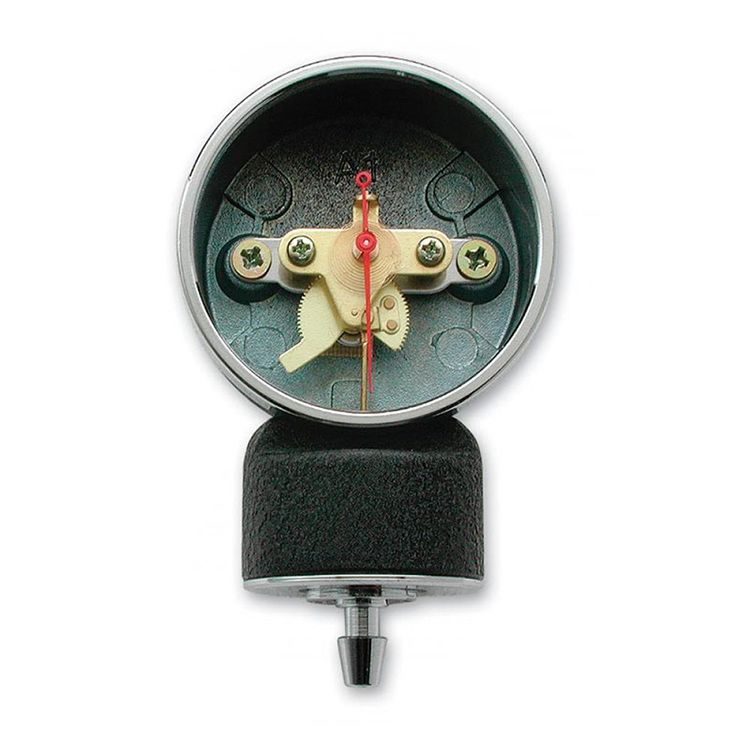

The 802ST Manometer Gauge (featuring high-precision Japanese engineering)
The Adflow Valve Type mechanism

What is the maximum pressure capacity of this gauge?

The ADC 802ST Tactical Gauge is engineered for professional use, offering a maximum measurement capacity of 300 mm Hg. This high-precision Japanese-engineered manometer is certified to meet or exceed stringent ANSI/AAMI/ISO 81060-1 performance standards for reliable blood pressure readings.

What is the benefit of the extended scaleplate graduation marks on the ADC 802ST Tactical Gauge?

The extended scaleplate graduation marks on the ADC 802ST Tactical Gauge reduce parallax, making it easier to view readings from virtually any angle.

What type of valve does the ADC 802ST Tactical Gauge use?

The ADC 802ST Tactical Gauge uses an Adflow valve.

Does the tactical finish enhance durability?

Yes, the ADC 802ST features a durable, non-reflective tactical finish. This specific construction is designed to withstand demanding professional environments, ensuring the longevity and robust performance of the gauge.
