- Weight: 26.0 lb
- Evacuates hazardous laser or surgical smoke using a vacuum hose or medical tubing directly at the procedure site
- Recommended for all electrosurgical and laser procedures
- Cost-effective filtration system
- Foot pedal allows for hands-free operation
-
Learn more:
-
MFR:
CLS-Surgimedics
Ships from Manufacturer
-
MPN: 906500
- Phone: (800) 293-9341
Frequently asked questions
Does it feature an advanced filtration system?
Yes, the Surgifresh Turbo features a highly efficient and cost-effective filtration system designed to protect against hazardous surgical smoke and odors.
This unique design focuses on maximizing filter life and reducing procedure costs:
- Primary Filter: Utilizes an ULPA (Ultra Low Penetration Air) filter for capturing extremely fine plume particles, combined with an integral, large activated carbon section for effective odor removal.
- Cost-Saving Prefilter: A separate, low-cost, replaceable prefilter captures larger debris. This smart design extends the life of the more expensive primary ULPA filter, significantly lowering the overall cost per procedure.
The system is explicitly recommended for all electrosurgical and laser procedures.
What is included with the Surgifresh Turbo Evacuator System?

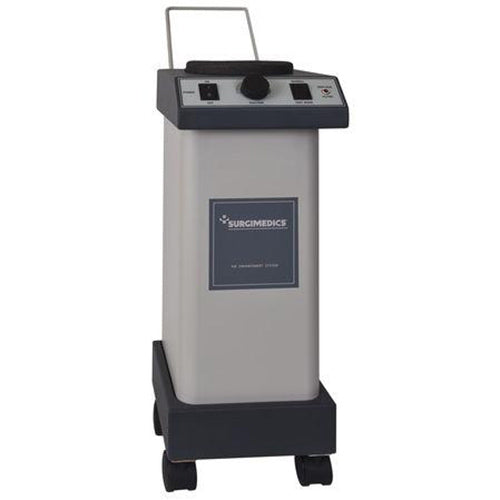

The Surgifresh Turbo Smoke Evacuator System includes the core unit along with essential accessories designed for hands-free operation and easy mobility.
The following components are included with the system:
- Surgifresh Turbo Main Unit: The core portable smoke evacuation device.
- Foot Control Pedal (#920433-000): Enables convenient, hands-free activation and control during surgical procedures.
- Wheel and Handle Kit: This allows the unit to be easily moved between rooms, ensuring excellent portability.
Note: Tubing and the necessary filters (the prefilter and primary ULPA filter) are required for operation but must be purchased separately.
Is necessary tubing and filtration included?
No, essential operational components, specifically tubing and filters, are sold separately and must be purchased before use.
The Surgifresh Turbo Smoke Evacuator System unit itself is complete with the following included items:
- Foot pedal (for convenient, hands-free operation)
- Wheel and handle kit (for easy mobility between procedure rooms)
Is the system compatible with the Armstand Assistant?
Yes, the Surgifresh Turbo Smoke Evacuator System is designed to be effectively combined with the Armstand Assistant (#907001) (sold separately).
This pairing is highly suggested for maximizing safety and efficiency during procedures. The Armstand Assistant is used to secure the evacuation tubing, ensuring it remains stable and positioned directly at the tissue impact site for optimal smoke plume capture.
How quiet is the smoke evacuator?
The Surgifresh Turbo Smoke Evacuator System operates with low noise levels, ranging from 56 dBA at minimum power to 63 dBA at maximum power.
What are the system's precise dimensions?
The Surgifresh Turbo is a freestanding and portable unit. Its dimensions vary slightly depending on whether the included wheel and handle kit is attached for movement between rooms.
Here are the specific measurements (Width x Depth x Height):
| Configuration | Dimensions (Inches) |
|---|---|
| With Wheel and Handle Kit | 10.5” x 9.13” x 25.25” |
| Without Wheel and Handle Kit | 10.5” x 9.13” x 22.5” |
What are the maximum flow rates?
The Surgifresh Turbo Smoke Evacuator System provides maximum flow rates (CFM) that vary based on the specific hose and tubing configuration utilized. The flow rates are as follows:
- 65 CFM: With a 6-foot long, 1 1/3-inch diameter hose.
- 30 CFM: With a 6-foot long, 7/8-inch diameter hose.
- 6.5 CFM: With an 8-foot long, 3/8-inch diameter hose.
- 5 CFM: With a 6-foot long, 7/8-inch hose combined with 2 feet of 1/4-inch tubing.
What are the electrical requirements?
The Surgimedics Surgifresh Turbo Smoke Evacuator System requires 115 Volt, 60 Hz, and 8 Amp circuit breakers for operation.
Does it offer hands-free operation?
Yes, the system is designed for hands-free operation and includes a foot pedal for convenient use during procedures.
Is the unit designed for easy mobility?
Yes, the system is designed for portability and ease of use. It includes a wheel and handle kit for easy movement between rooms, making it convenient for various clinical settings.
