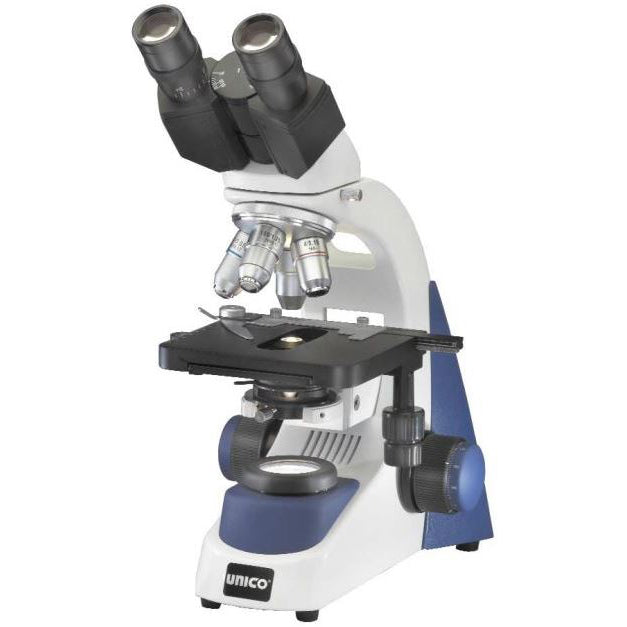

Unico G380 Binocular Microscope

Unico G380 Binocular Microscope
Key Features
  • SKU: UCO-G380-LED
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 16.8 lb
  • Includes a plastic dust cover, two extra fuses, and operation manual
  • Each eye tube features independent focusing diopter adjustment

  • Learn more:

Contact The Manufacturer
  • MFR: Unico
    Ships from Manufacturer
  • MPN: G380-LED
  • Phone: (732) 274-1155
$1,520.00 $1,053.38

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Unico G380 Binocular Microscope includes a plastic dust cover, two extra fuses, and operation manual.

Warranty: 5 Years (Microscope) / 1 Year (Electrical System - excludes bulbs and fuses).

The G380 was designed with your viewing comfort in mind. The standard 10X High Eye-Point eyepieces are engineered to reduce eyestrain for users wearing glasses. Each eye tube features independent focusing diopter adjustment to compensate for the natural vision differential between each eye.

The base design adds stability to the body while allowing extra room for hand access to the over-sized coarse and fine focus controls and easy access to the coaxial mechanical stage controls.

With use you will come to appreciate the precise mechanical stage movement, optical clarity, flat field, and comfortable viewing. A comprehensive manual includes care and maintenance instructions.

Features

Unico G380 Binocular Microscope Features

  • Head: Binocular (30° angle). It features a Seidentopf optical design with 52 mm to 75 mm interpupilary distance adjustment. The head rotates 360° and locks in-place with a thumbscrew.
  • Coated Optics: Anti-Glare, Color Correction, and Anti-Fungal.
  • Eyepiece: Standard 10X High-Eyepoint widefield oculars (FN = 18 mm).
  • Objectives: DIN Standard 4X, 10X, 40XP, and 100XR (Oil) Objectives. 40X and 100X objectives are "R", or retractable.
    • 4X = NA 0.10, 10X = NA 0.25, 40X = NA 0.65, 100X = NA 1.25.
    • Nosepiece: Four hole standard.
    • Focal Length: 160 mm.
  • Magnification: With 10X eyepieces, standard magnification is 40X, 100X, 400X, and 1,000X.
  • Stand: Sturdy cast metal frame with unique polymer accent panel, designed to provide stability while dissipating bulb heat.
  • Condenser: Features a focusable NA 1.25 Abbe condenser with port for optional Simple Phase Contrast Annulus insertion. Focusable for concentrated or diffuse lighting with rack and pinion movement.
  • Focusing: Smooth, extra-large graduated coaxial coarse and fine focus controls with tension adjustment to eliminate stage drift. Adjustable to your personal preferences.
  • Stage: Built-in graduated mechanical stage with low-position coaxial X-Y controls. Ball bearing movement allows for smooth, precise adjustments. Spring loaded slide holder.
    • Stage Size: 142 mm x 132 mm.
    • Range of X-Y Stage Movement: 55 mm x 75 mm.
  • Illumination: 3 Watt LED light source. Variable intensity rheostat wheel is located on the left side of the base.
  • Iris Diaphragm: Features adjustable Iris with metal leaf overlay design.
  • Electrical: 110 V / 60 Hz to 240 V / 50 Hz, universal power supply. The fuse rating is 250 V / 1.5 A. UL and CSA approved electrical parts.
  • Size and Weight:
    • Size: 9.5" x 7.5" x 16" (240 mm x 190 mm x 410 mm).
    • Weight: 14 lbs (6.4 kg).
    • Shipping Size: 13.5" x 10.5" x 17.5" (340 mm x 260 mm x 440 mm).
    • Shipping Weight: 18 lbs (8.2 kg).

Objectives

Unico G380 Binocular Microscope Objectives

  • #G380-LED: Achromat [4X / 10X / 40XR / 100XR (oil)].
  • #G380SP-LED: Semi-Plan [4X / 10X / 40XR / 100XR (oil)].
  • #G380PL-LED: Plan Achromat [4X / 10X / 40XR / 100XR (oil)].
  • #G380-PH-40: Brightfield Achromat [4X, 10X, 100XR (oil)] and Simple Phase Contrast [40XR].

Literature

Frequently asked questions

What is the maximum magnification?

The Unico G380 Binocular Microscope provides a high maximum standard magnification of 1,000X.

This is achieved by using the standard 10X High Eye-Point widefield oculars paired with the 100XR (Oil) objective lens.

The standard total magnifications available are:

  • 40X
  • 100X
  • 400X
  • 1,000X
Is this microscope comfortable for glasses wearers?

Yes, the Unico G380 is specifically designed for ergonomic viewing comfort, making it ideal for users who wear corrective lenses.

Key features that enhance comfort and reduce eyestrain include:

  • 10X High Eye-Point Widefield Oculars (FN=18 mm): This design allows users to comfortably view the full field of vision while wearing spectacles.
  • Independent Focusing Diopter Adjustments: Each eye tube features its own diopter adjustment to compensate for vision differences between the eyes.
  • Angled Binocular Head: The head is set at a comfortable 30° viewing angle and utilizes a Seidentopf optical design, offering 360° rotation for flexible positioning.
Does the microscope offer bright LED illumination?

Yes, the Unico G380 Binocular Microscope features a 3-Watt LED light source for bright, clear illumination. It also includes a variable intensity rheostat, allowing you to precisely adjust the brightness to your specific viewing requirements.

Does the microscope have high-quality optical coatings?

Yes, the Unico G380 Binocular Microscope features anti-glare, color correction, and anti-fungal coated optics. These coatings are designed to provide a clear and protected viewing experience, ensuring sharp images and accurate color representation.

What essential accessories are included?

The Unico G380 Binocular Microscope is shipped with essential accessories for protection and continuous operation:

  • Plastic Dust Cover: Used to protect the precision optics and mechanical parts from dust and debris when the microscope is stored.
  • Two Extra Fuses: Provided for immediate replacement, ensuring minimal downtime.
  • Operation Manual: A detailed guide covering setup, operation, and maintenance of the instrument.
Does the microscope include a precise mechanical stage?

Yes, the Unico G380 Binocular Microscope features a built-in graduated mechanical stage with low-position coaxial X-Y controls and a spring-loaded slide holder. This allows for smooth and accurate slide adjustments. The stage measures 142 mm x 132 mm, with an X-Y movement range of 55 mm x 75 mm.

Does the microscope offer versatile power options?

Yes, the Unico G380 Binocular Microscope features a universal power supply that supports both 110 V / 60 Hz and 240 V / 50 Hz. This makes it adaptable for use in various locations. All electrical parts are UL and CSA approved for enhanced safety and reliability.

What high-quality DIN objectives are included?

The Unico G380 is equipped with DIN Standard objectives mounted on a four-hole nosepiece, allowing for standard total magnification ranging from 40X up to 1,000X when paired with the 10X widefield eyepieces.

All optics feature specialized coatings for enhanced image clarity and longevity, including Anti-Glare, Color Correction, and Anti-Fungal treatments.

The standard objective configuration includes:

  • 4X (NA 0.10)
  • 10X (NA 0.25)
  • 40XP (NA 0.65)
  • 100XR Oil (NA 1.25)

The high-power 40XP and 100XR objectives are also retractable, serving as a safety feature to protect both the lens and the slide specimen during focusing.
