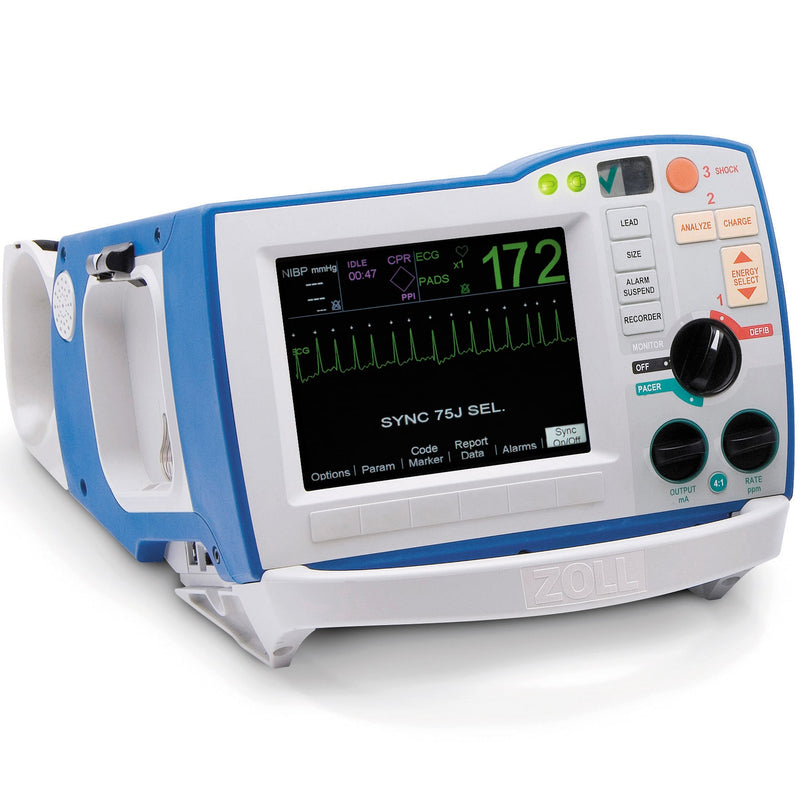

Zoll R Series ALS Defibrillator with Expansion Pack

Zoll R Series ALS Defibrillator with Expansion Pack
Zoll R Series ALS Defibrillator with Expansion Pack
Zoll R Series ALS Defibrillator with Expansion Pack
Zoll R Series ALS Defibrillator with Expansion Pack
Zoll R Series ALS Defibrillator with Expansion Pack
Zoll R Series ALS Defibrillator with Expansion Pack
Key Features
  • SKU: ZOL-30110000001010012
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 11.9 lb
  • Combines a defibrillator, ECG display, advanced monitoring capabilities, and Noninvasive Transcutaneous Pacing (NTP) with communication, data printing, and recording capabilities in a single instrument
  • Real CPR Help and See-Thru CPR technology allow the rescuer to see depth and rate of compression as well as monitor underlying ECG rhythm while performing CPR
  • Rectilinear Biphasic Waveform (RBW) was designed for external defibrillation to control for variations in patient impedance through a series of digitally-controlled internal resistors
  • Small, lightweight, grab-and-go handle simplifies portability

  • Learn more:

Contact The Manufacturer
  • MFR: Zoll
    Ships from Manufacturer
  • MPN: 30110000001010012
  • Phone: (800) 348-9011
$14,394.00 $13,513.30

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Zoll R Series ALS Defibrillator with Expansion Pack (which adds See-Thru CPR, CPR Dashboard, and Wi-Fi capability) is a sophisticated, yet easy-to-use manual unit with full networking capability, advanced monitoring parameters, and full CPR support. The Advanced Life Support Monitor/Defibrillator brings simple, smart, and ready defibrillation to hospitals.

Note: Batteries are not included. The Zoll SurePower Rechargeable Lithium Ion Battery Pack (#8019-0535-01) may be purchased separately and is compatible with R Series, E Series, and AED Pro Defibrillators.

Warranty: 5 Years - Free from Defects in Material and Workmanship.

Real CPR Help and See-Thru CPR technology allow the rescuer to see depth and rate of compression as well as monitor underlying ECG rhythm while performing CPR. See-Thru CPR reduces the duration of pauses during CPR so rescuers are able to see whether an organized underlying rhythm has developed without stopping compressions. Real CPR Help guides rescuers with text and audio feedback on CPR quality measures with numeric data based on real time depth and rate of compressions. To take advantage of Real CPR Help, use OneStep Complete, OneStep CPR, or OneStep Pediatric CPR electrodes.

The R Series Defibrillator also features Rectilinear Biphasic Waveform (RBW) that was designed for external defibrillation to control for variations in patient impedance through a series of digitally-controlled internal resistors. This feature provides the maximum average current held for the optimum duration. RBW provides more current than the typical "high energy" biphasic that other defibrillators use, and has proven to be more effective than monophasic waveforms, especially on high-impedance patients.

The R Series works with the Zoll OneStep Pacing system. With OneStep Pacing and Zoll OneStep electrodes, the need for a separate ECG cable is eliminated. The ECG electrodes are incorporated with an anterior OneStep electrode. The electrodes are triangular and incorporate a circular multi-function therapy electrode in the middle and three ECG electrodes at the ends of the triangular electrode pad shape. While the therapy portion emits a pacing pulse, the ECG electrodes acquire signals from the heart and function as the monitoring element. Electrodes for this function are sold separately.

Extensive Pediatric Capabilities: When used with OneStep Pediatric electrodes, the R Series automatically reduces the shock energy to a lower protocol, starting at 50 joules rather than 120. And when it is in Advisory mode, the OneStep Pediatric electrodes enable a pediatric algorithm that can distinguish between a shockable and non-shockable rhythm. The unique OneStep Pediatric CPR electrodes also provide visual feedback by displaying the rate and depth of every compression on the CPR dashboard. These electrodes are specifically designed to ensure precise CPR measurements in small children.

Features

Zoll R Series ALS Defibrillator with Expansion Pack Features

  • See-Thru CPR filter and compression index.
  • CPR Dashboard featuring Real CPR Help: Guides rescuers with real-time audio and visual feedback on CPR quality measures. It provides numeric displays of depth and rate and visual indicators of compression release, as well as a unique Perfusion Performance Indicator.
  • OneStep Electrode Technology.
  • ECG 3/5-lead cable with AHA markings.
  • OneStep system with CPR cable.
  • Code Readiness Testing System: The R Series conducts a comprehensive self-test of more than 110 individual indicators of readiness (including the status of necessary connection cables, battery power, and electrodes) once a day. Using standard wireless technology, it can automatically relay this information to Defibrillator Dashboard, which provides a quick snapshot of the overall health of the entire defibrillator fleet that can be viewed on a PC or mobile device. Defibrillator Dashboard optimizes defibrillator readiness and increases efficiency for the biomedical engineering team.
  • Defibrillator mentor familiarization aid.
  • Advisory defibrillation.
  • Built-in test, compact flash card, and USB port.
  • WiFi (802.11) compatible (required modem).
  • Color LCD display.
  • Power Source: AC or battery operated.

Specifications

Zoll R Series ALS Defibrillator with Expansion Pack Specifications

  • Power: 120 VAC / 60 Hz (integrated).
  • Energy Output: 1 to 200 Joules.
  • Charge Time: Less than 7 seconds with a new, fully charged battery (first 15 charges to 200 joules).
  • Weight: 13.6 lb (6.2 kg) with OneStep Cable and SurePower battery pack; 15.2 lb (6.9 kg) with paddles.
  • Dimensions: 12.5" (D) x 10.5" (W) x 8.2" (H) (31.7 cm x 26.7 cm x 20.8 cm).
  • Shipping Weight: 22 lb.
  • Shipping Dimensions: 18" x 15" x 12".

Configurations

Zoll R Series ALS Defibrillator with Expansion Pack Configurations

Note: OneStep Pacing is recommended.

  • #30110000001010012: Standard (No OneStep Pacing, SpO2, NIBP, or EtCO2).
  • #30110001001010012: With SpO2.
  • #30110003101010012: With SpO2 and EtCO2 (mainstream).
  • #30110005201210012: With SpO2, NIBP, and EtCO2 (mainstream).
  • #30120000001110012: With OneStep Pacing.
  • #30120001001110012: With OneStep Pacing and SpO2.
  • #30120003101110012: With OneStep Pacing, SpO2 and EtCO2 (mainstream).

Optional Advanced Monitoring Parameters:

  • Pulse Oximetry (SpO2): Provides fast and accurate means of continuous and non-invasive monitoring of patients who are at risk for developing hypoxemia with Masimo's unique SET signal processing algorithm. SpO2 possesses adult, pediatric, and neonatal capabilities, and monitors both ECG rate and pulse rate when pacing. It includes a reusable adult sensor and 4 foot extension cable.
  • End-Tidal (EtCO2) Mainstream Technology: Provides continuous end-tidal CO2 monitoring and diagnostic information. It includes a CAPNOSTAT 5 Mainstream CO2 sensor (*airway adapter not included). For use with adult, pediatric, and neonatal patients.
  • Non-Invasive Blood Pressure (NIBP): Includes a 23 to 33 cm reusable cuff and 3 meter air hose. NIBP is for use with adult, pediatric, and neonatal patients. It utilizes SunTech Medical Advantage R-wave motion-tolerant (RMT) technology. Perform single or multiple measurements at user-programmable intervals.

Frequently asked questions

Is the R Series Defibrillator highly portable?

Yes, the Zoll R Series is designed for portability and rapid deployment in acute hospital settings. It features a compact, lightweight, and ruggedized form factor with an integrated grab-and-go handle.

For quick reference, the unit’s key physical specifications are:

  • Weight: 13.6 lb (6.2 kg) (includes SurePower battery and OneStep Cable)
  • Dimensions (H x W x D): 8.2 in x 10.5 in x 12.5 in
How quickly does the Zoll R Series ALS Defibrillator charge?

The Zoll R Series ALS Defibrillator is designed for rapid response, achieving maximum output quickly. It charges to 200 Joules in less than 7 seconds.

This specification is based on the use of a new, fully charged battery for the first 15 charges.

Does the Zoll R Series ALS Defibrillator provide real-time CPR feedback?

Yes, it features Real CPR Help and See-Thru CPR technology, providing real-time audio and visual feedback to guide rescuers in optimizing CPR quality.

Does the Code Readiness Testing System perform daily readiness checks?

Yes, the Zoll R Series ALS Defibrillator utilizes the Code Readiness Testing System to ensure the device is always fully operational for critical events. The system is designed to perform a comprehensive, automated self-test every day.

Key features and benefits of this system include:

  • Extensive Daily Self-Test: The system checks over 110 internal indicators daily to verify full device readiness.
  • Automated Reporting: Readiness data is automatically relayed via the integrated Wi-Fi capability (modem required) to the Defibrillator Dashboard.
  • Optimized Fleet Management: This automated reporting system streamlines documentation and allows hospital staff to efficiently manage and monitor the health status of multiple devices.
What advanced monitoring options are available?

The Zoll R Series ALS Defibrillator provides core monitoring features and is configurable for advanced patient assessment.

Core Monitoring and CPR Support

The base unit includes ECG monitoring (3/5-lead cable) and compatibility with the OneStep Pacing system. It also features advanced CPR support with the Expansion Pack:

  • Real CPR Help: Provides real-time audio/visual guidance on compression depth and rate via the CPR Dashboard.
  • See-Thru CPR: This filter allows you to monitor the underlying ECG rhythm during chest compressions, minimizing pauses.

Optional Advanced Monitoring Parameters

The R Series can be configured to add modules for comprehensive physiological monitoring:

  • Pulse Oximetry (SpO2)
  • End-Tidal CO2 (EtCO2) using Mainstream Technology
  • Non-Invasive Blood Pressure (NIBP)
Is this defibrillator suitable for pediatric patients?

Yes, the Zoll R Series ALS Defibrillator is suitable for pediatric patients. It automatically reduces shock energy to a lower protocol when used with OneStep Pediatric electrodes, ensuring appropriate treatment for younger patients.

What components are included with the defibrillator?

The base configuration of the factory-new Zoll R Series ALS Defibrillator with Expansion Pack includes the core unit and essential cables for advanced life support operation, such as:

  • Main Zoll R Series ALS Defibrillator Unit: This includes the integrated Expansion Pack features (e.g., See-Thru CPR, CPR Dashboard, and Wi-Fi capability).
  • ECG 3/5-lead cable: A cable marked with AHA standards for detailed ECG monitoring.
  • OneStep System with CPR Cable: This cable enables the use of the OneStep pacing system and is necessary for utilizing the real-time feedback of the CPR Dashboard.

Important Note: The required SurePower Rechargeable Lithium Ion Battery Pack is not included and must be purchased separately. Advanced monitoring options (SpO2, NIBP, EtCO2) are also excluded unless specifically configured.

Does the R Series ALS Defibrillator feature Wi-Fi networking?

Yes, the Zoll R Series ALS Defibrillator includes advanced Wi-Fi networking capability (802.11 compatible) as part of the Expansion Pack features. This is vital for efficient fleet management and data handling in a hospital environment.

Key functions supported by this connectivity include:

  • Code Readiness Reporting: The device automatically runs comprehensive daily self-tests and wirelessly relays the health status to the Defibrillator Dashboard for fleet management.
  • Data Transfer: Facilitates the wireless transfer of critical patient event logs and data.

Please note: To enable full Wi-Fi functionality, a separate compatible modem is required.

Does the OneStep system simplify ECG setup?

Yes, the Zoll R Series is designed for streamlined setup using the OneStep Pacing system.

This innovative system eliminates the need for a separate ECG cable by integrating the monitoring electrodes directly into the therapy pad. This significantly simplifies the setup process, enabling faster patient readiness for pacing, monitoring, or defibrillation.

The base configuration of this defibrillator includes the necessary OneStep system with a CPR cable to support this functionality.

What is the energy output range of this defibrillator?

The energy output ranges from 1 to 200 Joules.
