- Condition: Certified Refurbished
- Warranty: 90 Days
- Weight: 1.45 lb
- Offers both EEG and Type II Sleep recording with HD video
- Provides extended recording, with storage capacity for up to 96 hours of data
- 24 AC channels, four differential channels, and four DC channels plus oximetry data
- Durable and comfortable
-
Learn more:
- MFR: Xltek Ships from MFI Medical
- Phone: (800) 356-0007
Frequently asked questions
Does the Trex HD offer multi-modality recording versatility?
Yes, the Xltek Trex HD is highly versatile, supporting multi-modality recording ideal for comprehensive studies conducted outside of a traditional clinical setting. It efficiently captures and stores up to 96 hours of data.
The Trex HD is capable of recording multiple data types simultaneously:
- EEG Recordings: Standard Electroencephalography.
- Type II Sleep Studies: Comprehensive ambulatory sleep monitoring.
- Oximetry (SpO2): Integrated capability for collecting blood oxygen saturation data.
The system utilizes a robust 32-channel amplifier (featuring 24 referential, 4 differential, and 4 DC channels) to ensure detailed and accurate data acquisition. An optional configuration is also available that includes wirelessly synchronized HD ambulatory video.
Does the Trex HD system support 32 channels?
Yes, the Xltek Trex HD Ambulatory EEG system features a comprehensive 32-channel amplifier designed for detailed, multi-modality recording, including both EEG and Type II Sleep studies.
These channels are precisely configured to capture a full range of physiological data:
- 24 Referential Channels: Used for standard EEG acquisition.
- 4 Differential (Bipolar) Channels
- 4 DC Channels
Additionally, the system incorporates integrated support for SpO2 Oximetry data collection, ensuring thorough physiological monitoring during ambulatory sessions.
Can the Trex HD support long recordings?
Yes, the Xltek Trex HD is designed for reliable, long-duration ambulatory monitoring suitable for capturing neurological or sleep events over several days. The system offers flexible power options and substantial data capacity:
- Data Storage Capacity: The recorder can store up to 96 hours of continuous EEG data.
- Standard Operation: The core unit operates using just two standard AA batteries for extended recording.
- External Battery Pack: An optional external battery pack is available for recordings up to an additional 72 hours.
What core items are included with the Trex HD?
The Certified Refurbished Xltek Trex HD Ambulatory EEG package includes the essential components needed for data acquisition and transfer:

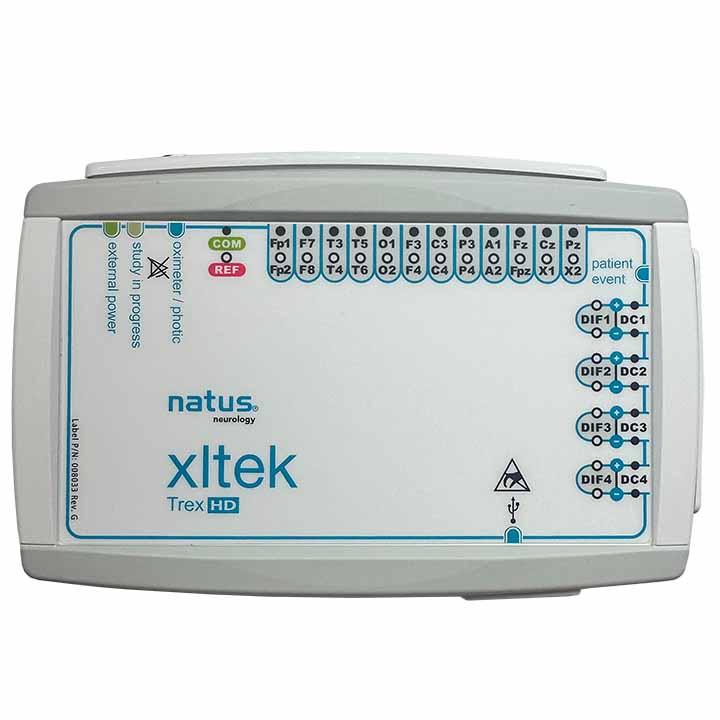

- Trex Amplifier: This is the compact, 32-channel unit capable of capturing high-quality EEG and Type II Sleep recordings.
- Mini-USB Cable: This cable facilitates connectivity to a PC for rapid data transfer, allowing you to upload 24 hours of EEG data in under five minutes.
Please note: Compatible accessories and essential supplies required for full operation, such as the computer, recording cart, electrodes, and conductive paste, are sold separately.
Does this system support HD video?
Yes, the Xltek Trex HD Ambulatory EEG supports HD video recording when you select the “With Video” configuration variant.
This optional feature significantly enhances diagnostic capabilities in an ambulatory setting by providing crucial visual context for recorded events:
- Wireless Synchronization: The HD video is wirelessly synchronized with the EEG and Type II Sleep data, ensuring precise correlation between physical events and neurological activity.
- Optimized Mobility: The system records HD video independently, meaning a connected computer is not required during the ambulatory study, allowing for greater patient comfort and mobility.
- Comprehensive Study: This configuration allows for a robust, multi-modality study by consolidating high-quality EEG, Type II Sleep, and visual event data.
Is the Trex HD ideal for ambulatory home use?
The Xltek Trex HD is specifically engineered for dependable ambulatory monitoring in the patient’s home or non-clinical environments. Its features prioritize patient independence and extended recording capacity:
- Extended Duration: It can store up to 96 hours of continuous data. It is powered by two standard AA batteries, with an optional external battery pack supporting up to 72-hour recordings.
- Computer-Free Use: The amplifier operates independently for ambulatory recordings and is not tethered to a computer during monitoring.
- Versatile Recording: Supports both EEG and Type II Sleep studies (including SpO2 oximetry capability).
- Simple Control: Features patient-controlled start and stop functionality for ease of use.
Does the system offer flexible power options?
Yes, the Xltek Trex HD is designed for reliable portability with flexible power configurations:
- Standard Usage: Operates efficiently on two standard AA batteries for routine ambulatory sessions.
- Extended Sessions: An external battery pack is available, which enables continuous recording capability for up to 72 hours.
What is the highest available sampling frequency?
The Xltek Trex HD Ambulatory EEG supports a configurable sampling frequency of up to 512 Hz. This high rate helps ensure dependable signal quality during extended monitoring periods.
Does it feature patient start/stop control?
Yes, the Xltek Trex HD features patient-controlled start and stop functionality. This is a crucial design element that gives the user control over their recording session, which helps maximize reliability and ensures important events are captured during extended, home-based ambulatory studies.
Does the Trex HD offer rapid data transfer?
Yes, the Xltek Trex HD is engineered for highly efficient clinical workflows, featuring rapid data transfer capabilities.
- Transfer Speed: The system is capable of uploading 24 hours of recorded EEG data in under five minutes.
- Method: This process uses a high-speed connection via the included mini-USB cable, connecting the Trex amplifier directly to a PC.
This speed ensures patient data is quickly available for review and analysis.
