Xltek Connex EEG & Sleep System

Xltek Connex EEG & Sleep System
Key Features
  • SKU: MFI-XLT-CONNEX-EEG-PSG
  • Condition: Certified Refurbished
  • Warranty: 90 Days
  • Weight: 10.0 lb
  • Suitable for a wide variety of environments including EMU, ICU, EEG, and sleep labs
  • Amplifier is small and lightweight enough to be worn by the patient
  • Ultra low noise amplifier with superb signal quality
  • Inputs for ECG, EMG, SpO2, and more

  • Learn more:

Contact The Manufacturer
  • MFR: Xltek Ships from MFI Medical
  • Phone: (800) 356-0007
$733.71

+Free Shipping*

Only 6 In Stock

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

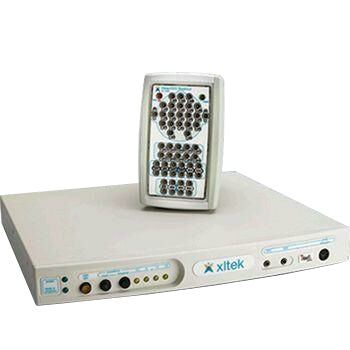

The Xltek Connex EEG & Sleep System includes a 32 channel amplifier, Connex amplifier/head box, communication module, amplifier communication cable, and a computer communication cable.

Note: Cart and computer sold separate.

Warranty: 90 Days - Parts and Labor.

The Connex EEG & Sleep System combines ease of use with advanced performance. Xltek's renowned networking software allows a whole departmental system to be configured exactly to your needs.

The Xltek family of EEG/PSG solutions provides the leading-edge features you want in critical care applications with the intuitive, user-friendly interface you need for productive day-to-day workflow. Xltek is one of the most trusted names in Neurology equipment, with doctors choosing it 2 to 1 to any other brand.

The Connex Amplifier System combines elegant design with rugged durability; its features include 32 AC channels, 6 differential channels, 10 DC channels and built-in Masimo pulse/oximetry. Four of the DC channels and LED illuminated inputs are conveniently located on the intuitively labeled breakout box. The base unit fits unobtrusively on a nightstand in the patient room and allows electrode impedance to be checked at the bedside.

Features

Xltek Connex EEG & Sleep System Features

  • Suitable for a wide variety of environments including EMU, ICU, EEG, and sleep labs.
  • Amplifier is small and lightweight enough to be worn by the patient.
  • Built-in pulse oximeter.
  • Patient-event-switch interface and a photic-stimulator interface are standard to allow for complete EEG functionality.
  • Ultra low noise amplifier with superb signal quality.
  • Color-coded, touch proof electrode for quick error-free connectivity.
  • Ethernet connectivity for utilizing existing hospital network.
  • Remote impedance check.
  • Inputs for ECG, EMG, SpO2, and more.

Specifications

Xltek Connex EEG & Sleep System Specifications

  • Weight:
    • Main Unit: 1.8 lb.
    • Breakout Box: 1.3 lb.
  • VAC: 110/220.
  • Dimensions:
    • Main Unit: 30.5" x 33" x 4.3" (12 cm x 13 cm x 1.7 cm).
    • Breakout Box: 15.5" x 9.5" x 2.5" (6.1 cm x 3.8 cm x 1 cm).
  • Interface Protocol Output: TCP/IP, USB 2.0.
  • Preamplifier Input Impedance: ≥ 50.
  • Electrode Impedance Check: Automatic/manual.

Accessories

Xltek Connex EEG & Sleep System Accessories

The following accessories are compatible and commonly purchased with the Connex EEG & Sleep System:

  • Xltek Neuroworks Computer:
    • #MFI-XLT-XLTEK-LPTP: Laptop.
    • #MFI-XLT-XLTEK-DESK: Desktop.
    • #MFI-XLT-EMU128-DESK: Desktop with Communication Card.
  • PSG- and LTM-only Supplies:
    • #1200: SleepSense Dynamic Snore Sensor.
    • #1450-Kit: SleepSense Thermistor Flow Sensor Kit.
    • #1770-Kit: SleepSense Limb Movement Sensor Kit - One Sensor.
    • #9010-Kit: SleepSense Reusable Inductive System - Adult Kit.
    • #8110-T100A300: SleepSense Adult Soft-Tip SpO2 Sensor - Nonin Compatible - 300 cm.
    • SleepSense Adult Nasal Pressure Monitoring Cannula.
  • EEG, LTM, and PSG Supplies:
    • 3M Transpore Surgical Tape.
    • Dynarex Stretch Gauze Bandage.
    • Technomed Reusable EEG Cup Electrode.
    • Weaver Nuprep Skin Prep.
    • Weaver Ten20 Conductive Paste.

Frequently asked questions

What are the dimensions of the main unit and breakout box?

The dimensions for the primary components of the Xltek Connex system are provided below:

  • Main Unit (Amplifier): 30.5” x 33” x 4.3” (12 cm x 13 cm x 1.7 cm)
  • Breakout Box: 15.5” x 9.5” x 2.5” (6.1 cm x 3.8 cm x 1 cm)
How does the Xltek Connex EEG & Sleep System ensure easy electrode connectivity?

The Xltek Connex EEG & Sleep System features color-coded, touch-proof electrodes for quick and error-free connectivity. This design simplifies setup and reduces the risk of errors.

In which environments can the Xltek Connex EEG & Sleep System be used?

The Xltek Connex EEG & Sleep System is versatile and can be used in various environments, including:

  • EMU (Epilepsy Monitoring Unit)
  • ICU (Intensive Care Unit)
  • EEG (Electroencephalography) labs
  • Sleep labs
What components are included with the Connex EEG System?

The Xltek Connex EEG & Sleep System comes with the core hardware required for neurological monitoring studies, which includes:

  • 32-channel amplifier
  • Connex amplifier/head box
  • Communication module
  • Amplifier communication cable
  • Computer communication cable

This package provides the essential elements of the Certified Refurbished system.

Does it feature a comprehensive, high-channel configuration?

Yes, the Xltek Connex EEG & Sleep System is engineered for high-performance data acquisition, featuring a robust configuration of 48 total input channels to support detailed neurological and sleep studies. This system utilizes an ultra-low noise amplifier to ensure high-fidelity signal quality across clinical environments, including ICUs, EMUs, and sleep labs.

The system’s channel architecture is organized as follows:

  • 32 AC Channels: Dedicated to routine EEG and primary physiological data acquisition.
  • 6 Differential Channels: Used for specialized signal inputs.
  • 10 DC Channels: Dedicated to auxiliary physiological monitoring.

Key features that enhance this diagnostic capability include integrated Masimo pulse oximetry (SpO2) and a user-friendly breakout box with LED-illuminated, color-coded, touch-proof inputs for quick and accurate setup. Additionally, the system supports both manual and automatic remote impedance checks to ensure signal integrity throughout your diagnostic sessions.

What connectivity options are available?

The Xltek Connex EEG & Sleep System offers robust connectivity for seamless integration into clinical environments:

  • Network Integration: It utilizes Ethernet connectivity (integrating with existing hospital networks) and supports the TCP/IP protocol, allowing for efficient networked performance and remote impedance checking.
  • Local Data Transfer: A USB 2.0 port is available for interfacing.
  • Standard Inputs: The system also includes standard patient-event-switch and photic-stimulator interfaces.
Does the Xltek Connex EEG & Sleep System have a built-in pulse oximeter?

The Xltek Connex EEG & Sleep System features a built-in Masimo pulse oximeter for accurate SpO2 monitoring.

Are patient event and photic stimulator interfaces included?

Yes, both a patient-event-switch interface and a photic-stimulator interface are included as standard features with the Xltek Connex EEG & Sleep System.

These interfaces ensure comprehensive data acquisition and diagnostic capabilities:

  • The patient-event-switch interface allows the patient or clinician to precisely mark specific occurrences or symptoms during monitoring.
  • The photic-stimulator interface supports standardized visual stimulation testing, which is a critical component of neurological assessment.
Does it provide superior signal quality?

The Xltek Connex EEG & Sleep System features an ultra-low noise amplifier to ensure excellent signal clarity and superior signal quality for accurate data collection.

Is the amplifier lightweight for patient wear?

Yes, the Xltek Connex system is specifically designed for portability, allowing the main amplifier unit to be comfortably worn by the patient.

This lightweight design facilitates continuous or ambulatory monitoring in settings like the EMU or ICU, ensuring comfort without compromising the superior signal quality from the ultra low noise amplifier.

The system’s key wearable components have the following weights:

  • Main Amplifier Unit: 1.8 lb
  • Breakout Box: 1.3 lb
