Condition:
Factory New
-
Country of Origin: USA
-
Warranty:
- Weight: 425.0 lb
- Low to the floor cushioned deck for patient comfort and safety
- Accurate self-calibrating speed and elevation
- Prominent emergency stop button
-
Learn more:
-
Purchasing Restriction: Medical license or prescription required
-
MFR:
Welch Allyn
Ships from Manufacturer
-
MPN: 9922-018-52
- Phone: (800) 535-6663
+Shipping
Shop with Confidence
Sales Tax Exemption
+Dedicated Account Managers
Frequently asked questions
What is the maximum patient weight capacity?

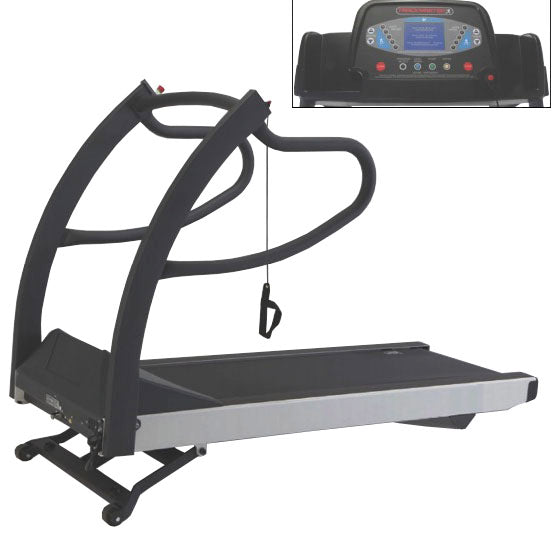

The Welch Allyn TMX428CP Full Vision Trackmaster Treadmill is engineered with a heavy-duty frame and high-torque drive system to ensure patient safety and stability.The maximum patient weight capacity is 500 lb (227 kg).This robust limit is supported by several key specifications, including:
- A powerful 6-peak HP brushless, DC servo motor.
- An extra-wide 22” running surface.
- A low-to-the-floor cushioned deck for comfort.
What powerful heavy-duty motor is used?
The Welch Allyn TMX428CP utilizes a smooth, quiet, zero-start, high-torque drive system specifically engineered for reliable clinical stress testing.
Key specifications for this high-performance motor include:
- Motor Type: Heavy-duty brushless, DC servo motor.
- Power Output: Delivers 4 HP continuous power, capable of reaching a 6 HP peak.
- Speed Range: Supports speeds from 0.5 to 12 MPH (0.80 to 19.3 KPH).
- Incline Range: Operates across a gradient of 0 to 25%.
- Accuracy: Both speed and elevation features are self-calibrating, ensuring exceptional measurement accuracy throughout the test.
What power supply options are available?
The Welch Allyn TMX428CP utilizes a heavy-duty 6-peak HP DC servo motor and requires a dedicated power supply. You must select one of the following configurations when placing your order:
- Standard Configuration: 110 - 120 VAC, 1-phase, 60 Hz, 20-amp
- Optional Configuration: 220 - 240 VAC, 1-phase, 50 - 60 Hz, 15-amp
Is speed and incline control precise?
Yes, the TMX428CP is specifically engineered for exceptional measurement accuracy necessary for clinical stress testing. Both the speed and elevation controls are self-calibrating to ensure precise and consistent operation.
Key details on the precise control ranges and increments are:
- Speed Control:
- Range: 0.5 to 12 MPH (0.80 to 19.3 KPH).
- Increments: Adjustable in fine 0.1 MPH steps.
- Incline Control:
- Range: 0 to 25% maximum incline.
- Increments: Precise 0.5% incremental movements.
How large is the wide running surface?
The Welch Allyn TMX428CP utilizes the industry’s widest running belt, specifically engineered to enhance patient stability and confidence during stress testing.
- Running Surface Dimensions: The belt measures 22 inches wide by 63 inches long (56 cm x 160 cm).
This extra width is paired with several features prioritizing safety and comfort:
- Cushioned Deck: It features a low-to-the-floor cushioned deck for patient comfort, ensuring a low step-up height of just 7 inches (18 cm).
- Belt Tracking: The stability is reinforced by the patented MasterTrack Belt Alignment system.
- Durability: The running deck is self-lubricated and reversible, which increases its overall lifespan and reliability.
What is the step-up height of the treadmill?
The step-up height from the floor to the running surface is 7 inches (18 cm).
What connectivity ports are available?
The TMX428CP Full Vision Trackmaster Treadmill includes communication ports essential for full integration with external diagnostic systems, such as ECG and VO2 stress computers.
The available ports are:
- RS232 Female Serial port
- USB 1.0 “B” port
These connections allow the unit to operate effectively in Diagnostic Mode, although it can also function independently via its programmable manual controller.
What is the operating floor footprint?
The required operating floor footprint for the Welch Allyn TMX428CP treadmill is 33 inches wide by 78.5 inches long (84 cm x 200 cm). This measurement describes the space needed when the unit is placed on a level surface.
What is included with the TMX428CP?
The Welch Allyn TMX428CP Full Vision Trackmaster Treadmill ships complete with all necessary components for immediate clinical setup and operation. The package includes:
- The main Treadmill Test Device.
- The 22” x 63” Running Belt and integrated patient safety handrails.
- Critical safety mechanisms, including the Emergency Stop Button.
- Connectivity Cable (Cable to CPU #25004-003-52) required for interfacing the treadmill with external ECG and VO2 stress systems.
- Power supplies, including the NEMA Power Cord and a detachable US Power Cord.
- The comprehensive Operator and Service Manual.
Does the treadmill include exceptional patient safety features?
Yes, patient safety is the primary focus of the Welch Allyn TMX428CP. It is engineered with several critical features to ensure maximum security and patient confidence during stress testing:
- Patient Safety Tether: This essential feature instantly locks the belt for 45 seconds upon activation, specifically designed to eliminate freewheeling.
- Emergency Stop Button: A prominent and easily accessible button allows for immediate belt stoppage.
- Superior Running Surface: The unit boasts the industry’s widest running belt (22” x 63”) and a cushioned, low-to-the-floor deck (only 7” step-up height) to maximize user stability and comfort.
- Safety Handrails: Integrated handrails provide essential support throughout the test.
