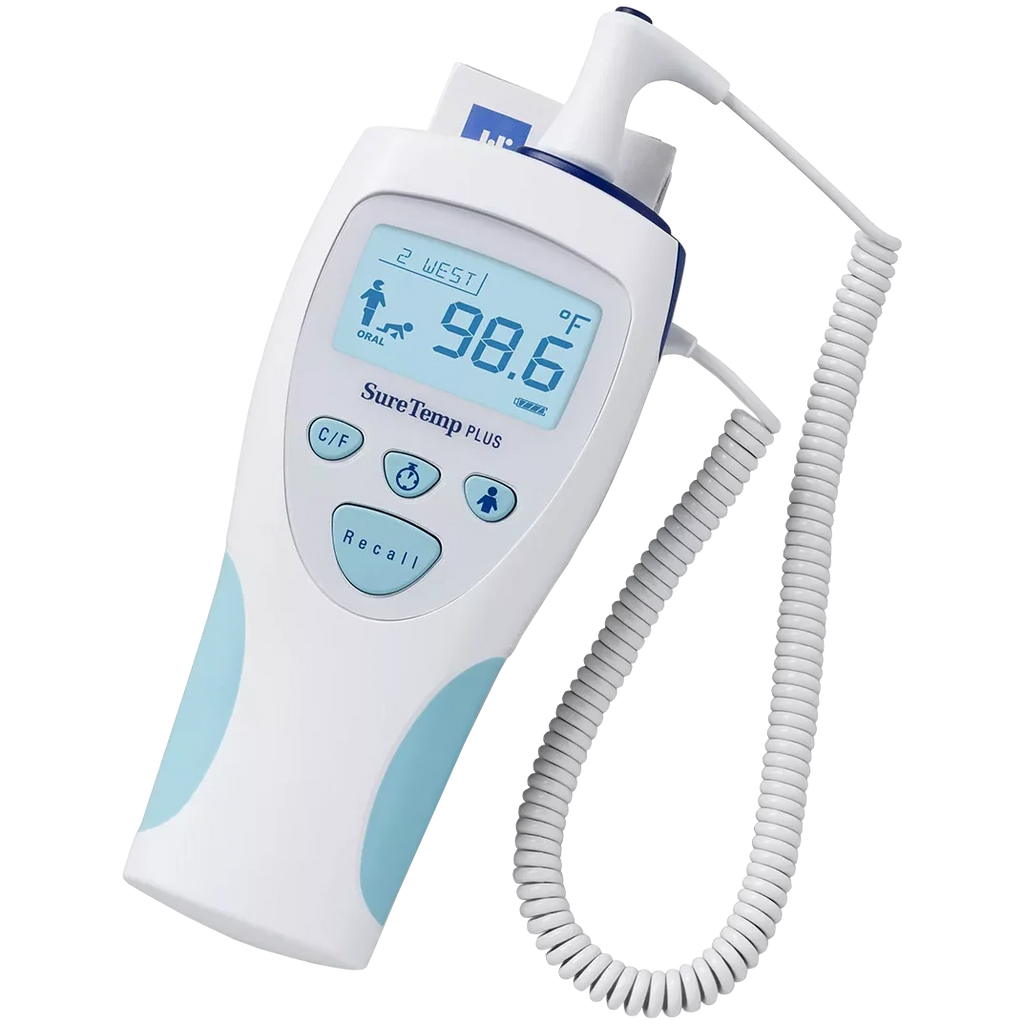

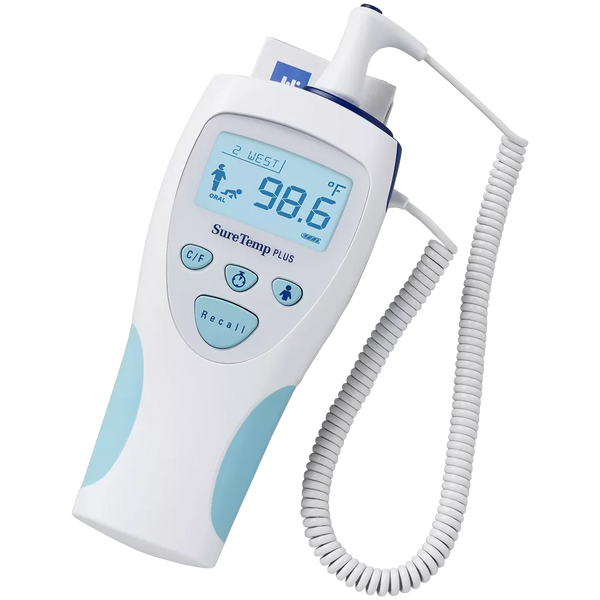

Welch Allyn SureTemp Plus 692 Thermometer

The Welch Allyn SureTemp Plus 692 Thermometer includes oral or rectal probe with cord, probe well, and wall mount

Warranty: 2 Years.

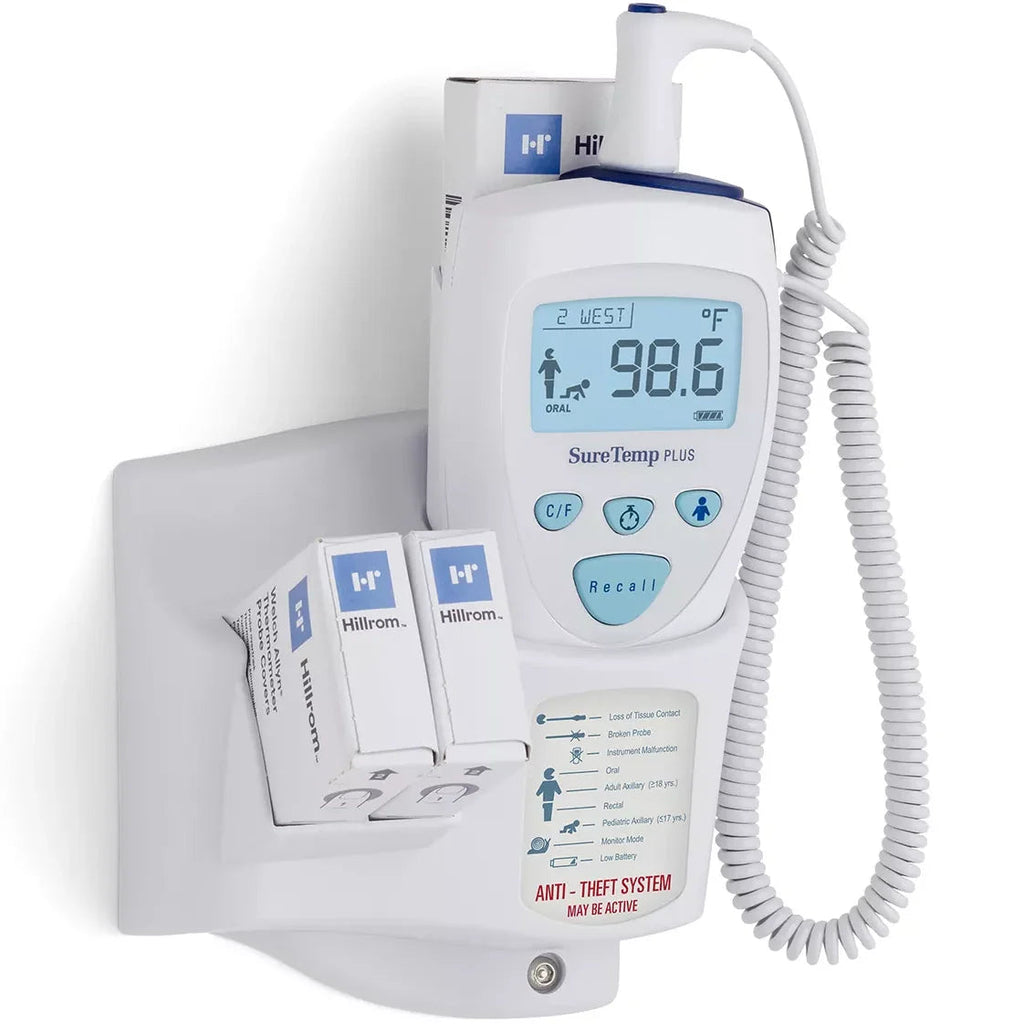

The Welch Allyn SureTemp Plus 692 Thermometer has the same advanced features of the SureTemp 690 Thermometer, but also includes a wall mounting bracket as standard, 60-second timer for counting pulses and respirations, a backlit display, configurable on-screen labeling for instrument identification and electronic security options to help prevent theft.

This advanced electronic thermometer is fast and accurate. It can be used with all of your patients, from infants to adults - whether you need to take oral, axillary, or rectal temperatures. One of the fastest thermometers on the market, the SureTemp Plus 692 provides accurate results in approximately 4 - 6 seconds oral, 10 seconds pediatric axillary, 15 second adult axillary, and 10 second rectal measurements.

Welch Allyn SureTemp Plus 692 Thermometer Features

• Quickly captures accurate readings on all patient types.
• Mechanical and electronic security options to help prevent theft or loss.
• Large backlit LCD display with location identification capability.
• Convenient storage for 25 probe covers.
• Includes a 60-second pulse timer for counting pulses and respirations.
• Takes approximately 5,000 readings on 3 AA batteries.
• Wall mount included with all configurations.
• Interchangeable, removable wells to help reduce the risk of cross-contamination.

Welch Allyn SureTemp Plus 692 Thermometer Specifications

• Shipping Dimensions: 8.2" x 4.9" x 9.6" (20.9 cm x 12.5 cm x 24.4 cm).
• Shipping Weight: 2 lb (0.9 kg).
• Calibration Accuracy: +/- 0.2 degrees F (+/- 0.1 degrees C).
• Temperature Predict Time:
  • Oral: Approx. 4 - 6 seconds.
  • Adult Axillary (18 years and older): Approx. 15 seconds.
  • Pediatric Axillary (17 years and younger): Approx. 10 seconds.
  • Rectal: Approx. 10 seconds.
• Unit Dimensions: 8.5" x 3.2" x 2.4" (2.15 cm x 0.8 cm x 0.6 cm).
• Weight: 12.6 oz (357 g).
• Ambient Temperature Range: 50 to 104 degrees F (10 to 40 degrees C).
• Patient Temperature Range: 80 to 110 degrees F (26.7 to 43.3 degrees C).
• Power Source: (3) 1.5 Vdc AA batteries.
• Battery Life: Approx. 5,000 temperatures.

Welch Allyn SureTemp Plus 692 Thermometer Configurations

• #01692-200: Wall Mount Thermometer; Interchangeable Oral Probe with Oral Probe Well; 4' (1.2 m) Cord.
• #01692-201: Wall Mount Thermometer; Interchangeable Rectal Probe with Rectal Probe Well; 4' (1.2 m) Cord.
• #01692-300: Wall Mount Thermometer; Interchangeable Oral Probe with Oral Probe Well; 9' (2.7 m) Cord.
• #01692-301: Wall Mount Thermometer; Interchangeable Rectal Probe with Rectal Probe Well; 9' (2.7 m) Cord.

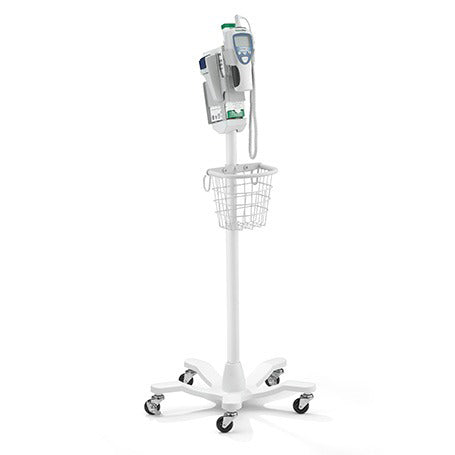

• #01692-700: Wall Mount Thermometer on Mobile Stand; Interchangeable Oral Probe with Oral Probe Well; 9' (2.7 m) Cord.

Welch Allyn SureTemp Plus 692 Thermometer Literature

Welch Allyn SureTemp Plus Operation and Technique Guide

Welch Allyn Guide for Adult Axillary Temperatures with SureTemp Plus

Welch Allyn SureTemp Plus Wall Holder User Instructions

Welch Allyn SureTemp Plus Service Manual

Welch Allyn SureTemp Plus Instructions for Use

Welch Allyn SureTemp Plus 692 Thermometer Brochure
