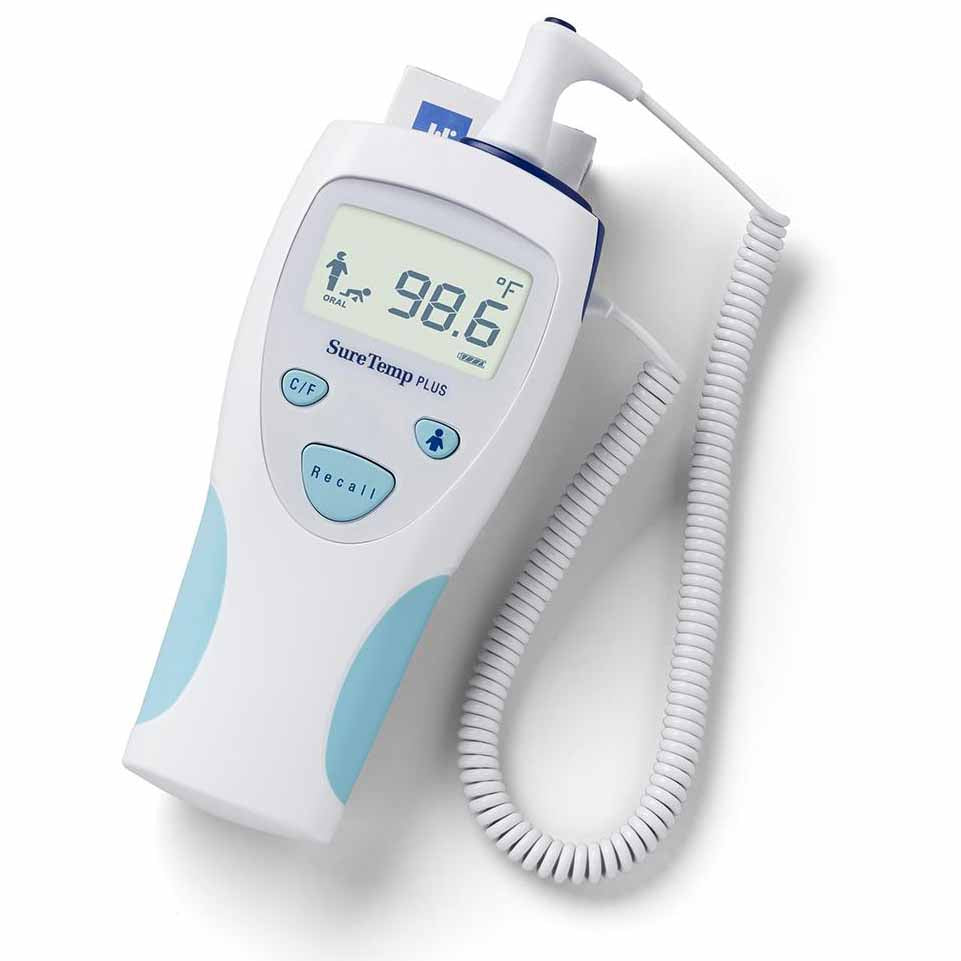

Welch Allyn SureTemp Plus 690 Thermometer

The Welch Allyn SureTemp Plus 690 Thermometer includes an oral or rectal probe with cord, probe well, and optional wall mount.

Warranty: 2 Years.

The SureTemp Plus 690 is a fast and accurate thermometer that can be used with all of your patients, from infants to adults - whether you need to take oral, axillary, or rectal temperatures.

This thermometer features an interchangeable probe well that reduces the risk of cross-contamination, increasing patient safety. The easily read LCD display has flashing icons that clearly communicate in any language, and an intuitive user interface and ergonomic shape.

One of the fastest thermometers on the market, the SureTemp Plus 690 provides accurate results in approximately 4 - 6 seconds oral, 10 seconds pediatric axillary, 15 seconds adult axillary, and 10 seconds rectal.

Welch Allyn SureTemp Plus 690 Thermometer Features

• Quickly captures accurate readings on all patient types.
• Convenient storage for 25 probe covers.
• Takes approximately 6,000 readings on three AA batteries.
• Large LCD displays temperatures in Fahrenheit or Celsius.
• Last temperature recall button.
• Interchangeable, removable wells to help reduce the risk of cross-contamination.

Welch Allyn SureTemp Plus 690 Thermometer Specifications

• Calibration Accuracy: ± 0.2 °F (± 0.1 °C).
• Temperature Predict Time:
  • Oral: Approx. 4 - 6 seconds.
  • Adult Axillary (18 years and older): Approx. 15 seconds.
  • Pediatric Axillary (17 years and younger): Approx. 10 seconds.
  • Rectal: Approx. 10 seconds.
• Dimensions: 8.5" x 3.2" x 2.4" (2.15 cm x 0.8 cm x 0.6 cm).
• Weight: 12.6 oz (357 g).
• Ambient Temperature Range: 50 to 104 °F (10 to 40 °C).
• Patient Temperature Range: 80 to 110 °F (26.7 to 43.3 °C).
• Power Source: (3x) 1.5 Vdc AA batteries.
• Battery Life: Approx. 6,000 temperatures.
• Shipping Weight: 1.5 lb (0.67 kg).
• Shipping Dimensions: 8.2" x 4.9" x 9.6" (20.9 cm x 12.5 cm x 24.4 cm).

Welch Allyn SureTemp Plus 690 Thermometer Configurations

• #01690-200: Handheld Thermometer; Interchangeable Oral Probe with Oral Probe Well; 4' (1.2 m) Cord.
• #01690-201: Handheld Thermometer; Interchangeable Rectal Probe with Rectal Probe Well; 4' (1.2 m) Cord.

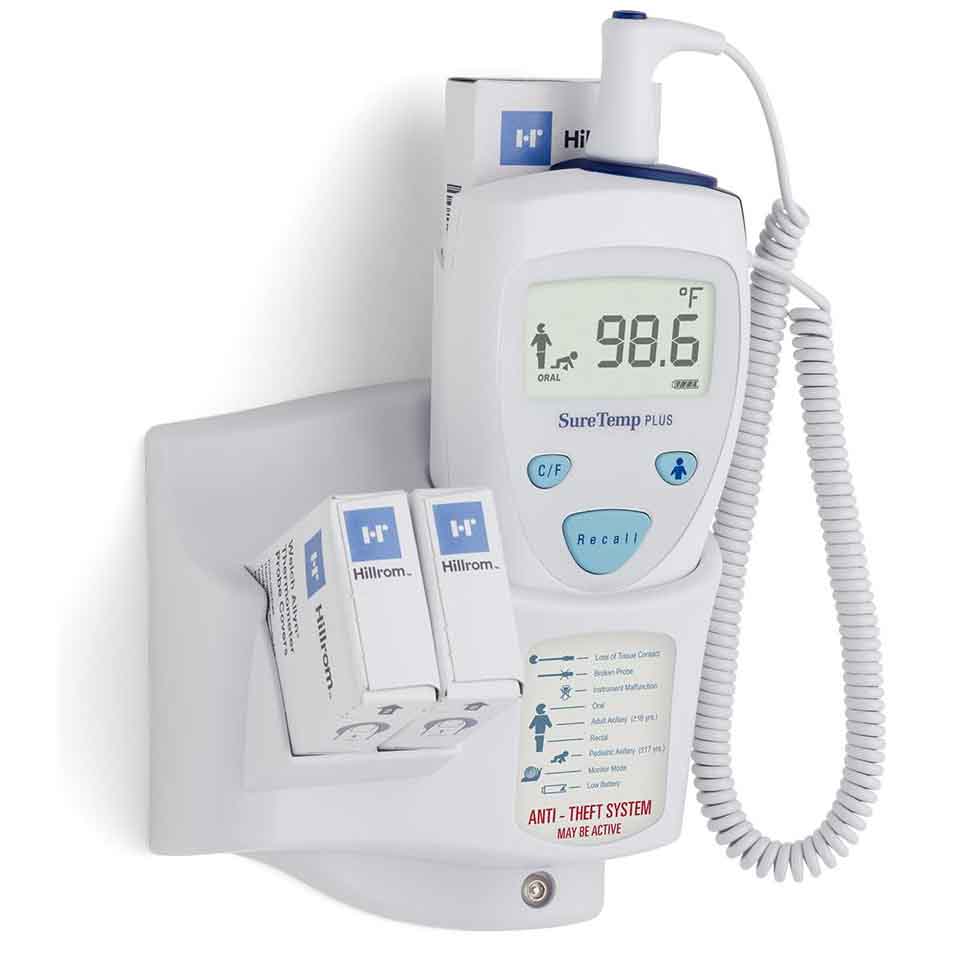

• #01690-400: Wall Mount Thermometer; Interchangeable Oral Probe with Oral Probe Well; 4' (1.2 m) Cord.
• #01690-300: Wall Mount Thermometer; Interchangeable Oral Probe with Oral Probe Well; 9' (2.7 m) Cord.
• #01690-301: Wall Mount Thermometer; Interchangeable Rectal Probe with Rectal Probe Well; 9' (2.7 m) Cord.
• #01690-700: Wall Mount Thermometer; Interchangeable Oral Probe with Oral Probe Well; 9' (2.7 m) Cord; includes Rolling Stand and Holder for Spare Probe and Well.

Welch Allyn SureTemp Plus 690 Thermometer Literature

Welch Allyn SureTemp Plus Operation and Technique Guide

Welch Allyn SureTemp Plus Wall Holder User Instructions

Welch Allyn SureTemp Plus Service Manual

Welch Allyn SureTemp Plus Instructions for Use

Welch Allyn SureTemp Plus 690 Electronic Thermometer Brochure
