Welch Allyn RetinaVue 700 Imager

Welch Allyn RetinaVue 700 Imager
Key Features
  • SKU: WLA-RV700-B
  • Condition: Factory New
  • Country of Origin: Taiwan
  • Warranty: 1 Year
  • Weight: 10.0 lb
  • Smart camera technology assesses pupil size and lens clarity to save you time
  • Automated handheld design is perfect for busy primary care clinics and mobile healthcare applications
  • Multiple connectivity options including wireless

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Welch Allyn Ships from Manufacturer
  • MPN: RV700-B
  • Phone: (800) 535-6663
$11,680.00 $8,971.33

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

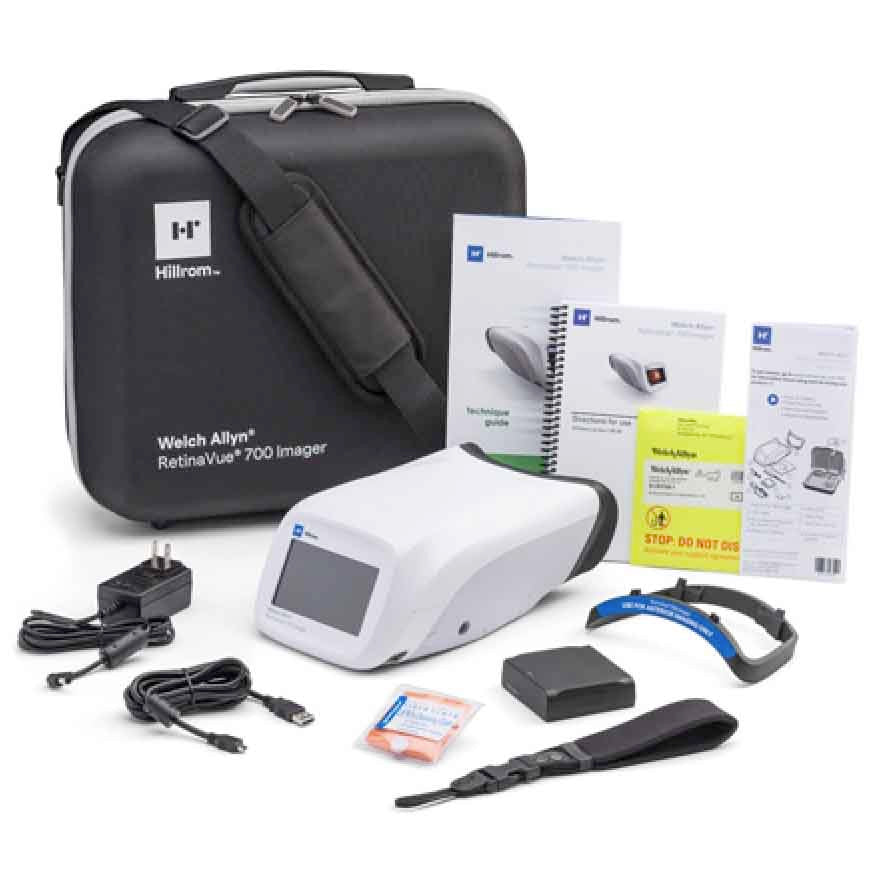

The Welch Allyn RetinaVue 700 Imager (#RV700-B) includes Hard Storage Case, Lithium-Ion Battery, and an IEC Plug Type-B.

Warranty: 1 Year.

The Welch Allyn RetinaVue 700 Imager is designed to help make retinal exams simple and affordable for primary healthcare providers. It can be used to detect diabetic retinopathy and other abnormalities of the eye. The 700 offers many automatic features, including auto-alignment, auto-focus, and auto-capture. It can communicate by EMR or WiFi, providing simple and efficient integration into your workflow.

Note: The RetinaVue 700 Imager works exclusively with HIPAA-compliant, FDA-cleared RetinaVue Network software. A RetinaVue Network software subscription is required and priced per camera, per month.

Features

Welch Allyn RetinaVue 700 Imager Features

  • 2.5 mm small pupil capability requires little to no chemical dilation.
  • Three-axis motor supports automatic alignment and automatic image capture.
  • Image-quality assessment algorithm can help reduce re-imaging appointments.
  • HIPAA/HITECH-compliant RetinaVue Network software has end-to-end data encryption.
  • Fully integrated, bi-directional interfaces with EMRs including Allscripts, Epic, athenahealth, NextGen, Cerner, and many more.
  • 60 degree wide field of view to help you see more pathology in a single image.
  • Automated handheld design is perfect for busy primary care clinics and mobile healthcare applications.
  • Smart camera technology assesses pupil size and lens clarity to save you time.
  • Multiple connectivity options including wireless.
  • Meets ISO 10940 optical standard for ophthalmic instruments.
  • RetinaVue Network software is hosted on the Microsoft Azure cloud for security and compliance.

Specifications

Welch Allyn RetinaVue 700 Imager Specifications

  • Field of View: 60 degrees (Typical).
  • Diopter Range: -20 to +12 diopter (Typical).
  • Dimensions: 11.4" x 6.6" x 4.8" (290 mm x 167 mm x 106 mm).
  • Standard Capacity Battery Weight: 2.8 lb (1270 grams).
  • High Capacity Battery Weight: 3 lb (1361 grams).
  • Preview Mode Illumination: Infrared LED.
  • Image Capture Illumination: Natural White LED.
  • Focus: Automatic and Manual focus.
  • Image Resolution: 2592 x 1944 pixels.
  • LCD Monitor: 4.3".
  • Image Format: Encrypted JPEG, DICOM.
  • Interface: Micro USB.
  • Main Power: 100 ~ 240 VAC, 50/60 Hz.
  • Power Adapter Input: 100 ~ 240 VAC, 50/60 Hz. 1.0 - 0.5 A.
  • Power Adapter Output: 12 V, 3 A.

Frequently asked questions

Does the RetinaVue 700 Imager offer a wide field of view?

Yes, the Welch Allyn RetinaVue 700 Imager provides a 60-degree field of view. This wide field of view helps you visualize more pathology within a single image, enhancing the comprehensiveness of your retinal exams.

Does the RetinaVue 700 Imager require chemical dilation for retinal exams?

No, the RetinaVue 700 Imager features a 2.5 mm small pupil capability, which often requires little to no chemical dilation, enhancing patient comfort.

What advanced connectivity options does the RetinaVue 700 Imager offer?

The RetinaVue 700 Imager provides multiple connectivity options, including wireless capabilities. It also features fully integrated, bi-directional interfaces with Electronic Medical Records (EMR) systems, ensuring seamless data management via HIPAA/HITECH-compliant RetinaVue Network software.

Does the RetinaVue 700 Imager feature automatic capture?

Yes, the RetinaVue 700 Imager is designed with automatic alignment, focus, and image capture capabilities. This feature simplifies retinal exams and helps ensure consistent image quality, reducing the need for re-imaging appointments.

What is the impressive diopter range?

The Welch Allyn RetinaVue 700 Imager offers an impressive diopter range of -20 to +12 diopters. This wide range is designed to accommodate various patient eye conditions, ensuring comprehensive retinal examinations.

What is included with the RetinaVue 700 Imager?

The Welch Allyn RetinaVue 700 Imager is designed as a complete clinical solution. Your kit includes the following items:

  • Welch Allyn RetinaVue 700 Imager (main diagnostic unit)
  • Premium Hard Storage Case for secure protection and portability
  • 3200 mAh Lithium-Ion Battery (7.2 V)
  • Power Adapter (100-240 VAC) with IEC Plug Type-B
  • Comprehensive Documentation including user guides and manuals

To ensure full functionality, please note that this device requires an active subscription to the RetinaVue Network software for data management and clinical integration.

Is patient data secure with the RetinaVue 700 Imager?

Yes, securing patient data and ensuring regulatory compliance are core functions of the RetinaVue 700 system. It is specifically designed for secure integration into clinical workflows.

Security and compliance features include:

  • Required Secure Software: The device operates exclusively with the HIPAA/HITECH-compliant, FDA-cleared RetinaVue Network software subscription.
  • Data Protection: The system features end-to-end data encryption. The software is securely hosted on the Microsoft Azure cloud.
  • Image Format: Captured images are saved in protected, high-resolution formats, specifically Encrypted JPEG and DICOM.
  • Workflow Integration: It supports robust, secure integration (via EMR or WiFi) with major Electronic Medical Record (EMR) platforms such as Epic, Cerner, Allscripts, and athenahealth.
What is the impressive image resolution of the RetinaVue 700 Imager?

The Welch Allyn RetinaVue 700 Imager captures high-quality images with an impressive resolution of 2592 x 1944 pixels. This detailed resolution helps healthcare providers accurately assess retinal health.

How does the RetinaVue 700 Imager streamline clinical workflow?

The Welch Allyn RetinaVue 700 Imager is engineered for high efficiency in primary care and mobile healthcare settings, utilizing several features to streamline your workflow:

  • Fully Automated Operation: The device incorporates a three-axis motor system enabling auto-alignment, auto-focus, and auto-capture. This automation significantly reduces the time required for examinations and minimizes user variability.
  • Small Pupil Capability: It is capable of imaging through pupils as small as 2.5 mm, which often eliminates the need for time-consuming chemical dilation (non-mydriatic screening), thus improving patient throughput.
  • Robust EMR Integration: The imager provides strong connectivity (WiFi, Micro USB) and seamless, bi-directional interfaces with major EMR systems, including Epic, Cerner, Allscripts, and athenahealth, ensuring efficient data transfer.
  • Image Quality Assurance: An integrated image-quality assessment algorithm helps clinicians ensure successful image capture on the first attempt, reducing the need for repeat patient visits.
  • Secure Data Management: All imaging data is securely processed via the required, HIPAA-compliant RetinaVue Network software, ensuring encrypted, immediate, and compliant data handling.
Does the RetinaVue 700 Imager require a software subscription?

Yes, operation of the Welch Allyn RetinaVue 700 Imager requires a subscription to the HIPAA-compliant, FDA-cleared RetinaVue Network software. This software is priced per camera, per month, and is securely hosted on the Microsoft Azure cloud, ensuring end-to-end data encryption.
