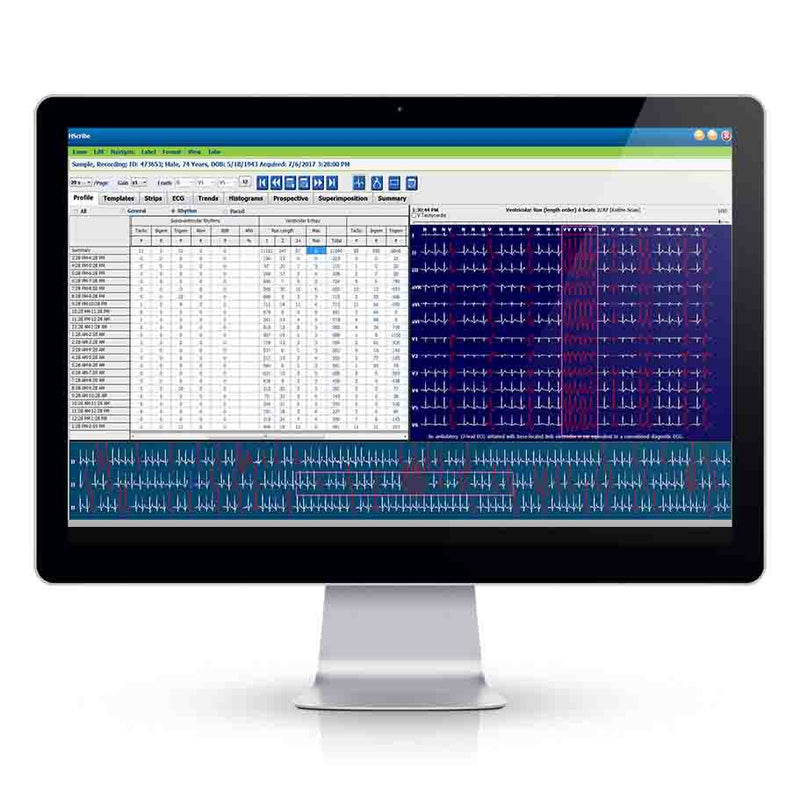

Welch Allyn HScribe Holter Analysis System

Yes, the Welch Allyn HScribe system is designed for continuous 12-lead Holter analysis and provides flexible data export crucial for clinical research and workflow integration.

Key export capabilities include:

• FDA-Required XML: The system supports exporting ECG waveform data in the FDA-required XML format for selected time points.
• 12-Lead Data: It can specifically export 10-second, 12-lead ECG data for integration and further analysis by compatible systems, such as the E-Scribe system.
• General Formats: Data can also be exported in standard formats like PDF and DICOM (with optional gateway support) for centralized reporting and hospital network integration.

Yes, the Welch Allyn HScribe system fully supports a remote workflow, allowing for efficient, decentralized data acquisition and analysis. This capability streamlines operations by:

• Eliminating Physical Presence: The patient or Holter recorder does not need to be physically present at the analysis site for the processing to occur.
• Secure Data Transfer: Recordings can be securely transferred over standard internet or intranet connections to the centralized analysis system.
• Centralized Management: The system maintains a centralized database of patient demographics and reports, enabling quick searches and efficient workflow across multiple networked workstations for simultaneous acquisition, review, and reporting.

Yes, the Welch Allyn HScribe System is engineered for robust interoperability within networked clinical environments, supporting industry-standard protocols to streamline data exchange and patient workflow.

Key integration features include:

• DICOM Connectivity: The system provides bidirectional DICOM (Digital Imaging and Communications in Medicine) support. This allows for the exchange of ECG data and reports, and utilizes the DICOM Modality Worklist for retrieving Holter test orders.
• HL7 Exchange: HL7 (Health Level Seven International) support for input and export of patient/study information is available through an optional Mortara HL7 Gateway.
• Data Export Formats: ECG data and reports can be exported in multiple formats for compatibility, including DICOM, PDF, and FDA-required XML.

This high level of connectivity allows the system to efficiently share results and manage centralized patient demographics across networked locations.

Yes, the Welch Allyn HScribe Holter Analysis System features a centralized core database designed for comprehensive data management and workflow efficiency.

This central repository provides several key benefits:

• Centralized Storage: It stores and manages all patient demographics and final Holter reports.
• Shared Access: Multiple networked workstations can acquire, review, and generate reports using this shared database.
• Rapid Retrieval: It facilitates quick searching for specific patient information or records.
• Regulatory Compliance: It supports necessary regulatory features, including audit trails, electronic signature capabilities, and password-protected user permissions.

The Welch Allyn HScribe system has distinct minimum operating system requirements for the analysis workstation and the central database server.

Analysis Workstation Minimum OS

The workstation must be running one of the following Professional/Pro versions:

• Microsoft Windows 7 Professional (32-bit or 64-bit)
• Microsoft Windows 8.1 Professional (64-bit)
• Microsoft Windows 10 Pro (64-bit)

Central Server Minimum OS

For the centralized database, the server requires a 64-bit operating system:

• Microsoft Windows 2008 Server R2
• Microsoft Windows 2012 Server R2

The Welch Allyn HScribe Holter Analysis System base package includes the necessary media and interfacing hardware to install the software and begin data acquisition.

Included components are:

• Current Software CD: Contains the HScribe analysis software (Version 6).
• User Manual CD
• CF Card Reader: Essential hardware for importing pre-recorded ECG data from compatible Holter recorders.
• H3+ USB Interface Cable
• US Power Cord

Note that optional peripherals, such as a monitor or printer, are only included if you select a specific, higher-level system configuration variant.

The HScribe Holter Analysis System is available in four main configurations, allowing facilities to tailor the software and integrated hardware components to specific clinical needs. All versions include the core Version 6 software with continuous 12-lead Holter analysis and comprehensive adult and pediatric arrhythmia analysis.

Available configurations include:

• Software Only: Provides the foundational platform for comprehensive Holter ECG data analysis, review, reporting, and storage.
• Software with Report Export, XML Orders: Adds capability for report exportation and integration to accept orders via external Mortara XML files (a requirement for HL7 interface).
• Software with DICOM, Monitor: Includes the software platform, the bidirectional DICOM interface for advanced networking and data exchange, and a monitor component.
• Software with DICOM, Monitor, Printer: A complete configuration featuring the software with DICOM connectivity, a monitor, and a recommended printer component for streamlined report generation.

The Welch Allyn HScribe Holter Analysis System supports several industry-standard data export and connectivity formats for seamless integration and regulatory compliance:

• PDF: Primarily used for generating and distributing final comprehensive reports.
• XML: Supports the export of 10-second, 12-lead ECG data in the XML format required by the FDA for selected time points. It also accepts incoming orders via XML files saved by external systems.
• DICOM: Enables robust, bidirectional connectivity, supporting both data export and the retrieval of orders via DICOM Modality Worklist Query.

For broader workflow integration, the system also supports HL7 exchange, which can be enabled by adding the optional Mortara HL7 Gateway.

Yes, the Welch Allyn HScribe Holter Analysis System is designed with robust security and management features to ensure regulatory compliance and data integrity in clinical settings. These features are fully customizable to meet facility requirements.

Key security controls include:

• Password-Protected User Permissions: Controls access to the application and its settings.
• Audit Trails: Maintains detailed logs of user activity for accountability.
• Electronic Signature Capabilities: Supports the secure finalization of reports and adherence to compliance standards.

Yes, the Welch Allyn HScribe Holter Analysis System is designed for robust, bidirectional integration across networked clinical environments, supporting key industry standards for data exchange.

Key connectivity features include:

• DICOM Integration: The system supports DICOM exchange for data sharing. It can retrieve Holter test orders via a DICOM Modality Worklist query and export reports in the DICOM format.
• HL7 Connectivity: HL7 exchange (for orders and data export) is available through the optional Mortara HL7 Gateway.
• Other Exports: Data and reports can also be exported in PDF and XML formats. The XML export includes 10-second, 12-lead ECG data and supports FDA-required waveform exports.
