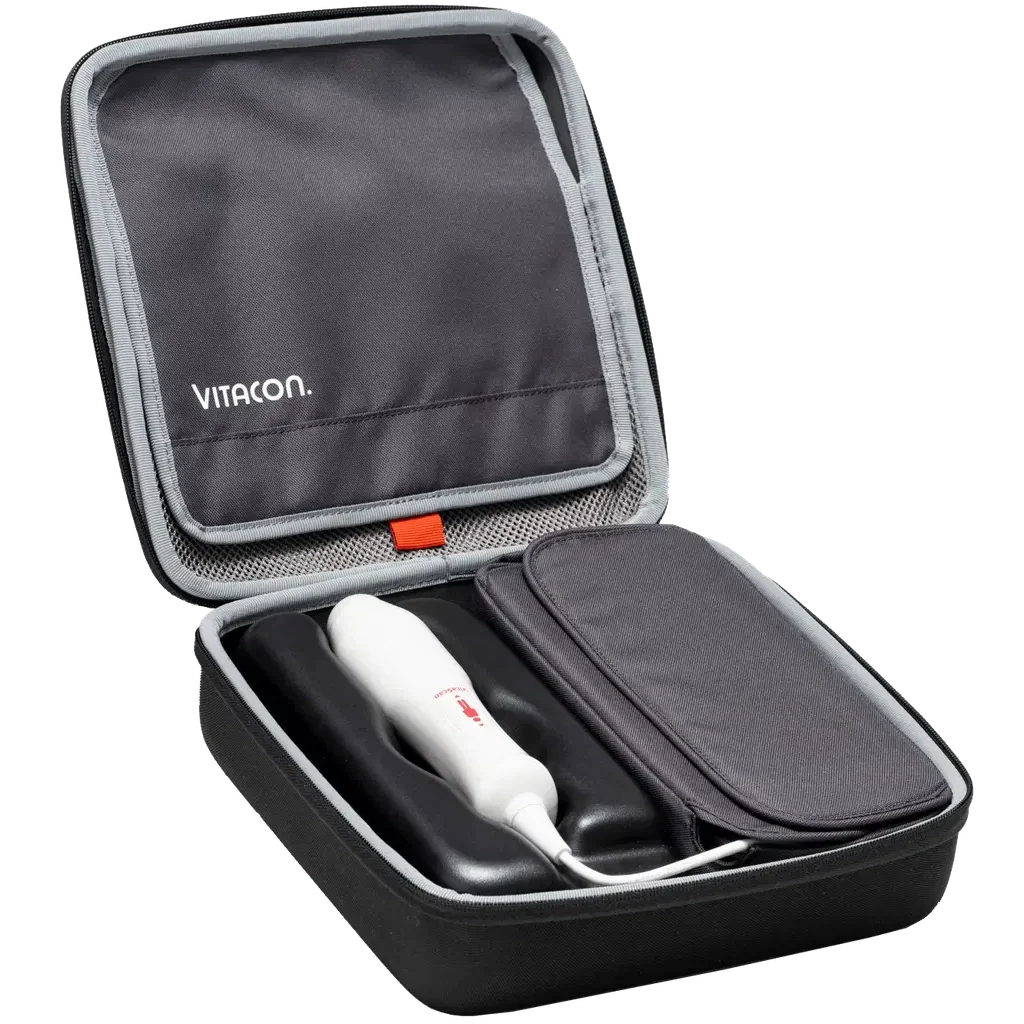

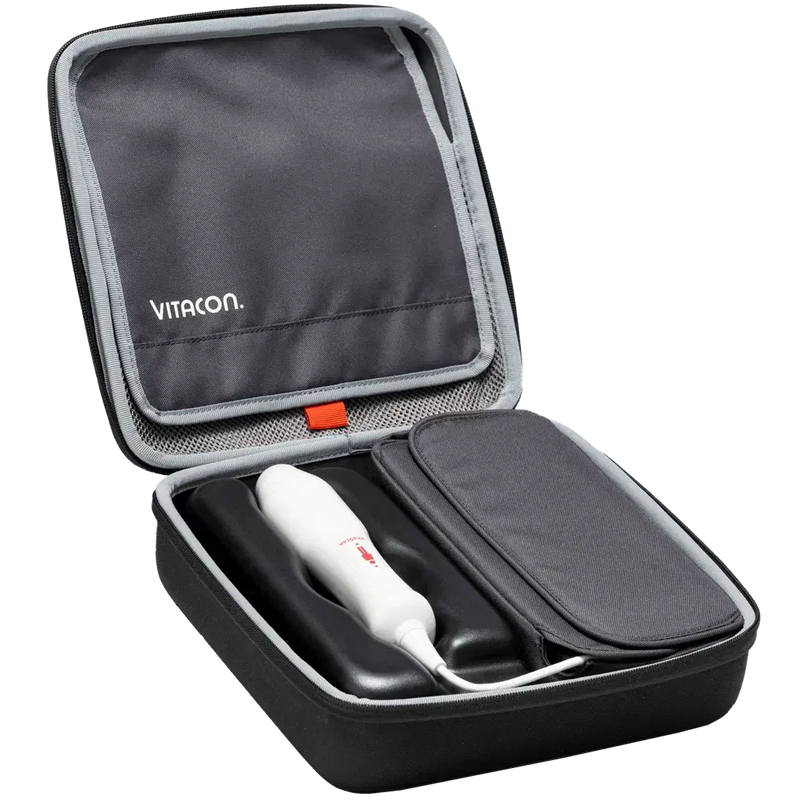

Vitacon VitaScan LT Bladder Scanner - With Soft Carrying Case

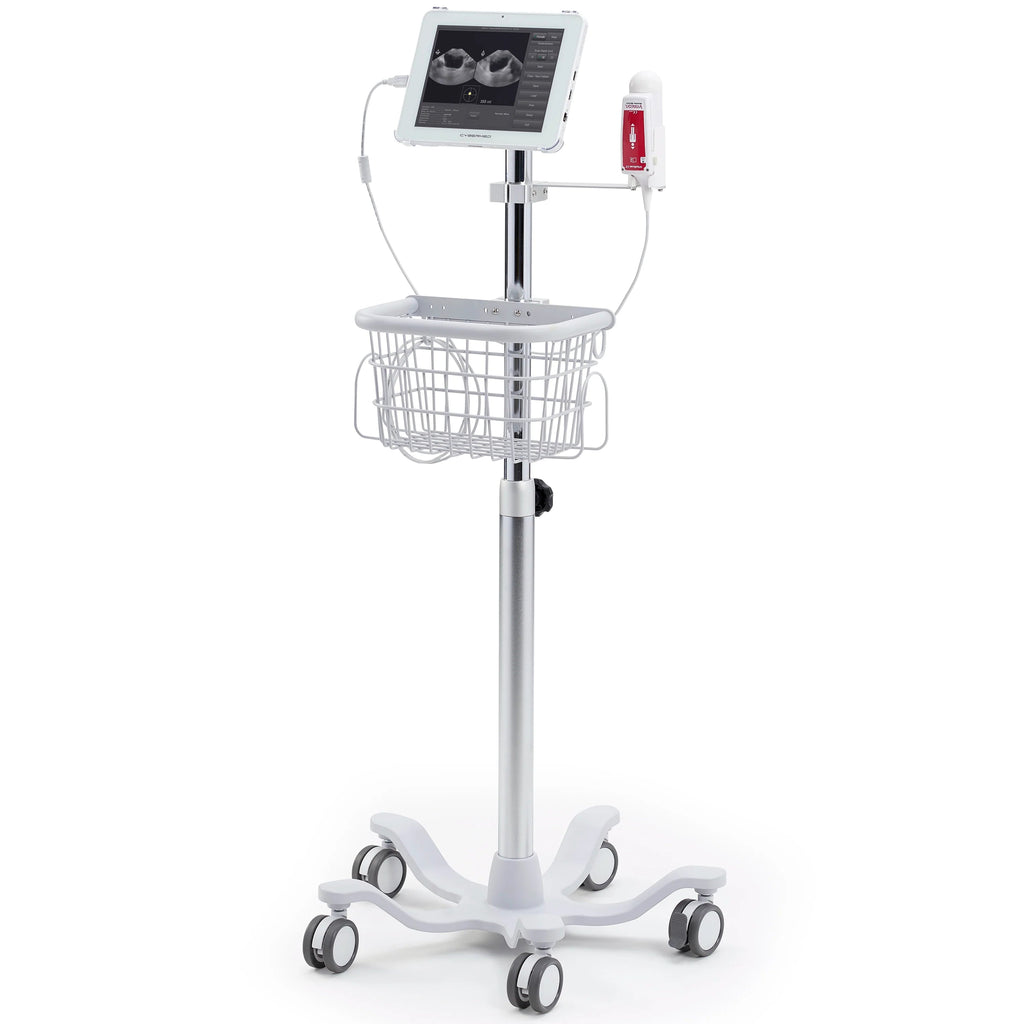

Vitacon VitaScan LT Bladder Scanner - With Commercial Tablet and Cart with Basket

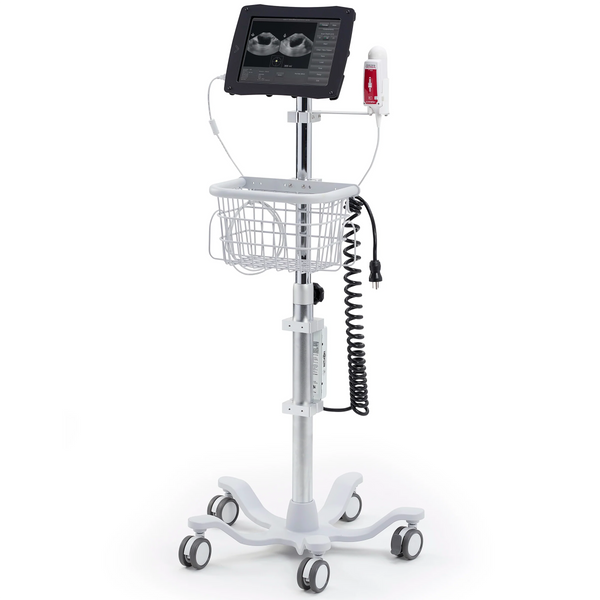

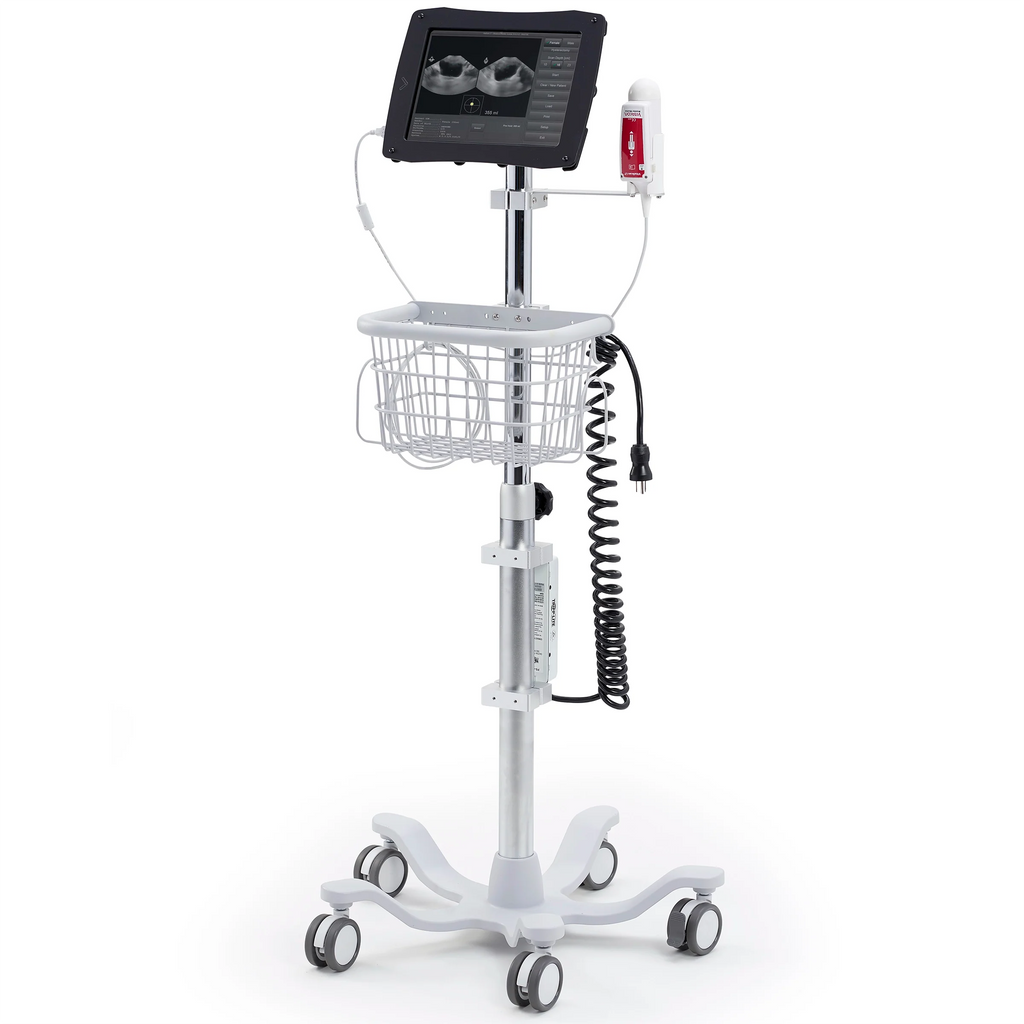

Vitacon VitaScan LT Bladder Scanner - With Rugged Tablet and Cart with Basket

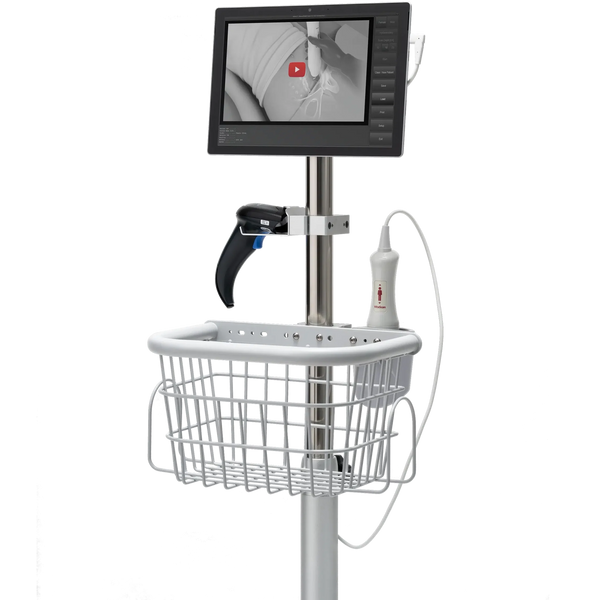

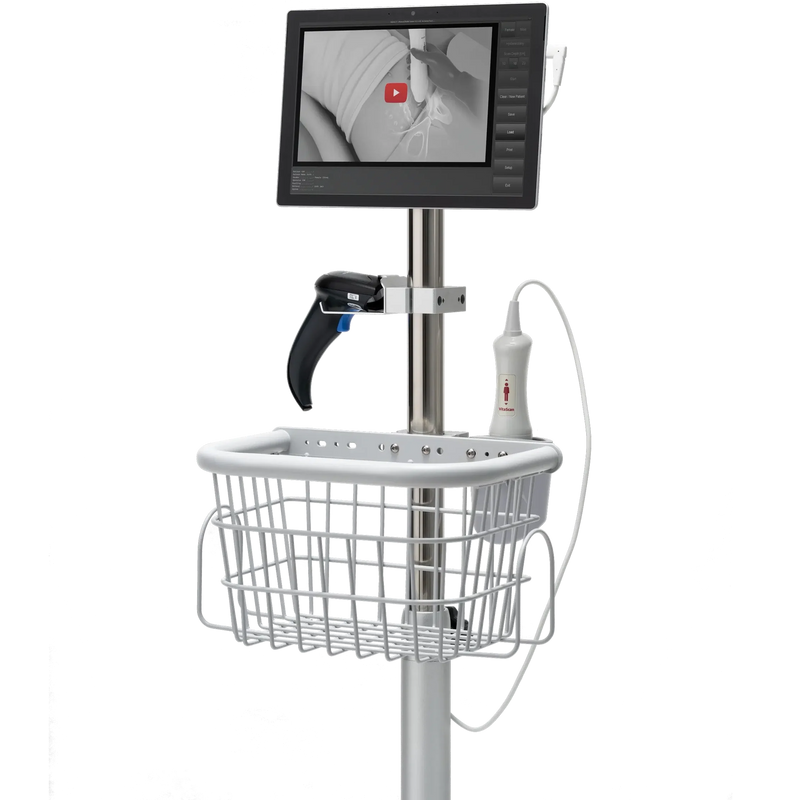

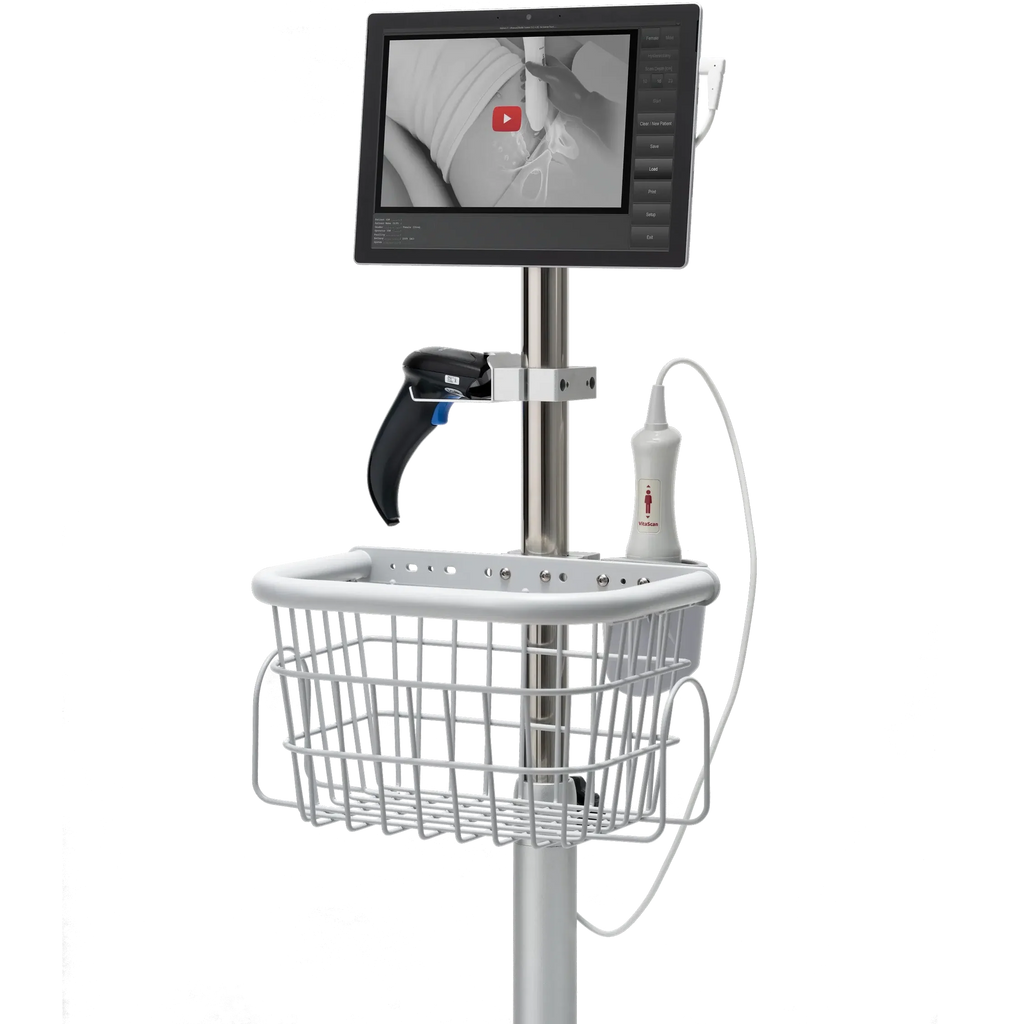

Vitacon VitaScan LT Bladder Scanner - With Antimicrobial Medical Grade Tablet and Cart with Basket
Vitacon VitaScan LT Bladder Scanner - With Soft Carrying Case
Vitacon VitaScan LT Bladder Scanner - With Commercial Tablet and Cart with Basket
Vitacon VitaScan LT Bladder Scanner - With Rugged Tablet and Cart with Basket
Vitacon VitaScan LT Bladder Scanner - With Antimicrobial Medical Grade Tablet and Cart with Basket
Vitacon VitaScan LT Bladder Scanner
Vitacon VitaScan LT Bladder Scanner
Key Features
  • SKU: VTC-100525G1
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 5 Years
  • Weight: 0.84 lb
  • Provides a real-time image of a patients' bladder
  • Allows for a multi-pane scan from one position on the body (3D)
  • Utilizes both simple and advanced scan modes
  • Helps identify and tracks bladder location

  • Learn more:

Contact The Manufacturer
  • MFR: Vitacon Ships from Manufacturer
  • MPN: 100525G1
  • Phone: (800) 757-8450
$7,995.00 $7,355.98

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

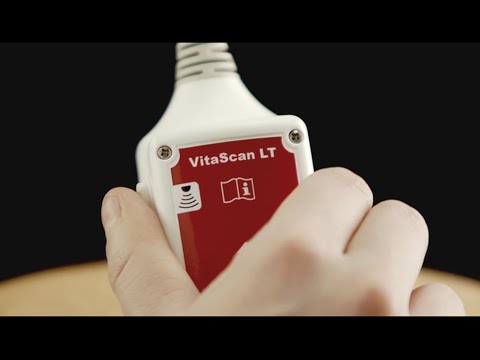

The Vitacon VitaScan LT Bladder Scanner standard accessories include a VitaScan v.2 Scanner Probe, VitaScan LT Software, and a bottle of ultrasound gel.

Warranty:

  • G1, C5, and C6 Bladder Scanner Probes: 5 Years - with Accidental Damage Coverage (ADC deductible may apply).
  • C3 Bladder Scanner, Tablet (optional), and Accessories: 2 Years - Limited.

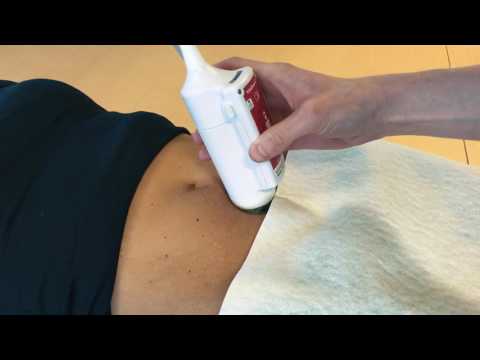

Delivering a real-time image of a patients' bladder, the VitaScan LT is intuitive and simple to operate and provides limitless opportunities for connectivity, data storage, EMR integration, and future upgrades. Post Void Residual (PVR) is available in seconds.

With annual preventive maintenance, VitaScan products have a lifetime expectancy of seven years or more. Because the system is made of separate components (probe, console, printer, etc.), customers can change out components easily over time as needed without having to purchase an entirely new bladder scanner system.

Features

Vitacon VitaScan LT Bladder Scanner Features

  • BladderVue: Enhanced bladder detection technology for reliable results.
  • Provides a real-time image of a patients' bladder.
  • Allows for a multi-pane scan from one position on the body (3D).
  • Utilizes both simple and advanced scan modes.
  • Helps identify and tracks bladder location.
  • Automatically measures volume and Post Void Retention (PVR).
  • Capable of manual measurement with auto recalculation.
  • Scan depth is user selectable.
  • Calibration not required.
  • Test tool included for functional verification.
  • Simple and intuitive - sonographer not required.
  • Advanced battery power management.
  • Windows Tablet (optional):
    • VitaScan LT Software is pre-installed.
    • Operating System: Windows 10.
    • Display: 9.7" Color Touchscreen for clear visualization and enhanced user interaction.
    • Straightforward and reliable connectivity via USB-A or USB-C.
    • Connects to standard printers.
    • Integration Potential: Seamless combability with hospital patient records, offering broad integration possibilities.
    • User-Friendly Precision: Provides an accurate scanning experience paired with an intuitive interface.
    • Wi-Fi Capabilities: Effortlessly save and print reports directly via Wi-Fi connectivity.
    • Antimicrobial Medical Grade Tablet (optional):
      • Helps maintain a germ-free environment.
      • Water and dust proof.
      • Fanless.
      • Meets requirements for safety and electromagnetic compatibility.
      • Can be cleaned with solutions without damaging the internal electronics.

Specifications

Vitacon VitaScan LT Bladder Scanner Specifications

  • Volume Range: 0 to 1000 ml (any volume above this range should be investigated before further assessment).
  • Accuracy: ± 7.5% mL.
  • Probe Frequency: 3.45 MHz.
  • Scanning Method: Sector, 180°.
  • Rotation Positions: 12 or 24.
  • Sweep Angle: 130°.
  • Detection Depth: 100 mm, 160 mm, or 230 mm.
  • Probe Dimensions: 7.3" x 1.8" x 1.8".
  • Probe Weight: 0.84 lb (including cable).
  • Console Dimensions: 8.7" x 7.8" x 3.1".
  • Input Voltage: 100 to 240 VAC, 50/60 Hz.
  • Power Consumption: 0.5 A @ 5 V.
  • Operating Conditions:
    • 50 to 113 °F.
    • 10 to 80% relative humidity.
  • Storage Temperature: -22 to 122 °F.

Configurations

Vitacon VitaScan LT Bladder Scanner Configurations

  • #100525G1: Standard (With Soft Carrying Case / No Tablet or Cart with Basket).
  • #100525C3: With Commercial Tablet and Cart with Basket.
  • #100525C5: With Rugged Tablet and Cart with Basket.
  • #100525C6: With Antimicrobial Medical Grade Tablet and Cart with Basket.

Accessories

Vitacon VitaScan LT Bladder Scanner Accessories

The following are compatible and commonly purchased with the VitaScan LT Bladder Scanner:

  • #100752: Vitacon Verification Test Tool.
  • #VUS616: Vitacon VitaScan Phantom Bladder for Bladder Stimulation.

Frequently asked questions

Does the scanner ensure high volume accuracy?

Yes, the VitaScan LT ensures highly reliable measurements using BladderVue Technology, which enhances bladder detection. The device provides automatic volume and Post Void Residual (PVR) measurement with a high accuracy of ± 7.5% mL across a volume range of 0 to 1000 ml.

Does the VitaScan LT support EMR integration?

Yes, the VitaScan LT is engineered to facilitate seamless digital integration and offers limitless opportunities for EMR integration and data storage.

This robust connectivity is primarily enabled when utilizing one of the optional Windows Tablet configurations (Commercial, Rugged, or Antimicrobial Medical Grade). Key connectivity features include:

  • Direct integration capabilities with Electronic Medical Records (EMR) systems.
  • Physical data transfer options via USB-A or USB-C ports on the optional tablets.
  • Wireless functionality, allowing you to effortlessly save and print reports directly using Wi-Fi connectivity.
Is specialist expertise required to operate the scanner?

No, specialist expertise, such as that of a sonographer, is not required to operate the VitaScan LT Bladder Scanner.

The system is engineered for operational simplicity and intuitive use by general clinical staff.

Key features that make it easy to use include:

  • BladderVue Technology: Provides enhanced bladder detection for highly reliable and rapid automatic volume and Post Void Residual (PVR) measurements.
  • Simple Design: The device does not require calibration, simplifying setup and ongoing use.
Is the optional medical tablet durable?

Yes, the optional Antimicrobial Medical Grade Tablet is specifically engineered for durability and rigorous clinical use, prioritizing hygiene and robustness.

Its key features include:

  • Water and Dust Proofing: It is built to resist spills and environmental factors common in medical environments.
  • Rigorous Cleaning: The tablet is designed to withstand rigorous cleaning protocols and is safe to use with common clinical cleaning solutions.
  • Medical Grade Design: As a specialized, fanless device, it helps maintain a hygienic setting and meets necessary safety requirements for use near other medical equipment.
Does the VitaScan LT provide 3D scanning?

Yes, the Vitacon VitaScan LT Bladder Scanner offers 3D scanning capabilities through its multi-pane scan feature, which can be performed from a single body position. This allows for comprehensive bladder imaging, ensuring reliable and fast Post Void Residual (PVR) measurements.

Is an antimicrobial tablet option available?

Yes, the VitaScan LT Bladder Scanner offers an optional Antimicrobial Medical Grade Tablet.

This specialized tablet is designed for environments requiring stringent infection control and maximum durability. Its key features include:

  • Enhanced Cleanability: It can be safely cleaned with solutions without damaging the internal electronics.
  • Durability: It is water and dust proof and features a fanless design.
  • Display: Features a 9.7” color touchscreen running on Windows 10.
  • Connectivity: Provides effortless data saving, EMR integration, and printing via Wi-Fi connectivity, utilizing USB-A or USB-C ports.
Is advanced BladderVue technology included?

Yes, the VitaScan LT utilizes BladderVue Technology, which is its enhanced bladder detection system. This technology is a core selling point because it enables:

  • Highly Reliable Measurements: Provides automatic and highly reliable measurement of volume and Post Void Retention (PVR).
  • Speed and Efficiency: Delivers results quickly, usually in seconds.
  • Simplified Operation: The intuitive design means specialized training, such as that of a sonographer, is not required for use.
Does the modular architecture help extend the product's lifespan?

Yes, the system’s modular design is a core strength for long-term investment. By separating the probe, console, and tablet, it offers several benefits:

  • Easy Upgrades: Components can be updated individually as technology evolves.
  • Simplified Maintenance: If one part needs attention, it can be replaced without retiring the entire system.
  • Longevity: This modular approach allows the system to reach a lifetime expectancy of seven years or more.
Does the Vitacon VitaScan LT Bladder Scanner require calibration?

No, the Vitacon VitaScan LT Bladder Scanner does not require calibration, which simplifies its use and maintenance.

What is the volume measurement range?

The VitaScan LT Bladder Scanner is designed to accurately measure bladder volumes ranging from 0 to 1000 ml.

It is important to note that if volumes are detected above 1000 ml, further investigation is required before assessment.
