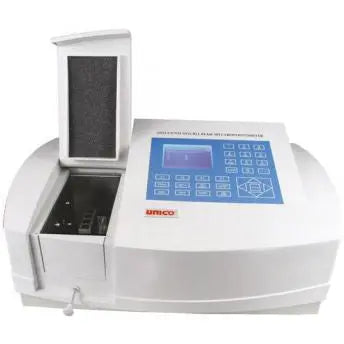

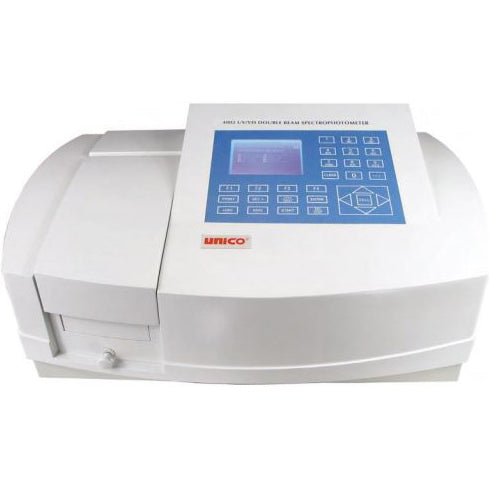

Unico SpectroQuest SQ4802 Double Beam UV-Visible Spectrophotometer

Unico SpectroQuest SQ4802 Double Beam UV-Visible Spectrophotometer - 1
Unico SpectroQuest SQ4802 Double Beam UV-Visible Spectrophotometer - 2
Unico SpectroQuest SQ4802 Double Beam UV-Visible Spectrophotometer - 1
Unico SpectroQuest SQ4802 Double Beam UV-Visible Spectrophotometer - 2
Key Features
  • SKU: UCO-SQ4802
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 1 Year
  • Weight: 53.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Unico
    Ships from Manufacturer
  • MPN: SQ4802
  • Phone: (732) 274-1155
$10,998.00 $8,283.56

+Free Shipping*

Select a Voltage
Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description


The Unico SpectroQuest SQ4802 Double Beam UV-Visible Spectrophotometer comes complete with USB Port, Parallel Port, built-in Software (including T/A/Conc, Standard Curve, Kinetics, Multi-Wavelength, Scanning & DNA/Ratio), a Single Cuvette Holder, 4 Optical Glass Cuvettes, 2 Quartz Cuvettes, User Manual & Dust Cover.

Warranty: 1 Year Warranty.

The Unico SpectroQuest SQ4802 Double Beam UV-Visible Spectrophotometer (CE Certified, ISO9001:2000 Registered) is a Double Beam, Scanning design. It is a stand-alone model with 1.8nm Fixed Bandwidth and has all the features the SpectroQuest line offers in a stand-alone unit. The two Detectors are measuring test sample cell and reference respectively and simultaneously for optimizing measurement accuracy. It provides excellent performance for measurements in the range of 190nm to 1100nm. It is suitable for Pharmaceutical, Biochemical and Clinical Lab applications as well as routine applications such as Quantitative Analyses, Kinetics, Spectrum Scanning, Multiple Components and DNA/Protein. Optional PC Download Software and PC Windows Application Software make this instrument versatile.

Unico SpectroQuest SQ4802 Double Beam UV-Visible Spectrophotometer Specifications:


    • Optical Specifications:
    • Wavelength Range: 190-1100nm.
    • Spectral Bandwidth (Slit Width): 1.8nm.
    • Monochromator: Double Beam Littrow Type, Grating 1200 Lines/mm.
    • Wavelength Accuracy: ±0.3nm.
    • Wavelength Repeatability: ±0.2nm.
    • Wavelength Calibration: Automatic at Start.
    • Light Source: Tungsten Halogen/Deuterium Lamp.
    • Detector: Solid Silicon Photodiode.
    • Photometric Readout: 1/4 VGA 320x240 Pixels Backlit LCD.
    • Photometric Range: 0-200%T / -0.3 - 3.0A / 0-9999C.
    • Photometric Accuracy: ±0.3%T.
    • Zero Drift: Baseline Flatness: ±0.004A.
    • Stability: 0.001A/h at 500nm.
    • Stray Light: Scanning Speed: High, Medium, Low Maximum 1000nm/min.
    • Physical Characteristics:
    • Standard Sample Holder: Single Cell Holder for 10mm Cell, Reference and Sample.
    • Ports: USB, Parallel Port.
      • Weight & Dimensions:
      • Weight: 53 lbs (24kg).
      • Dimensions: 620(L) x 400(W) x 280mm(H).
      • Shipping Weight: 62 lbs (28kg).
      • Shipping Dimensions: 28.3" x 20.7" x 14.6" (720 L x 525 W x 370mm H).
      • Power Requirements: 115V/60Hz or 230V/50Hz, Switchable.
      • SQ4802: 110V.
      • SQ4802E: 220V.
    • Operating Temperature: Room Temperature: 22 ±2çC.
    • Humidity Range: Less than 85%.


Unico SpectroQuest SQ4802 Double Beam UV-Visible Spectrophotometer Literature:


Unico Spectrophotometer Catalog

Frequently asked questions

Does the spectrophotometer have a broad wavelength range?

Yes, the Unico SpectroQuest SQ4802 offers a broad wavelength range that effectively covers the critical UV-Visible spectrum, making it suitable for a wide variety of laboratory analyses.

Key specifications for spectral performance include:

  • Wavelength Range: 190nm to 1100nm
  • Spectral Bandwidth (Slit Width): Fixed at 1.8nm
  • Accuracy: Features high wavelength accuracy of ±0.3nm and repeatability of ±0.2nm

This broad capability is supported by its Double Beam, Scanning Design, which optimizes measurement accuracy across the entire range by simultaneously analyzing the test sample and the reference.

Does the spectrophotometer use high-quality light sources?

Yes, the SpectroQuest SQ4802 utilizes a reliable dual-source system to ensure accuracy across its full operational range:

  • Deuterium Lamp: Used for measurements in the Ultraviolet (UV) spectrum.
  • Tungsten Halogen Lamp: Used for measurements in the Visible (Vis) spectrum and near-infrared.

This combination provides consistent, broad spectral coverage for accurate analysis across the full 190nm to 1100nm wavelength range.

What comprehensive analysis modes are included?

The SpectroQuest SQ4802 includes comprehensive built-in software accessible via the onboard 1/4 VGA backlit LCD screen and keypad. This allows for sophisticated analytical work directly on the stand-alone unit, making it suitable for demanding applications in pharmaceutical, biochemical, and clinical labs.

The integrated software supports several key measurement and analysis modes:

  • T/A/Conc: Measures Transmittance (T), Absorbance (A), and calculates Concentration (C).
  • Standard Curve: Used for generating and calculating calibration curves.
  • Kinetics: Essential for monitoring reaction rates over time.
  • Multi-Wavelength: Enables simultaneous measurements at multiple specified wavelengths.
  • Scanning: Provides full spectrum scanning across the 190nm to 1100nm range (up to 1000nm/min).
  • DNA/Ratio: Specialized modes for DNA and protein calculation ratios.
Does the monochromator have a precise spectral bandwidth?

Yes, the Unico SpectroQuest SQ4802 utilizes a highly precise, fixed spectral bandwidth (slit width) of 1.8nm.

This fixed setting is a key component of the high-performance optics, which includes a Double Beam Littrow Type Monochromator and a 1200 Lines/mm Grating, ensuring precise spectral resolution across the operating range (190nm to 1100nm).

What essential accessories are included?

The Unico SpectroQuest SQ4802 comes ready for immediate use with several essential accessories:

  • Single Cuvette Holder: This standard holder accommodates 10mm cells for both the sample and reference, supporting the instrument’s double-beam design.
  • 4 Optical Glass Cuvettes: Suitable for high-accuracy measurements within the visible light range.
  • 2 Quartz Cuvettes: Crucial for performing measurements in the UV spectrum (190nm to ~340nm).
  • User Manual
  • Dust Cover
What comprehensive software functions are included?

The SpectroQuest SQ4802 features comprehensive built-in software that allows for stand-alone operation, managing all data processing directly via the integrated backlit LCD and keypad. This ensures you do not require an external PC for essential analytical tasks.

Key analytical modes and functions supported include:

  • T/A/Conc: Direct measurement of Transmittance, Absorbance, and Concentration.
  • Standard Curve: Tools for generating, utilizing, and storing calibration curves for accurate quantitative analysis.
  • Kinetics: Essential for time-based studies and monitoring reaction rates.
  • Scanning: Full spectral scanning across the 190nm to 1100nm UV-Visible range.
  • Multi-Wavelength: Simultaneous measurement at multiple discrete wavelengths.
  • DNA/Ratio Analysis: Specialized functions for calculating DNA/Protein concentrations and ratio analysis, ideal for biochemical applications.
What are the unit's dimensions and weight?

The Unico SpectroQuest SQ4802 is a benchtop instrument with the following physical specifications:

  • Unit Dimensions (L x W x H): 620mm x 400mm x 280mm
  • Unit Weight: 53 lbs (24 kg)

For shipping and logistics planning, please note the following:

  • Shipping Dimensions (L x W x H): 720mm x 525mm x 370mm
  • Shipping Weight: 62 lbs (28 kg)
Is the wavelength accuracy precise?

Yes, the Unico SpectroQuest SQ4802 offers precise measurements with a wavelength accuracy of ±0.3nm.

Which connectivity ports are featured?

The Unico SpectroQuest SQ4802 includes essential ports for data transfer and integration with external devices, supporting stand-alone operation or control via optional PC software.

It features the following ports:

  • USB Port
  • Parallel Port
Does it use a high-quality monochromator?

Yes, the Unico SpectroQuest SQ4802 uses a double-beam Littrow type monochromator with a 1200 lines/mm grating. This design optimizes measurement accuracy by simultaneously analyzing the test sample and reference.
