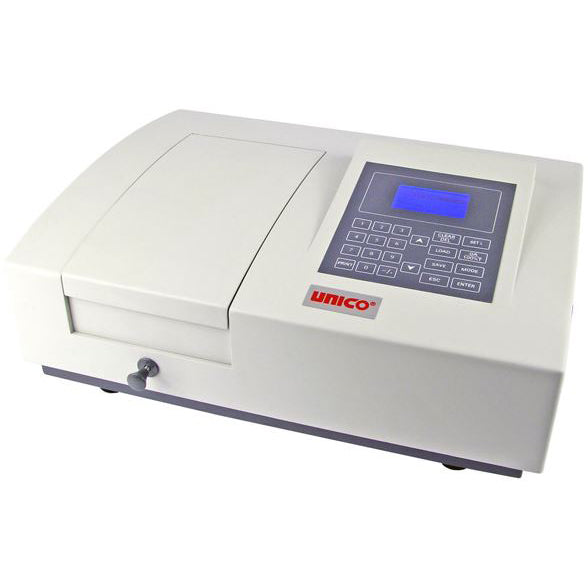

Unico S2150 Visible Spectrophotometer

Yes, the Unico S2150 covers a wide range, operating across the Visible spectrum from 325nm to 1000nm. This capability allows for diverse photometric analyses and is one of the instrument’s top selling points.The instrument uses a highly precise optical system to ensure measurement accuracy within this range, including:

• Optical System: Single Beam, Grating System (1200 Lines/mm)
• Bandpass (Slit Width): Fixed at 4nm
• Wavelength Accuracy: ± 2nm

Yes, the Unico S2150 is equipped with a precise, single-beam optical system engineered for reliable and accurate photometric analysis across the visible spectrum.

It utilizes a high-quality 1200 Lines/mm Grating System and features specific performance metrics ensuring high data integrity:

• Wavelength Range: 325 nm to 1000 nm.
• Bandpass (Slit Width): Fixed at 4 nm.
• Wavelength Accuracy: ± 2 nm (with repeatability of ± 1 nm).
• Photometric Accuracy: Highly precise at ±0.004 A (measured at 0.5 A).

Yes, the Unico S2150 Visible Spectrophotometer is engineered to deliver precise and reliable photometric measurements across its 325nm to 1000nm visible wavelength range. Its high performance is supported by several key specifications:

• Photometric Accuracy: The unit achieves an impressive accuracy of ±0.004 A at 0.5 A (Absorbance).
• Bandpass: It utilizes a narrow, fixed 4nm bandpass (slit width), which significantly contributes to measurement integrity.
• Optical System: The device features a high-quality single-beam, 1200 Lines/mm grating system, ensuring reliable results.

Yes, the Unico S2150 Visible Spectrophotometer is highly programmable for standardized testing protocols. It features memory for storing up to 200 standard curves.

This capability allows for substantial customization and rapid recall of frequent photometric assays, helping to streamline your analytical workflow.

Yes, the Unico S2150 Visible Spectrophotometer is designed with a sample compartment that accommodates various cell sizes, providing flexibility for different photometric tests.

• Standard Inclusion: The unit comes equipped with a 4-Position 10mm Cell Holder right out of the box.
• Maximum Capacity: The sample compartment is capable of accommodating longer path length cells, specifically up to 100mm path length, allowing for greater analytical versatility.

Yes, optional PC software is available to significantly expand the analytical capabilities of the Unico S2150 Spectrophotometer. This software unlocks two key advanced features:

• Kinetics Analysis: This allows for precise, time-based monitoring and analysis of chemical reaction rates.
• Wavelength Scan: This feature enables comprehensive spectral analysis by allowing the instrument to scan across its entire visible spectrum (325nm to 1000nm).

Yes, the Unico S2150 is equipped with essential communication ports for PC interfacing and efficient data export.The standard connectivity includes:* USB Port: For modern computer connections and fast data transfer.* RS-232 Port: Provides reliable serial communication for various laboratory setups.These ports allow users to integrate the spectrophotometer with a computer and utilize optional PC software to perform advanced tests such as Kinetics and Wavelength Scans.

Yes, a Dust Cover is included as a standard accessory with the Unico S2150 Visible Spectrophotometer. This helps protect the instrument when it is not in use.

Yes, the Unico S2150 Visible Spectrophotometer is offered in two voltage configurations to ensure compatibility with your laboratory’s power supply:

• 110 V (Model S-2150): Standard configuration for 110V inputs.
• 220 V (Model S-2150E): Configuration for 220V inputs.

The Unico S2150 is equipped with an expanded numeric control panel and essential connectivity features designed for ease of use and streamlined workflows.

Key features include:

• User Interface: The instrument uses a 22-button key pad paired with a large LCD display for intuitive data entry and clear viewing of measurements.
• Programmable Memory: It offers the capability to store up to 200 standard curves, allowing for fast recall and repeatability during routine photometric tests.
• Connectivity: For flexible data output and interfacing with a PC, the unit features both USB and RS-232 communication ports.
