The Unico Peltier/Sipper Package is engineered for continuous and stable temperature regulation in flow-thru applications. Temperature control is achieved thermoelectrically, providing reliable thermal management for sensitive liquid samples.

Key thermal specifications include:

• Temperature Control Range: 15°C to 40°C
• Temperature Display Resolution: 0.1°C

This high display resolution ensures the accurate thermal stability required for precise spectrophotometric analysis.

No, while the package provides the essential temperature control and pumping system, it does not include all components required for a complete, functional Flow-Thru setup.

You must separately source the following two items:

• Flow Cell: The system is designed for use with a single 10mm Flow Cell.
• Proper Tubing: Required for connecting the fluid pathways between the controller and the cell holder/pump.

This package does include the core accessories necessary to enable temperature-controlled flow-thru functionality:

• Thermoelectrically Temperature-Controlled Peltier Cell Holder (which includes an X-Y Adjustable Mechanism for precise beam alignment).
• Peltier/Flow-Thru Controller featuring an integrated Peristaltic Pump.

Yes, the Unico Peltier/Sipper Package is designed specifically for integration with Unico spectrophotometers.

To ensure proper functionality, you must select one of the two available configurations based on your specific instrument series:

• For S2150 & S2150UV Spectrophotometers
• For SpectroQuest Spectrophotometers (This includes models such as the SQ2800, SQ2802, SQ3802, and SQ4802 Series.)

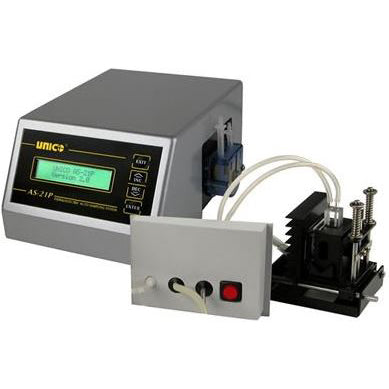

The Unico Peltier/Sipper Package is a specialized system that provides the core electronic and mechanical units necessary for flow-thru and continuous temperature control with compatible Unico spectrophotometers.The package contains these precision components:

• Thermoelectrically Temperature-Controlled Peltier Cell Holder: This component maintains continuous, precise thermal stability for your sample within the critical range of 15°C to 40°C. It also includes the X-Y adjustable mechanism for accurate alignment with the optical beam, crucial for micro flow cell analysis.
• Peltier/Flow-Thru Controller with Peristaltic Pump: This integrated unit controls the Peltier holder and features a powerful peristaltic pump for automated fluid management (sipping/flow-thru). The controller offers a temperature display resolution of 0.1°C.

This system supports operational flexibility, allowing usage in either Flow-Thru only mode or Temperature Control only mode.

Note: A compatible Flow Cell and appropriate Tubing must be acquired separately to establish the complete flow-thru setup.

Yes, the Unico Peltier/Sipper Package features a high-resolution display essential for precise sample control in flow-thru spectrophotometry applications. The precision is a key selling point, enabling accurate monitoring across the operational range.

• The temperature display resolution is 0.1°C.
• This high resolution allows for accurate monitoring of the temperature within the tightly controlled range of 15°C to 40°C.
• The system utilizes thermoelectric control to maintain continuous, stable thermal conditions for sensitive kinetic studies.

Yes, the Unico Peltier/Sipper Package includes an X-Y Adjustable Mechanism.

This crucial mechanism is integrated into the Peltier Cell Holder and provides the high precision needed for analytical work:

• It allows accurate alignment of the single 10mm Flow Cell with the optical beam.
• This adjustment is vital for ensuring precise measurements, especially in Micro Flow Cell setups.

Yes, the Unico Peltier/Sipper Package is designed with dual functionality to provide operational flexibility for your experiments. It allows users to select between two distinct primary modes:

1. Flow-Thru Mode: This mode utilizes both the thermoelectrically controlled Peltier Cell Holder and the integrated peristaltic pump (sipper). This enables continuous sample movement and measurement under precise thermal regulation.
2. Temperature Control Only Mode: In this mode, the system maintains a stable, precise temperature (between 15°C and 40°C with 0.1°C resolution) in a static sample cell, without engaging the peristaltic pump.

Note: To utilize the Flow-Thru functionality, you must separately procure a compatible Flow Cell and appropriate Tubing, as these components are not included in the package.

Yes, a peristaltic pump is included with the Unico Peltier/Sipper Package.

It is integrated directly into the Peltier/Flow-Thru Controller and is essential for facilitating the continuous flow-thru operation required for sample analysis and temperature regulation.

The Unico Peltier/Sipper Package is manufactured in the US.

Yes, the Unico Peltier/Sipper Package is specifically engineered for precise flow-thru applications using a single 10mm cell.

This system ensures highly stable thermal management and accurate alignment for your measurements:

• Cell Compatibility: Designed exclusively for single 10mm Flow-Thru Cells.
• Precise Temperature Control: Utilizes a thermoelectric Peltier system to maintain continuous temperature regulation within the range of 15°C to 40°C. The temperature display resolution is excellent at 0.1°C.
• Optical Alignment: Includes an X-Y Adjustable Mechanism which is essential for accurately aligning the flow cell with the optical beam during micro flow cell setups.

Note: To complete the full Flow-Thru setup, you must separately purchase the required Flow Cell and appropriate Tubing, as these components are not included in this package.
