Yes, the Unico IP750 microscope is designed for global compatibility, supporting a voltage range from 110V-60Hz to 240V-50Hz. This wide range ensures it can be used in diverse locations with different power systems, providing flexibility for laboratories and research facilities worldwide.

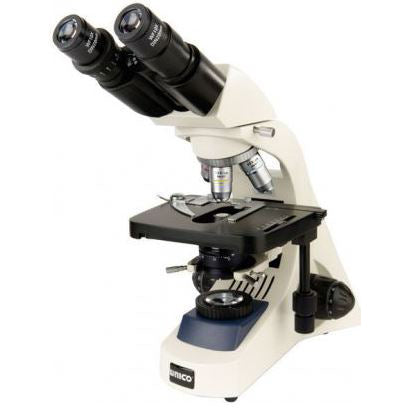

The Unico IP750 Advanced Binocular Infinity Microscope includes several essential items to ensure proper setup, protection, and operation:

• Dust Cover: Helps protect the precision optics and mechanics when the microscope is not in use.
• Blue Filter: Included to optimize the built-in illumination system for viewing specific samples.
• Two extra Fuses: Provided for convenient electrical maintenance.
• Operation Manual: A comprehensive guide for detailed setup, usage, and care of the unit.

Yes, the Unico IP750 is equipped with Koehler Type Illumination, providing highly uniform and even lighting across your field of view, which is essential for professional imaging. The illumination system is built-in and includes:

• A Field Diaphragm (necessary for proper Koehler setup).
• A Variable Intensity Rheostat Wheel, located on the left side of the base, for precise light control.
• A focusable and centerable Abbe Condenser (NA 1.25) with a graduated iris diaphragm.

The Unico IP750 utilizes High-End Infinity Optics and is offered with two primary objective configurations, both including the standard set of 4X, 10X, 40XR, and 100XR objectives:

1. Achromat Objectives (IP750): These are the standard, high-performance objectives suitable for general laboratory and educational use.
2. Plan Achromat Objectives (IP750PL): This is the premium option, featuring advanced correction for a significantly flatter field of view across the entire specimen, ensuring superior image consistency from the center to the edge.

All objectives are mounted on a 4-hole reverse nosepiece featuring precision ball bearings for smooth, accurate positioning.

Yes, the Unico IP750 features high-quality Koehler Type Illumination, which is essential for maximizing image contrast and achieving uniform brightness across the field of view, especially at higher magnifications.

This built-in, comprehensive illumination system is engineered for precision and includes the following key components:

• Illuminator: Features a Field Diaphragm for proper Koehler setup.
• Condenser: Utilizes a focusable and centerable Abbe Condenser (NA 1.25), complete with a graduated iris diaphragm and filter holder for superior light control.
• Brightness Control: Light intensity is easily adjusted using a Variable Intensity Rheostat Wheel located on the left side of the microscope base.
• Power Requirements: The electrical system uses UL & CSA approved components and supports universal voltage (110V-60Hz to 240V-50Hz).

The Unico IP750 is equipped with an ergonomic Seidentopf Binocular Head designed for comfortable, prolonged use. It offers extensive adjustability:

• 360° Rotation: The viewing head can be rotated completely to accommodate different viewing positions and users.
• Interpupillary Distance: The distance between the eyepieces is adjustable from 55 mm to 75 mm.
• Diopter Adjustment: Focus can be individually fine-tuned via the diopter adjustment located on one eye tube.
• Beam Splitter: The head also features an integrated 80/20 beam splitter, which supports advanced configurations such as connecting a camera for photomicrography.

Yes, the Unico IP750 is equipped with a high-quality, 4-hole nosepiece designed for reliable and precise objective changes, contributing to the microscope’s ergonomic functionality.

Key features of the nosepiece assembly include:

• Reverse Configuration: It utilizes a 4-Hole Reverse Nosepiece. This specific design maximizes the working space between the objectives and the mechanical stage, which greatly facilitates easier slide insertion and removal.
• Capacity: The nosepiece securely holds the four standard Infinity Objectives: 4X, 10X, 40XR, and 100XR, ensuring accurate alignment for superior image quality.

The Unico IP750 is equipped with high-end Infinity Optics and comes standard with a set of four objectives (4X, 10X, 40XR, and 100XR). Shoppers can select between two excellent levels of objective quality:

• Achromat Objectives (IP750): These are the standard infinity objectives, providing clear, high-resolution imaging suitable for general laboratory and educational use.
• Plan Achromat Objectives (IP750PL): This premium option offers superior optical correction, delivering an exceptional flatness of field. This ensures the image remains sharp and clear from the center to the edge, which is essential for demanding diagnostic and research applications.

The Unico IP750 Advanced Binocular Infinity Microscope is designed with a compact footprint, measuring 10 inches (W) x 8.5 inches (D) x 15.4 inches (H). It has a sturdy build, weighing 18 lbs.

Yes, the Unico IP750 is specifically engineered for professional and advanced settings that require high resolution, precision, and extended usage time, thanks to its superior features.

It is ideally suited for:

• Advanced Laboratory and Professional Research: The High-End Infinity Optics (available as Achromat or Plan Achromat) provide the superior image quality essential for detailed analysis. The precise mechanics, including the large mechanical stage and fine focus graduation of 0.002 mm, ensure accurate specimen manipulation.
• Prolonged Microscopy Sessions: The ergonomic design features a low-position coaxial coarse/fine focusing system with tension control to significantly reduce user fatigue during long sessions.
• Clinical and Educational Environments: Its robust construction and Koehler Type Illumination with a focusable, centerable Abbe Condenser (NA 1.25) provide consistent, high-clarity viewing necessary for critical diagnostic work and scientific instruction.
