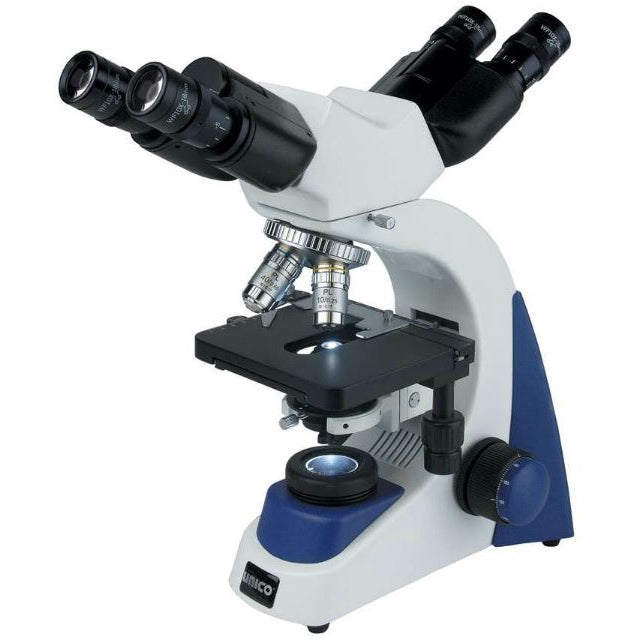

Unico G388 Dual-Binocular Infinity Microscope

Yes, the Unico G388 utilizes an advanced Infinity Optics System specifically engineered to deliver superior imaging quality and productivity.

This high performance is achieved through several design elements:

• High-Quality Objectives: The system features crisp Infinity Objectives, available in Achromat or Plan configurations, covering standard magnifications up to 1,000X.
• Enhanced Comfort: It includes 10x High Eye-Point Eyepieces designed to minimize eyestrain, facilitating comfortable viewing for users, even those wearing corrective lenses.
• Comprehensive Coatings: The coated optics feature Anti-Glare, Color Correction, and Anti-Fungal treatments to maintain clarity, prevent degradation, and ensure sharp, accurate results.

Yes, the Unico G388 is specifically engineered for instruction and collaboration. The dual-binocular configuration allows two users to view the same specimen simultaneously, which is ideal for teaching and joint analysis.

Key features supporting collaborative use include:

• Dual Binocular Heads: Enables two people to observe the slide simultaneously in real-time.
• 360-Degree Rotation: The head can rotate a full 360 degrees and lock securely, allowing the second viewer to be comfortably positioned without moving the entire unit.
• Ergonomics: Features 10x High Eye-Point Eyepieces and independent diopter adjustment on each eye tube, ensuring maximum comfort and reduced eyestrain for both users.

Yes, the Unico G388 features 10x High Eye-Point Extra-Widefield Oculars which are specifically engineered to maximize user comfort and dramatically reduce eyestrain, making them ideal for extended viewing sessions.

Key benefits of this ergonomic design include:

• Reduced Fatigue: Minimizes eyestrain and user fatigue, increasing productivity.
• Glasses Compatibility: The design allows users wearing corrective lenses to comfortably view the entire field of view without needing to remove their glasses.
• Independent Diopter: Each eye tube includes an independent focusing diopter for precise focusing tailored to the user’s specific vision needs.

Yes, the Unico G388 Dual-Binocular Infinity Microscope is designed for high-power analysis, achieving a maximum standard magnification of 1,000X.

This capability is driven by its high-performance Infinity Objectives (available in Achromat or Plan options) and standard 10X High Eye-Point Eyepieces, which ensure superior clarity and reduced eyestrain.

Here is the complete standard magnification range:

The 100xR objective is a retractable, oil immersion lens required to achieve the full 1,000X magnification.

The Unico G388 Dual-Binocular Infinity Microscope ships as a complete package, including several essential accessories for immediate setup and protection.

The standard package contains:

• Dust Cover: Essential for protecting the precision optics and mechanical components during storage.
• Blue Filter: Used to optimize color balance and enhance specimen contrast when mounted to the adjustable iris diaphragm.
• Two extra Fuses: Provided to ensure operational continuity.
• Operation Manual: Offers comprehensive guidance for setting up and properly utilizing the instrument.

Yes, the Unico G388 utilizes a high-quality 3 Watt LED light source that provides bright, cool, and consistent illumination. This type of lighting is energy-efficient, minimizes heat generation, and ensures a long operational life for the bulb.

Key features of the illumination system include:

• Intensity Control: Light output is fully adjustable via a variable intensity rheostat wheel.
• Condenser: It is equipped with a focusable NA 1.25 Abbe Condenser with rack and pinion movement for precise control of the light cone.
• Aperture: An adjustable iris diaphragm allows you to fine-tune contrast and resolution and is designed to accommodate filters (a Blue Filter is included).
• Universal Power: The unit features a universal power supply, accepting 110V - 60 Hz up to 240V - 50 Hz for global compatibility.

Yes, the Unico G388 microscope features comprehensive coatings to ensure exceptional image quality and product longevity. The coated optics include:

• Anti-Glare: Maximizes light transmission and reduces distracting reflections.
• Color Correction: Guarantees accurate and true color representation of your samples.
• Anti-Fungal: Protects the internal optical system from fungal growth, which is crucial for long-term durability and performance.

Yes, the Unico G388 features a high-precision illumination system designed for exceptional light control and optimized image resolution:

• Focusable Abbe Condenser: It is equipped with a focusable NA 1.25 Abbe Condenser that uses Rack and Pinion Movement. This precise mechanism allows you to vertically adjust the condenser, ensuring the light source is perfectly centered and focused to achieve maximum resolution with all objectives.
• Adjustable Iris Diaphragm: An adjustable iris diaphragm, featuring a durable metal leaf overlay design, is integrated to control the light aperture and contrast. The assembly also accommodates mounting filters, such as the Blue Filter included with the unit.
• Illumination Source: Illumination is provided by a bright 3 Watt LED source, and the intensity can be easily fine-tuned using the variable rheostat wheel located on the side of the base.

Yes, the Unico G388’s Dual-Binocular Head is specifically designed for collaborative and instructional use, making it ideal for teaching and consultation environments.

This setup significantly enhances the learning process:

• Facilitates Instruction: The dual heads allow an instructor and a student (or two colleagues) to view the exact same specimen simultaneously, promoting effective real-time guidance.
• Superior Optics: It utilizes advanced Infinity Optics (available as Achromat or Plan Achromat objectives) to ensure both viewers receive superior, high-quality imaging.
• User Comfort: The 10X High Eye-Point Eyepieces and independent focusing diopters are built to minimize eyestrain, which is crucial during long teaching sessions, and accommodate users who wear glasses.
• Stable Operation: The sturdy cast metal frame and precise, low-position coaxial coarse/fine focus controls guarantee stable and accurate manipulation during demonstrations.

Yes, the Unico G388 Dual-Binocular Infinity Microscope is built with a sturdy cast metal frame complemented by a unique polymer accent panel. This robust construction ensures excellent stability for precise observations and contributes to the overall durability of the instrument.
