Unico G382 Dual View Microscope

Unico G382 Dual View Microscope
Key Features
  • SKU: UCO-G382-LED
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 18.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Unico
    Ships from Manufacturer
  • MPN: G382-LED
  • Phone: (732) 274-1155
$1,278.00 $897.51

+Free Shipping*

Select a Objective
Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

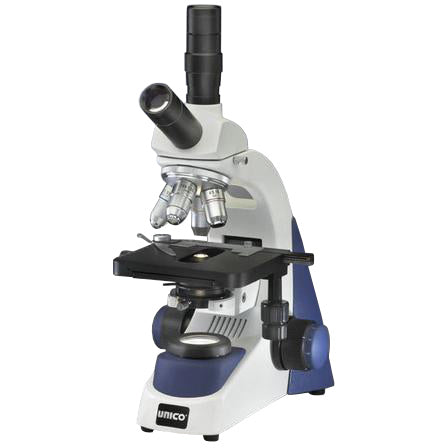

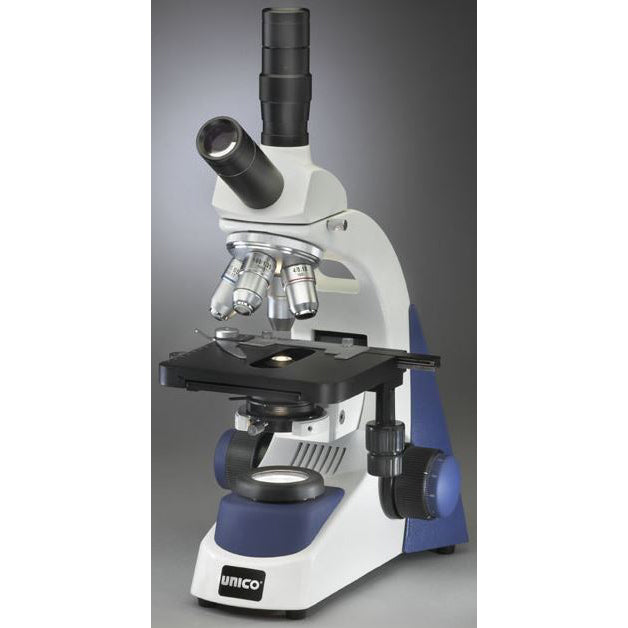

The Unico G382 Dual View Microscope was designed with your viewing comfort in mind. The Standard 10X High Eye-Point Eyepieces are engineered to reduce eyestrain for users wearing glasses. Each Eye Tube features Independent Focusing Diopter Adjustment to compensate for the natural vision differential between each eye. The Base Design adds stability to the body while allowing extra room for hand access to the Over-sized Coarse and Fine Focus Controls and easy access to the Coaxial Mechanical Stage Controls.

Warranty: 5 Year Limited Warranty; 1 Year Electrical System (excludes Bulb and Fuses) Warranty.

With use you will come to appreciate the Precise Mechanical Stage Movement, Optical Clarity, Flat Field and comfortable viewing. A comprehensive manual includes care and maintenance instructions. A Plastic Dust Cover is included with the Microscope.

Unico G382 Dual View Microscope Features:


  • Head: Available with Monocular, Binocular, Dual View or Trinocular Heads. Binocular and Trinocular Heads feature Seidentopf Optical Design with 52 to 75 mm Interpupilary Distance Adjustment. All Heads rotate 360ç and lock in-place with a thumbscrew.
  • Coated Optics: All Optics feature the following coatings: Anti-Glare, Color Correction, Anti-Fungal.
  • Eyepiece: Standard with 10X High-Eyepoint Widefield Oculars. Standard Widefield Oculars are also available. FN = 18 mm, optional 20 mm available.
    • Objectives: DIN Standard 4X, 10X, 40XP and 100XR (Oil) Objectives. 40X and 100X Objectives are "R", or Retractable. 4X = NA 0.10, 10X = NA 0.25, 40X = NA 0.65, 100X = NA 1.25.
    • Nosepiece: 4 Hold Standard.
    • Focal Length: 160 mm.
      • Options:
      • G382-LED: Achromat.
      • G382SP-LED: Semi-Plan.
      • G382PL-LED: Plan Achromat.
  • Magnification: With 10X Eyepieces, Standard Magnification is 40X, 100X, 400X and 1,000X.
  • Stand: Sturdy Cast Metal Frame with unique Polymer Accent Panel, designed to provide stability while dissipating bulb heat.
  • Condenser: Features a Focusable NA 1.25 Abbe Condenser with port for optional Simple Phase Contrast Annulus insertion. Focusable for concentrated or diffuse lighting with rack and pinion movement.
  • Focusing: Smooth, extra-large Graduated Coaxial Coarse and Fine Focus Controls with Tension Adjustment to eliminate stage drift. Adjustable to your personal preferences.
    • Stage: Built-In Graduated Mechanical Stage with Low-Position Coaxial X-Y Controls. Ball Bearing Movement allows for smooth, precise adjustments. Spring Loaded Slide Holder.
    • Stage Size: 142 mm x 132 mm.
    • Range of X-Y Stage Movement: 55 mm x 75 mm.
  • Illumination: LED.
  • Iris Diaphragm: Features Adjustable Iris with Metal Leaf Overlay Design.
  • Electrical: 110V-60 Hz to 240V-50 Hz, Universal Power Supply. The Fuse Rating is 250V 1.5A. UL & CSA Approved electrical parts.
    • Size & Weight:
    • Size: 9.5" x 7.5" x 16" (240 x 190 x 410 mm).
    • Weight: 14 lbs (6.4 kg).
    • Shipping Size: 13.5" x 10.5" x 17.5" (340 x 260 x 440 mm).
    • Shipping Weight: 18 lbs (8.2 kg).


Unico G382 Dual View Microscope Literature:


Unico G380 Series Microscopes Brochure

Frequently asked questions

Does this microscope achieve high magnification?

Yes, the Unico G382 Dual View Microscope is capable of high optical magnification, reaching a maximum of 1,000X.

This maximum is achieved using the standard 10X High-Eyepoint Widefield Oculars paired with the included DIN objectives. The available magnification steps are:

  • 4X Objective: 40X total magnification
  • 10X Objective: 100X total magnification
  • 40XP (Retractable) Objective: 400X total magnification
  • 100XR Oil (Retractable) Objective: 1,000X total magnification
Is the Unico G382 comfortable for glasses wearers?

Yes, the Unico G382 Dual View Microscope features high eye-point eyepieces, specifically designed to reduce eyestrain and provide comfort for users who wear glasses. Additionally, each eye tube has an independent focusing diopter adjustment to compensate for vision differences.

Is high-quality LED illumination provided?

Yes, the Unico G382 uses LED illumination paired with advanced light control mechanisms for clear and versatile viewing. Key illumination features include: * Focusable NA 1.25 Abbe Condenser: This condenser uses rack and pinion movement for precise control, allowing you to optimize light concentration for different magnifications. * Adjustable Iris Diaphragm: Designed with a durable metal leaf overlay, this provides excellent user control over contrast and light intensity. * Universal Power Supply: The microscope operates globally, accepting inputs from 110V-60 Hz up to 240V-50 Hz. Furthermore, the sturdy cast metal frame features a unique polymer accent panel designed to help dissipate operational heat, ensuring the unit remains stable and comfortable during extended use.

Are high-quality DIN standard objectives included?

Yes, the Unico G382 Dual View Microscope includes DIN Standard objectives that provide sharp viewing up to 1,000X maximum magnification.The standard set of high-performance objectives includes:* 4X (NA 0.10)* 10X (NA 0.25)* 40XP Retractable (NA 0.65)* 100XR Oil Retractable (NA 1.25)These optics are fully coated with Anti-Glare, Color Correction, and Anti-Fungal treatments to ensure optical clarity and longevity. While the standard model uses Achromat objectives, optional upgrades like Semi-Plan or Plan Achromat objectives are available for improved image flatness.

What kind of warranty does the Unico G382 Dual View Microscope have?

The Unico G382 Dual View Microscope comes with a 5 Year Limited Warranty and a 1 Year Electrical System Warranty (excluding bulb and fuses).

Is the power supply universal?

Yes, the Unico G382 Dual View Microscope features a Universal Power Supply, making it adaptable for use across various global electrical standards.

Key electrical specifications are:

  • Input Voltage: The unit accepts a wide range from 110V-60 Hz to 240V-50 Hz.
  • Safety Approvals: All electrical components are UL & CSA Approved.
  • Fuse Rating: 250V 1.5A.
Is the Abbe condenser illumination precise?

Yes, the Unico G382 uses a high-quality, focusable NA 1.25 Abbe Condenser designed for excellent illumination control and contrast management. This precision system includes:

  • Focusing Mechanism: The condenser uses smooth rack and pinion movement for accurate vertical positioning.
  • Adjustable Iris Diaphragm: It is equipped with an adjustable iris diaphragm (featuring a metal leaf overlay design) that allows users to precisely control the aperture and light path for each objective, optimizing resolution and contrast.
  • Phase Contrast Ready: A dedicated port allows for the insertion of an optional Simple Phase Contrast Annulus, which is useful for observing transparent specimens.
Is the mechanical stage movement precise?

Yes, the Unico G382 is designed for precise, smooth specimen manipulation using its built-in graduated mechanical stage.

Precision and comfort are ensured by these key features:

  • Low-Position Coaxial Controls: The X-Y controls are placed ergonomically for comfortable, prolonged use.
  • Ball Bearing Movement: This mechanism ensures smooth, drift-free movement across the stage, which is critical for high-magnification viewing.
  • Generous Range: It provides a scanning range of 55 mm x 75 mm across the large 142 mm x 132 mm stage surface, facilitating comprehensive slide examination up to 1,000X.
