Tuttnauer Valueklave 1730 Autoclave

Yes, the Tuttnauer Valueklave 1730 is specifically engineered for rapid instrument turnaround, making fast sterilization cycles one of its key selling points.

The standard unwrapped cycle times are highly efficient:

• Hot Start: The unit achieves sterilization exposure and exhaust in as little as 11 minutes.
• Cold Start: The full cycle time is 16 minutes.

This rapid speed is ideal for busy small offices, and the unit includes an integrated dry cycle to prepare instruments for immediate reuse.

The Valueklave 1730 is designed with a compact footprint suitable for small practices, offering efficient sterilization capacity. The durable chamber and door are constructed from long-lasting, electro-polished 316 L grade stainless steel.

Key dimensions and specifications are:

• Chamber Dimensions: 7” (Diameter) x 13” (Depth) (170 mm x 340 mm)
• Chamber Volume: 2 gallons (7.5 L)

The unit includes three trays and can accommodate up to two half standard cassettes (8” x 5.5”).

Yes, the Tuttnauer Valueklave 1730 is designed to operate on standard 120 V electrical power. This ensures easy integration into most clinical or office environments without requiring specialized wiring.

For reference, here are the detailed electrical specifications for the unit:

• Voltage: 120 V
• Frequency: 50/60 Hz
• Power Consumption: 1350 W
• Current Draw: 11 A

Yes, the Tuttnauer Valueklave 1730 is equipped with critical safety features to ensure reliable and secure operation:

• Safe-Locking Door: Features a double safety device that prevents the door from being opened while the chamber is under pressure.
• Overheating Protection: Includes a dual safety thermostat for reliable overheating protection.
• Automatic Shut-Off: The unit automatically shuts down upon completion of both the sterilization and dry cycles.

The specific items included with the Valueklave 1730 Autoclave depend on whether you purchase a Factory New unit or a Certified Refurbished unit.

Factory New Inclusions

Factory New units come fully equipped for immediate operation and maintenance, including:

• Rack and Three Trays (The trays measure 11.6” D x 4.7” W x 0.8” H)
• Tray Handle
• Power Cord
• Reservoir Cap
• Operator’s Manual
• A supply pack of Chamber Brite (specialized autoclave cleaner)

Certified Refurbished Inclusions

Certified Refurbished units include essential operational and maintenance items:

• Power Cable
• New preventative maintenance kit (including gasket and filters)

No, you do not need to constantly monitor the unit. The Valueklave 1730 features an automatic shut-off system that triggers at the conclusion of both the sterilization and drying phases, allowing you to focus on other clinical tasks with confidence.

Yes, the Tuttnauer Valueklave 1730 is designed for long operational life using high-quality, durable materials.

• The sterilization chamber and door are constructed from 316 L grade stainless steel.
• This robust material is ideal for a high-pressure steam environment, offering superior durability and corrosion resistance.
• The stainless steel components are also electro-polished to ensure longevity.

Yes, the Tuttnauer Valueklave 1730 is designed for straightforward and reliable manual operation, making it ideal for clinical staff who require dependable simplicity.

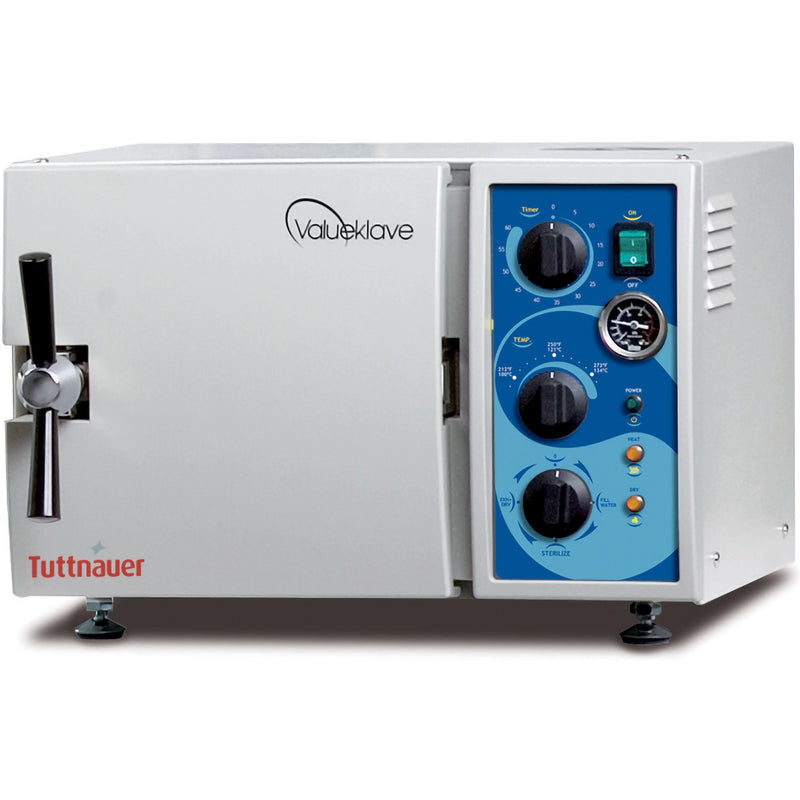

The unit features an intuitive, colorful control panel with distinct dials for managing the sterilization process:

• Manual Controls: Easily set the required Time, select the sterilization Temperature, and choose between the Sterilize/Dry cycle using the simple rotary dials.
• Automated Safety: The system ensures reliable operation by featuring an automatic shut-off upon completion of both the sterilization and dry cycles.
• Simplified Maintenance: A convenient front-located drain valve is included, which allows for simple and quick maintenance of the water reservoir.

The Factory New Tuttnauer Valueklave 1730 Autoclave is supplied with three sterilization trays and a tray handle.

These accessories are sized to fit efficiently within the compact 7” x 13” chamber. Key capacity details are:

• Total Trays Included: 3
• Individual Tray Dimensions: 11.6” (D) x 4.7” (W) x 0.8” (H)
• Cassette Capacity: The chamber can alternatively hold up to two standard half-size cassettes (8” x 5.5”).

Yes, the Tuttnauer Valueklave 1730 is designed to handle both wrapped and unwrapped instruments efficiently. It features a high-speed cycle that includes a drying phase, ensuring your instruments are properly processed and ready for use.
