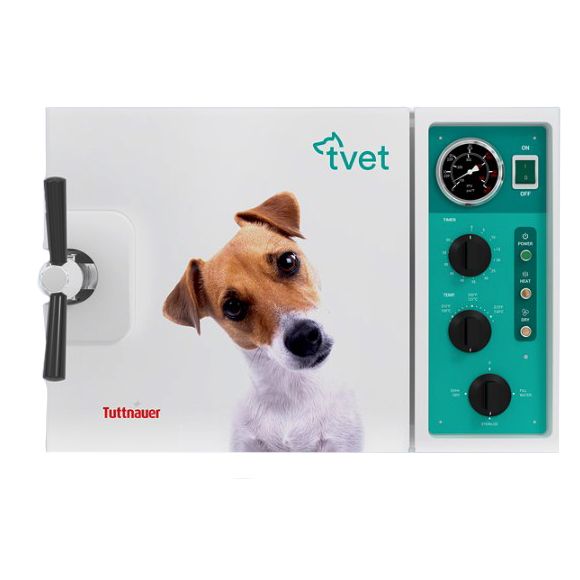

Tuttnauer tvet 9M Manual Autoclave

Tuttnauer tvet 9M Manual Autoclave
Key Features
  • SKU: TTN-TVET-9M
  • Condition: Factory New
  • Warranty: 10 Years
  • Weight: 84.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Tuttnauer Ships from Manufacturer
  • MPN: TVET 9M
  • Phone: (800) 624-5836
$5,590.91 $4,027.38

+ Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match

Description

The Tuttnauer tvet 9M Manual Autoclave (TVET 9M) is a manual autoclave intended for Veterinary use.

Warranties:

  • 1 Year - Parts and Labor.
  • 10 Years - Chamber.

This autoclave has a stainless steel chamber and door that measures 9" x 18", and can house three trays of instruments.There's a drain valve located at the front, which can makes it easy to drain the water reservoir. As for safety features, there's a dual safety thermostat to prevent overheating, and a double safety locking device that keeps the door closed while pressurized. When a cycle is finished, the autoclave will automatically shut off.

Features

Tuttnauer tvet 9M Manual Autoclave Features

  • Front drain valve for easy water removal.
  • Dual safety thermostats prevents overheating.
  • Dual safety locks prevent door opening while pressurized or in operation.
  • Stainless chamber and door ensure long life.

Specifications

Tuttnauer tvet 9M Manual Autoclave Specifications

  • Chamber Dimensions: 9" x 18" (230 mm x 470 mm).
  • Volume: 5 gallons (19 L).
  • Overall Dimensions: 21.5" x 20" x 14.4" (545 mm x 510 mm x 365 mm) (9 cubic feet)..
  • Standard Cassette Capacity: 2 Full (8" x 11") and 2 Half (8" x 5.5").
  • Tray Dimensions: 16.3" x 6.7" x 0.8" (415 mm x 170 mm x 20 mm).
  • No. of Trays: 3.
  • Standard Unwrapped Cycle Time (Hot Start):
    • Sterilization: 4 min.
    • Drying: 1 min.
    • Total: 20 min.
  • Standard Wrapped Cycle Time (Hot Start):
    • Sterilization: 7 min.
    • Drying: 45 min.
    • Total: 65 min.
  • Voltage and Frequency: 120 V, 50/60 Hz.
  • Power and Current: 1400 W, 12 A.
  • Shipping Weight: 85 lb (39 kg).

Literature

Tuttnauer tvet 9M Manual Autoclave Literature

Tuttnauer tvet Veterinary Autoclaves Brochure

Frequently asked questions

What safety features does the Tuttnauer tvet 9M autoclave include?

The Tuttnauer tvet 9M autoclave incorporates several robust safety features:

  • Dual Safety Thermostats: These are installed to prevent the unit from overheating.
  • Double Safety Locking Device: This critical feature keeps the door securely fastened while the chamber is under pressure during a cycle.
  • Automatic Shut-Off: The unit automatically powers down upon the completion of a sterilization cycle.
Is the autoclave compatible with standard 120V power?

Yes, the Tuttnauer tvet 9M Manual Autoclave operates on standard 120V power, which simplifies integration into most veterinary facilities.

Key electrical specifications are:

  • Voltage and Frequency: 120 V, 50/60 Hz
  • Power Consumption: 1400 W
  • Current Draw: 12 A
How many standard cassettes can the Tuttnauer tvet 9M autoclave hold?

The Tuttnauer tvet 9M autoclave can hold 2 full (8” x 11”) and 2 half (8” x 5.5”) standard cassettes.

Does the Tuttnauer tvet 9M offer easy maintenance?

Yes, the Tuttnauer tvet 9M is designed with convenience and durability in mind for straightforward maintenance and operation.Key features contributing to this include:* Front Drain Valve: A front-located valve allows for easy and quick removal of water from the reservoir, simplifying routine drainage.* Durable Construction: It features a robust stainless steel chamber and door, ensuring an extended service life and minimizing wear.* Automatic Shut-off: The unit automatically shuts off once the sterilization cycle is complete, enhancing operational safety and user convenience.

How long is the unwrapped cycle time?

The total cycle time for unwrapped instruments using a hot start is 20 minutes.

This total duration includes the following specific phases:

  • Sterilization: 4 minutes
  • Drying: 1 minute
What is the wrapped cycle time?

The total processing time for a wrapped instrument load using a hot start is 65 minutes.

This cycle time is broken down into the following phases:

  • Sterilization: 7 minutes
  • Drying: 45 minutes

For reference, the unwrapped cycle time (hot start) is significantly shorter, completing in only 20 minutes (4 minutes sterilization, 1 minute drying).

What is the voltage requirement for this efficient autoclave?

The Tuttnauer tvet 9M Manual Autoclave operates efficiently on a standard 120 V electrical supply with a frequency of 50/60 Hz.

Is the Tuttnauer tvet 9M built with durable stainless steel?

Yes, the Tuttnauer tvet 9M is built with exceptional durability in mind. Both the sterilization chamber and the door are constructed from robust, high-quality stainless steel. This material ensures long-term reliability and resistance to corrosion, which is further demonstrated by the generous 10-year warranty provided on the chamber itself.

Does it have a convenient drain valve?

The autoclave has a convenient front drain valve, which simplifies water removal and makes maintenance easier.
