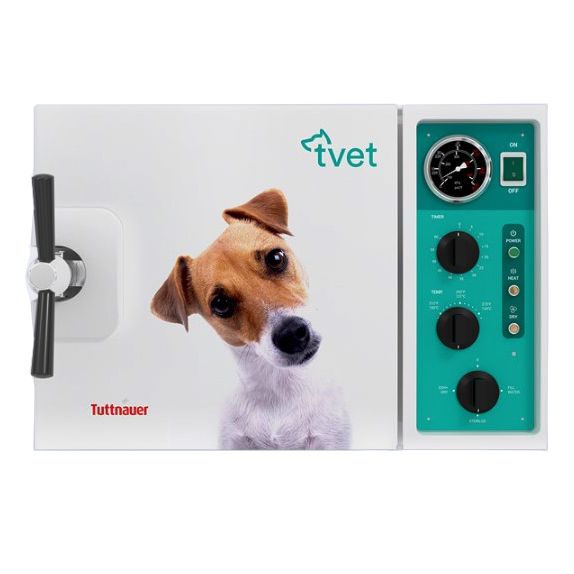

Tuttnauer tvet 10M Manual Autoclave

The Tuttnauer tvet 10M Manual Autoclave features a substantial chamber capacity designed for veterinary clinic use. This includes:

• Volume: 6 gallons (23 L)
• Chamber Dimensions: 10 inches x 19 inches (254 mm x 475 mm)

The unit comes standard with four stainless steel trays and can accommodate a standard load of 3 Full (8” x 11”) and 3 Half (8” x 5.5”) sterilization cassettes.

Yes, the Tuttnauer tvet 10M Manual Autoclave is engineered with robust safety mechanisms for reliable operation in veterinary clinics:

• Dual Safety Thermostat: Prevents the unit from overheating.
• Dual Safety Door Locks: Secures the chamber door, preventing accidental opening while the unit is pressurized.
• Automatic Shutoff: The unit automatically powers down upon the completion of a sterilization cycle.

Yes, both the sterilization chamber and the door of the Tuttnauer tvet 10M are constructed from high-quality stainless steel.

This robust material choice ensures exceptional durability and corrosion resistance necessary for high-pressure steam sterilization in a clinical setting. To underscore this durability, the stainless steel chamber is backed by an extensive 10-Year Chamber Warranty.

The overall external dimensions for the Tuttnauer tvet 10M Manual Autoclave are:

• Imperial: 21.5 inches x 20 inches x 14.4 inches
• Metric: 545 mm x 510 mm x 365 mm

This unit is designed for convenient placement, such as on a countertop, within a veterinary practice.

The Tuttnauer tvet 10M operates using standard specifications for the region:

• Voltage and Frequency: 120 V, 50/60 Hz
• Power Consumption: 1400 W (12 A)

The standard cycle times listed below are based on a Hot Start condition.

• Unwrapped Instruments:
  • Sterilization: 4 minutes
  • Drying: 1 minute
  • Total Time: 26 minutes
• Wrapped Instruments:
  • Sterilization: 7 minutes
  • Drying: 45 minutes
  • Total Time: 72 minutes

Yes, the Tuttnauer tvet 10M is designed to simplify maintenance.

It features a front drain valve that provides quick and easy removal of water from the reservoir. This streamlines post-cycle draining and cleaning procedures.

The autoclave includes 4 stainless steel trays standard. These trays are designed to maximize the usable space within the 6-gallon chamber. They also help accommodate the autoclave’s cassette capacity (3 Full and 3 Half standard cassettes).

The dimensions for each tray are:

• Length: 16.3 inches (415 mm)
• Width: 6.7 inches (170 mm)
• Depth: 0.8 inches (20 mm)

Yes, the Tuttnauer tvet 10M Manual Autoclave is specifically designed and optimized for use in Veterinary clinics and specialized animal care facilities. The design ensures appropriate sterilization cycles and capacity for common veterinary instruments.

Key features that make it ideal for this environment include:

• Targeted Design: The unit is purpose-built for veterinary applications, featuring branding and operation tailored for clinical tools.
• High Capacity: It utilizes a durable 6-gallon (23 L) stainless steel chamber (10” x 19”) and comes standard with four trays to maximize instrument throughput.
• Safety Engineering: Operational safety is guaranteed by dual safety door locks (preventing opening under pressure) and a dual safety thermostat (preventing overheating).
• Longevity: The robust stainless steel chamber is backed by a substantial 10-year warranty.

The Tuttnauer tvet 10M Autoclave offers a generous capacity for standard sterilization cassettes. It is designed to accommodate the following simultaneously:

• 3 Full Cassettes (8” x 11”)
• 3 Half Cassettes (8” x 5.5”)

Additionally, the unit includes four stainless steel trays to help organize instruments within the 10” x 19” chamber.
