Description

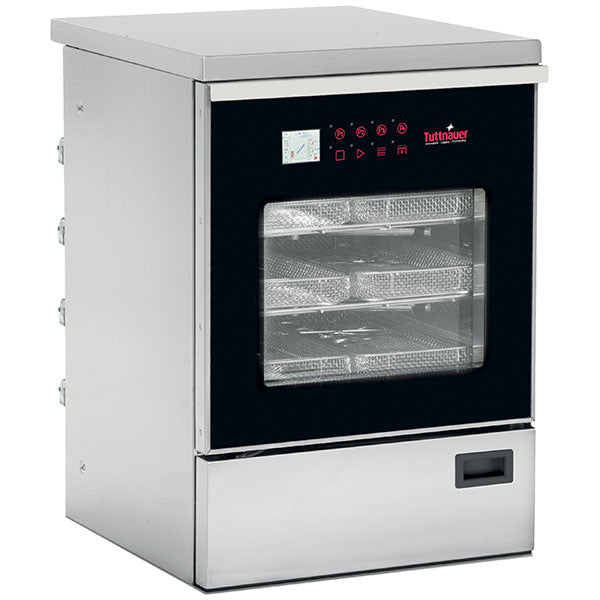

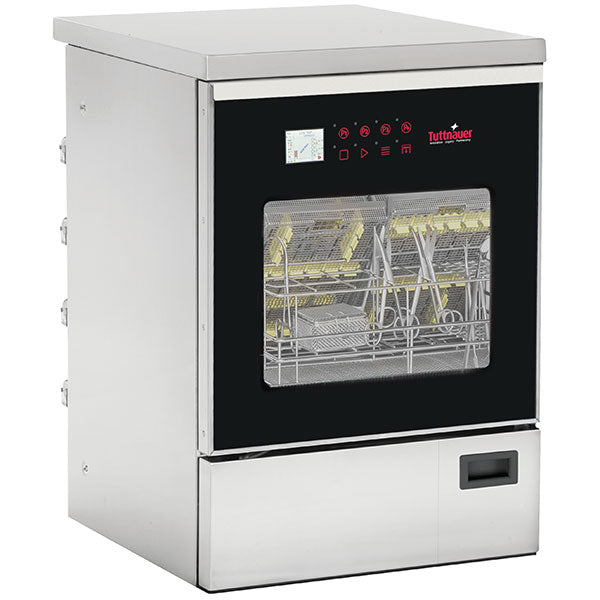

The Tuttnauer TIVA8-MD High Thermal Disinfection Washer is designed for washing, disinfecting, and drying vital instruments, to prepare them for sterilization.

Warranty: 2 Years.

The TIVA8-MD High Thermal Disinfection Washer is available in two power configurations: 3-Phase 208 - 240 V without Neutral, 60 Hz or Single Phase 208 - 240 V without Neutral, 60 Hz (see Packages for inclusions). It features a double-layered tempered glass door, and is made from AISI 316L stainless steel. The upper rack is equipped with a monitored spray arm, and the chamber features a multi-color LED light source to indicate stages of each phase.

This Disinfection Washer utilizes cold and hot water with softeners, and demineralized water to effectively wash instruments. It's very user-friendly, with 40 washing programs to choose from on a single-touch color display. After each cleaning, the unit produces a graphic report for each washing phase with pertinent information such as time and temperature.

The integrated water softener and built-in steam condenser ensure an eco-friendly wash with each cycle. They reduce contamination and remove excess steam. In addition, there are two dosing pumps with flowmeters which dictate the amounts of acid and alkaline detergents for monitoring.

Features

Tuttnauer TIVA8-MD High Thermal Disinfection Washer Features

  • User-friendly, touchscreen, color display.
  • Up to 40 washing cycles to choose from.
  • Effectively decontaminates and prepares instruments for sterilization.
  • Each cycle produces a report with washing phase information for records.

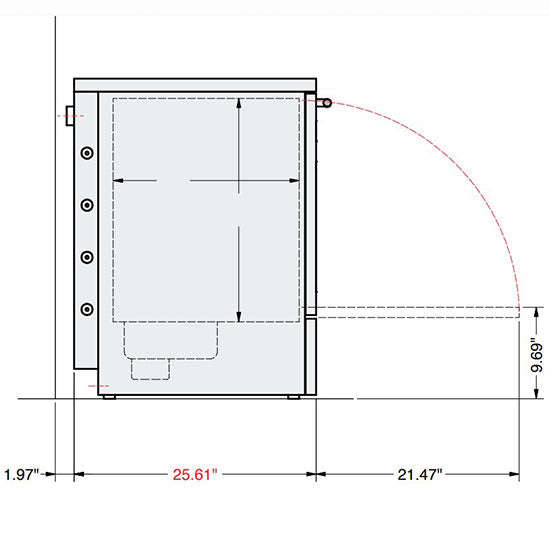

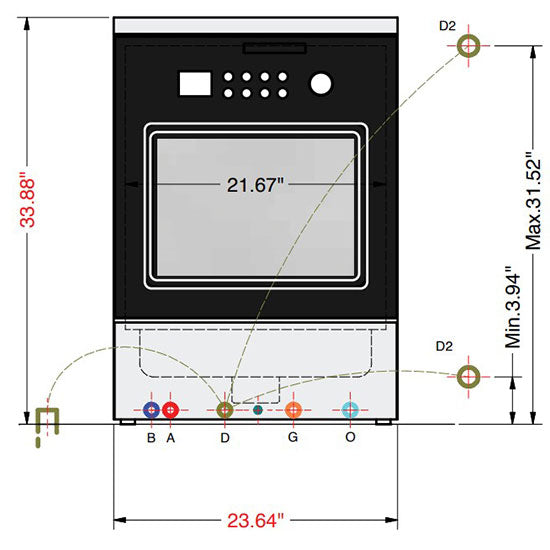

Specifications

Tuttnauer TIVA8-MD High Thermal Disinfection Washer Specifications

  • Height: 33.88".
  • Width: 23.64".
  • Hot Water Connection: 3/4" g (tube 1/2" g).
  • Cold Water Connection: 3/4" g (tube 1/2" g).
  • Drain dn 40 hose connection: 0.984" (at wall).
  • Demineralized water connection: 1/2" g.
  • Material: AISI 316L Stainless Steel.

Packages

Tuttnauer TIVA8-MD High Thermal Disinfection Washer Packages

The following lists what items are included with each package.

  • #TIVA8-MD 1 DENTAL:
    • TIVA8-MD High Thermal Disinfection Washer - 1 Phase, 208 - 240 V (#112002083).
    • (A206) Insert Trays/Cass. 6 POS. (35 mm) (#D00774100).
    • (A085) 1/3 Basket - Suitable on all racks (#D00594900).
    • (A194) Insert - 14 Position (#D00752400).
  • #TIVA8-MD 3 DENTAL:
    • TIVA8-MD High Thermal Disinfection Washer - 3 Phase, 208 - 240 V (#112002082).
    • (A206) Insert Trays/Cass. 6 POS. (35 mm) (#D00774100).
    • (A085) 1/3 Basket - Suitable on all racks (#D00594900).
    • (A194) Insert - 14 Position (#D00752400).
  • #TIVA8-MD 1 MEDICAL:
    • TIVA8-MD High Thermal Disinfection Washer - 1 Phase, 208 - 240 V (#112002083).
    • (A002) (4) DIN Baskets - 19" x 10" x 2" (#465060061).
  • #TIVA8-MD 3 MEDICAL:
    • TIVA8-MD High Thermal Disinfection Washer - 3 Phase, 208 - 240 V (#112002082).
    • (A002) (4) DIN Baskets - 19" x 10" x 2" (#465060061).
  • #TIVA8-L: Glass Lab Washer - 3 Phase, 208 - 240 V.

Accessories

Tuttnauer TIVA8-MD High Thermal Disinfection Washer Accessories

  • Tuttnauer TIVA8 Basket Package
    • Dental Package
      • (A206) Insert Trays/Cass. 6 POS. (35 mm) (#D00774100).
      • (A085) 1/3 Basket - Suitable on all racks (#D00594900).
      • (A194) Insert - 14 Position (#D00752400).
    • Medical Package
      • (A002) (4) DIN Baskets - 19" x 10" x 2" (#465060061).

Literature

Tuttnauer TIVA8-MD High Thermal Disinfection Washer Literature

Tuttnauer TIVA8-MD High Thermal Disinfection Washer Brochure
