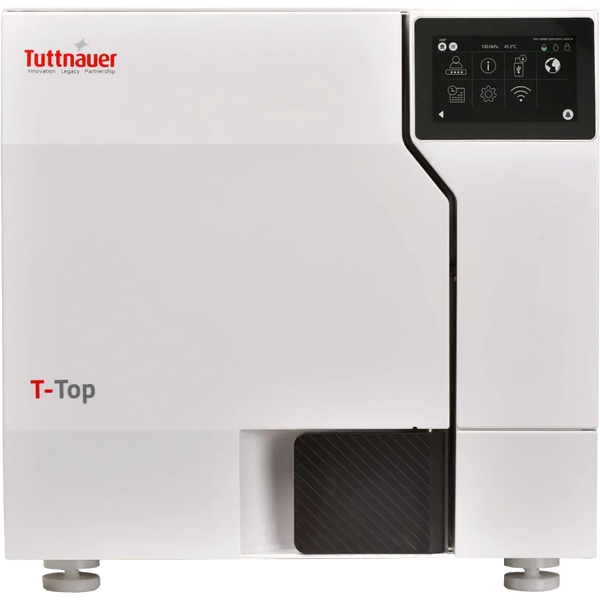

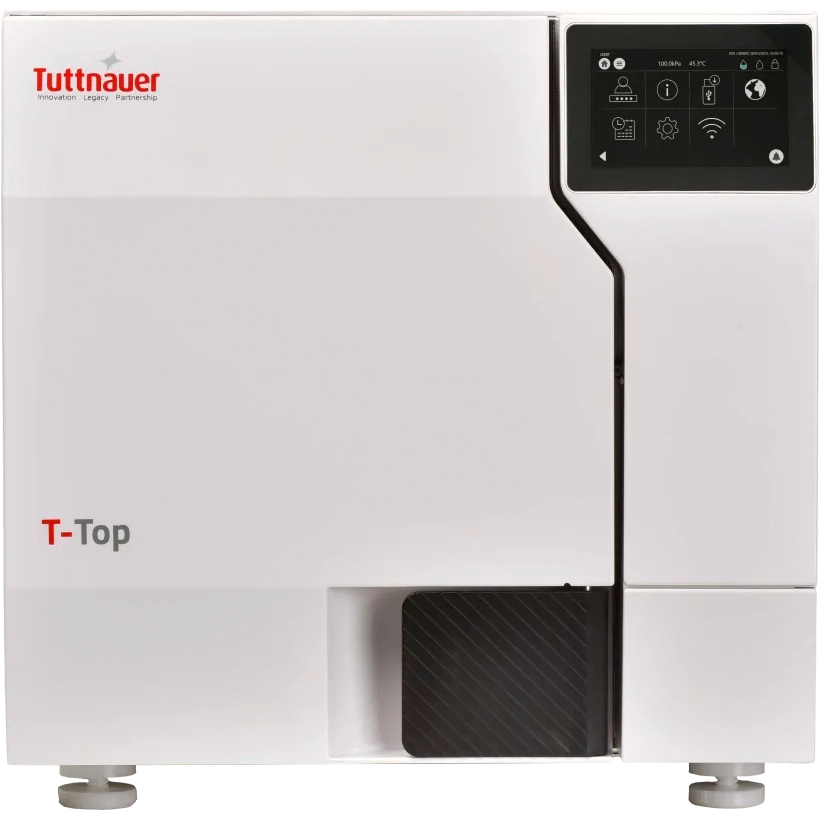

Tuttnauer T-Top 10 Autoclave

Tuttnauer T-Top 10 Autoclave
Tuttnauer T-Top 10 Autoclave open door

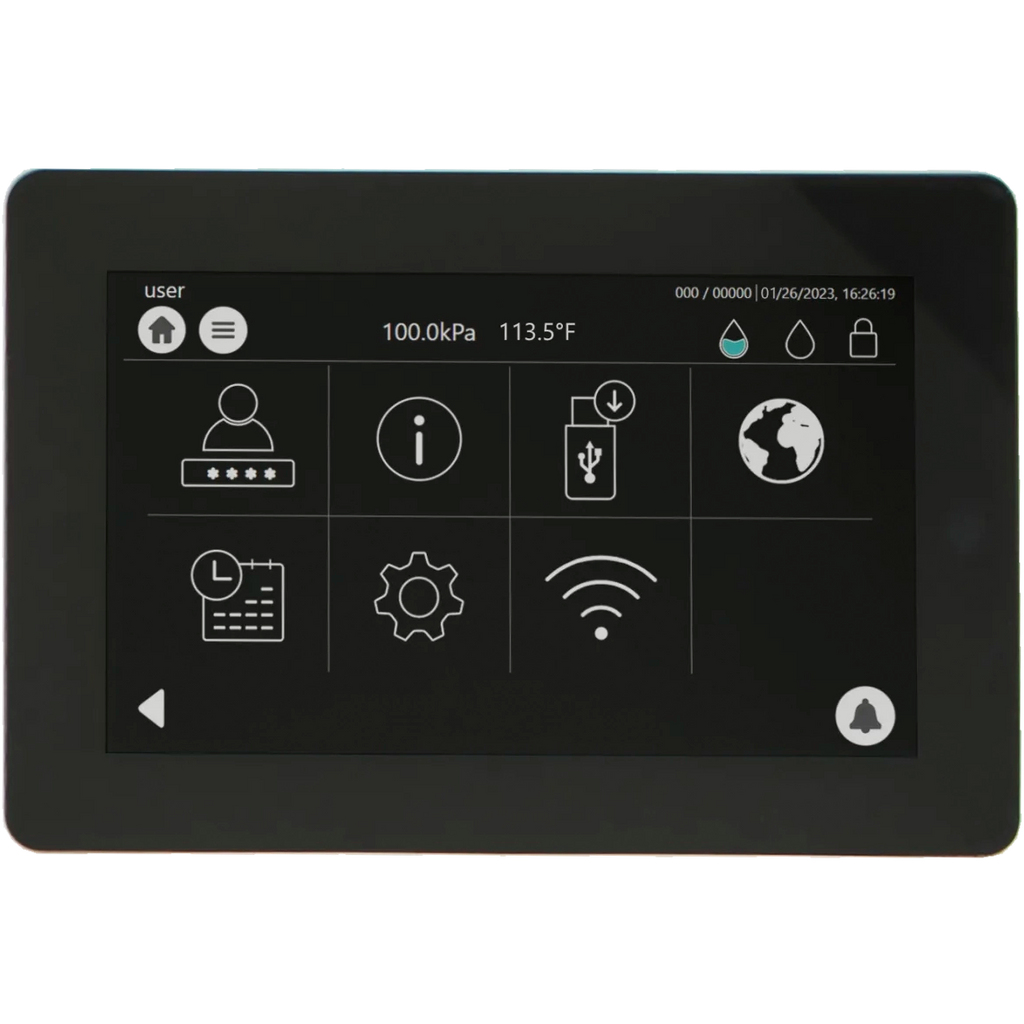

Tuttnauer T-Top 10 Autoclave control panel display

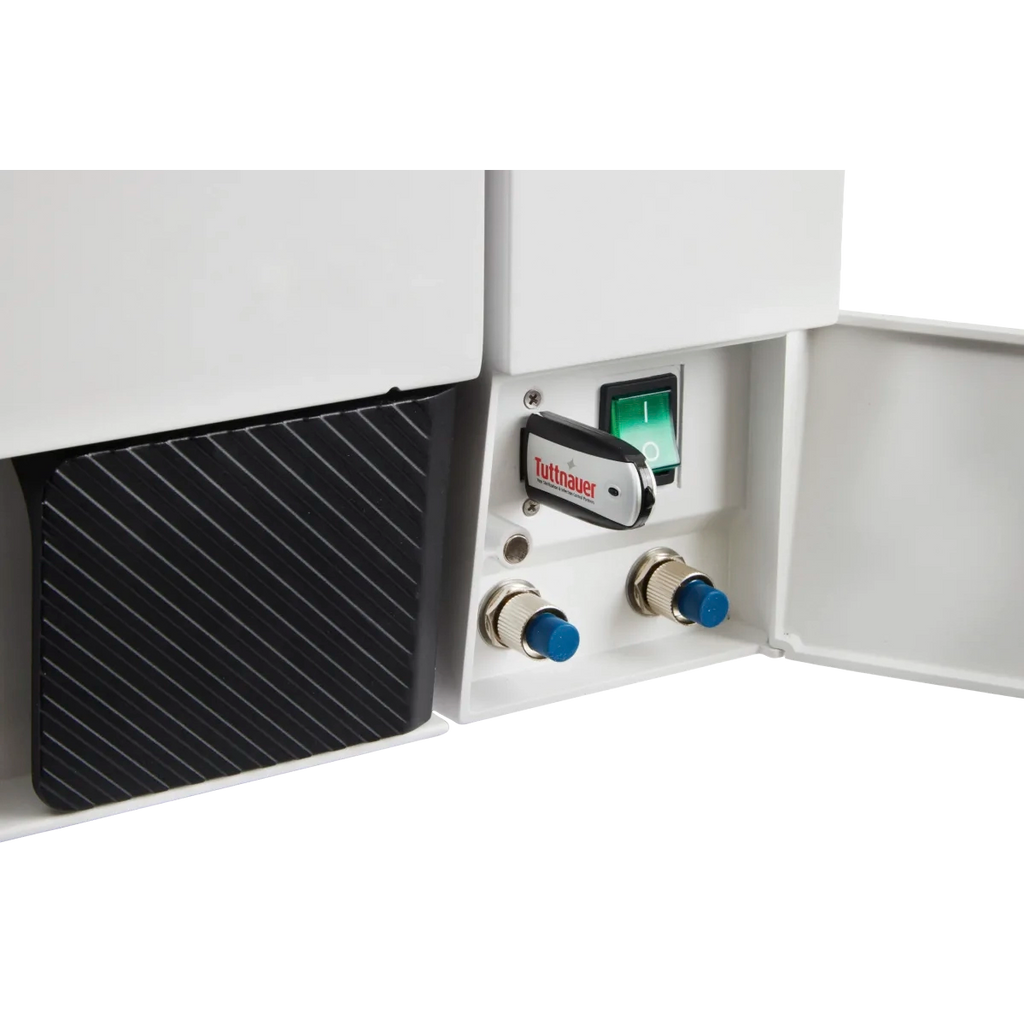

Tuttnauer T-Top 10 Autoclave switch and USB access
Tuttnauer T-Top 10 Autoclave
Tuttnauer T-Top 10 Autoclave open door
Tuttnauer T-Top 10 Autoclave control panel display
Tuttnauer T-Top 10 Autoclave switch and USB access
Tuttnauer NEW T-Top autoclave
T-Connect
Tuttnauer NEW T-Top autoclave
T-Connect
Tuttnauer NEW T-Top autoclave
T-Connect
Tuttnauer NEW T-Top autoclave
T-Connect
Tuttnauer NEW T-Top autoclave
T-Connect
Tuttnauer NEW T-Top autoclave
T-Connect
Tuttnauer NEW T-Top autoclave
T-Connect
Key Features
  • SKU: TTN-T-TOP-10S-110V
  • Condition: Factory New
  • Country of Origin: Israel
  • Warranty: 1 Year
  • Weight: 140.5 lb
  • Cost effective and durable closed door drying solution for medical and healthcare facilities
  • Specifically developed for dental and medical clinics of small to medium practices
  • Intuitive color touchscreen

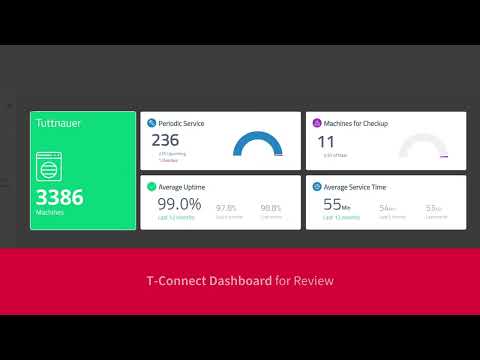

  • T-Connect software provides a place to store all cycle information in a portal as well as give diagnostics
  • Volume: 15 - 50 L
  • Technology: Steam Pressure

  • Learn more:

Contact The Manufacturer
  • MFR: Tuttnauer Ships from Manufacturer
  • MPN: T-TOP 10S 110V
  • Phone: (800) 624-5836
$7,264.00 $4,228.54

+Shipping

Select a Configuration
Est. Delivery:

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Tuttnauer T-Top 10 Autoclave includes four trays.

Warranty: 1 Year - Parts.

The T-Top Autoclave is specifically developed for dental and medical clinics of small to medium practices, covering the fundamental needs for your general clinic sterilization with the aim of increasing the productivity of your practice.

Tuttnauer's T-Top fully automatic tabletop unit offers universal capacity, handed to you, in an affordable and reliable solution you can count on for managing your daily practice sterilization process workload; an efficient autoclave which perfectly meets the requirements of all standard practices.

The Class S model utilizes a gravity steam sterilization method, while the Class B uses a pre/post vacuum method that won't exhaust air in the chamber during the procedure. If customers currently have the Class S model and wish to upgrade to Class B (Pre/Post Vacuum version), the autoclave can be updated via the USB Software Update (#T-TOP CLASS B SW UPGRADE), to add the features of the Class B model.

Features

Tuttnauer T-Top 10 Autoclave Features

  • Upgradable to pre/post vacuum (Class B) through a software update, instead of purchasing a new device.
  • Plug and Play: No dedicated installation connections needed, simply a power source.
  • Traceability and Connectivity: Monitor and trace your process. Connect using Wi-Fi, an ethernet connection, USB ports (2x), T-Connect (advanced remote diagnostics), and R.PC.R.
  • Time Saver Setting: Set test cycles and sterilization cycles to start at any time.
  • Compact Design: Does not require a lot of counter top or shelf space (designed for a 60 cm shelf depth).
  • Internal Memory: Stores up to 500 cycles.
  • Data and Software:
    • Advanced documentation and traceability options (including barcode).
    • Printouts for saving hard copies (optional printer).
    • Sophisticated data analysis capabilities with RPCR software.
    • Personalized username and password.
  • Water Filling: Manual.
  • Clean water with every cycle! Separate water reservoirs for clean/used water.
  • Standards and Regulations:
    • CE MDR: Certificate number 3903015CE01 (valid until 01-03-2028).
    • Electromagnetic Compatibility: IEC 61326-1.
    • Electrical Safety: IEC 61010-1, 61010-2-040.
    • Verification and Validation Functional Tests: EN 13060.
    • Software Validation: EN 62304, FDA guidance.
    • Quality Management System:
      • ISO 9001:2015.
      • ISO 13485: 2016.
    • Pressure Vessel: PED 2014/68/EU.

Specifications

Tuttnauer T-Top 10 Autoclave Specifications

  • Weight: 99 lb (45 kg).
  • Dimensions: 23" (D) x 18.1" (W) x 18 (H) (585 mm x 460 mm x 457 mm).
  • Chamber Size: 10" (Diameter) x 18" (Depth) (249 mm x 450 mm).
  • Volume: 21 L (5.5 Gal).
  • Usable Chamber Space: 75% (~ 17 L).
  • Optimal Capacity:
    • Up to four trays.
    • 3 full-size cassettes and 3 half-size cassettes.
    • ~80 dental instruments.
  • Tray Dimensions: 14.8" (D) x 7.3" (W) x 0.6" (H) (375 mm x 185 mm x 15 mm).
  • Voltage: 110 V.
  • Water Tank Volume: 3.6 L.
  • Wastewater Tank Volume: Up to 3.75 L (overflow 5.75 L).

Configurations

Tuttnauer T-Top 10 Autoclave Configurations

  • #T-TOP 10S 110V: Class S (Gravity Cycle).
  • #T-TOP 10B 110V: Class B (Pre/Post Vacuum).

Sterilization Cycle Programs: Optimized cycle programs for efficient and consistent performance (Note: Cycle times are an average for a standard load and could vary based on load weight, type, and external conditions):

  • Class S:
    • Unwrapped Instruments 270 °F: 21 minutes.
    • Wrapped Pouches 270 °F: 47 minutes.
    • Unwrapped Delicate Instruments 250 °F: 34 minutes.
    • Handpieces 270 °F: 50 minutes.
  • Class B:
    • Unwrapped Instruments 273 °F: 24 minutes.
    • Wrapped Pouches 273 °F: 52 minutes.
    • Wrapped Delicate Instruments 250 °F: 73 minutes.
    • Unwrapped Delicate Instruments 250 °F: 34 minutes.

Accessories

Tuttnauer T-Top 10 Autoclave Accessories

The following accessories are compatible and commonly purchased with the T-Top 10 Autoclave:

  • Clean & Simple Ultrasonic Cleaner.
  • DS1G Steam Distiller.
  • DS1000 Steam Distiller.
  • T-System Clean Cleaning Tablets.
  • TIVA2 Washer-Disinfector.
  • TIVA8-MD High Thermal Disinfection Washer.
