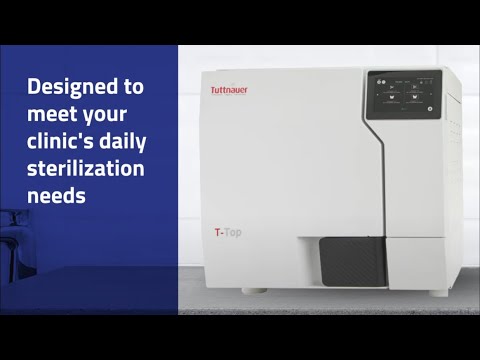

Tuttnauer T-Top 10 Autoclave

Tuttnauer T-Top 10 Autoclave
Tuttnauer T-Top 10 Autoclave open door
Tuttnauer T-Top 10 Autoclave control panel display
Tuttnauer T-Top 10 Autoclave switch and USB access
Tuttnauer T-Top 10 Autoclave
Tuttnauer T-Top 10 Autoclave open door
Tuttnauer T-Top 10 Autoclave control panel display
Tuttnauer T-Top 10 Autoclave switch and USB access
Tuttnauer T-Top 10 Autoclave
Tuttnauer T-Top 10 Autoclave
Key Features
  • SKU: TTN-T-TOP-10S-110V
  • Condition: Factory New
  • Country of Origin: Israel
  • Warranty: 1 Year
  • Weight: 140.5 lb
  • Cost effective and durable closed door drying solution for medical and healthcare facilities
  • Specifically developed for dental and medical clinics of small to medium practices
  • Intuitive color touchscreen
  • T-Connect software provides a place to store all cycle information in a portal as well as give diagnostics
  • Volume: 15 - 50 L
  • Technology: Steam Pressure

  • Learn more:

Contact The Manufacturer
  • MFR: Tuttnauer Ships from Manufacturer
  • MPN: T-TOP 10S 110V
  • Phone: (800) 624-5836
$7,264.00 $4,183.55

+Shipping

Select a Configuration
Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Tuttnauer T-Top 10 Autoclave includes four trays.

Warranty: 1 Year - Parts.

The T-Top Autoclave is specifically developed for dental and medical clinics of small to medium practices, covering the fundamental needs for your general clinic sterilization with the aim of increasing the productivity of your practice.

Tuttnauer's T-Top fully automatic tabletop unit offers universal capacity, handed to you, in an affordable and reliable solution you can count on for managing your daily practice sterilization process workload; an efficient autoclave which perfectly meets the requirements of all standard practices.

The Class S model utilizes a gravity steam sterilization method, while the Class B uses a pre/post vacuum method that won't exhaust air in the chamber during the procedure. If customers currently have the Class S model and wish to upgrade to Class B (Pre/Post Vacuum version), the autoclave can be updated via the USB Software Update (#T-TOP CLASS B SW UPGRADE), to add the features of the Class B model.

Features

Tuttnauer T-Top 10 Autoclave Features

  • Upgradable to pre/post vacuum (Class B) through a software update, instead of purchasing a new device.
  • Plug and Play: No dedicated installation connections needed, simply a power source.
  • Traceability and Connectivity: Monitor and trace your process. Connect using Wi-Fi, an ethernet connection, USB ports (2x), T-Connect (advanced remote diagnostics), and R.PC.R.
  • Time Saver Setting: Set test cycles and sterilization cycles to start at any time.
  • Compact Design: Does not require a lot of counter top or shelf space (designed for a 60 cm shelf depth).
  • Internal Memory: Stores up to 500 cycles.
  • Data and Software:
    • Advanced documentation and traceability options (including barcode).
    • Printouts for saving hard copies (optional printer).
    • Sophisticated data analysis capabilities with RPCR software.
    • Personalized username and password.
  • Water Filling: Manual.
  • Clean water with every cycle! Separate water reservoirs for clean/used water.
  • Standards and Regulations:
    • CE MDR: Certificate number 3903015CE01 (valid until 01-03-2028).
    • Electromagnetic Compatibility: IEC 61326-1.
    • Electrical Safety: IEC 61010-1, 61010-2-040.
    • Verification and Validation Functional Tests: EN 13060.
    • Software Validation: EN 62304, FDA guidance.
    • Quality Management System:
      • ISO 9001:2015.
      • ISO 13485: 2016.
    • Pressure Vessel: PED 2014/68/EU.

Specifications

Tuttnauer T-Top 10 Autoclave Specifications

  • Weight: 99 lb (45 kg).
  • Dimensions: 23" (D) x 18.1" (W) x 18 (H) (585 mm x 460 mm x 457 mm).
  • Chamber Size: 10" (Diameter) x 18" (Depth) (249 mm x 450 mm).
  • Volume: 21 L (5.5 Gal).
  • Usable Chamber Space: 75% (~ 17 L).
  • Optimal Capacity:
    • Up to four trays.
    • 3 full-size cassettes and 3 half-size cassettes.
    • ~80 dental instruments.
  • Tray Dimensions: 14.8" (D) x 7.3" (W) x 0.6" (H) (375 mm x 185 mm x 15 mm).
  • Voltage: 110 V.
  • Water Tank Volume: 3.6 L.
  • Wastewater Tank Volume: Up to 3.75 L (overflow 5.75 L).

Configurations

Tuttnauer T-Top 10 Autoclave Configurations

  • #T-TOP 10S 110V: Class S (Gravity Cycle).
  • #T-TOP 10B 110V: Class B (Pre/Post Vacuum).

Sterilization Cycle Programs: Optimized cycle programs for efficient and consistent performance (Note: Cycle times are an average for a standard load and could vary based on load weight, type, and external conditions):

  • Class S:
    • Unwrapped Instruments 270 °F: 21 minutes.
    • Wrapped Pouches 270 °F: 47 minutes.
    • Unwrapped Delicate Instruments 250 °F: 34 minutes.
    • Handpieces 270 °F: 50 minutes.
  • Class B:
    • Unwrapped Instruments 273 °F: 24 minutes.
    • Wrapped Pouches 273 °F: 52 minutes.
    • Wrapped Delicate Instruments 250 °F: 73 minutes.
    • Unwrapped Delicate Instruments 250 °F: 34 minutes.

Accessories

Tuttnauer T-Top 10 Autoclave Accessories

The following accessories are compatible and commonly purchased with the T-Top 10 Autoclave:

  • Clean & Simple Ultrasonic Cleaner.
  • DS1G Steam Distiller.
  • DS1000 Steam Distiller.
  • T-System Clean Cleaning Tablets.
  • TIVA2 Washer-Disinfector.
  • TIVA8-MD High Thermal Disinfection Washer.

Frequently asked questions

Does the autoclave offer Class S performance?

Yes, the Tuttnauer T-Top Autoclave is a Class S tabletop steam sterilizer.

This classification indicates high performance, specifically featuring:

  • Closed-door drying for thorough moisture removal.
  • Optimized cycles suitable for sterilizing both wrapped and unwrapped instruments.
What are the dimensions of this compact autoclave?

The Tuttnauer T-Top 10 is designed to fit efficiently into your clinic, with a footprint specifically engineered for standard 60 cm deep countertops. Its physical dimensions are:

  • Depth: 23 inches (585 mm)
  • Width: 18.1 inches (460 mm)
  • Height: 18 inches (457 mm)
What is the usable chamber capacity?

The Tuttnauer T-Top 10 Autoclave features a 21 L chamber, with approximately 17 L of usable space (75% of the total volume). This compact yet high-capacity design allows you to efficiently process your instruments, supporting the following load configurations:

  • Tray Capacity: Up to 4 trays (included with the unit).
  • Cassette Capacity: Up to 3 full-size and 3 half-size cassettes.
  • Instrument Capacity: Approximately 80 dental instruments.
Does the T-Top Autoclave run on standard 110V?

Yes, the Tuttnauer T-Top Autoclave is designed for operation using a standard 110 V power source.

This unit features a Plug and Play Design, which is a significant advantage:

  • It requires no dedicated installation connections.
  • You only need a standard power source for immediate, straightforward operation.

This compact design makes it ideal for maximizing space efficiency in small to medium-sized clinics.

Is remote cycle monitoring available?

Yes, the Tuttnauer T-Top Autoclave includes advanced T-Connect Smart Connectivity to enhance productivity and traceability.

Key features include:

  • T-Connect IoT Software: This centralized system allows for remote monitoring, diagnostic feedback, and automatically archives all cycle data in a dedicated, secure portal.
  • Extensive Connectivity: The unit features built-in Wi-Fi, an Ethernet connection, and dual USB ports for data management.
  • Internal Data Storage: The internal memory stores up to 500 sterilization cycles for compliance and record-keeping.
Does the autoclave have smart connectivity?

Yes, the T-Top Autoclave is highly connected, featuring the unique T-Connect IoT software for smart clinic integration and advanced traceability.

Key connectivity features include:

  • Multiple Connections: Built-in Wi-Fi, Ethernet connection, and two USB ports for comprehensive connectivity.
  • Data Storage: Internal memory is capable of storing information for up to 500 cycles.
  • Remote Management: Supports remote monitoring and diagnostic capabilities via the T-Connect software.
  • Traceability: Facilitates advanced documentation and compliance tracking by providing a dedicated portal for storing all cycle information.
How many sterilization cycles can be stored?

The Tuttnauer T-Top Autoclave features robust data management capabilities. Its internal memory can store documentation for up to 500 sterilization cycles. This extensive storage capacity, combined with the built-in Wi-Fi and USB ports, supports advanced documentation and traceability features via the T-Connect IoT software.

Is the water filling method manual?

Yes, the Tuttnauer T-Top Autoclave uses a manual water filling system. The unit is equipped with a dedicated water tank that holds 3.6 L.

What key regulatory certifications does the T-Top Autoclave hold?

The Tuttnauer T-Top Autoclave adheres to stringent international standards, ensuring reliability and safety for use in medical environments. Key regulatory certifications include:

  • Medical Device Regulation (MDR) Compliance: Certified with CE MDR (Certificate 3903015CE01), verifying adherence to EU health and safety requirements.
  • Performance and Functionality: Meets EN 13060 standards for small steam sterilizers.
  • Quality Management Systems: Certified under ISO 9001:2015 and ISO 13485:2016 (Quality Management System for Medical Devices).
  • Electrical Safety & EMC: Complies with IEC 61010-1, 61010-2-040 (Electrical Safety) and IEC 61326-1 (Electromagnetic Compatibility).
  • Pressure Vessel and Software: Complies with the PED 2014/68/EU directive for pressure vessels and adheres to EN 62304 and FDA guidance for software validation.
How many sterilization trays come with this autoclave?

The Tuttnauer T-Top 10 Autoclave comes standard with four trays included. The chamber is specifically designed to accommodate this four-tray configuration, providing an efficient capacity for up to approximately 80 dental instruments.
