Tuttnauer MiniBio Auto-Reader

Tuttnauer MiniBio Auto-Reader
Key Features
  • SKU: TTN-WTL198-0057
  • Condition: Factory New
  • Country of Origin: Israel
  • Warranty: 1 Year
  • Weight: 3.1 lb
  • Provides accurate readouts for Biological Indicators after the sterilization process
  • Six incubation programs
  • Space for three biological indicators
  • Provides fast and accurate results within minutes, compared to mailing services that take up to a week or more

  • Learn more:

Contact The Manufacturer
  • MFR: Tuttnauer Ships from Manufacturer
  • MPN: WTL198-0057
  • Phone: (800) 624-5836
$987.42

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Tuttnauer MiniBio Auto-Reader (#WTL198-0057) provides accurate readouts for Biological Indicators after the sterilization process.

Warranty: 1 Year.

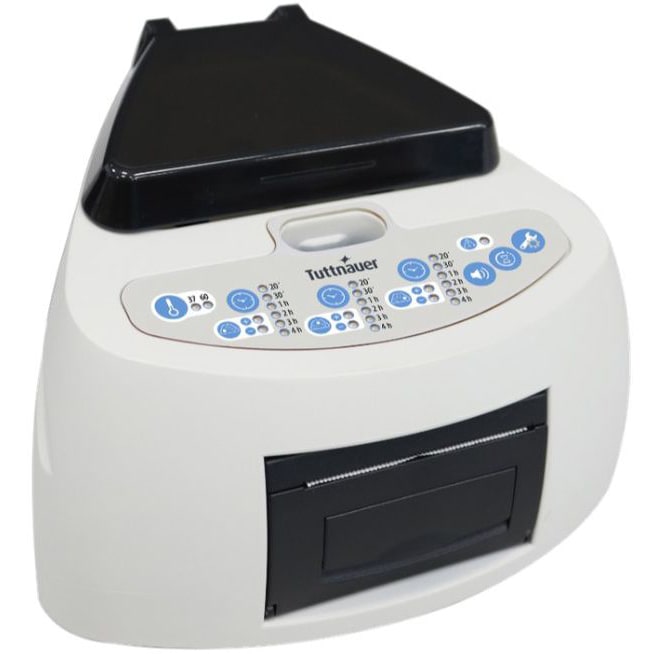

The MiniBio Auto-Reader contains an incubation chamber, thermal printer, and a user-friendly interface that allows users to select one of their six incubation programs. The chamber contains space for three biological indicators. There are also buttons to sound alarm cancellation, reprint any results, and configure the paper traction.

This Auto-Reader is designed to incubate and measure biological indicators, which determine if a sterilization process was thorough and the specified microorganisms were killed off. The biological indicators are vials that contain endospores specific to certain sterilization processes. After sterilization, the indicators are incubated in the MiniBio Auto-Reader, and if the spores grow during incubation, this shows that they survived the sterilization and your instruments have not been fully sterilized. This process is best for care providers who want to ensure their sterilization process is complete, or who may have aging sterilizers and want to check their sterilization completion.

The MiniBio Auto-Reader is the fastest on the market, clocking in at 20 minutes for a complete biological indicator incubation. It provides fast and accurate results within minutes, compared to mailing services that take up to a week or more. This saves time and money for any office that wants to ensure their sterilizers are functioning properly. It's recommended that biological indicators be used on a weekly (or even daily) basis.

Features

Tuttnauer MiniBio Auto-Reader Features

  • Can run 20 minute or 1 hour biological indicators (20 minutes is the fastest currently available on the market).
  • User-friendly button interface.
  • Includes thermal printer to print immediate results.
  • Small footprint device for compact storage and placement.

Specifications

Tuttnauer MiniBio Auto-Reader Specifications

Power Supply Specifications

  • Input Parameters:
    • Voltage Range: 100 to 200 V.
    • Frequency: 50/60 Hz.
    • Current: 0, 5 A.
  • Output Parameters:
    • Voltage: 12 DC V.
    • Current: 2 A.

Environment Operating Conditions

  • Altitude: 3500 m (max.).
  • Operation Temperature: 10 to 30 °C (50 to 86 °F).
  • Relative Humidity: 10 to 30%.
  • Installation/Overvoltage: Category II.
  • Degree of Contamination: 2.
  • Storage Temperature: 10 to 30 °C (50 to 86 °F).
  • Voltage: 12 DC V.

Accessories

Tuttnauer MiniBio Auto-Reader Accessories

The following accessories are compatible and commonly purchased with the MiniBio Auto-Reader:

  • Biological Indicators for Autoclaves (50/Box):
    • #WTL198-0058: Rapid (1 Hour Incubation).
    • #WTL198-0072: Ultra-Rapid (20 Min. Incubation).
  • #WTL198-0147: Thermometer.

Literature

Tuttnauer MiniBio Auto-Reader Literature

Tuttnauer Biological Indicators - What to Know

Frequently asked questions

What is the fastest readout time?

The Tuttnauer MiniBio Auto-Reader offers an ultra-fast readout time for sterilization verification, significantly quicker than external lab services.

  • The fastest cycle available is 20 minutes, providing immediate confirmation of microbial kill rates.
  • It supports a range of indicators, compatible with both 20-minute and 1-hour biological indicators.
  • The device can incubate and measure up to three biological indicators simultaneously.
Does the MiniBio Auto-Reader have a printer for recording results?

Yes, the MiniBio Auto-Reader has an integrated thermal printer that allows you to print results immediately.

What is the simultaneous incubation capacity?

The Tuttnauer MiniBio Auto-Reader is designed to incubate three biological indicators (BIs) simultaneously in its internal chamber. This capacity supports efficient verification and batch processing of your sterilization cycles for routine daily or weekly testing.

Does the MiniBio Auto-Reader have versatile incubation programs?

Yes, the Tuttnauer MiniBio Auto-Reader features six user-selectable incubation programs for maximum versatility.

These programs allow you to quickly verify sterilization cycles using different biological indicators, supporting two main readout times:

  • 20 Minutes: This is the ultra-fast cycle, noted as the fastest available on the market for immediate results verification.
  • 1 Hour: A rapid cycle for standard verification.

The user-friendly interface simplifies the selection of these programs, providing fast and accurate, on-site confirmation of microbial kill rates.

What are the optimal operating temperature and humidity conditions?

The Tuttnauer MiniBio Auto-Reader is designed to operate within specific environmental parameters to ensure accurate results:

  • Operating Temperature Range: 10 to 30 °C (50 to 86 °F)
  • Relative Humidity (Operating): 10 to 30%

Note that the maximum operating altitude for this device is 3500 m.

Does the Auto-Reader have an intuitive interface?

Yes, the Tuttnauer MiniBio Auto-Reader features a user-friendly button interface designed for streamlined operation in a clinical setting.Its intuitive control panel simplifies the sterilization verification process by providing dedicated controls for:

  • Selecting from six available pre-defined incubation programs.
  • Canceling the alarm.
  • Reprinting results from the integrated thermal printer.
  • Configuring paper traction.
What are the power requirements for the MiniBio Auto-Reader?

The Tuttnauer MiniBio Auto-Reader operates with the following power specifications, ensuring reliable performance in clinical environments: Input Requirements (AC) * Voltage Range: 100 to 200 V * Frequency: 50/60 Hz * Input Current: 0.5 A Output Specifications (DC) * Voltage: 12 DC V * Current: 2 A

What is the maximum altitude at which the MiniBio Auto-Reader can be operated?

The Tuttnauer MiniBio Auto-Reader can be used at a maximum altitude of 3500 meters.

Is the design space-efficient?

Yes, the Tuttnauer MiniBio Auto-Reader is designed with a small footprint to maximize efficiency in busy clinical settings.Its compact design helps to optimize valuable bench space, making it easy to store and place on existing workstations in medical, dental, or laboratory environments.

What is included with the MiniBio Auto-Reader?

The purchase includes the Tuttnauer MiniBio Auto-Reader main unit (Model #WTL198-0057), which is a factory new, integrated device for sterilization verification.The unit includes several key integrated components:

  • Built-in Incubation Chamber: Designed to hold up to three biological indicators simultaneously.
  • Integrated Thermal Printer: For immediate, hard-copy documentation of results.
  • User-Friendly Control Interface: Features buttons for easy program selection and alarm cancellation.

Please note that essential consumable accessories, such as compatible biological indicators and the compatible thermometer, are sold separately.
