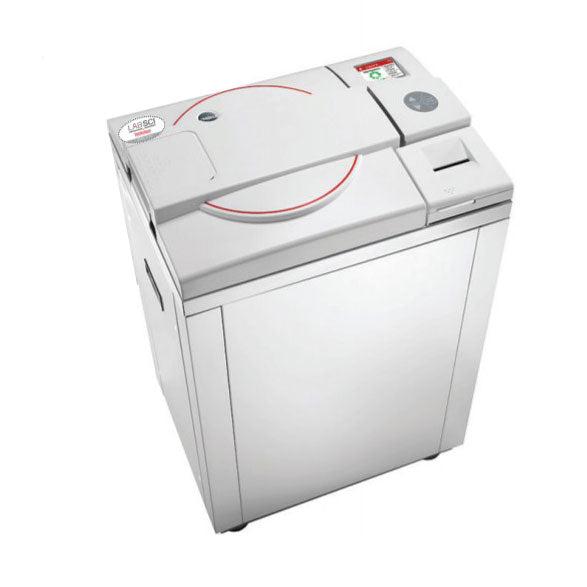

Tuttnauer LABSCI 11L-V Vertical Autoclave

Tuttnauer LABSCI 11L-V Vertical Autoclave
Key Features
  • SKU: TTN-LABSCI-11L-V
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 85.0 lb
  • Sterilizes plastic, liquids, glassware, tools, and clothing
  • Includes two baskets
  • Saves 16 custom cycles, with up to 200 more that can be stored on PC
  • No plumbing connections needed

  • Learn more:

Contact The Manufacturer
  • MFR: Tuttnauer Ships from Manufacturer
  • MPN: LABSCI 11L-V
  • Phone: (800) 624-5836
$16,918.00 $15,102.38

+Shipping

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Tuttnauer LABSCI 11L-V Vertical Autoclave is a large autoclave designed to sterilize almost anything in a laboratory: plastic, liquids, glassware, tools, and clothing. It includes two baskets.

Warranty: 2 Years.

What makes this autoclave unique is the large size of the unit, and doesn't require any plumbing connections to function. It contains two temperature probes that ensure liquid items are sterilized correctly. All it requires is a filled reservoir and to be plugged into a power source. An optional biohazard filter can also prevent fumes from exhausting into the lab.

Users can create 16 custom cycles on the unit itself, but an additional 200 previous cycles can be stored on a PC for records. It also comes with four cycles installed already: glass, plastic, liquid A and liquid B-waste.

Features

Tuttnauer LABSCI 11L-V Vertical Autoclave Features

  • Slots available for 16 custom cycles, with up to 200 more that can be stored on PC.
  • No plumbing needed - just fill the water reservoir and plug into a power source.
  • Sterilizes plastic, liquids, glassware, tools, and clothing.
  • Comes with two baskets.

Specifications

Tuttnauer LABSCI 11L-V Vertical Autoclave Specifications

  • Chamber Volume: 28 L.
  • Max Available Height: 15.5".
  • Chamber Dimensions: 11" x 18".
  • External Dimensions: 21.3" x 38.6" x 17.3".
  • Power: 230 V, 1 phase (60 Hz), NEMA L15-30.
  • Utilities: No plumbing required.

Erlenmeyer Flask Loading Capacity

  • 250 ml: 2 x 5.
  • 500 ml: 2 x 3.
  • 1000 ml: 1.
  • 2000 ml: 1.
  • 3000 ml: 1.
  • 5000 ml: 1.

Schott-Duran Flasks Loading Capacity

  • 250 ml: 2 x 8.
  • 500 ml: 2 x 3.
  • 1000 ml: 1.
  • 2000 ml: 1.
  • 3000 ml: 1.
  • 5000 ml: 1.

Literature

Tuttnauer LABSCI 11L-V Electronic Benchtop Autoclave Literature

Tuttnauer LabSci Steam Sterilizers Brochure

Frequently asked questions

What materials can this versatile autoclave sterilize?

The Tuttnauer LABSCI 11L-V is designed for highly versatile sterilization, capable of processing a wide spectrum of laboratory contents effectively. The materials it can sterilize include:

  • Liquids (monitored by dual temperature probes for accuracy)
  • Plastics (heat-stable)
  • Glassware
  • Tools
  • Laboratory Clothing
Does the Tuttnauer LABSCI 11L-V require plumbing?

No, the Tuttnauer LABSCI 11L-V is a standalone unit and does not require any plumbing connections. You simply fill the water reservoir.

How many custom sterilization cycles can be saved?

The LABSCI 11L-V offers extensive cycle programming and management features:

  • User-Programmable Cycles: You can program and save up to 16 custom sterilization cycles directly onto the unit.
  • Cycle Record Storage: For record-keeping and compliance, the system supports storing up to 200 previous cycle records on an external PC.
What are the internal dimensions of the autoclave chamber?

The chamber dimensions are 11 inches in diameter x 18 inches in depth.

What power supply is required for the Tuttnauer LABSCI 11L-V?

The autoclave requires a 230 V, 1 phase (60 Hz) power supply and uses a NEMA L15-30 power connection.

What pre-installed sterilization cycles are included?

The Tuttnauer LABSCI 11L-V comes standard with four pre-installed cycles, allowing you to begin sterilizing common lab items immediately:

  • Glass
  • Plastic
  • Liquid A
  • Liquid B-waste

For enhanced versatility, the unit also allows you to define and save up to 16 custom sterilization cycles directly onto the device.

Does the LABSCI 11L-V include internal sterilization baskets?

Yes, the Tuttnauer LABSCI 11L-V Vertical Autoclave comes standard with two internal sterilization baskets.

These baskets are included components, allowing for immediate use, and are designed to facilitate the efficient loading and organization of items like glassware, plastics, and tools during the sterilization process.

Is external plumbing required for this autoclave?

No, the Tuttnauer LABSCI 11L-V is designed for plumbing-free operation.

You only need to fill the internal water reservoir and connect it to a power source (230 V, 1 phase, 60 Hz, NEMA L15-30). This allows for greater flexibility in laboratory placement.

Does it store records of previous cycles?

Yes, the Tuttnauer LABSCI 11L-V provides robust cycle management capabilities, supporting both custom programming and historical record archiving:

  • Custom Cycles: You can program and store up to 16 user-defined custom sterilization cycles directly on the unit.
  • Historical Records: For validation and record-keeping, the autoclave supports archiving up to 200 records of previous cycles on an external PC.
How does this autoclave ensure liquid sterilization accuracy?

The Tuttnauer LABSCI 11L-V is specifically designed to guarantee accurate liquid sterilization through dedicated monitoring systems and pre-set cycles:

  • Dual Temperature Probes: The autoclave is equipped with two temperature probes that monitor conditions precisely, ensuring the sterilization process reaches the core of the liquid load.
  • Pre-installed Cycles: It includes four pre-installed cycles, two of which are specifically tailored for liquids: Liquid A and Liquid B-Waste.
