Condition:
-
Country of Origin: Israel
-
Warranty:
- Weight: 123.21 lb
- Chamber Dimensions: 10" x 19" (254 mm x 475 mm)
- Four trays included: 16.3" (D) x 6.7" (W) x 0.8" (H)
- Internal Printer (optional) documents a detailed history of the date and time, temperature, pressure, as well as system messages and alerts
- Delivers full penetration of steam and post-vacuum drying
- Volume: 15 - 50 L
- Technology: Steam Pressure
-
Learn more:
-
MFR:
Tuttnauer
Ships from MFI Medical
-
MPN: EZ10
- Phone: (800) 624-5836
Frequently asked questions

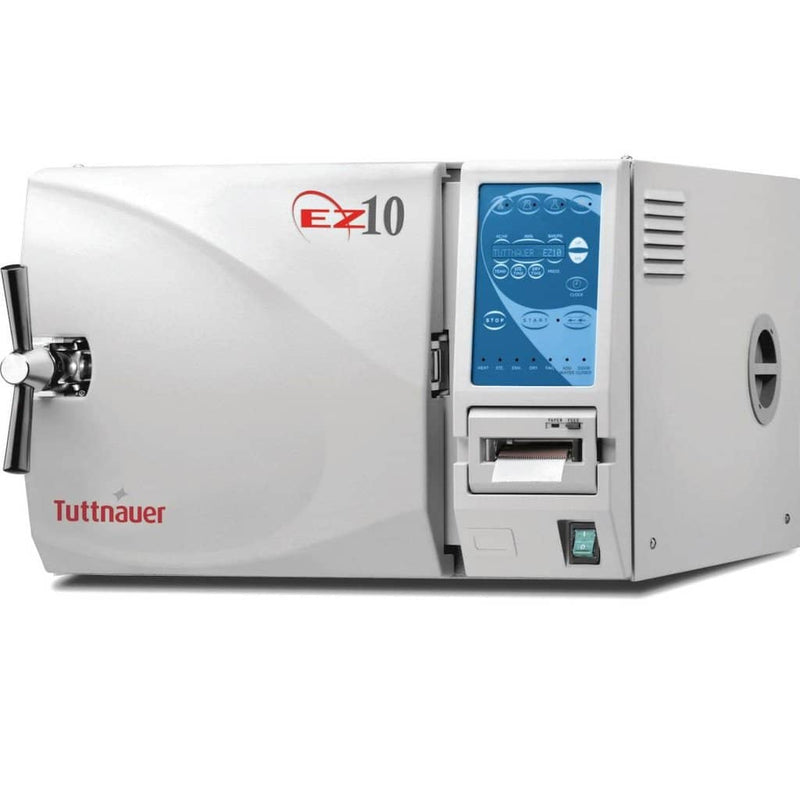

Does the EZ10 feature one-touch automatic operation?
Yes, the Tuttnauer EZ10 is a fully automatic steam pressure autoclave designed for simple, one-touch operation. It independently manages the entire process with minimal user input.
The automatic cycle covers all steps:
- Filling
- Sterilizing
- Exhausting
- Drying
A key benefit is the Closed-Door Active Drying System, which uses a high-efficiency air pump to circulate hot air, guaranteeing fast and sterile drying of instrument packs and pouches. The unit also offers pre-loaded cycles (unwrapped, wrapped, glassware) that are fully customizable and storable.
What safety features does the EZ10 include?
The Tuttnauer EZ10 Fully Automatic Autoclave is designed with several crucial safety features to ensure reliable and secure operation:
- Double Safety Locking Device: This mechanism prevents the chamber door from opening accidentally while the unit is pressurized.
- Low Water Sensor: Monitors the water level and prevents the cycle from starting or continuing if the water supply is insufficient, protecting the unit from damage.
- Constant Monitoring: The system continuously monitors temperature and pressure throughout the entire sterilization process.
- Power Outage Recovery System: This ensures the unit can manage and recover smoothly following an unexpected electrical interruption, helping to preserve the integrity of the sterilization cycle.
- Audible/Visual Alerts: Provides immediate feedback in the event of a cycle interruption or operational issue.
Is the Tuttnauer EZ10 autoclave certified refurbished?
Yes, the Tuttnauer EZ10 is a certified refurbished autoclave. This means it has been thoroughly inspected, calibrated, and tested to ensure it’s in proper working order. It also includes a new PM (preventative maintenance) kit, which consists of a new gasket and filters.
Does the EZ10 have an active drying system?
Yes, the Tuttnauer EZ10 features a closed-door active drying system. This system uses a high-efficiency air pump and a replaceable 0.2 μm HEPA filter to ensure that packs and pouches are thoroughly dried while maintaining sterility after the sterilization cycle. The unit automatically shuts off at the end of the dry cycle.
Does the EZ10 autoclave have professional certifications?
Yes, the Tuttnauer EZ10 is certified for high-compliance professional environments, assuring reliable steam pressure sterilization.
Key certifications and compliance points include:
- International Certifications for performance and safety.
- Specific 510k clearance for dental handpieces, making it suitable for dental practices.
As a Certified Refurbished unit, it is also rigorously tested before delivery, including complete calibration to manufacturer specifications and a successful spore test, confirming sterilization capability.
What are the spacious chamber dimensions and tray capacity?
The Tuttnauer EZ10 is engineered for high-throughput sterilization, offering a robust chamber size suitable for demanding clinical environments.
- Chamber Dimensions: 10 inches (diameter) x 19 inches (length) (254 mm x 475 mm)
- Chamber Volume: 6 gallons (23 L)
- Tray Capacity: The unit comes with 4 trays, each measuring 16.3” (D) x 6.7” (W) x 0.8” (H) (415 mm x 170 mm x 20 mm).
Are the pre-loaded cycles customizable and storable?
Yes, the Tuttnauer EZ10 includes several comprehensive pre-loaded cycles to cover standard sterilization needs. All program parameters can be fully customized and stored for repeated use.
The autoclave comes pre-programmed with cycles for:
- Unwrapped instruments
- Wrapped items/packs
- Glassware
- An additional drying cycle
Is an internal cycle history printer available?
The specific product variant detailed here, the Standard (No Printer) configuration, does not include an internal cycle history printer. This model is ideal for users who do not require physical documentation of their sterilization cycles.
However, the Tuttnauer EZ10 is offered in an alternate configuration that includes an integrated internal printer as an optional upgrade. This printer provides automatic, detailed documentation of every cycle, recording essential information such as:
- Date and time
- Temperature and pressure readings
- Cycle status and alerts
Is a high-quality HEPA filter used?
Yes, the Tuttnauer EZ10 is equipped with a replaceable 0.2 μm HEPA filter to ensure air quality during the sterilization and drying process. This works in conjunction with its closed-door active drying system, which uses a high-efficiency air pump to circulate hot air for efficient drying of packs and pouches.
What is included with the EZ10 Autoclave?
The certified refurbished Tuttnauer EZ10 Autoclave comes ready for use, with essential components already installed.
Your purchase includes:
- The EZ10 Autoclave Unit (Model 2540EA)
- Four Trays for instruments (16.3” D x 6.7” W x 0.8” H each)
- Power cable
- A new Preventative Maintenance (PM) Kit (gasket and filters), which is installed during the refurbishment process.
