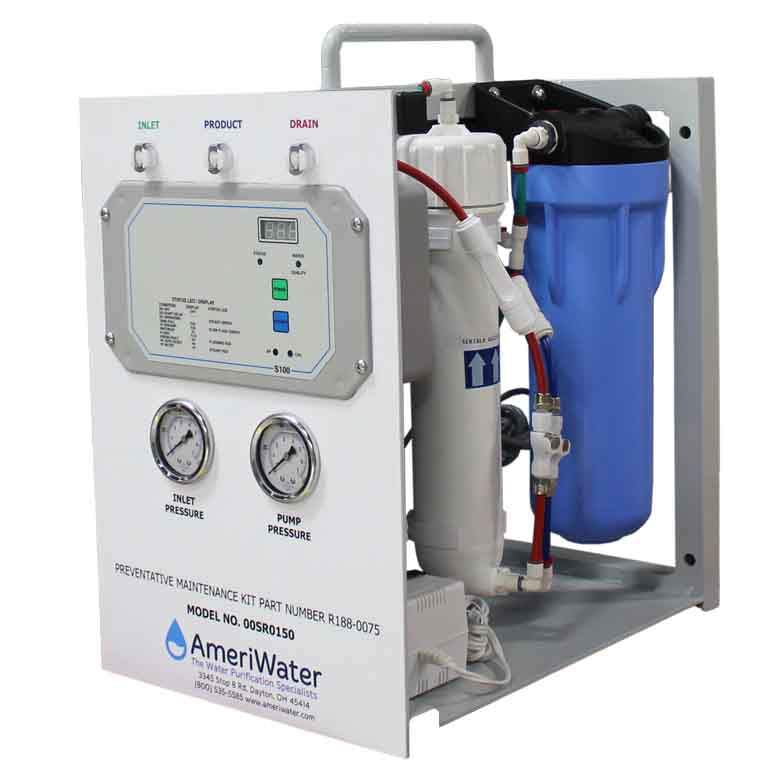

Tuttnauer AmeriWater RO Water Filtration System

The Tuttnauer AmeriWater RO System is a high-performance unit capable of producing 150 Gallons Per Day (GPD) of purified water.

This consistent capacity is achieved through advanced reverse osmosis filtration, supplemented by dual 10-micron carbon block prefilters, resulting in a superior nominal rejection rate of 95% to 98%.

The highly purified, low-conductivity water is specifically designed for critical applications, such as the final rinse and disinfection stages of laboratory and medical washers.

To match your specific volume requirements, the system is configurable with three pressurized storage tank options:

• 4 Gallon
• 9 Gallon
• 14 Gallon

Yes, the Tuttnauer AmeriWater RO Water Filtration System requires that the incoming feedwater meets Potable Drinking Water Standards.

This is crucial for protecting the system’s internal components, especially the dual carbon block prefilters and the high rejection TFC membranes, ensuring the reliable production of low-conductivity, high-purity water for medical washing applications.

For optimal performance, the feedwater must also meet the following specifications:

• Pressure: Minimum 30 PSI to Maximum 80 PSI
• Flow Rate (Minimum): 1 GPM
• Temperature Range: 500F to 900F (770F is the ideal operating temperature)

The system is designed to operate effectively with feedwater temperatures ranging from 50 to 90 degrees F. For sustained performance and maximum efficiency, the ideal operating temperature is 77 degrees F.

The Tuttnauer AmeriWater RO System requires specific feedwater conditions to ensure optimal performance and achieve a high nominal water rejection rate (95% to 98%). The system utilizes liquid-filled pressure gauges for real-time monitoring.

Key feedwater requirements include:

• Pressure Range: The inlet pressure must be maintained between a minimum of 30 PSI and a maximum of 80 PSI.
• Minimum Flow Rate: A minimum flow rate of 1 Gallon Per Minute (GPM) is required.
• Temperature: The operating temperature must be between 50 to 90 degrees F (ideal temperature is 77 degrees F).
• Quality: The source water must meet standard potable drinking water standards.

Yes, the Tuttnauer AmeriWater RO Filtration System (SRO150 Series) is designed to operate on standard electrical power, simplifying installation and use.

It requires the following specifications for its integrated booster pump and digital control system:

• Voltage: 115V, 1 Phase
• Frequency: 50/60 Hz
• Current Draw: 3 Amps
• Connection: Standard 3-Prong Plug

Yes, the Tuttnauer AmeriWater RO Filtration System is designed for versatile installation to fit seamlessly into medical or lab environments, maximizing space efficiency. The compact RO unit features a durable, powder-coated aluminum frame and offers two primary installation methods:

• Wall Mountable: The unit can be securely mounted directly to a wall.
• Under-Counter Sink: Its compact dimensions allow it to fit neatly beneath a standard counter sink.

Note that installation requires space for both the main RO unit and the separate pressurized storage tank, which is available in 4, 9, or 14-gallon capacities.

Yes, the Tuttnauer AmeriWater RO Filtration System incorporates superior pre-filtration designed to optimize water purity and protect the sensitive reverse osmosis membranes.

Key features of the pre-filtration stage include:

• Dual 10-Micron Carbon Block Prefilters: These filters effectively remove particulates and contaminants from the feedwater, preventing fouling of the RO membranes.
• Protection for TFC Membranes: The prefilters ensure the durability and high performance of the Thin Film Composite (TFC) membranes, which are responsible for the system’s nominal water rejection rate of 95% to 98%.

Utilizing this robust pre-filtration helps guarantee the low-conductivity water necessary for critical medical cleaning and disinfection processes.

The Tuttnauer AmeriWater RO Filtration System provides a high level of purification, achieving a nominal water rejection rate of 95% to 98%.

This superior performance is due to the advanced filtration components used:

• High Rejection TFC Membranes: The system utilizes Thin Film Composite (TFC) membranes for the core reverse osmosis purification.
• Superior Prefiltration: Dual 10-micron carbon block prefilters are employed to protect the membranes and ensure optimal feedwater quality.

This ensures the delivery of high-purity, low-conductivity water essential for critical final rinse and disinfection cycles in medical washers.

Yes, the Tuttnauer AmeriWater RO Filtration System (SRO150 Series) is designed for versatile installation in professional settings.

Key features that enable this flexibility include:

• Compact Design: The unit is suitable for placement under a standard counter sink.
• Wall-Mounting: It can be securely installed on a wall, maximizing laboratory space.

Furthermore, the system is built on a durable, powder-coated aluminum frame and features accessible quick-connect ports on the front panel for simpler setup and maintenance, regardless of whether it is wall-mounted or placed under a counter.

Yes, the Tuttnauer AmeriWater RO Water Filtration System includes an advanced digital microprocessor control panel for intelligent monitoring and operational control.

This system provides essential real-time insights for maintaining high water quality:

• Real-time Total Dissolved Solids (TDS) Monitoring: You can instantly track the purity of the product water.
• Adjustable Limits: Allows setting customized water quality thresholds.
• Comprehensive Indicators: Features clear fault and status displays for immediate troubleshooting.
• Smart Integration: Includes tank full contacts for seamless control integration with the pressurized storage tank options.
