- Condition: Factory New
- Warranty: 2 Years
- Weight: 397.0 lb
- Built-in vacuum system
- Only needs five liters of tap water per day
- Can be connected to utilities or stand independent
- Includes double-locking doors and control lock-out switch for safety
- Volume: 50 - 200 L
- Technology: Steam Pressure
-
Learn more:
- MFR: Tuttnauer Ships from Manufacturer
- MPN: 3870HSG-WS-230-D
- Phone: (800) 624-5836
Frequently asked questions
How does the powerful vacuum system ensure sterilization?
The Tuttnauer 3870HSG-WS employs a sophisticated vacuum system that operates in two crucial phases to ensure both hospital-grade sterilization and efficient drying:
- Fractionated Pre-Vacuum: This cycle actively removes air pockets from the chamber and the entire load before sterilization begins. This air removal is essential to guarantee complete steam penetration for full sterilization.
- Post-Vacuum Drying: After the sterilization phase is complete, the post-vacuum process efficiently extracts residual moisture, ensuring the instruments and materials achieve a bone-dry finish.
How much water does the Tuttnauer 3870HSG-WS Autoclave consume?
The Tuttnauer 3870HSG-WS autoclave is designed for water conservation, using only about five liters of tap water per day thanks to its efficient recycling system.
What are the utility connection options for the Tuttnauer 3870HSG-WS Autoclave?
The Tuttnauer 3870HSG-WS Autoclave can be connected to existing utilities for distilled water, tap water, and electricity. Alternatively, it can operate independently with only a power connection, requiring manual filling of the water reservoirs.
What safety features does the Tuttnauer 3870HSG-WS Autoclave offer?
The Tuttnauer 3870HSG-WS Autoclave is equipped with advanced safety features to ensure secure operation:
- Double-locking doors are designed to prevent the door from being opened while the chamber is pressurized.
- A control lock-out switch prevents the autoclave from starting a cycle unless the door is properly secured.
Where is the 3870HSG-WS autoclave most effective?
The Tuttnauer 3870HSG-WS Autoclave is designed for optimal performance in demanding large clinical environments, including:
- Medical clinics
- Dental clinics
- Operating rooms
- Surgical centers
It is ideal for facilities that require hospital-grade sterilization and can handle medium load capacities efficiently.
What are the power requirements?
The Tuttnauer 3870HSG-WS Autoclave requires a robust 3-phase electrical connection with the following specifications:
- Voltage: 230 Volts
- Phase: 3 phase
- Amperage: 25 Amp
- Frequency: 60 Hz
- Power Consumption: 9 kW
Does this autoclave provide hospital-grade sterilization?
The Tuttnauer 3870HSG-WS is specifically designed for hospital-grade sterilization, ensuring thorough and reliable sterilization of instruments. It utilizes a pre- and post-vacuum system to effectively eliminate air pockets and achieve complete steam sterilization, followed by efficient drying for a bone-dry finish.
Which quality standards does the Tuttnauer 3870HSG-WS Autoclave meet?
The Tuttnauer 3870HSG-WS Autoclave adheres to extensive quality, safety, and performance standards, ensuring hospital-grade sterilization. It is FDA Approved and complies with:
- Quality Management & Directives: ISO 9001:2015, EN ISO 13485:2016, 21 CFR part 820 & part 11, MDD 93/42/EEC (amended by 2007/47/EEC), PED 2014/68/EU, WEEE 2012/19/EU, and RoHS 2017/2102.
- Technical & Safety Standards: EN 285: 2015, EN 61010-1: 2010, EN 61326-1: 2013, EN 61010-2-40: 2015, ANSI/AAMI/ST8:2013 (R2018), ANSI/AAMI - ST55:2016, and ASME Code section I and section VIII. Div.I.
What are the dimensions and weight of the autoclave?

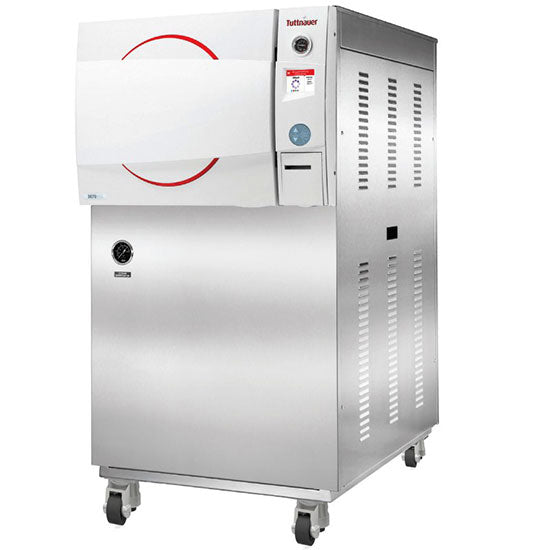

The Tuttnauer 3870HSG-WS Autoclave has overall dimensions of 28.4” (Width) x 53.8” (Height) x 46.5” (Depth) and weighs 397 lb.
Is the autoclave new?
The Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave is a factory new product, ensuring you receive a brand-new unit directly from the manufacturer.
