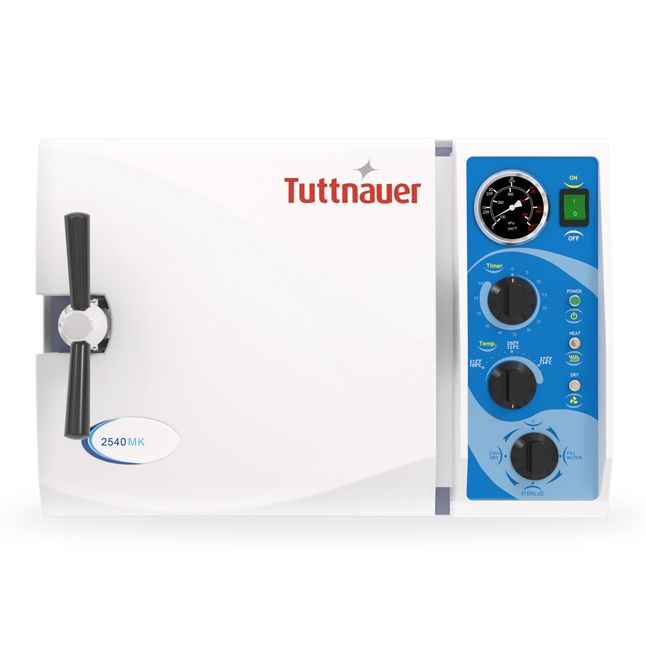

Tuttnauer 2540MK Kwiklave Autoclave

Yes, the Tuttnauer 2540MK Kwiklave is engineered for rapid instrument turnaround, making it ideal for high-volume settings. It offers faster cycle times compared to standard M Series manual autoclaves, specifically about nine minutes quicker.

The approximate standard unwrapped sterilization cycle times are:

• Cold Start: 21 minutes
• Hot Start: 11 minutes (when the unit is already warm)

The Tuttnauer 2540MK Kwiklave Autoclave comes with everything needed for immediate use and maintenance:

• Four Instrument Trays: These trays (16.3” D x 6.7” W x 0.8” H) help organize instruments within the generous 6-gallon (23 L) sterilization chamber.
• Power Cable: A dedicated power cable is included for connecting the unit to its 220V to 235V electrical requirement.
• New PM (Preventative Maintenance) Kit: This essential kit contains a new gasket and filters to ensure long-term optimal sealing and performance.

Yes, the Tuttnauer 2540MK Kwiklave Autoclave is built for high reliability and complies with essential international safety and quality standards required for professional clinical use. It holds comprehensive certifications, including:

• ASME (American Society of Mechanical Engineers)
• FDA (U.S. Food and Drug Administration)
• UL/EN 61010-1 (Safety requirements for electrical equipment)
• ISO 13485:2003 (Quality management systems for medical devices)
• ISO 9001:2000 (General quality management systems)

These certifications ensure the unit adheres to rigorous global regulatory compliance and safety requirements.

The Tuttnauer 2540MK Kwiklave Autoclave requires specific electrical input to ensure optimal performance and rapid sterilization cycles. Here are the key electrical requirements:

• Voltage: 220 V to 235 V (230 V is specified for electrical operation)
• Power Consumption: 2200 W
• Current Draw: 10 A
• Frequency: 50/60 Hz

Depending on your facility’s power supply, a 0.5 kVA buck/boost transformer may be necessary to meet the 230 V requirement for stable operation.

Yes, the Tuttnauer 2540MK Kwiklave Autoclave is designed for high-volume sterilization with a substantial load capacity to optimize your workflow. Key capacity specifications include:

• Chamber Volume: 6 gallons (23 L)
• Chamber Dimensions: 10” x 19” (254 mm x 475 mm)
• Standard Cassette Capacity: It accommodates 3 full (8” x 11”) and 3 half (8” x 5.5”) standard cassettes.
• Included Trays: The unit comes with 4 trays, each measuring 16.3” (D) x 6.7” (W) x 0.8” (H).

The Tuttnauer 2540MK Kwiklave is equipped with several advanced safety and monitoring features designed for secure and reliable operation:

• Double Safety Locking Device: This robust mechanism prevents the chamber door from being opened accidentally while the system is under pressure.
• Dual Safety Thermostats: These thermostats actively monitor the unit to prevent overheating, protecting both the equipment and the instruments.
• Automatic Shut-Off: The autoclave automatically powers down upon the completion of both the sterilization and drying cycles, ensuring efficiency and safety.

Yes, the drain valve on the Tuttnauer 2540MK Kwiklave Autoclave is conveniently located at the front of the unit, making water reservoir draining quick and easy for maintenance.

The Tuttnauer 2540MK Kwiklave Autoclave features a spacious, electro-polished stainless steel chamber with dimensions of 10 inches (254 mm) in diameter by 19 inches (475 mm) in depth. This provides a 6-gallon (23 L) volume for sterilizing a substantial load, including up to 3 full and 3 half standard cassettes.

The Tuttnauer 2540MK Kwiklave Autoclave has overall dimensions of 21.5” (D) x 20” (W) x 14.4” (H), which is 545 mm x 510 mm x 365 mm.

Yes, the Tuttnauer 2540MK Kwiklave Autoclave features a durable electro-polished stainless steel chamber and door designed for long-lasting performance.
