Technomed Twisted Disposable Subdermal EEG Needle Electrodes (20 Pairs/Pkg)

The electrodes feature durable stainless steel needles (27 Gauge) specifically engineered for reliable subdermal insertion during EEG monitoring.Their precise dimensions are:* Needle Gauge: 27 Gauge* Length x Diameter: 13 x 0.40 mm

Yes, these Technomed subdermal needle electrodes are supplied pre-sterilized and are designed exclusively for safe, single-use applications.

Key details regarding their sterilization and readiness for use include:

• Sterilization Method: Each electrode pair is individually packaged and sterilized using the industry-standard Ethylene Oxide (EtO) process.
• Disposable Design: They are intended for single use only, ensuring maximum hygiene and preventing cross-contamination.
• Extended Shelf Life: Unopened packages maintain a guaranteed shelf life of 3 years (36 months), valid until the expiration date or time of first use.

These disposable subdermal EEG needle electrodes are offered in three different wire lengths to provide setup flexibility for various clinical needs:

• 1.5 m
• 2.0 m
• 2.5 m

Yes, these disposable subdermal EEG electrodes offer a guaranteed shelf life of 36 months (3 years) when the packaging remains unopened. This extensive shelf life helps ensure the electrodes maintain their sterility and readiness for use.

The Technomed subdermal electrodes utilize durable, clinical-grade materials for high-precision EEG signal acquisition:

• Needle Material: The needles are constructed from Stainless Steel and measure 13 x 0.40 mm (27 Gauge), designed for reliable subdermal placement.
• Wire Material: The connecting leads are made of flexible PVC (Polyvinyl Chloride). They feature a twisted pair configuration which helps minimize interference and maintain signal integrity during recording.
• The wires terminate in standard safety DIN 42 802 connectors.

Yes, these disposable subdermal electrodes feature high-quality stainless steel needles designed for reliable application. The precise specifications are:

• Needle Dimensions: 13 x 0.40 mm
• Needle Gauge: 27 Gauge (27G)

Yes, these Technomed subdermal electrodes are designed for secure connectivity using industry-standard Safety DIN 42 802 connectors. These connectors ensure reliable signal acquisition during EEG monitoring.

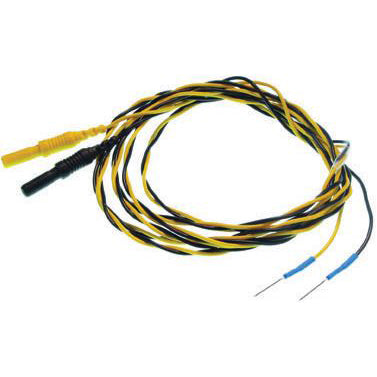

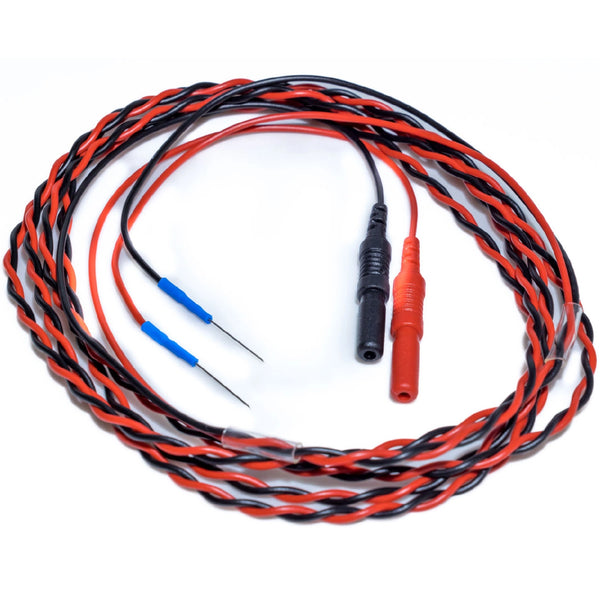

Yes, these Technomed Subdermal EEG Needle Electrodes are supplied in a twisted pair configuration.

This crucial design feature helps to minimize electrical interference and signal noise, ensuring optimized signal integrity for clear and reliable EEG recordings.

Key specifications regarding the wiring and connectivity include:

• Wire Material: Constructed with durable PVC.
• Connector Type: Terminated with industry-standard safety DIN 42 802 connectors.
• Color-Coding: Features 2 x 10 color combinations (black or white wires paired with five distinct lead colors) for easy channel identification.
• Available Lengths: You can choose from three wire lengths to accommodate various clinical setups: 1.5 m, 2.0 m, and 2.5 m.

Each package of the Technomed Twisted Disposable Subdermal EEG Needle Electrodes includes a total of 20 pairs.

These twisted-pair electrodes are individually packaged and pre-sterilized using the Ethylene Oxide (EtO) process, ensuring they are ready for immediate, single-use application in clinical settings.

The electrodes feature a clear 2 x 10 color combination designed for efficient channel identification and lead management during electroencephalography (EEG) procedures. This coding system uses two primary base colors combined with five distinct accent colors:

• Primary Wire Colors (Base): Black or White
• Secondary Lead Colors (Accents): Red, Green, Orange, Yellow, and Blue

Furthermore, the wires are supplied in a twisted pair configuration, which helps maintain organization and minimize interference during use.
