Technomed Reusable EEG Cup Electrode (12/Pkg)

The Technomed Reusable EEG Cup Electrode (12 per Package) is designed to provide clear and reliable signals, effectiveness, and ease of use time after time. It features precision stamped cups, tangle-free wires, and a "no-lift" adjustable cup neck. Risk of electrode lift and displacement related re-application is minimized by the new "no-lift" adjustable cup neck that allows for a low electrode profile following the contours of the patient.

Warranty: Until Use or Expiration.

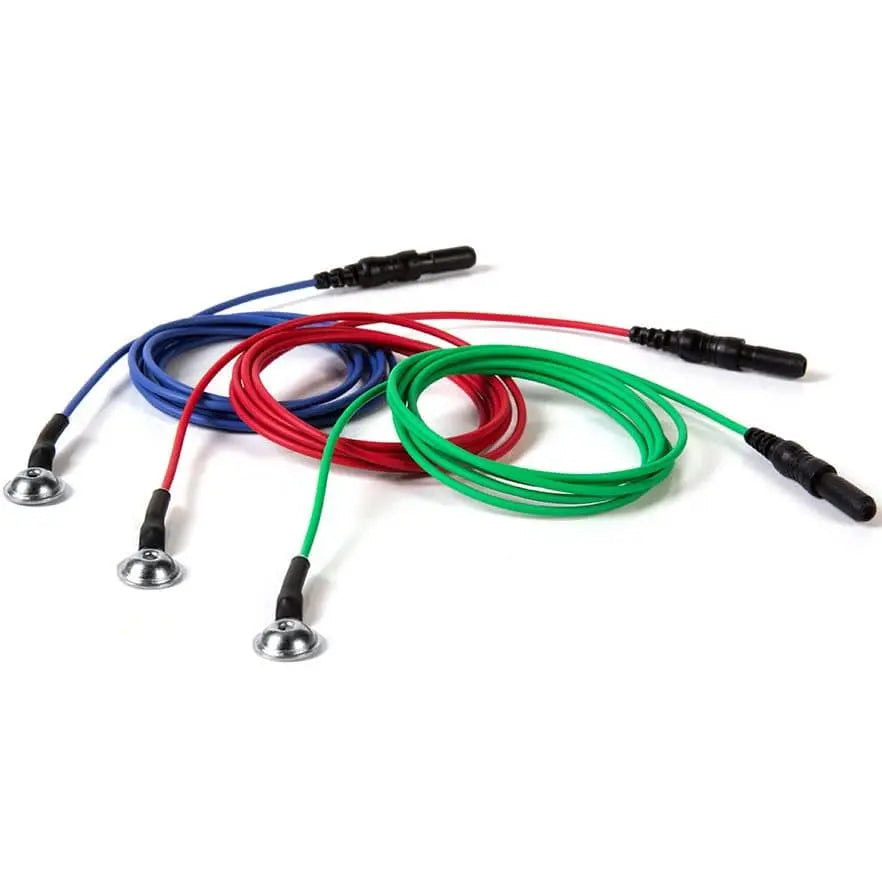

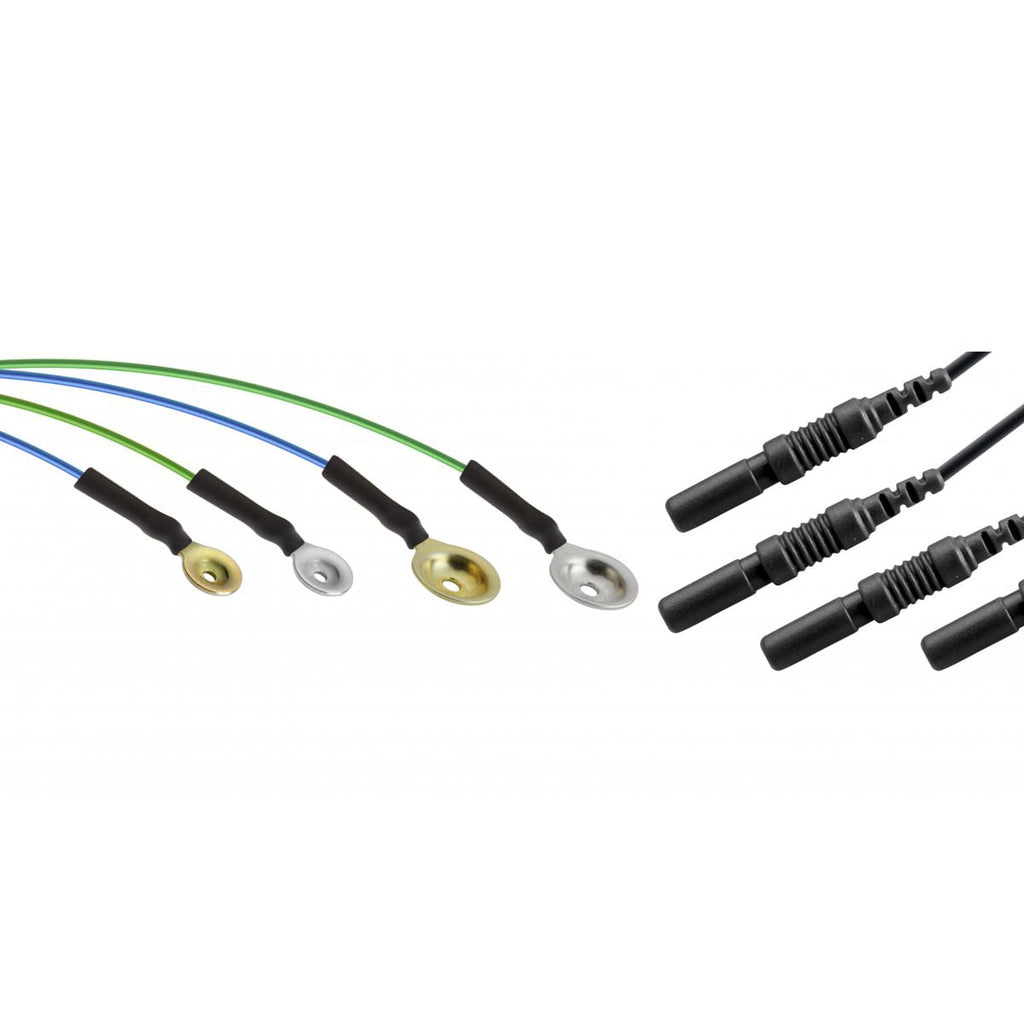

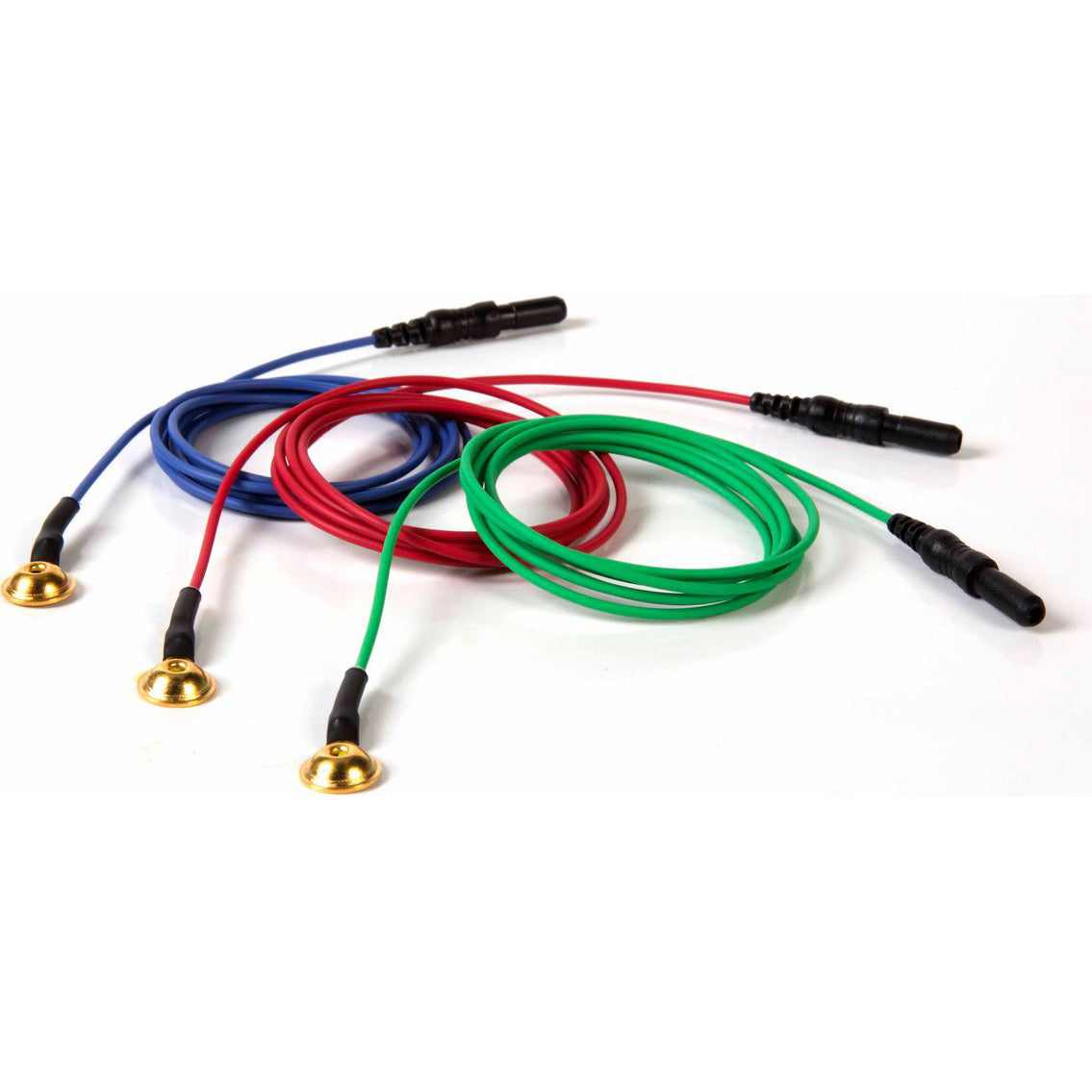

The precision stamped cups with an optimized layer of gold or silver/silver chloride plating are available in 10 mm or 6 mm sizes. The cup heads, with a larger dome volume, are easy to fill with the "curbed" electrode hole.

The tangle-free wires connect into a safety DIN 42 802 connector, and are available in the following lengths: 1.0, 1.5, 2.0, and 2.5 meters. The connector is optimized for easy headbox insertion and extraction, while the wires are soft and flexible, for optimal patient comfort.

The cup electrodes are compatible with most of the EEG equipment used in the world and give an excellent signal with this equipment for good diagnoses and accurate monitoring.

Note: These electrodes must be fixed and/or applied by usage of a conductive EEG paste or collodion in combination with conductive gel suitable for medical use. The conductive gel is inserted by a syringe, with a blunted needle, through the hole on top of the electrodes. Contact with impure metals, some skin preps, and conductive gels may affect the chlorinated surface of the electrode cups.

Do not use the Reusable EEG Cup Electrode for stimulation of any kind.

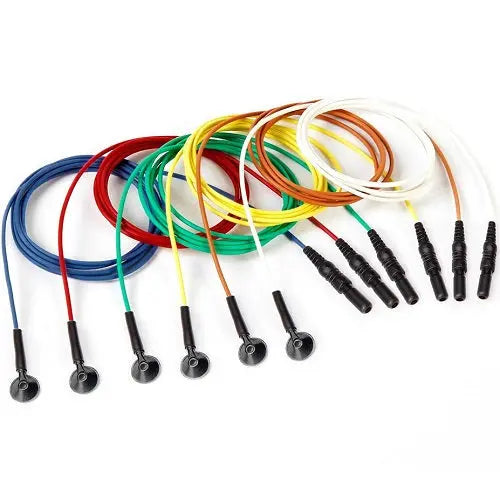

Package: Sets of 2 x 6 electrodes (red, green, white, yellow, blue, and brown).

Technomed Reusable EEG Cup Electrode Features

• Easy and time efficient handling with tangle-free lead wires.
• Low insertion force connector for reduced strain and stress of user's hand and arm.
• Easy to clean with most common cleaning liquids.
• Long electrode life with watertight design and Kevlar reinforced wires.
• Cleaning and Disinfection: Clean by washing with lukewarm water and disinfecting with alcohol.
• Recommended Applications:
  • EEG - Electroencephalography.
  • IONM - Intra Operative NeuroMonitoring.

Technomed Reusable EEG Cup Electrode Specifications

• Height of Cup: 3.1 mm.
• Leadwire Design: Tinsel wire.
• Leadwire Core: Kevlar and Silver plated Copper.
• Leadwire Insulation: TPU.
• Spring Loaded Connector: Gold plated Brass / PVC.
• Connector: DIN 42802.
• Lead-free.
• Latex-free.
• BPA-free leadwire.
• DEHP-free leadwire.
• REACH and RoHS compliant.

Technomed Reusable EEG Cup Electrode Configurations

Technomed Reusable EEG Cup Electrode Literature

Technomed Reusable EEG Cup Electrode - Silver/Silver Chloride Datasheet

Technomed Reusable EEG Cup Electrode - Gold and Silver Datasheet
