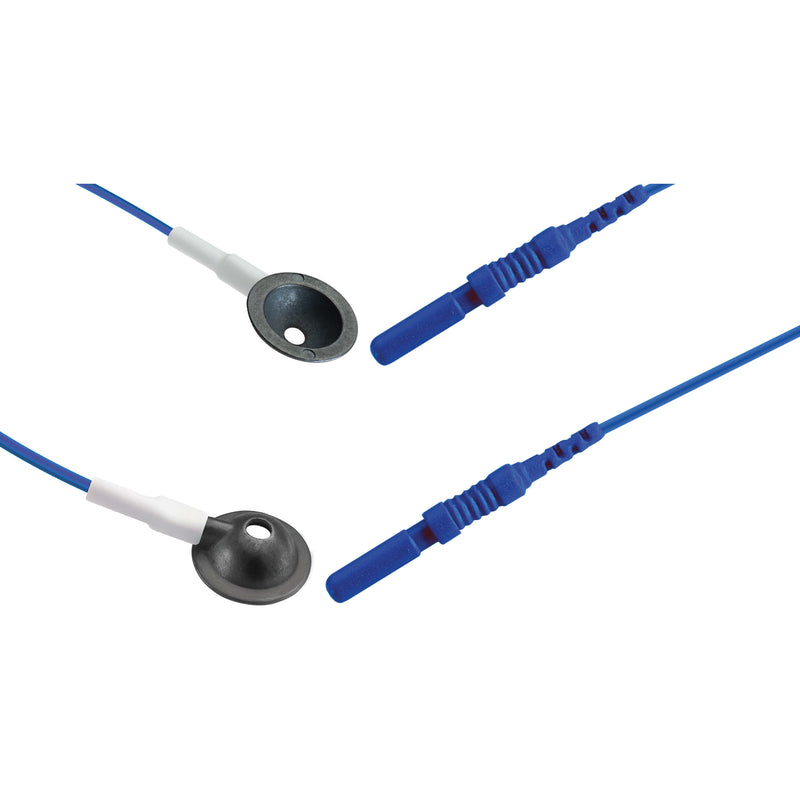

Technomed Disposable EEG Cup+ Electrode

Yes, the Technomed Disposable EEG Cup+ Electrode is designed exclusively for single-use.

This disposable design is critical for maintaining hygiene and streamlining clinical processes:

• Prevents Contamination: Being single-use completely eliminates the risk of cross-patient contamination, ensuring high patient safety.
• Optimized Workflow: It removes the need for time-consuming cleaning, disinfecting, and preparation, allowing medical professionals to concentrate on patient care and recording accuracy.

Yes, the Technomed Disposable EEG Cup+ Electrode is engineered for optimized signal quality and reliability during diagnostic monitoring.

Key features ensuring superior performance include:

• Optimized Electrode Surface: The electrode features a larger dome and surface area, allowing it to hold a higher volume of conductive material for improved signal acquisition and stability.
• Frequency-Stable Ag/AgCl Layer: It utilizes an optimized layer of frequency-stable Silver/Silver Chloride (Ag/AgCl) to guarantee a clear and consistent diagnostic signal.
• Secure Connection: A low-profile disk and a short cup-to-cable connection work together to minimize the risk of electrode lift, ensuring continuous contact and reliable signal transmission.

Yes, the Technomed Disposable EEG Cup+ Electrode prioritizes patient safety and hygiene.

Key features related to safety and comfort include:

• Latex-Free Material: These electrodes are certified natural rubber latex-free, making them suitable for all patients, including those with sensitivities or allergies.
• Maximized Hygiene: They are strictly single-use medical devices, which completely eliminates the risk of cross-patient contamination and removes the necessity for cleaning or preparation.
• Patient Comfort: The design incorporates a low-profile disk and uses soft, flexible, anti-tangle lead wires to enhance comfort during monitoring sessions.

Yes, the Technomed Disposable EEG Cup+ Electrodes are offered in four different wire lengths to accommodate various clinical setups and monitoring needs:

• 1.0 m
• 1.5 m
• 2.0 m
• 2.5 m

Yes, the anti-tangle lead wires on the Technomed disposable EEG electrodes are color-coded to assist clinicians with channel identification and procedural organization during setup.These soft, flexible wires are constructed with a Tin Plated Copper core and PVC insulation. The available color configurations are:* 10-Color Set: Red, Green, White, Yellow, Blue, Orange, Purple, Black, Grey, and Brown.* 5-Color Set: Red, Green, White, Yellow, and Blue.The packaging quantity (Set of 10 or Set of 25) varies depending on the specific color and wire length configuration selected.

The Technomed electrode cup features a low-profile design optimized for patient comfort and superior signal acquisition. The precise dimensions are:

• Cup Diameter: 10 mm
• Cup Height: 3 mm

This design includes a larger dome to accommodate a higher volume of conductive material. This feature, along with the frequency-stable Silver/Silver Chloride (Ag/AgCl) layer, is essential for ensuring clear and reliable EEG signal quality.

Yes, the Technomed Disposable EEG Cup+ Electrode is engineered to meet rigorous medical safety and compliance standards, ensuring reliability and patient well-being. This focus is highlighted by several key features:

• Maximum Hygiene and Safety: These electrodes are strictly single-use (disposable), which completely eliminates the risk of cross-patient contamination and the need for cleaning or preparation.
• Material Safety: The product is certified to be natural rubber latex-free, reducing the risk of allergic reactions.
• Secure Connection: The lead wires terminate with a safety-rated DIN 42 802-1 connector for reliable and secure insertion into EEG equipment.
• Reduced Lift Risk: The design utilizes a short cup-to-cable connection to minimize the risk of electrode lift during procedures, maintaining signal integrity.
• Environmental Compliance: The electrodes adhere to strict European Union directives, being compliant with both REACH and RoHS (EU) standards.

The lead wires are constructed from optimized materials focused on signal stability, durability, and patient comfort.

Key components and features include:

• Core Material: The lead wire core is made of Tin Plated Copper to ensure stable and reliable electrical conductivity.
• Insulation: The core is insulated with flexible PVC (Polyvinyl Chloride).

Additionally, the design incorporates several features to enhance utility:

• The wires are soft, flexible, and feature an anti-tangle design for improved patient comfort.
• A short cup-to-cable connection is engineered to minimize the risk of electrode lift, maintaining continuous signal integrity.
• They terminate in a safety DIN 42 802-1 connector for secure and easy insertion into EEG headboxes.

These wires are available in lengths of 1.0 m, 1.5 m, 2.0 m, or 2.5 m and are offered in 5-color or 10-color sets for convenient channel management.

Yes, the Technomed Disposable EEG Cup+ Electrodes are engineered with a user-focused design to maximize patient comfort during extended EEG procedures.

Key features that enhance comfort include:

• Low-Profile Design: Each electrode incorporates a low-profile disk, which sits comfortably on the patient’s skin with minimal bulk.
• Flexible, Anti-Tangle Wires: The soft lead wires are flexible and specially designed to resist tangling, which helps reduce stress and pulling on the electrode site.
• Safe Materials: They are certified as natural rubber latex-free, ensuring safety and reducing the risk of allergic reactions for patients.

Yes, the Technomed Disposable EEG Cup+ Electrodes are specifically designed for broad compatibility and work reliably with most EEG equipment used globally. This is supported by several key design features:

• Standard Connector: They utilize the industry-standard Safety DIN 42 802 connector (DIN 42802-1 specified).
• Optimized Handling: The connector is optimized for simple insertion into and extraction from the headbox, streamlining procedures.
• Wire Specifications: The lead wires are highly flexible, anti-tangle, and multi-colored, featuring a durable Tin Plated Copper core within PVC insulation to ensure effective signal transmission.
