Technomed Disposable EEG Cup Electrode
- SKU: TNM-TE-C52-432
-
Condition:
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
Condition: Factory New
-
Warranty:
Warranty: Until Use/ExpirationWarranty: Until Use/ExpirationWarranty: Until Use/ExpirationWarranty: Until Use/ExpirationWarranty: Until Use/ExpirationWarranty: Until Use/ExpirationWarranty: Until Use/ExpirationWarranty: Until Use/Expiration
- Clear and reliable signal due to optimized layer of frequency-stable Ag/AgCl
- Optimized patient comfort with low profile disk, soft and flexible anti-tangle lead wires
- PVC wires terminate into a safety DIN 42 802 connector
- Compatible with most of the EEG equipment used in the world
-
Learn more:
-
MFR:
Technomed
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
Ships from Manufacturer
This item ships from MFI Medical
The displayed information indicates the present stock level of this item. Additional quantity is available and may have an extended estimated delivery range. We will provide you with regular updates throughout the order process.
Items shipped from the manufacturer
This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.
Special order item
A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
-
MPN: TE/C52-432
MPN: TE/C52-632
MPN: TE/C52-832
MPN: TE/C52-932
MPN: TE/C52-438
MPN: TE/C52-638
MPN: TE/C52-838
MPN: TE/C52-938
- Phone: (651) 288-0890
Shop with Confidence
Free Shipping
Free Returns
Price Match Guarantee
Sales Tax Exemption
Dedicated Account Managers
Description

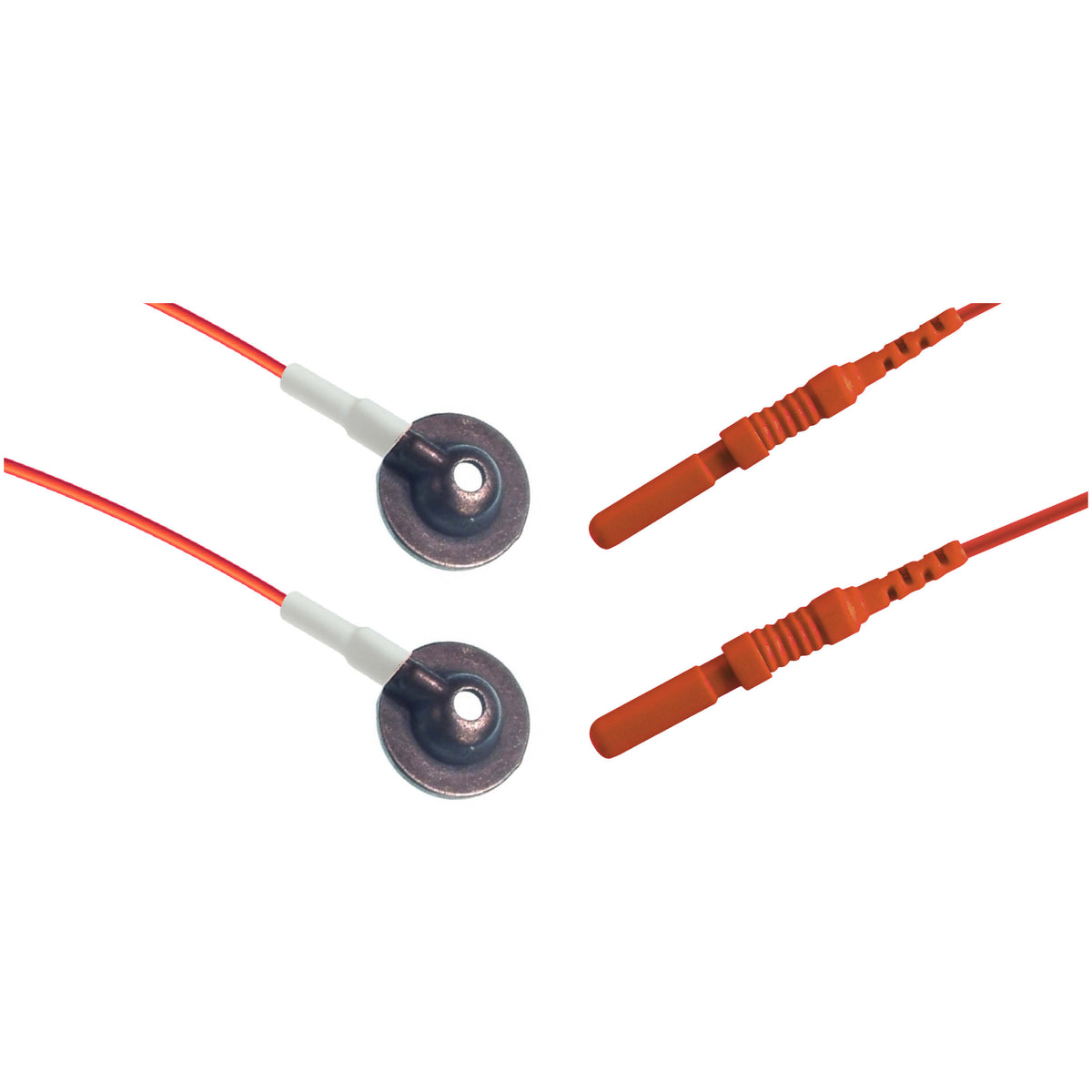

The Technomed Disposable EEG Cup Electrode is designed to optimize EEG procedures and to enable you to focus on the patient and the EEG recording.
Warranty: Until Use or Expiration.
The Technomed cup electrodes are compatible with most of the EEG equipment used in the world and give an excellent signal with this equipment for good diagnoses and accurate monitoring.
The PVC wires terminate into a safety DIN 42 802 connector, are multi colored, and are available in lengths of 1, 1.5, 2, or 2.5 meters. The electrodes are for single use only.
Features
Technomed Disposable EEG Cup Electrode Features
- No cleaning and preparation of EEG electrodes needed.
- Clear and reliable signal due to optimized layer of frequency-stable Ag/AgCl.
- Short cup-to-cable connection to reduce lift risk.
- Flexible wires and optimized connector for easy headbox insertion and extraction.
- Optimized patient comfort with low profile disk, soft and flexible anti-tangle lead wires.
- Reduced risk of cross-contamination.
Specifications
Technomed Disposable EEG Cup Electrode Specifications
- Cup Diameter: 10 mm.
- Cup Height: 2.6 mm.
- Lead Wire Core: Tin plated Copper.
- Lead Wire Insulation: PVC.
- Connector: DIN 42802-1.
-
Colors:
- 5 Colors: Red, green, white, yellow, and blue.
- 10 Colors: Green, white, yellow, red, orange, purple, black, blue, grey, and brown.
- Lead-free.
- Latex-free.
- BPA-free leadwire.
- DEHP-free leadwire.
- REACH and RoHS (EU) compliant.
Configurations
Technomed Disposable EEG Cup Electrode Configurations
| Part Number | Wire Length | Packing |
|---|---|---|
| #TE/C52-432 | 1.0 m (40") | Set of 10, 10 colors |
| #TE/C52-632 | 1.5 m (60") | Set of 10, 10 colors |
| #TE/C52-832 | 2.0 m (80") | Set of 10, 10 colors |
| #TE/C52-932 | 2.5 m (100") | Set of 10, 10 colors |
| #TE/C52-438 | 1.0 m (40") | Set of 25, 5 x 5 colors |
| #TE/C52-638 | 1.5 m (60") | Set of 25, 5 x 5 colors |
| #TE/C52-838 | 2.0 m (80") | Set of 25, 5 x 5 colors |
| #TE/C52-938 | 2.5 m (100") | Set of 25, 5 x 5 colors |
Literature
Technomed Disposable EEG Cup Electrode Literature
As described, these are good quality, low impedance cables for biosensing applications. For our project, we did not need the AgCl cups at the ends, but they appear robust and have a low resistance.
Technomed Disposable EEG Cup Electrode
