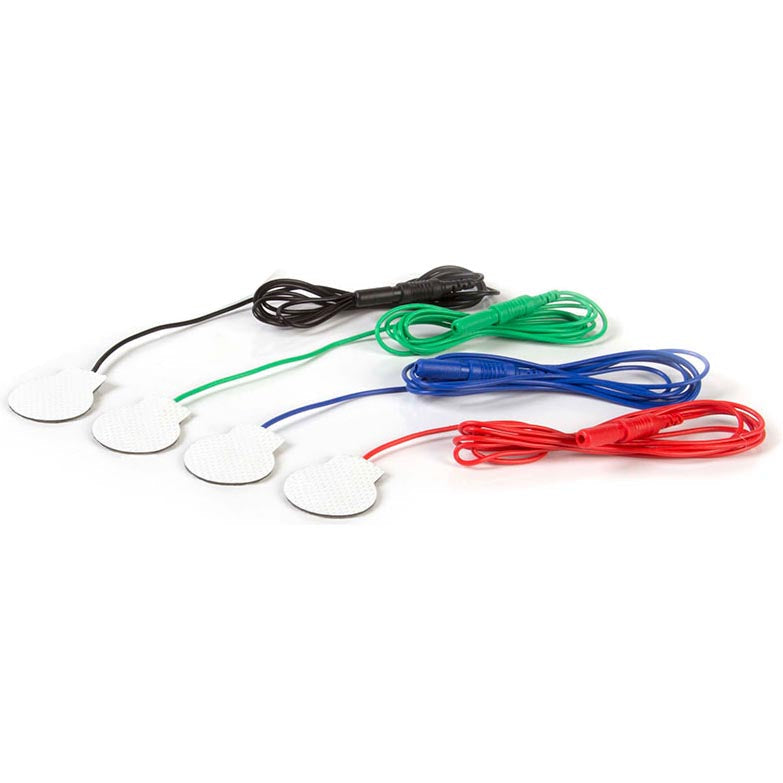

Technomed Disposable Adhesive EMG 4-Disk Surface Electrodes (10 Sets/Box)

The Technomed Disposable Adhesive EMG 4-Disk Surface Electrodes (10 Sets per Box) are designed with an Ag/AgCl sensor and an extra thick and flexible conductive gel which help provide a crystal clear signal, ease of use, and repositionability.

Warranty: Until Use or Expiration (2 Year Shelf Life for unopened pouches).

The electrodes, for recording and stimulation, are highly flexible and can be repositioned on all types of skin. They are designed for patient comfort and user friendliness with soft wires and an optimized connector for easy headbox insertion and extraction.

The Disposable Adhesive Surface Electrodes can be combined with all Technomed EMG needles or reusable needle electrodes and stimulation probes.

Note: When using this product, water and electrolyte gel between the felt strap/plate and the recording or stimulating electrodes should be avoided and removed before application.

Technomed Disposable Adhesive EMG 4-Disk Surface Electrodes Features

• Clear and reliable signal with optimized sensor.
• Improved patient comfort with skin friendly soft and flexible materials.
• Extra large soft and flexible gel patch with high repositionability.
• Wire Color: Red, Blue, Green, Black.
• Hydrogel: Solid.
• Lead-free.
• Latex-free.
• BPA-free.
• DEHP < 0.1% by weight.
• REACH and RoHS compliant.
• Lead Wire Core: Tin plated copper.
• Lead Wire Insulation: PVC.
• Connector: DIN 42802.

Technomed Disposable Adhesive EMG 4-Disk Surface Electrodes Specifications

• Diameter: 20 mm x 4.
• Property - Test Method Typical Values:
  • Hydrogel Process pH: 6.3 (± 0.5).
  • Biocompatibility (ISO 10993): Pass.
  • Volume Resistivity (Ohm-in): 763 Ohm-in.
  • Stainless Steel Adhesion: 787 grams per inch of width.
  • Thickness of Hydrogel: 32 Mills (± 5 Mills).

Technomed Disposable Adhesive EMG 4-Disk Surface Electrodes Lead Lengths

• #TE/K50430-001: 1.0 m.
• #TE/K50430-015: 1.5 m.
• #TE/K50430-002: 2.0 m.
• #TE/K50430-025: 2.5 m.

Technomed Disposable Adhesive EMG 4-Disk Surface Electrodes Literature

Technomed Disposable Adhesive Surface Electrode Product Datasheet
