Summit Doppler Vantage ABI System

The Summit Doppler Vantage ABI System is designed for rapid clinical throughput, completing the full Ankle-Brachial Index (ABI) exam in as little as three minutes.

This speed is achieved through several design advantages:

• One-Button Operation: It is engineered as a true one-button system, streamlining the process and minimizing user interaction time.
• Advanced Technology: It uses proprietary Digital Fourier Oscillometry (DFO) waveform analysis, which is superior to traditional oscillometric methods for fast and accurate ankle pressure determination.

The Summit Doppler Vantage ABI System utilizes a proprietary and advanced technology called Digital Fourier Oscillometry (DFO) waveform analysis to determine the Ankle-Brachial Index (ABI) scores.

Key features of this diagnostic approach include:

• Superior Accuracy: DFO provides superior ankle pressure determination compared to traditional oscillometric methods.
• Methodology: The overall determination method is Pulse Volume Oscillometry (PVO), which leverages pneumatic plethysmography (Pulse Volume Recording or PVR) waveforms for analysis.
• Speed: This efficient technology allows the system to perform a complete ABI exam in as little as three minutes.

Yes, the Summit Doppler Vantage ABI System is specifically engineered for speed and simplicity in diagnosing Peripheral Arterial Disease (P.A.D.). It is considered a true one-button system.

This simple operation provides several benefits:

• Exceptional Speed: The complete Ankle-Brachial Index (ABI) exam is performed rapidly, often in as little as three minutes, enhancing clinic efficiency.
• Advanced Analysis: Despite the simple interface, the system uses highly accurate Digital Fourier Oscillometry (DFO) waveform analysis for superior ankle pressure determination.
• Intuitive Control: Beyond the one-button start, the device features a large display and intuitive touchscreen navigation for easy setup and result review.

Yes, the Summit Doppler Vantage ABI System is designed with portability and efficiency in mind, making it an excellent choice for busy clinical environments.

Key features that support its transport and placement include:

• Integrated Design: It features a convenient, built-in carry handle, allowing for easy transport between examination rooms.
• Flexible Mounting: The device is designed for versatility, as it can be used as a self-supported tabletop unit (via integrated rubber feet) or securely mounted on an optional roll-stand for enhanced mobile use.
• Compact Footprint: With dimensions of approximately 6.4” x 11” x 7.3”, the console is engineered to be space-efficient, fitting easily onto carts or desks in professional medical settings.
• Mobile Configuration: When paired with the optional roll-stand, the system sits on a stable, five-point base with smooth-rolling casters and includes a convenient storage basket for organized management of cuffs and hoses.

The standard Summit Doppler Vantage ABI System (SKU: WLC-VANABI) is a comprehensive, factory-new diagnostic kit engineered for the rapid assessment of Peripheral Arterial Disease (P.A.D.) in as little as three minutes.

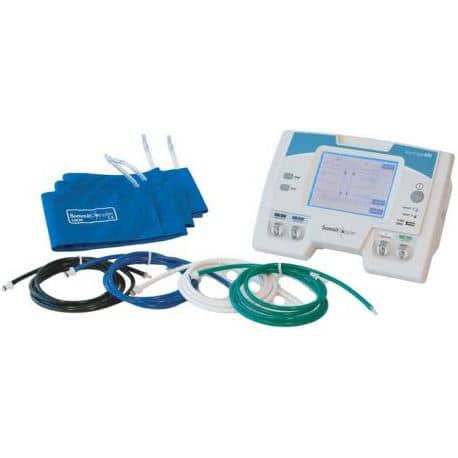

The standard configuration includes everything needed to perform the Ankle-Brachial Index (ABI) exam:

• Vantage ABI Main Unit: The core device featuring intuitive touchscreen navigation, true one-button operation, and an AC rechargeable power source.
• Four Specialized Cuff and Hose Assemblies: These are color-coded and sized for accurate bilateral measurements:
  • 10 cm Cuff and Hose Assembly (Left Ankle)
  • 10 cm Cuff and Hose Assembly (Right Ankle)
  • 12 cm Cuff and Hose Assembly (Left Arm)
  • 12 cm Cuff and Hose Assembly (Right Arm)
• USB Flash Drive (64 MB): Included for efficient data storage, transfer, and seamless integration with Electronic Medical Record (EMR) systems.
• Support Materials: An ABI chart and a detailed training video to facilitate staff training and operational proficiency.

The cuff pressure range for the Summit Doppler Vantage ABI System is 0 to 280 mmHg.

The Summit Doppler Vantage ABI System is offered in two main configurations to suit different clinical needs for rapid Peripheral Arterial Disease (P.A.D.) assessment:

1. Standard Configuration (#VANABI)

This configuration is designed for self-supported, tabletop use and includes all necessary components for immediate operation:

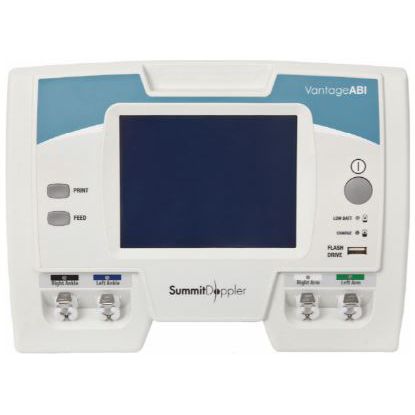

• The main Vantage ABI Console Unit with a large, intuitive touchscreen display.
• Four necessary Cuff and Hose Assemblies (two 10 cm Ankle, two 12 cm Arm).
• A USB Flash Drive for easy data storage, transfer, and Electronic Medical Record (EMR) interfacing.
• An ABI chart and training video.

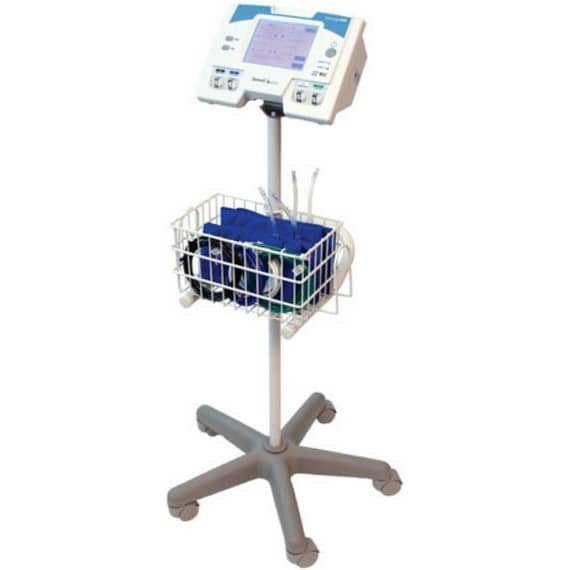

2. Vantage Max Configuration (#VANMAX)

This comprehensive option is tailored for enhanced mobility and workflow efficiency. It includes all components of the Standard Configuration, plus essential additions:

• An integrated ABI System Printer with adhesive-backed label paper.
• A mobile Vantage ABI Roll-Stand.
• A convenient Storage Basket for cuff and hose management.

Yes, the Summit Doppler Vantage ABI System is engineered for highly accurate and reliable assessment of Peripheral Arterial Disease (P.A.D.). Its clinical performance is supported by several advanced technical features:

• Digital Fourier Oscillometry (DFO): Unlike traditional oscillometric methods, this system utilizes DFO waveform analysis, providing a significant technical improvement in ankle pressure determination.
• Validated Design: Developed in cooperation with researchers from the Cleveland Clinic, the system is designed to provide accurate ABI determinations across a wide range of patient conditions.
• Efficiency: The system performs comprehensive exams in as little as three minutes, allowing clinicians to maintain high diagnostic throughput without compromising on measurement precision.

The Summit Doppler Vantage ABI System is designed to simplify the diagnosis of Peripheral Arterial Disease (P.A.D.) by performing the Ankle-Brachial Index (ABI) exam. It utilizes innovative cuff-based technology and Digital Fourier Oscillometry (DFO) waveform analysis for improved ankle pressure determination and accurate P.A.D. assessment.

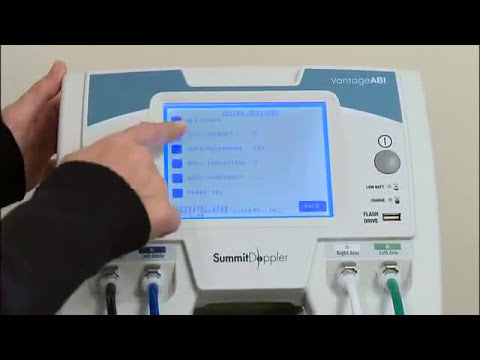

Yes, the Summit Doppler Vantage ABI System is designed for exceptional ease of use and features both a large display and intuitive touchscreen navigation.

This streamlined design contributes significantly to efficient workflow and speed:

• One-Button Operation: The device is engineered as a true one-button system, simplifying the entire diagnostic process.
• Rapid Workflow: The intuitive interface allows clinicians to perform a complete Ankle-Brachial Index (ABI) exam in as little as three minutes, maximizing patient throughput.
• Clear Results: The large display clearly presents results derived from proprietary Digital Fourier Oscillometry (DFO) waveform analysis, which provides superior ankle pressure determination.
