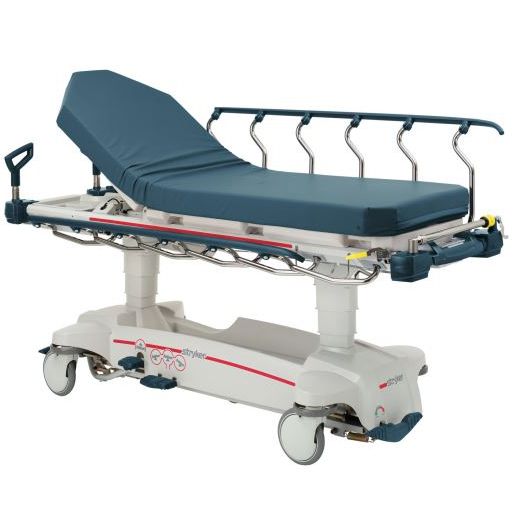

Stryker M-Series Transport Stretcher - Certified Refurbished

The Stryker M-Series Transport Stretcher is in excellent condition and certified to proper operating specifications.

Warranty: 90 Days - Parts and Labor.

Stryker's innovative M-Series Transport Stretcher sets a new standard for effective treatment and safe transport. Fully-equipped and completely adaptable, the M-Series allows you to choose the mobility solution that best suits your needs. Sophisticated advances in mobility, versatility, and functionality enable the M-series to address a wide variety of transport needs.

The Stryker M-Series Stretcher offers three different models, each with its own advanced mobility option:

• #1005 and #1007 - Retractable fifth wheel that makes for easy cornering in tight spaces.

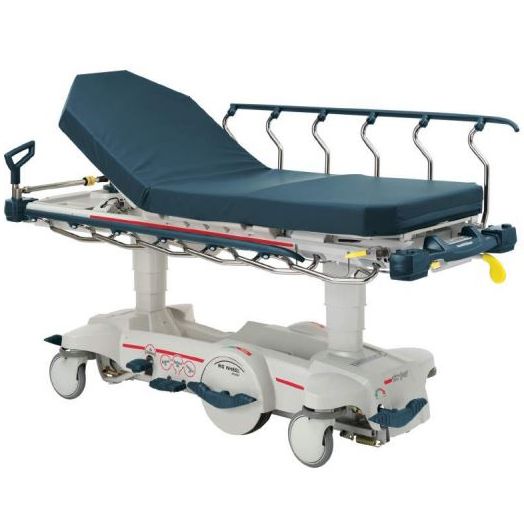

• #1015 - Big Wheel advanced mobility that can reduce push force by 50% and steering effort by 60%.
• #1025 - Zoom motorized drive system that virtually eliminates manual push force.

Stryker M-Series Transport Stretcher Features

• Thermoformed ABS base with extra capacity storage tray.
• Integrated utility tray.
• Litter mounted oxygen bottle holder.
• Integrated transfer board.
• Power washable.
• Four-wheel steel-ring brake system with dual end activators.
• Dual side-mounted foot control hydraulics with uni-lower pedal.
• Glideaway siderails with integrated push/pull handles.
• Four integrated IV receptacles.
• Trend/reverse Trend.
• 8" (20 cm) Omni Surface casters with integrated wheel covers.
• Pneumatic backrest/stationary foot.
• Constant descent hydraulics.
• Dual end brake and steer controls.
• Model 1007 replaced the previous version Model 1005. It has a better base clearance.

Stryker M-Series Transport Stretcher Specifications

• Overall Length:
• #1005 / #1007 / #1015: 84" (213 cm).
• #1025: 85" (215 cm).
• Overall Width:
• 26" Litter:
• Siderails Up: 33.5" (85 cm).
• Siderails Down: 30.25" (77 cm).
• 30" Litter:
• Siderails Up: 37" (94 cm).
• Siderails Down: 30.75" (78 cm).
• Weight Capacity: 700 lbs (317 kg).
• Height Range:
• High: 34" (86.4 cm).
• Low:
• #1005 / #1007 / #1015: 20.75" (53 cm).
• #1025: 23" (58 cm).
• Litter Positioning:
• Backrest: 0 - 90°.
• Knee Gatch: 40°.
• Trendelenburg/Reverse Trendelenburg:
• #1005 / #1007 / #1015: ± 16°.
• #1025: ± 15°.
• Patient Surface: 26" x 75.25" (66 cm x 189 cm).
• Siderails: 14" x 57.75" (36 cm x 147 cm).
• Caster Diameter: 8" (20 cm).

Stryker M-Series Transport Stretcher Configurations

• #1005-26: 26" Patient Surface Width with Retractable Fifth Wheel.
• #1005-30: 30" Patient Surface Width with Retractable Fifth Wheel.
• #1005-26-SC: 26" Patient Surface Width with Retractable Fifth Wheel and Integrated Scale.
• #1005-30-SC: 30" Patient Surface Width with Retractable Fifth Wheel and Integrated Scale.
• #1007-26: 26" Patient Surface Width with Retractable Fifth Wheel.
• #1007-30: 30" Patient Surface Width with Retractable Fifth Wheel.
• #1007-26-SC: 26" Patient Surface Width with Retractable Fifth Wheel and Integrated Scale.
• #1007-30-SC: 30" Patient Surface Width with Retractable Fifth Wheel and Integrated Scale.
• #1015-26: 26" Patient Surface Width with Big Wheel Advanced Mobility.
• #1015-30: 30" Patient Surface Width with Big Wheel Advanced Mobility.
• #1015-26-SC: 26" Patient Surface Width with Big Wheel Advanced Mobility and Integrated Scale.
• #1015-30-SC: 30" Patient Surface Width with Big Wheel Advanced Mobility and Integrated Scale.
• #1025-26: 26" Patient Surface Width with Zoom Motorized Drive System.
• #1025-30: 30" Patient Surface Width with Zoom Motorized Drive System.
• #1025-26-SC: 26" Patient Surface Width with Zoom Motorized Drive System and Integrated Scale.
• #1025-30-SC: 30" Patient Surface Width with Zoom Motorized Drive System and Integrated Scale.

Stryker M-Series Transport Stretcher Literature

Stryker 1005/SM104 M-Series Stretcher Operations Manual

Stryker 1005/1007/SM104 M-Series Stretcher Maintenance Manual

Stryker 1007/SM104 M-Series Stretcher Operations Manual

Stryker 1015/SM204 M-Series Stretcher Maintenance Manual

Stryker 1015 M-Series Big Wheel Stretcher Operations Manual

Stryker 1025/SM304 M-Series Stretcher Operations Manual

Stryker M-Series Stretchers Specs Sheet
