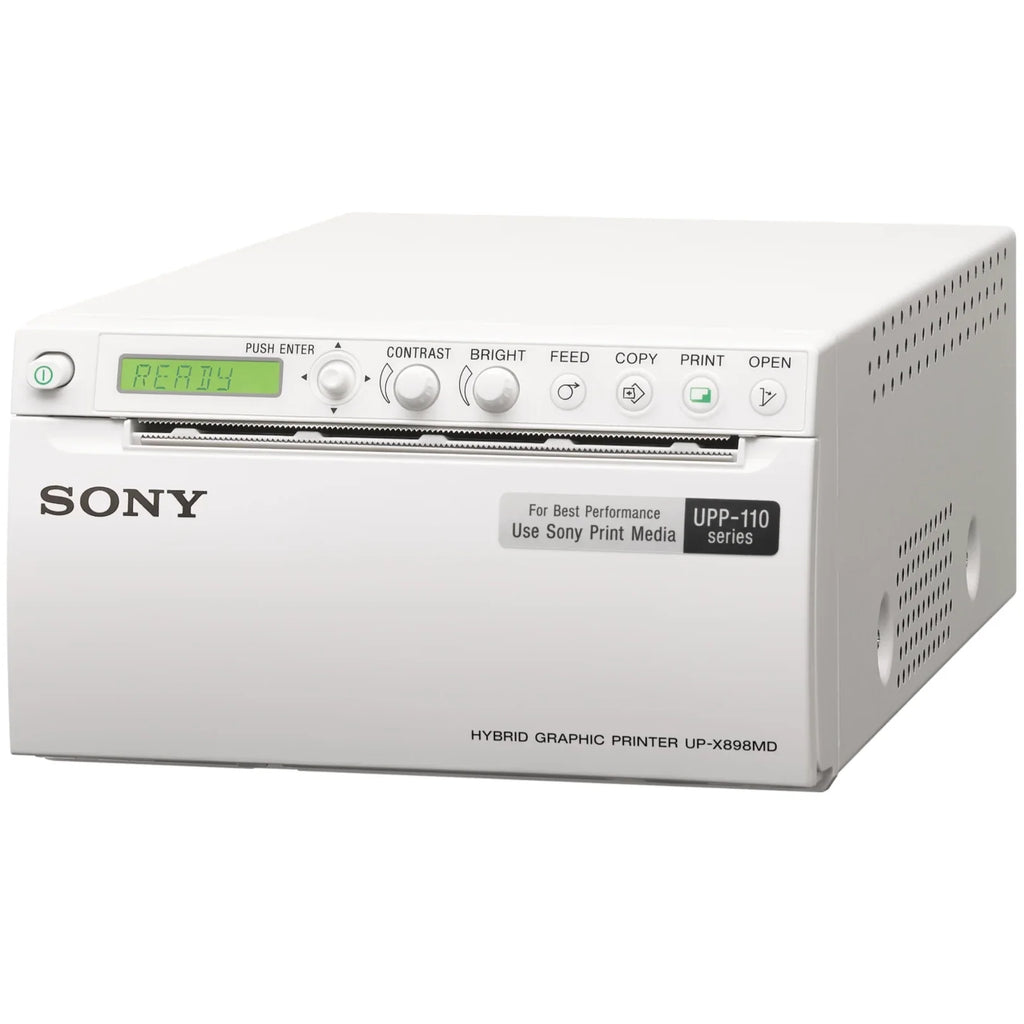

Sony UP-X898MD Hybrid Graphic Printer
-
Condition:
Factory New
-
Warranty:
Not Available
- Hybrid: Accepts both analog and digital signal input
- An excellent choice for use with advanced ultrasound systems
- 1.9 second print speed
- Resolution: 325 DPI
-
Learn more:
- MFR:
Sony
Ships from Sony
This item ships from MFI Medical
The displayed information indicates the present stock level of this item. Additional quantity is available and may have an extended estimated delivery range. We will provide you with regular updates throughout the order process.
Items shipped from the manufacturer
This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.
Special order item
A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
- Phone: (800) 883-6817
Shop with Confidence
Free Shipping
Free Returns
Price Match Guarantee
Sales Tax Exemption
Dedicated Account Managers
Not ready to buy just yet?
Add this item to a quote
- Description
- Features
- Specifications
- Literature
The Sony UP-X898MD Hybrid Graphic Printer can be used with both analog and digital inputs. This makes it an excellent choice for use with advanced ultrasound systems.
The versatile UP-X898MD printer has an easy-to-use interface which allows users to either print images immediately or store them on a USB drive for later use. This compact device features a high speed print time of 1.9 seconds.
Sony UP-X898MD Hybrid Graphic Printer Features
- Hybrid: Accepts both analog and digital signal input.
- Consistent high-quality images.
- Great for use with advanced ultrasound systems.

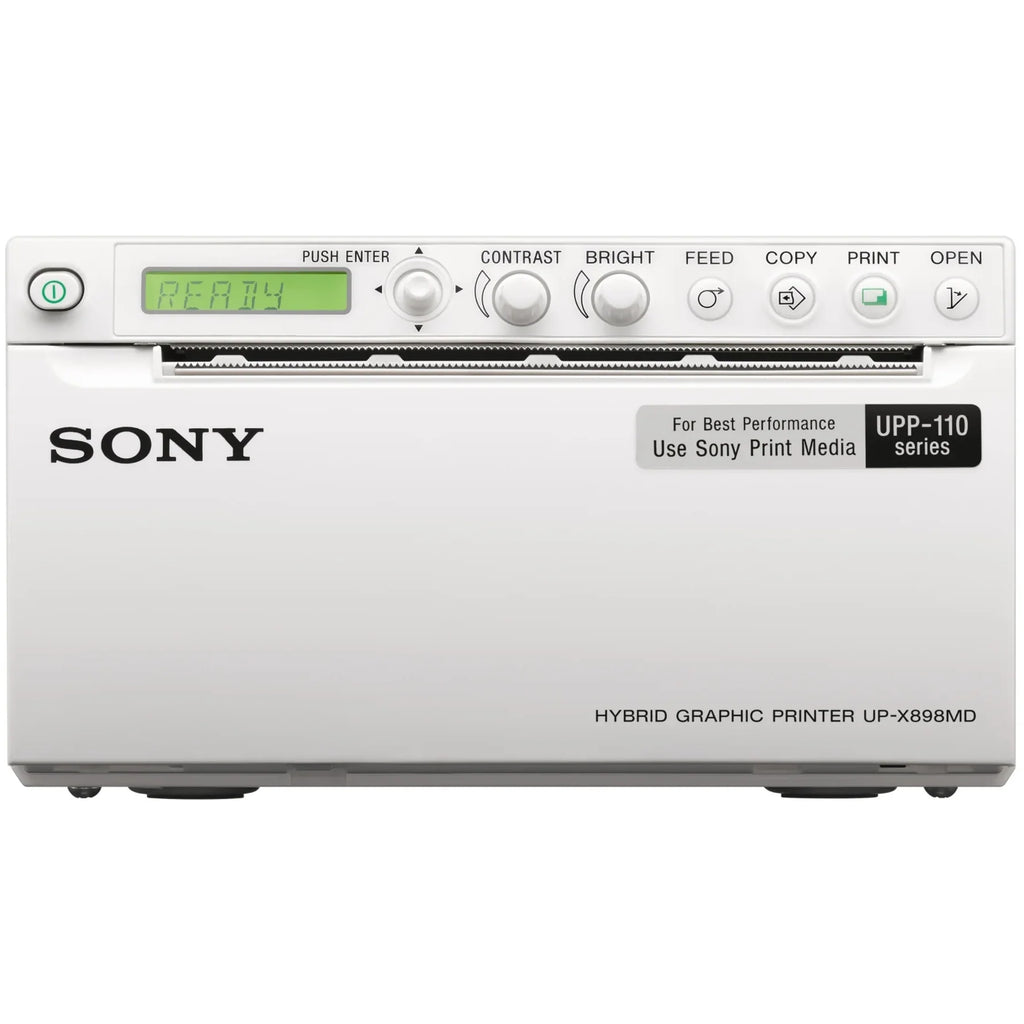

- User-friendly controls located conveniently on front panel.
- Digital Capture: Enables use with a connected USB drive.
- 1.9 second print speed.
- IMAGEPORT Interface: Allows for "Print, Store, and Go" capabilities.
- Uses the same media as the UP-895 and UP-897 Series printers.
- Extremely small and lightweight.
Sony UP-X898MD Hybrid Graphic Printer Specifications
- Type: Black/White printer.
- Print Speed: Approximately 1.9 seconds (High Speed Mode).
- Resolution: 325 DPI.
- Gradation: True 256 (8 bits) gray balance.
- Printing Method: Direct Thermal Printing.
- Thermal Head: Thin film thermal 1280 dots.
- Connector: Analog.
- Memory:
- Digital Connection: 4096 x 1280 x 8 bit.
- Analog Connection: 10 frames (850 k x 8 bits for one frame).
- Picture Size:
- Digital Connection: 4096 x 1280 dots.
- Analog Connection: 720 x 504 (NTSC), 720 x 604 (PAL).
- Print Media: UPP-110S/5, UPP-110HD, UPP-110HG.
- Print Size: A7 when using 110HG/110S media.
- Driver Software: Windows 2000/XP.
- Weight: 5.75 lb (2.6 kg).
- Dimensions: 6.125" x 3.5" x 9.5" (154 mm x 88 mm x 240 mm).
- Power Requirements: 100 to 240 V AC, 50/60 Hz, 0.8 to 1.5 A.

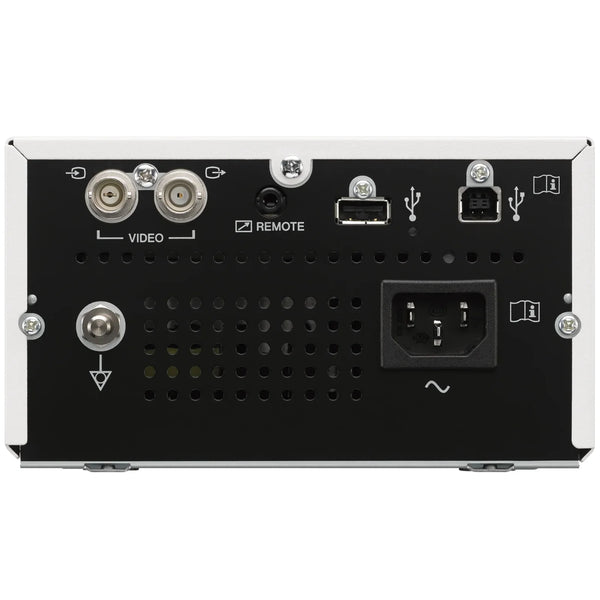

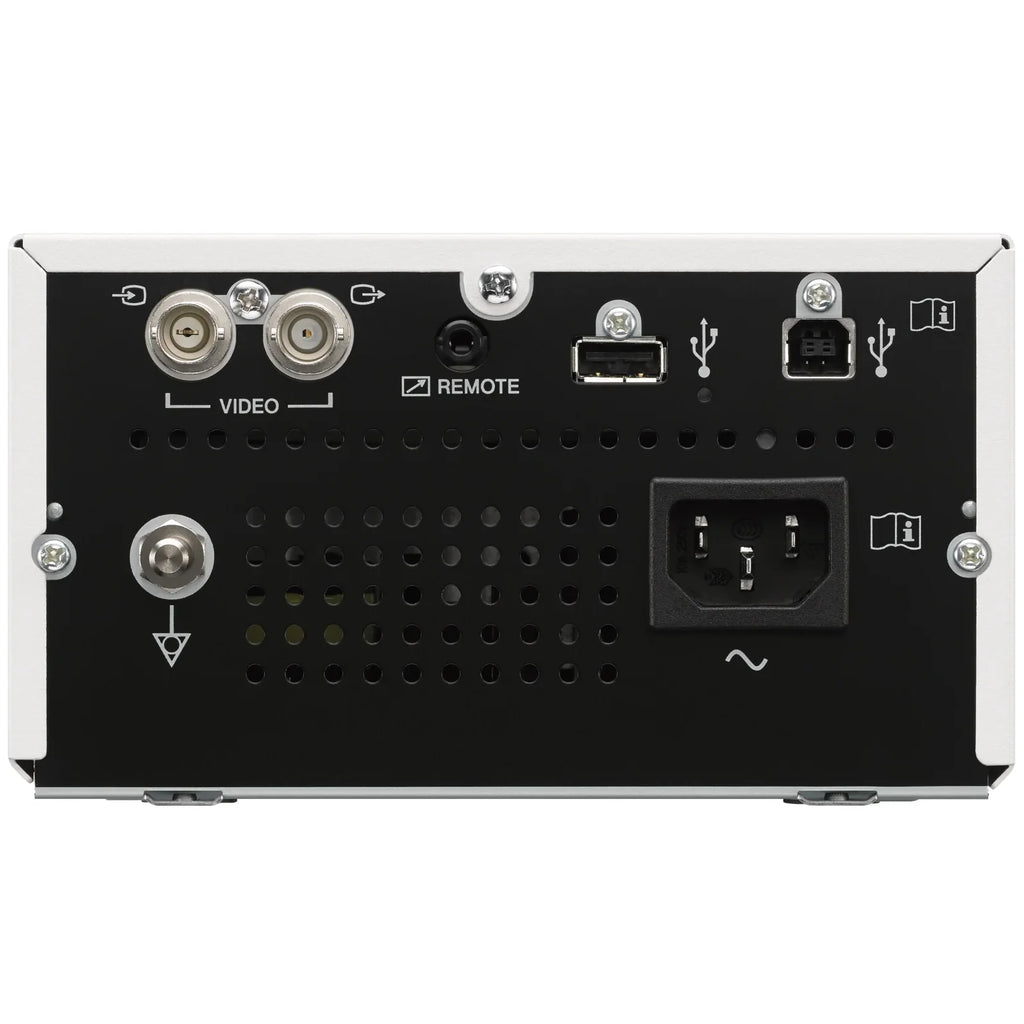

- Interface:
- Input Connector: VIDEO IN (BNC type) NTSC or PAL composite video signals 1.0 Vp-p, 75 ohms (NTSC/PAL automatically discriminated).
- Output Connector: VIDEO OUT (BNC type) Loop-through.
- Remote Connector: Stereo mini jack USB.
- Operating Environment:
- Temperature: 41 to 104 °F (5 to 40 °C).
- Humidity: 20% to 80% (non-condensing).
- Storage and Transport Environment:
- Temperature: -4 to 140 °F (-20 to 60 °C).
- Humidity: 20 to 80%.
- Safety Compliance: UL60950-1 Listed, CSA C22.2 No. 60950-1, UL60601-1 Listed, CSA No. 60601-1.
Sony UP-X898MD Hybrid Graphic Printer
