SleepSense Piezo Double Loop Film Effort Sensor Kit

Yes, this sensor is engineered for highly reliable, professional physiological monitoring.

Key features ensuring accuracy include:

• Piezo-electric Conversion: It utilizes PVDF (Piezo-electric plastic film) to accurately translate mechanical respiration effort (chest or abdomen movement) into a precise, low-level analog voltage signal.
• Clear Output: The signal output is designed to be approximately 1 mV for normal respiration, allowing for clear visualization of respiration waveforms.
• Secure Design: The double-loop design, combined with a durable 6” x 1.5” black elastic band, ensures secure and consistent contact throughout monitoring sessions.
• Standard Connectivity: It connects via a 1.5 mm safety DIN, compatible with any AC (low level) channel on appropriate professional recording systems.

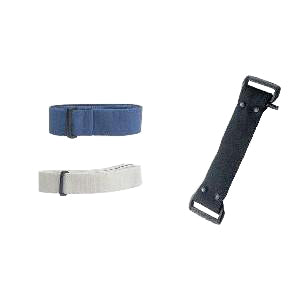

The SleepSense Piezo Double Loop Film Effort Sensor Kit includes:

• One sensor (#1389)
• Two bands (L and XL)

The SleepSense sensor utilizes high-quality Piezo-electric plastic film (PVDF) technology to accurately monitor respiration effort. This process works by:

1. Detecting Movement: The sensor detects mechanical respiration movement from the patient’s chest or abdomen.
2. Signal Conversion: It converts this physical effort into a precise, low-level analog voltage signal.

This signal allows connected professional monitoring equipment to produce clear, readable respiration waveforms. For normal respiration, the sensor generates an output of approximately 1 mV.

This sensor kit is engineered for professional physiological monitoring applications, focusing specifically on capturing and analyzing patient respiration waveforms.

Key applications include:

• Sleep Labs: Used as an essential accessory in sleep studies (Polysomnography or PSG).
• Clinical Respiratory Assessment: Employed in clinical setups to translate chest or abdominal movement into a precise, low-level analog voltage signal for recording.

Please note: This item is intended strictly for professional use and sale by or on the order of a physician.

The recommended filter settings for the SleepSense Piezo Film Effort Sensor Kit are:

• High Pass Filter: 0.1 Hz
• Low Pass Filter: 70 Hz

The SleepSense Piezo Film Effort Sensor Kit utilizes a 1.5 mm DIN safety DIN system connector. This professional-grade connection is standardized to interface with any AC (low level) channel on compatible physiological recorders, ensuring secure and reliable signal transmission during monitoring.

The lead wire connected to the SleepSense Piezo Effort Sensor is 200 cm long. The cable features robust white PVC insulation to protect the line and maintain optimal signal integrity during monitoring.

The SleepSense Piezo Film Effort Sensor Kit operates under the following conditions:

• Operating Temperature: 40 to 104 °F
• Storage Temperature: -4 to 140 °F
• Operating and Storage Humidity: 5 to 95% (non-condensing)

The signal output is approximately 1 mV for normal respiration.

Yes, this SleepSense kit is engineered exclusively for professional physiological monitoring in clinical and sleep lab settings. Its sale is restricted to professional use by or on the order of a physician.

Key quality features include:

• Accurate Sensing: Utilizes Piezo-electric plastic film (PVDF) to precisely convert respiration movement into a low-level analog voltage signal.
• Standardized Connectivity: Features a 1.5 mm safety DIN connector compatible with any AC (low level) channel on professional recorders.
• Durable Design: Built with a 6-inch black elastic band and a 200 cm white PVC insulated lead wire to ensure reliability during monitoring sessions.
