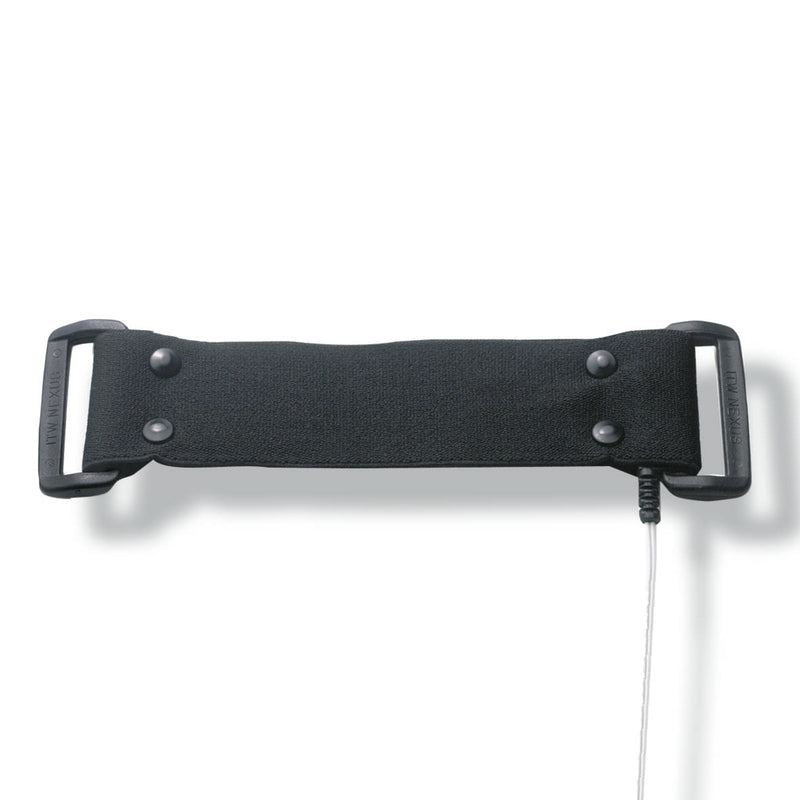

SleepSense Piezo Double Loop Film Effort Sensor

SleepSense Piezo Double Loop Film Effort Sensor
Key Features
  • SKU: SLS-1389
  • Condition: Factory New
  • Warranty: 1 Year
  • Weight: 0.2 lb
  • Uses a Piezo-electric plastic film (PVDF)
  • Provides a clear, reliable indication of respiration waveforms
  • May be connected to any AC (low level) channel on the recorder
  • NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: SleepSense Ships from Manufacturer
  • MPN: 1389
  • Phone: (888) 757-7367
$290.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The SleepSense Piezo Double Loop Film Effort Sensor (# 1389) uses a Piezo-electric plastic film (PVDF) to convert chest or abdominal respiration movement to a small analog voltage that provides a clear, reliable indication of respiration waveforms. This respiration effort sensor features safety DIN connectors and may be connected to any AC (low level) channel on the recorder.

Warranty: Factory 1 Year - Free of Defects in Materials and Quality Workmanship.

NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.

SleepSense Piezo Double Loop Film Effort Sensor Specifications:

  • Cable: 200 cm. long white PVC insulation lead wire.
  • Sensor Design: 6" x 1.5" black elastic band.
  • System Connector: 1.5 mm DIN safety DIN.
  • Recommended Filter Settings:
    • High Pass: 0.1 Hz.
    • Low Pass: 70 Hz.
  • Signal Output: Approximately 1 mV for normal respiration.
  • Operating Conditions: 40 to 104 °F.
  • Storage Temperature: -4 to 140 °F.
  • Operating and Storage Humidity: 5 to 95% (non-condensing).

SleepSense Piezo Double Loop Film Effort Sensor Literature:

SleepSense PVDF Effort Sensor - Double Loop / Safety DIN Connectors User Manual

Frequently asked questions

What is the SleepSense Effort Sensor used for?

The SleepSense Piezo Double Loop Film Effort Sensor is designed for professional respiratory monitoring, converting chest or abdominal movement into a clear analog voltage signal. It is primarily used in sleep studies to provide reliable respiration waveforms.

How does the sensor monitor respiration?

The SleepSense Piezo Double Loop Film Effort Sensor utilizes Piezo-electric plastic film (PVDF) technology. This advanced film converts respiration movement into a small analog voltage, providing clear and reliable respiration waveforms for accurate monitoring.

What are the elastic band dimensions?

The SleepSense Piezo Double Loop Film Effort Sensor features a 6” x 1.5” black elastic band.

What type of connector does the SleepSense Piezo sensor use?

The SleepSense Piezo sensor uses a 1.5 mm DIN safety DIN connector.

What is the recommended high pass filter for this sensor?

The recommended high pass filter for the SleepSense Piezo Double Loop Film Effort Sensor is 0.1 Hz.

What is the recommended low pass filter for this sensor?

The recommended low pass filter for the SleepSense Piezo Double Loop Film Effort Sensor is 70 Hz.

What is the signal output voltage for normal respiration with this sensor?

The signal output is approximately 1 mV for normal respiration.

What are the operating and storage temperature ranges for the SleepSense Piezo sensor?

The operating temperature range is 40 to 104 °F, and the storage temperature range is -4 to 140 °F.

Does the purchase of this sensor require a physician's order?

Yes, a physician’s order is required for purchase, as this sensor is intended for professional use only.

What is included with the sensor?

The product includes the respiration effort sensor assembly which comes with an integrated cable and connector, ready for professional use.
