SleepSense Double Buckle Piezo Crystal Effort Sensor

Name: SleepSense Double Buckle Piezo Crystal Effort Sensor
Brand: SleepSense
SKU: SLS-1370
Price: 290.0 USD
Availability: InStock

SleepSense Double Buckle Piezo Crysta...

Liquid error (snippets/ced-product-media line 113): external_video_tag does not support String

Key Features

SKU: SLS-1370
Condition: Factory New
Warranty: 1 Year
Learn more:

Contact The Manufacturer

MFR: SleepSense Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 1370
Phone: (888) 757-7367

$290.00

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

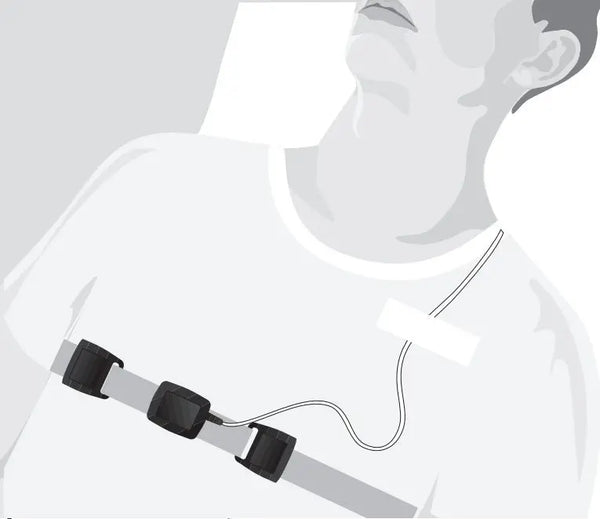

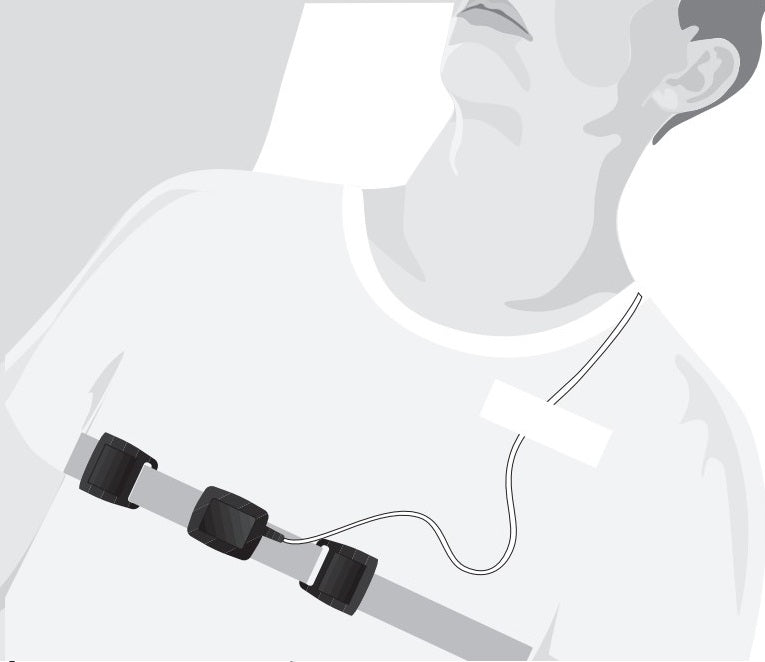

Using a Piezo-Electric Crystal, the SleepSense Double Buckle Piezo Crystal Effort Sensor (# 1370) converts chest or abdominal respiration movement to a small analog voltage that provides a clear, reliable indication of respiration waveforms.

Warranty: 1 Year - Free of Defects in Materials and Quality Workmanship.

This product features a double buckle design and safety DIN connectors. The sensor may be connected to any AC (low level) channel on the recorder. This device is for diagnostic purposes only and not for use as an apnea monitor.

NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.

Features

SleepSense Double Buckle Piezo Crystal Effort Sensor Features

Isolated element provides excellent immunity to environmental artifacts.
Very strong and stable signal.
Sensors individually calibrated for consistent sensitivity.
Sturdy mechanical design.

Specifications

SleepSense Double Buckle Piezo Crystal Effort Sensor Specifications

Sensor Technology: Piezo crystal in ABS box.
Typical Polygraph Settings:
- Sensitivity: 100 to 300 μV/mm.
- Low Frequency Filter: 0.1 Hz.
- High Frequency Filter: 70 Hz.
Typical Signal Amplitude:
- Typical 1 mV peak to peak.
- Signal amplitudes vary. Response is dependent on such variables as sensor position, strap tension and polygraph characteristics, etc.
Physical Size: 3" side to side.
Cable: White PVC insulation tinsel wire.
Cable Length: Sensor: 6'7"; 1.5 mm touch-proof connector.
Weight: 3 oz.
Sensor: Small ABS box 1" x 0.7" x 0.5" / buckles / double loop / Velcro tabs.
Operating Conditions: 40 to 104 °F.
Storage Temperature: -4 to 140 °F.
Operating and Storage Humidity: 5 to 95% (non-condensing).

Literature

SleepSense Double Buckle Piezo Crystal Effort Sensor Literature

SleepSense Double Buckle Piezo Crystal Effort Sensor Technical Specifications

SleepSense Piezo-Crystal Respiration Effort Sensors User Manual
