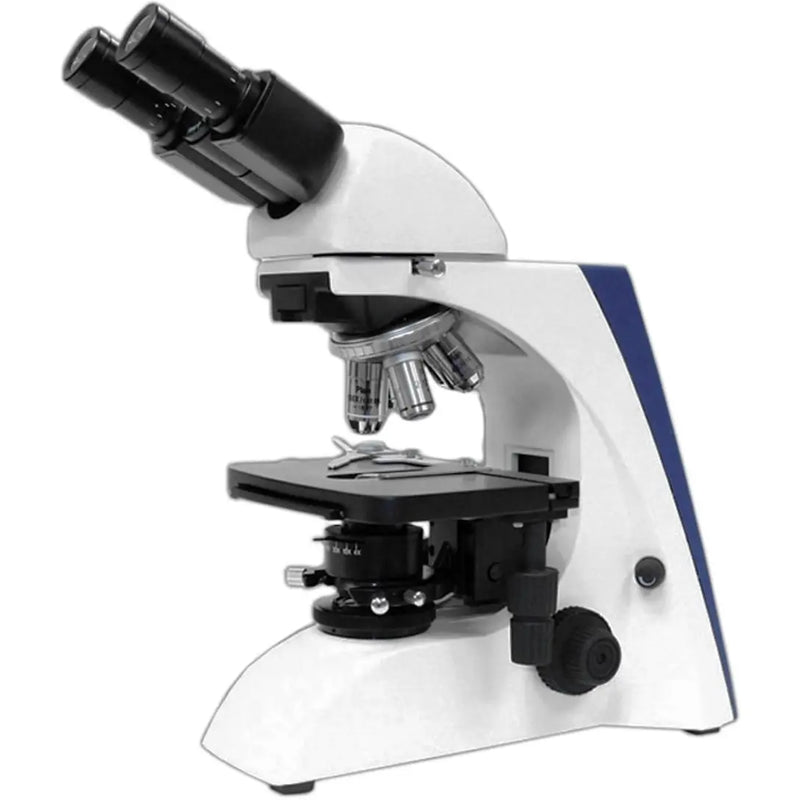

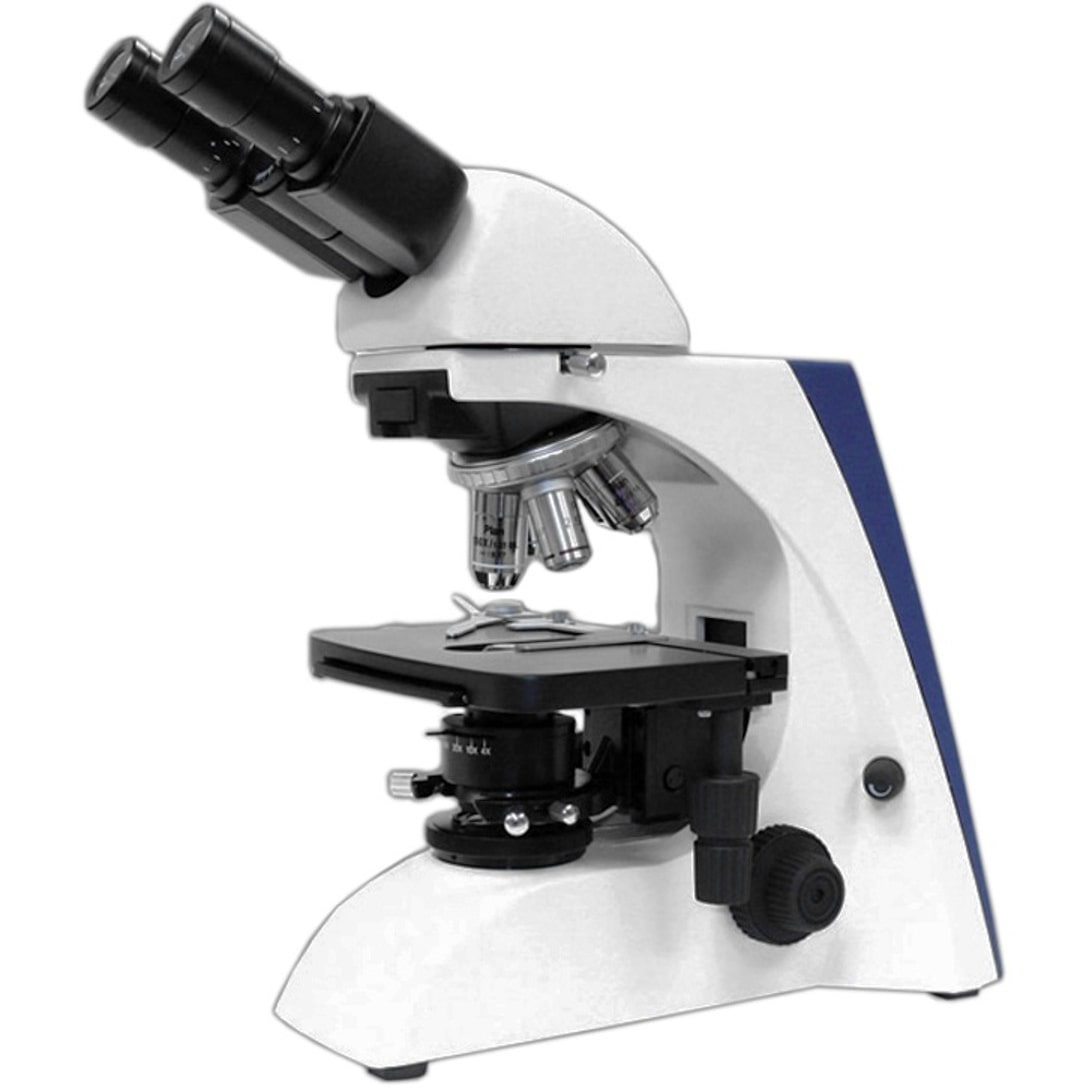

Seiler Microlux IV MOHS Compound Microscope

Yes, the Seiler Microlux IV MOHS Compound Microscope is specifically designed and optimized for performing Mohs dermatological procedures. It is tailored to support the critical in-vivo examination necessary for rapid, high-definition cellular analysis during this surgery.

Key features that make it suitable for Mohs include:

• Superior Optics: High-quality infinity PLAN objectives (2x to 40x) ensuring sharp, aberration-corrected images.
• Precise Control: Coaxial coarse and fine focusing controls, along with a double-layer mechanical stage for accurate specimen navigation.
• Optimized Viewing: LED illumination system coupled with Kohler illumination for bright, uniform lighting essential for real-time tissue assessment.

Yes, the Seiler Microlux IV features a high-quality wide field eyepiece optimized for clinical viewing.The specific specification is WF10X / 20 mm, meaning:

• Magnification: 10x
• Field of View (FN): 20 mm

This specification provides a generous field of view for clear, comprehensive examination of tissue sections during the Mohs procedure.

The Seiler Microlux IV MOHS Compound Microscope features coaxial coarse and fine focusing control, which allows for highly precise adjustments. This ensures you can achieve optimal image clarity and focus with ease, critical for detailed dermatological tissue examination.

Yes, the Seiler Microlux IV is equipped with a Seidentopf Type Binocular Head that offers comprehensive adjustments for ergonomic comfort and optimal viewing:

• Inclination: 30° inclined for comfortable observation.
• Rotation: Fully 360° rotatable, ideal for teaching or consultation.
• Interpupillary Distance: Adjustable range of 50 mm to 75 mm.
• Diopter Adjustment: Provides a correction range of ± 5°.

Yes, the Seiler Microlux IV is engineered for high-precision visualization during Mohs surgery by integrating the LED illumination system with Kohler illumination principles. This combination ensures superior visualization with bright, uniform, and consistent lighting across the entire field of view.

Key details of the illumination and control systems include:

• Condenser: Abbe Type N.A. = 1.25, featuring an iris diaphragm for precise light manipulation.
• Power: Operates globally using a universal 110 V to 240 V power supply.
• Protection: The unit incorporates anti-fungal systems to maintain optical clarity and longevity.

Yes, the Seiler Microlux IV MOHS Compound Microscope includes anti-fungal systems to protect the optics.

The Seiler Microlux IV MOHS Compound Microscope utilizes a suite of high-quality Infinity Plan Objectives specifically chosen to facilitate the detailed tissue examination required during Mohs procedures. These objectives ensure clear, sharp imaging across the entire working range.The included magnification settings are:

• 2x
• 4x
• 10x
• 20x
• 40x

The Seiler Microlux IV features a durable double-layer mechanical stage engineered for stable and precise manipulation of tissue slides during Mohs procedures. The key specifications are as follows:

• Stage Dimensions: 190 mm x 140 mm
• Travel Area (X-Y movement): 78 mm x 55 mm

For user convenience, the stage includes a removable slide holder and is operated by a right-hand stage handle.

The Seiler Microlux IV MOHS Compound Microscope utilizes a robust nosepiece designed for precision and durability during tissue examination. It features a reversed quintuple click-stop revolving mechanism supported by multiple ball bearings. This design ensures objective changes are smooth, precise, and highly reliable.

Yes, the microscope is equipped with a 110 to 240 V universal power supply, making it adaptable for use in various regions without needing a voltage converter.
