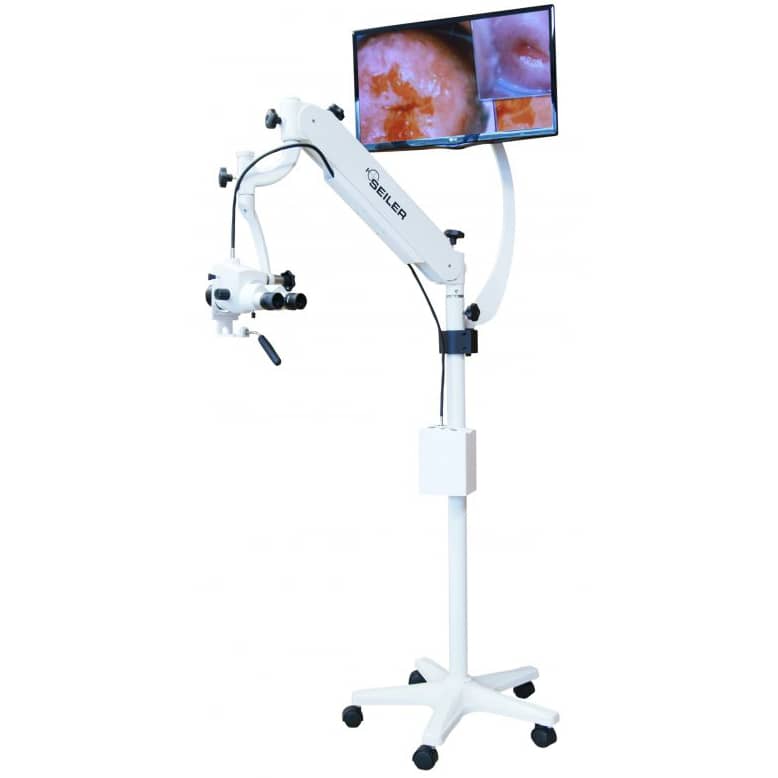

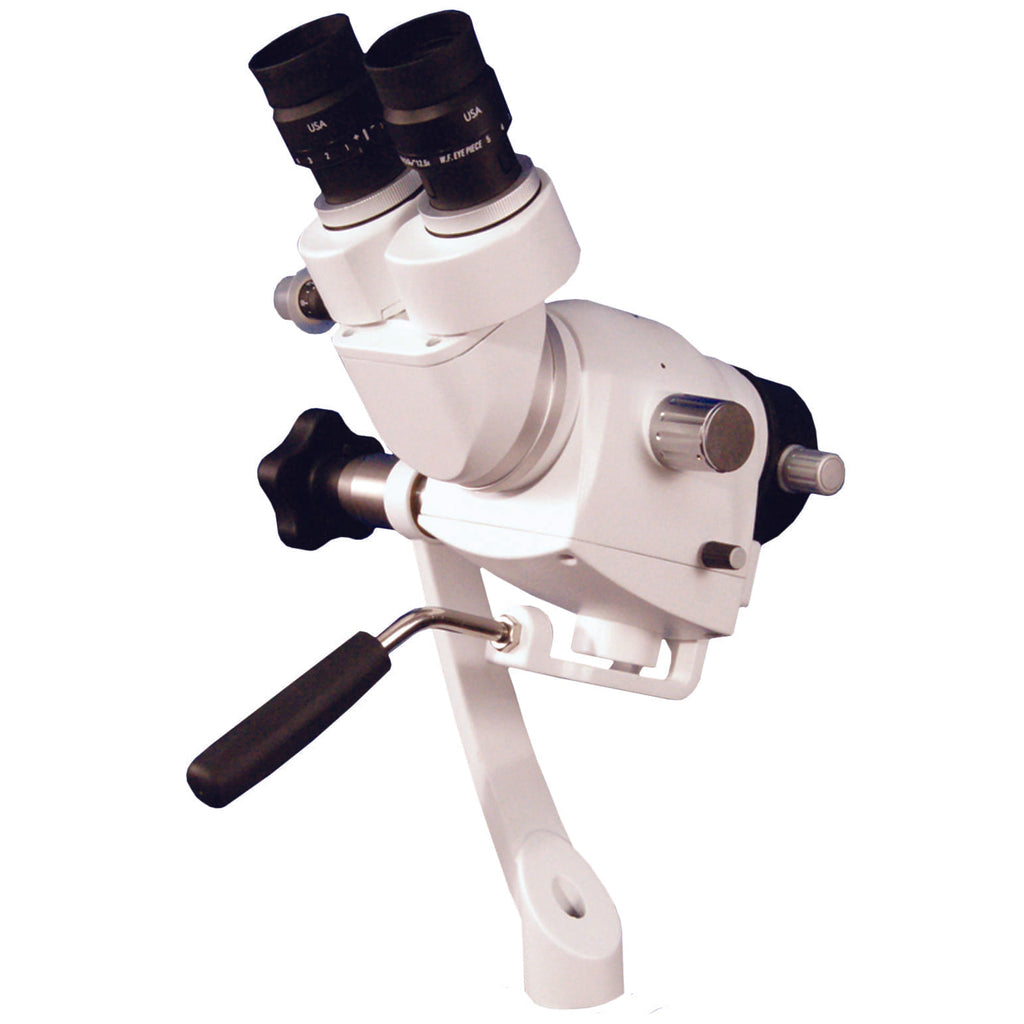

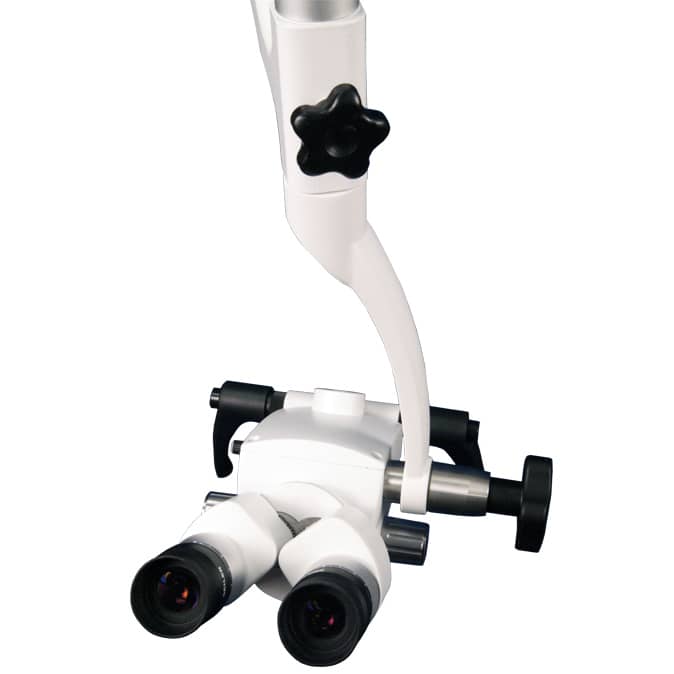

Seiler 985 Colposcope

The Seiler 985 Colposcope is the premier over the shoulder (OTS) model from Seiler. It is intended to provide magnified visualization of the tissues of the vulva, vagina, cervix, and anogenital area. It is used to evaluate these tissues, select areas for biopsy, as necessary, and to facilitate related procedures, e.g., LEEP, conization, etc.

Warranty: Lifetime - Optics and Mechanics.

The mount is set up higher to remove any obstructions from the user's field. It is equipped with a 5 step magnification turret, 300 mm working distance, and standard LED illumination.

Seiler 985 Colposcope Specifications

• Objective Lens: 300 mm Working Distance, offering 3, 4, 7, 11, and 17x magnification.
• Additional magnification/objective lens combinations are available.
• Widefield 12.5x eyepieces with diopter locks and fold-down rubber eyecups.
• Straight binocular head (Optional: fixed inclined, inclinable).
• LED illumination system.
• Green filter in selector knob.
• Height from Floor to Objective Lens:
  • Maximum: 54".
  • Minimum: 32".
• Overall Distance from the Column to the Objective Lens: 33".

Seiler 985 Colposcope Configurations

• #30985-OTS-LED: Standard.

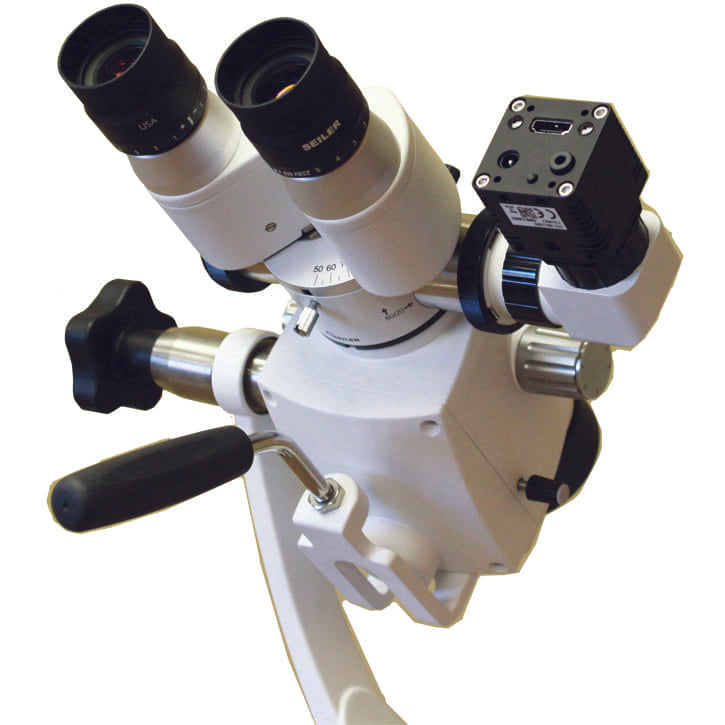

• #30985-OTS-LED-V/A (With Video Package): Allows you to view live images on a monitor during the exam. The package includes:
  • Beam Splitter 20/80-50/50 (#MC-A314S/A).
  • HD/CCD Video Camera Adapter (#F65-VA).
  • Video Cabling.
  • High Resolution CCD Color Camera (#STC-CCD).
  • LCD Flat Panel 24" Color Monitor (#24MAGTV).
• #30985-OTS-LED-HD (With HD Video Package): Allows you to view live images on a monitor during the exam. The package includes:
  • Beam Splitter 20/80-50/50 (#MC-A314S/A).
  • HD/CCD Video Camera Adapter (#F65-VA).
  • Video Cabling.
  • High Resolution HD CCD Color Camera (#STC-HD).
  • LCD Flat Panel 24" Color Monitor (#24MAGTV).
• #30985-OTS-LED-D/A (With Digital Package): Allow you to add a digital point and shoot or DSLR camera to the colposcope to record images for patient files or documentation purposes (package DOES NOT include a camera). The package includes:
  • Beam Splitter 50/50-20/80 (#MC-A314S/A).
  • Camera Adapter choice*:
    • Canon Rebel EOS Adapter (#C-DSLR).
    • Nikon D Series Adapter (#D-DSLR).
    • Sony NEX or A Series Adapter (#Z-NEX5).

*If you order the 985 with the Digital Package, please contact MFI Medical to process your camera adapter choice.

Seiler 985 Colposcope Literature

Seiler Medical Products Catalog

Seiler Colposcopes Specification Sheet

Seiler Colposcope 985 User's Manual
