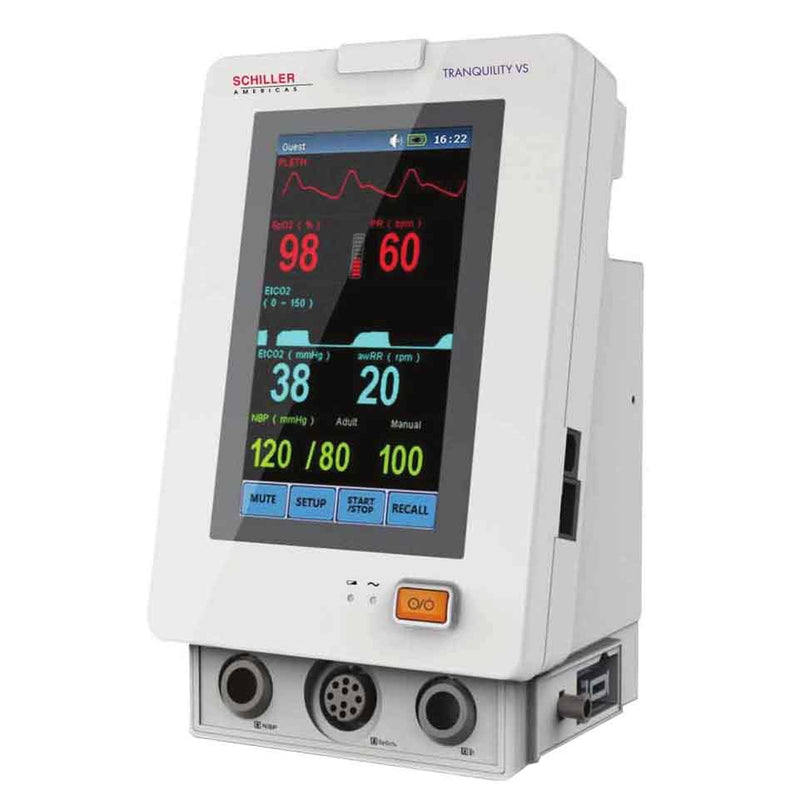

Schiller Tranquility VS Vital Signs Monitor

Schiller Tranquility VS Vital Signs Monitor
Key Features
  • SKU: SCH-2-987648
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 2 Years
  • Weight: 10.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Schiller
    Ships from Manufacturer
  • MPN: 2.987648
  • Phone: (786) 845-0620
$3,566.48

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Schiller Tranquility VS Vital Signs Monitor includes:

  • (1) SpO2 Sensor Cable.
  • (1) SpO2 Adult Reusable Finger Sensor.
  • (1) Lithium Ion Battery.
  • (1) Power Cord.
  • User Manual.

Warranty: 2 Years - Vital Signs Monitor / 90 Days - Accessories.

The Schiller Tranquility VS Vital Signs Monitor is an affordable, highly customizable vital signs monitor. Weighing less than three pounds, it is perfectly suited for both bedside and mobile spot check use.

The Tranquility VS can be used as a basic pulse oximeter or configured to a NIBP / SpO2 / NIBP monitor.

The Tranquility VS simplifies clinician use by incorporating a touch screen with a simple user interface making the Tranquility VS intuitive for any user. A long life lithium Ion battery is standard and many mobile mounting solutions are available for the Tranquility VS.

Features

Schiller Tranquility VS Vital Signs Monitor Features

  • Can be used for neonatal, pediatric, and adult patients.
  • Built-in battery with three hours of operating time.
  • Can be wall or stand mounted.
  • Compact and lightweight design for mobile monitoring.
  • Well suited for any patient care area by offering a multitude of vital sign combinations.
  • Simplifies clinician use by incorporating a touch screen with a simple user interface making the Tranquility VS intuitive for any user.

Specifications

Schiller Tranquility VS Vital Signs Monitor Specifications

  • Dimensions: 8" x 4.5" x 4" (20.3 cm x 11.4 cm x 10.2 cm).
  • Weight: 2.5 lb (1134 g).
  • Display: 5" Color TFT.
  • Resolution: 800 x 3 (RGB) x 480.
  • Trend Time: From 1 to 72 hours.
  • NIBP:
    • Measuring Technology: Automatic oscillating measurement.
    • Cuff Inflating: < 30 s (0 - 300 mmH, standard adult cuff).
    • Measuring Period: AVE < 40 s.
    • Mode: Manual, Auto, STAT.
    • Measuring Interval in AUTO Mode: 2 min - 4 hrs.
    • Pulse Rate Range: 30 bpm - 250 bpm.
    • Measuring Range:
      • Adult/Pediatric Mode:
        • SYS: 40 - 250 (mmHg).
        • DIA: 15 - 200 (mmHg).
      • Neonatal Mode:
        • SYS: 40 - 135 (mmHg).
        • DIA: 15 - 100 (mmHg).
    • Resolution: 1 mmHg.
    • Pressure Accuracy: Maximum Mean Error: ± 5 mmHg.
    • Maximum Standard Deviation: 8 mmHg.
    • Overpressure Protection:
      • Adult Mode: 280 (mmHg).
      • Neonatal Mode: 150 (mmHg).
    • Alarm Limit:
      • SYS: 50 - 240 mmHg.
      • DIA: 15 - 180 mmHg.
    • Standards: Meets performance standards of ANSI/AAMI SP10:2002.
  • SpO2:
    • ASpO2: Anti-motion SpO2.
    • SpO2% Range: 0 ~ 100%.
    • SpO2 Accuracy:
      • ± 2% (70 - 100%, non-motion).
      • ± 3% (70 - 100%, motion).
    • Pulse Rate Range: 30 - 250 bpm.
    • Pulse Rate Accuracy:
      • ± 2 bpm (non-motion).
      • ± 3 bpm (motion).
    • Alarm Upper-Lower Limit: 70 - 100 %.
    • SpO2 Probe:
      • Red Light LED Wavelength: 660 nm ± 5 nm.
      • Infrared Light LED Wavelength: 940 nm ± 10 nm.
    • Standards: Meets performance standards of EN ISO 9919:2005.
  • Networking:
    • Wired Networking:
      • Industry Standard: 802.11 b/g wired network.
      • Frequency Range: 2.412 - 2.484 GHz.
      • Connected Bedside Number: Up to 16 bedside monitors.
    • Wireless Networking:
      • Up to 100 m indoors.
      • Industry standard 802.11 b/g wireless.
      • Supports TCP/IP and UDP/IP Protocols.
  • Power:
    • Source: External AC power or internal battery.
    • AC Power: 100 - 240 VAC, 50/60 Hz, 150 VA.
    • Battery: Built-in and lithium ion rechargeable, 12.6V/5Ah.
    • Charge Time: 8 hours.
    • Operating Time: 3 hours.
  • Environmental Conditions:
    • Temperature:
      • Operating: 5° - 40°C.
      • Storage: -10° - 45°C.
    • Humidity: Less than 80%.
  • Fuse: 3.15 A / 250 V.

Schiller Tranquility VS Vital Signs Monitor Configurations:

Product Number Parameters
#2.987648 CO2 + SpO2 + NIBP + QTemp (Quick Temperature)
#2.987649 SpO2 + CO2 + NIBP
#2.987650 CO2 + SpO2
#2.987651 CO2
#2.987652 SpO2 + NIBP + Qtemp
#2.987653 SpO2 + NIBP
#2.987654 SpO2

Literature

Schiller Tranquility VS Vital Signs Monitor Literature

Schiller Tranquility VS Vital Signs Monitor Brochure

Frequently asked questions

Is the Schiller Tranquility VS monitor suitable for all patient types?

Yes, the Schiller Tranquility VS Vital Signs Monitor is designed for monitoring vital signs in neonatal, pediatric, and adult patients.

What essential accessories are included?

The Schiller Tranquility VS Vital Signs Monitor is shipped as a complete unit ready for patient monitoring. The essential accessories included are:

  • (1) SpO2 Sensor Cable
  • (1) SpO2 Adult Reusable Finger Sensor
  • (1) Lithium Ion Battery (Standard, providing approximately 3 hours of continuous operating time)
  • (1) Power Cord
  • User Manual
Does the monitor support central patient monitoring?

Yes, the Schiller Tranquility VS monitor supports comprehensive networking capabilities necessary for central patient monitoring.The key features of its connectivity include:* Dual Connectivity: Supports industry standard 802.11 b/g for both wired and wireless networking.* Central Capacity: Allows connecting up to 16 bedside monitors for centralized tracking.* Wireless Range: The wireless connection provides an indoor operating range of up to 100 meters.* Protocols: Data transmission is supported via industry-standard TCP/IP and UDP/IP protocols.

Does the Schiller Tranquility VS have overpressure protection during NIBP measurements?

Yes, it includes overpressure protection:

  • Adult Mode: 280 mmHg
  • Neonatal Mode: 150 mmHg
Does this monitor feature anti-motion SpO2 technology?

Yes, the Schiller Tranquility VS monitor utilizes Anti-motion SpO2 (ASpO2) technology. This advanced feature helps ensure reliable oxygen saturation (SpO2) readings even if the patient is moving. The performance specifications for SpO2 accuracy (in the 70-100% range) are: * Non-motion Accuracy: ± 2%* Motion Accuracy: ± 3%Furthermore, the SpO2 measurement functionality meets the performance standard EN ISO 9919:2005.

Is the touchscreen display easy to use?

Yes, the Schiller Tranquility VS is specifically engineered for intuitive operation across all clinical environments.

Key features that ensure ease of use include:

  • 5-Inch Color TFT Touchscreen: Provides a responsive interface that streamlines clinician interaction.
  • Simple User Interface: The straightforward design minimizes training time and simplifies navigation for both spot checks and bedside monitoring.
  • High Clarity: The display features a sharp 800 x 480 resolution, ensuring vital signs and waveforms are immediately recognizable.
What is the battery life of the Schiller Tranquility VS monitor?

The monitor has a built-in lithium-ion rechargeable battery that provides approximately 3 hours of operating time. The battery charge time is about 8 hours.

What vital signs does this versatile monitor track?

The Schiller Tranquility VS Monitor is highly customizable, allowing you to select a configuration that best meets your needs. Depending on the specific variant chosen, this device is capable of tracking a comprehensive range of vital signs:

  • Non-Invasive Blood Pressure (NIBP): Measures systolic, diastolic, and mean arterial pressure using automatic oscillating technology. Supports Manual, Auto, and STAT modes.
  • Blood Oxygen Saturation (SpO2): Features advanced ASpO2 (Anti-motion SpO2) technology to ensure reliable measurements even during patient movement.
  • Capnography (EtCO2): Monitors End-Tidal Carbon Dioxide (available in specific configurations).
  • Quick Temperature (QTem): Enables rapid temperature measurements (available in specific configurations).

This modular design ensures the monitor is versatile enough to be used across neonatal, pediatric, and adult patient populations.

Is the monitor compact and portable?

Yes, the Schiller Tranquility VS is specifically engineered for high portability, making it ideal for mobile spot checks and easy relocation within a facility. It is highly compact, lightweight, and versatile for both ambulatory and stationary bedside use.

Key features supporting its exceptional portability include:

  • Extremely Lightweight: The monitor base unit weighs only 2.5 lb (1134 g).
  • Compact Dimensions: It measures just 8” x 4.5” x 4” (20.3 cm x 11.4 cm x 10.2 cm).
  • Built-in Battery: It features an internal lithium-ion rechargeable battery, providing up to 3 hours of operating time for untethered monitoring.
Is NIBP measurement highly accurate?

Yes, the Non-Invasive Blood Pressure (NIBP) monitoring feature of the Schiller Tranquility VS is designed for high accuracy and compliance with rigorous standards.

Key features ensuring reliable NIBP measurement include:

  • Technology: It utilizes automatic oscillating measurement.
  • Accuracy: The maximum mean error for NIBP is ± 5 mmHg.
  • Standards Compliance: The NIBP function meets the performance standards of ANSI/AAMI SP10:2002.

Additionally, the monitor supports NIBP monitoring across neonatal, pediatric, and adult patients, offering measurement modes of Manual, Auto, and STAT.
