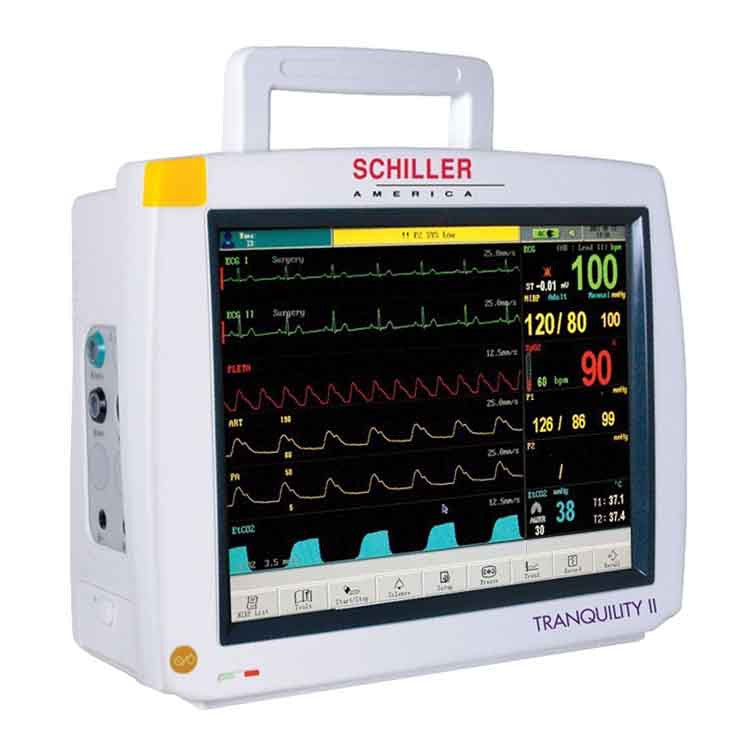

Schiller Tranquility II Patient Monitor with ISA Side Stream Analyzer

Schiller Tranquility II Patient Monitor with ISA Side Stream Analyzer
Key Features
  • SKU: SCH-0-750000ET-401
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 2 Years
  • Weight: 14.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Schiller
    Ships from Manufacturer
  • MPN: 0-750000ET-401
  • Phone: (786) 845-0620
$14,242.10

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Schiller Tranquility II Patient Monitor with ISA Side Stream Analyzer includes 5 Lead ECG Cable, Adult Blood Pressure Cuff, Blood Pressure Hose, Analog Adult Oximetry Sensor, Analog SpO2 Extension Cable, Skin Surface Temperature Probe, Operating Manual, and Power Cord.

Warranty: 2 Years.

The Schiller Tranquility II Patient Monitor with ISA Side Stream Analyzer is a portable touchscreen monitor which can be used for adult, pediatric, and neonatal patients.

Tranquility monitors keep track of a variety of patient vitals, including ECG, NIBP, SpO2, Temperature, Respiration, and optional EtCO2 on certain units. With its many features and easy to navigate 12.1" touchscreen interface, this model is ideal for busy practices.

Schiller Tranquility II Patient Monitor with ISA Side Stream Analyzer Specifications:

  • Monitoring Capabilities: ECG, NIBP, SpO2, Temperature, Respiration, CO2, O2, N2O, 5AA, AA ID, EtCO2 (optional).
  • Power: 100 V - 250 V / 50 Hz- 60 Hz.
  • Battery: Rechargeable Lead-Acid.
  • ECG Input: 3 or 5 lead ECG / respiration patient cable with no series resistance.
  • ETCO2 Range: 0 - 99 mmHg.
  • NIBP Method: Automatic oscillometric.
  • NIBP Adult/Pediatric Cuff Pressure Range: 0 - 250 mmHg (0 - 33.3 kPa)
  • Pulse Rate Accuracy: +/- bpm @ 40 - 120 bpm.
  • Pulse Rate Range: 30 - 254 pbm.
  • Screen Resolution: 800 x 600 pixels.
  • Screen Size: 12.1€ (30.7 cm).
  • SpO2 Accuracy: +/- 2% (70 - 100%), +/- 3% (50 - 69%), (0 - 49% unspecified).
  • SpO2 Averaging: 8 beat average.
  • SpO2 Range: 0 - 100%, adult / pediatric / neonate.
  • Temperature Accuracy: +/- 0.2° F (+/- 0.1° C).
  • Temperature Range: 82.4 - 109.8° F (28° C - 43.2° C).
  • Operating Temperature: 66° F - 86° F (19° C - 20° C).
  • Operating Humidity: 20 - 80% non-condensing.
  • Dimensions: 16.25" x 7.25" x 12.5" (41.3 cm x 18.4 cm x 31.8 cm).
  • Weight: 14 lb (6.35 kg).

Schiller Tranquility II Patient Monitor with ISA Side Stream Analyzer Configurations:

Product Number Built-In Printer EtCO2
#0-750000ET-401 - -
#0-750000ET-601 - Yes
#0-750000ETP-401 Yes -
#0-750000ETP-601 Yes Yes

Schiller Tranquility II Patient Monitor with ISA Side Stream Analyzer Literature:

Schiller Tranquility Touchscreen Patient Monitors Brochure

Frequently asked questions

Does the monitor support all patient types?

Yes, the Schiller Tranquility II Patient Monitor is designed for comprehensive monitoring across diverse patient populations. It is fully suitable for tracking vital signs for:

  • Adult patients
  • Pediatric patients
  • Neonatal patients
Does this monitor support all patient types?

Yes, the Schiller Tranquility II is designed for highly versatile monitoring, supporting data collection for adult, pediatric, and neonatal patient populations.

This monitor provides continuous tracking of standard vital parameters and gas analysis:

  • Standard Vitals: ECG (3 or 5 lead), Non-Invasive Blood Pressure (NIBP), SpO2, Temperature, and Respiration.
  • Integrated Gas Analysis: The built-in ISA Side Stream Analyzer monitors crucial gases, typically including CO2, O2, and N2O (configurations may vary).
  • Optional Monitoring: EtCO2 (End-Tidal CO2) monitoring is also available as an option.
Does the monitor include optional EtCO2 monitoring?

Yes, the Schiller Tranquility II Patient Monitor supports optional EtCO2 (End-Tidal CO2) monitoring. This key functionality is provided via the integrated ISA Side Stream Analyzer.

When the EtCO2 option is configured, the system can measure CO2 concentration in the range of 0 to 99 mmHg.

In addition to EtCO2, the ISA Side Stream Analyzer is capable of monitoring other respiratory gases, including:

  • Carbon Dioxide (CO2)
  • Oxygen (O2)
  • Nitrous Oxide (N2O)

(Note: Specific gas monitoring capabilities may vary depending on the exact configuration ordered.)

Does the monitor feature an intuitive touchscreen display?

Yes, the Schiller Tranquility II features a large, intuitive 12.1-inch touchscreen interface designed for high-demand clinical environments. This display is a key selling point, simplifying navigation and operation.

Specific display features include:

  • Size: 12.1 inches (30.7 cm), providing ample space to view multiple parameters and waveforms.
  • Resolution: 800 x 600 pixels, ensuring clear visualization and high contrast for critical patient data.
  • Interface: The easy-to-navigate touch functionality enhances efficiency, allowing clinicians to quickly access menus and configure settings.
Does this monitor have a rechargeable battery?

Yes, the Schiller Tranquility II is designed for portability (weighing 14.0 lb and featuring an integrated handle) and includes a dual-power system:

  • Rechargeable Lead-Acid Battery: This internal battery allows for continuous operation away from a wall outlet.
  • AC Power Input: It also operates using standard power input (100 V - 250 V / 50 Hz - 60 Hz).
Is the monitor designed for easy portability?

Yes, the Schiller Tranquility II is specifically designed for mobility, making it highly suitable for various clinical environments where flexible surveillance is required.

Key features supporting its portability include:

  • Lightweight Design: The unit weighs only 14 lb (6.35 kg), making it easy to carry.
  • Integrated Carrying Handle: A prominent integrated handle is built into the casing for convenient transport between patient locations.
  • Rechargeable Battery: It utilizes an internal rechargeable Lead-Acid battery, providing backup power for continuous monitoring even when temporarily disconnected from AC power.
Which essential accessories are included?

The Schiller Tranquility II Patient Monitor ships complete with all essential accessories required for immediate, comprehensive vital sign monitoring. These factory-new components ensure the unit is ready for use upon arrival.

The included accessories are:

  • 5 Lead ECG Cable
  • Adult Blood Pressure Cuff and Blood Pressure Hose
  • Analog Adult Oximetry Sensor and Analog SpO2 Extension Cable
  • Skin Surface Temperature Probe
  • Operating Manual
  • Power Cord
Is a built-in printer available?

Yes, a built-in printer is available as an optional configuration for the Schiller Tranquility II Patient Monitor. You must select the specific configuration that includes this functionality upon ordering. This feature enables clinicians to generate hard-copy documentation of vital signs and monitoring trends directly at the bedside.

What is the SpO2 range and accuracy?

The Schiller Tranquility II Patient Monitor provides comprehensive SpO2 monitoring suitable for all patient populations. Key specifications are as follows:

  • SpO2 Measurement Range: 0% to 100%, supporting adult, pediatric, and neonatal patients.
  • Accuracy:
    • ± 2% for readings between 70% and 100%.
    • ± 3% for readings between 50% and 69%.
  • Averaging Method: The monitor uses an 8-beat average to ensure stable and reliable readings.
What is the NIBP cuff pressure range?

The Schiller Tranquility II Patient Monitor utilizes the automatic oscillometric method for Non-Invasive Blood Pressure (NIBP) monitoring. The specified cuff pressure range is:

  • Adult/Pediatric: 0 - 250 mmHg (0 - 33.3 kPa)
