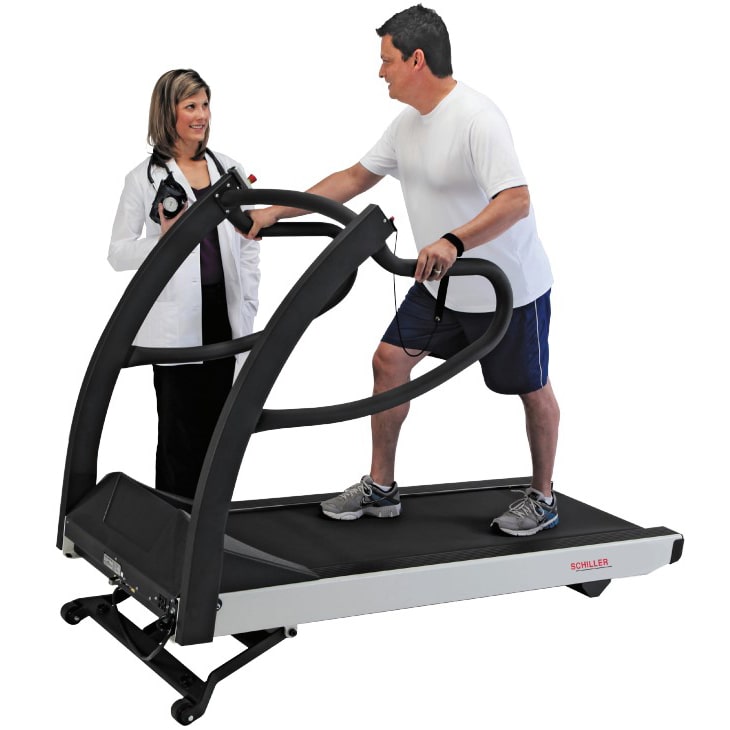

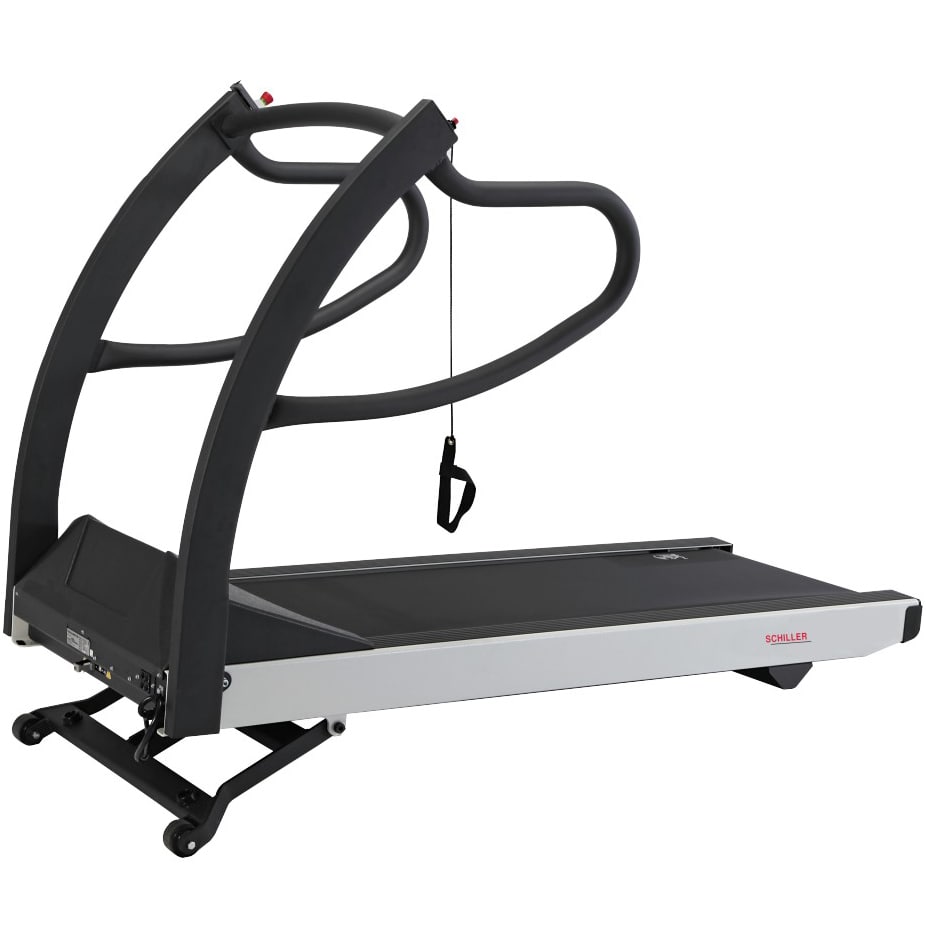

Schiller TMX-428 Diagnostic Treadmill

The Schiller TMX-428 Diagnostic Treadmill offers precise, self-calibrating control over speed and elevation for accurate clinical testing. The unit is powered by a robust 4 HP (6 HP peak) brushless motor.

Its specific operational ranges are:

• Running Speed Range: The treadmill operates from 0.1 MPH up to 12 MPH.
• Elevation Range: The incline is adjustable from 0% up to 25%. Elevation is managed smoothly via a linear actuator and is self-calibrating to ensure exceptional accuracy.

The Schiller TMX-428 Diagnostic Treadmill is engineered with a durable, heavy-gauge steel frame to ensure maximum patient security and stability during diagnostic testing.The unit is designed to support a substantial maximum weight capacity of 500 lb (227 kg).

The Schiller TMX-428 features one of the industry’s widest running belts, ensuring maximum patient comfort and safety during diagnostic testing.

Running Surface Dimensions

• Width: 22 inches (56 cm)
• Length: 63 inches (160 cm)

This spacious belt is mounted on a low-profile, cushioned deck that utilizes shock-absorbing isolators to significantly reduce impact, making it ideal for clinical use with a wide range of patients.

Yes, the Schiller TMX-428 is equipped with a comprehensive and flexible suite of 15 workout and testing protocols to support various clinical and conditioning requirements. This ensures high adaptability for diagnostic testing.

This includes:

• 5 Pre-programmed Medical Protocols: Routines specifically designed for precise cardiac and pulmonary evaluations.
• 5 Pre-programmed Fitness Workouts: Standard routines for general conditioning and stress testing.
• 5 User-Programmable Workouts: Allows clinicians to create, customize, and save specific testing scenarios tailored to individual patient needs.

Yes, the Schiller TMX-428 is engineered with a powerful motor designed specifically for smooth, quiet, and reliable diagnostic testing. It is built to minimize distraction during cardiac and pulmonary stress tests.

Key motor details include:

• Power: It features a 4 HP PWM DC brushless servo drive motor, capable of delivering 6 peak HP.
• Performance: The high-torque motor provides exceptionally smooth and consistent speed control, even from a zero start.
• Noise Level: The brushless technology inherently ensures quiet operation.

Yes, the Schiller TMX-428 features a self-calibrating system for both speed and elevation. This advanced capability ensures the treadmill maintains exceptionally accurate and consistent readings, which is vital for high-precision cardiac and pulmonary diagnostic testing.

Yes, the Schiller TMX-428 deck is designed to be low-profile, which greatly enhances patient comfort and safety.

This low-profile design provides very easy access, with the step-up height measuring only 7.5 inches (19 cm) from the floor. This feature is particularly beneficial for sensitive and senior patients undergoing diagnostic testing.

The Schiller TMX-428 Diagnostic Treadmill is specifically engineered for clinical environments, prioritizing patient safety and comfort with several specialized features.

Exceptional Safety Measures

• Comprehensive Stop System: Includes a prominent emergency stop button, dual stop switches, and an essential patient safety tether system.
• Stability: Features integrated safety handrails and a robust, heavy-gauge steel frame capable of supporting up to 500 lb (227 kg).

Maximum Comfort and Accessibility

• Low Step-Up Height: The low-profile deck requires only a 7.5-inch (19 cm) step-up height, making access easier and safer for sensitive or senior patients.
• Cushioned Deck: The running deck is mounted on shock-absorbing isolators to provide cushioning and minimize impact forces during stress testing.
• Spacious Surface: It utilizes one of the industry’s widest running surfaces, measuring 22 inches wide (22” x 63” overall), enhancing comfort during movement.

The Schiller TMX-428 Diagnostic Treadmill is offered in two main voltage configurations to ensure compatibility across different clinical environments:

• 120 V (50/60 Hz)
• 220 V (60 Hz)

Selecting the correct voltage is crucial for powering the highly accurate, self-calibrating 4 HP brushless servo motor (6 HP peak), ensuring reliable and smooth performance from zero start up to 12 MPH for precise diagnostic testing.

Yes, the Schiller TMX-428 features a quiet, powerful operation with a 4 HP (6 HP peak) hi-torque brushless servo drive motor, ensuring smooth performance during diagnostic testing.
