Condition:
-
Warranty:
- Weight: 10.0 lb
-
Learn more:
-
MFR:
Schiller
Ships from Manufacturer
-
MPN: 0-730000
- Phone: (786) 845-0620
Frequently asked questions
Are essential accessories included for immediate use?
Yes, the Schiller T-Lite Patient Monitor comes with essential accessories, ensuring it’s ready for immediate use right out of the box. These include:
- Adult Blood Pressure Cuff
- NIBP Hose
- Adult Pulse Oximetry Sensor with Cord
- 5 Lead ECG Cable
- Skin Temperature Sensor Probe
- Operating Manual
- Power Cord
Is the patient monitor suitable for both adults and pediatrics?
Yes, the Schiller T-Lite Patient Monitor is capable of comprehensive vital sign monitoring for both adult and pediatric populations.
Its monitoring specifications support a wide physiological range, confirming its broad applicability:
- NIBP Cuff Pressure Range: 0 - 300 mmHg
- Pulse Rate Range: 30 - 250 bpm
Important Accessory Note: While the monitor supports both patient types, the standard components included are adult-sized accessories (Adult Blood Pressure Cuff and Adult Pulse Oximetry Sensor). If monitoring pediatric patients, you must acquire the appropriate pediatric-sized cuffs and sensors separately.
Can I get the monitor with a built-in printer?
Yes, the Schiller T-Lite Patient Monitor is available in configurations that include a built-in thermal printer for convenient, on-the-spot documentation of patient data.
This option ensures immediate access to printed records and is offered in two variants:
- Monitor with Built-In Printer
- Monitor with Built-In Printer and ETCO2 (which also includes End-Tidal CO2 integration)
Does the monitor have a responsive touchscreen display?
Yes, the Schiller T-Lite features an intuitive and responsive 7-inch touch screen display.
Key details regarding the display:
- Size & Type: 7-inch touch screen.
- Resolution: 640 x 480.
This interface is a key feature, enabling easy navigation and streamlined patient vital sign surveillance for clinical staff, especially given the monitor’s focus on portability and quick operation.
Does this monitor offer comprehensive monitoring?
Yes, the Schiller T-Lite is an incredibly portable monitor designed for comprehensive vital sign tracking, easily operated via its 7-inch touch screen display.
It provides core monitoring functions essential for clinical settings and transport:
- ECG and Cardiac Analysis: Supports 5-Lead ECG input and includes Arrhythmia and ST Segment monitoring capabilities.
- Non-Invasive Blood Pressure (NIBP): Measures adult and pediatric NIBP, with a cuff pressure range up to 300 mmHg.
- Pulse Oximetry (SpO2): Accurate peripheral oxygen saturation monitoring, with an accuracy of +/- 2% in the 70% to 100% range.
- Temperature & Respiration: Features high-accuracy temperature tracking (+/- 0.1° C) and respiration rate monitoring (up to 120 rpm).
The monitor also includes a built-in battery, ensuring over 2 hours of continuous operating time for monitoring during transport or power outages.
Available Configurations
To meet diverse clinical needs, the T-Lite is available in configurations that feature a built-in thermal printer for hard-copy documentation and/or integrated End-Tidal CO2 (ETCO2) monitoring (with a range of 0 - 99 mmHg).
How long does the built-in battery last?
The Schiller T-Lite Patient Monitor includes a crucial built-in battery designed to support continuous monitoring, enhancing its portability.
This integrated battery provides over 2 hours of operating time, ensuring sufficient backup for patient transport or during power interruptions.
For sustained operation, the monitor accepts universal power input (100 / 240V AC, 50 / 60 Hz).
Is SpO2 averaging fast?
Yes, the Schiller T-Lite Patient Monitor offers highly responsive SpO2 measurements. It uses a rapid 3-second averaging time to ensure quick and accurate updates on peripheral oxygen saturation readings.
Is the Schiller T-Lite monitor highly portable?
Yes, the Schiller T-Lite Patient Monitor is engineered for high portability, making it ideal for acute care settings, ambulatory monitoring, and patient transport.
Key features that facilitate easy transport include:
- Lightweight Design: The base monitor configuration weighs only 10.0 POUNDS.

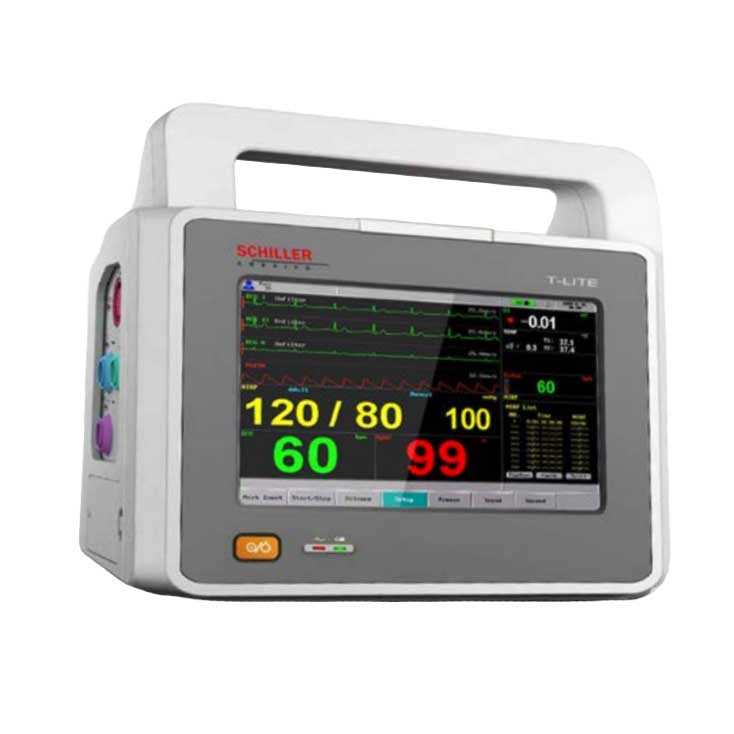

- Integrated Handle: The compact form factor includes a prominent, integrated carrying handle spanning the top edge for secure and easy movement.
- Extended Battery Backup: A built-in battery provides over 2 hours of continuous operating time, ensuring uninterrupted monitoring during transport or power interruptions.
- Compact Interface: The unit uses a 7-inch touch screen display, keeping the overall footprint small and user-friendly while mobile.
What are the precise monitoring ranges?
The Schiller T-Lite Patient Monitor provides comprehensive monitoring capabilities across several key vital signs. The specific measurement ranges and accuracy details are listed in the table below:
| Parameter | Range | Accuracy/Notes |
|---|---|---|
| NIBP Cuff Pressure | 0 - 300 mmHg (0 - 40.0 kPa) | Suitable for Adult/Pediatric cuffs. |
| Pulse Rate | 30 - 250 bpm | ± 1% accuracy in the 30 - 100 bpm range. |
| Respiratory Rate | 0 - 120 rpm | |
| SpO2 (Pulse Oximetry) | 0 - 100% | Accuracy: ± 2% (70% - 100%) and ± 3% (40% - 70%). |
| Temperature | 77° F - 122° F (25° C - 50° C) | Features a high accuracy of ± 0.1° C. |
| ETCO2 (End-Tidal CO2) | 0 - 99 mmHg | Available only when selecting the configuration with the Built-In Printer and ETCO2. |
Does the 7-inch touch screen offer intuitive navigation?
Yes, the Schiller T-Lite Patient Monitor is designed for maximum usability, featuring an incredibly intuitive 7-inch touch screen display.
Key aspects of the screen and interface include:
- Easy-to-Operate: The touch screen allows clinical staff to navigate quickly and efficiently through monitoring functions, which is crucial for essential vital sign tracking in dynamic environments.
- Clear Visualization: The display provides a high-contrast interface with a resolution of 640 x 480, ensuring sharp visualization of all critical patient data and waveforms.
- Portability: This highly usable interface complements the monitor’s overall incredibly portable design, making it suitable for mobile care settings.
