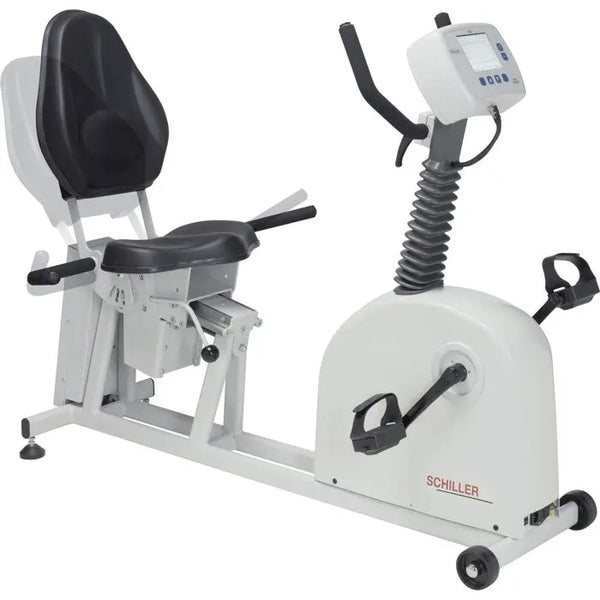

Schiller ERG 911 S/Seat Ergometer

The Schiller ERG 911 S/Seat Ergometer (#2.210070) bicycle has been developed to provide easy testing for very heavy patients up to 300 kg. Intended for use with high-risk, elderly, or physically handicapped patients.

Schiller ERG 911 S/Seat Ergometer Features

• Large, rotatable LCD display (10 cm x 7.5 cm).
• Digital control through galvanically isolated RS-232 interface.
• Manual load control in step of 5 or 25 watt.
• 5 user-defined exercise test programs, freely programmable.
• Range of Revolutions: 30 - 130 n/min.
• Load Precision: 3% maximum ± 3 W.
• Time Intervals: 1 - 99 min.
• Dimensions/Basis: 40 cm x 130 cm.
• Weight: 60 kg.
• Maximum Patient Weight: 300 kg.
• Almost noiseless mechanism due to computer controlled eddy current brakes with torque measurement, independent of revolutions per minute.
• Load range 1 to 999 watt (independent of revolutions per minute); 5 to 20 watt dependent of revolutions per minute.
• Advantages:
  • Very high durability thanks to outstanding manufacturing quality.
  • Excellent price-performance ratio.
  • Extremely safe.
  • Maintenance-free drive.
  • Pleasant pedaling sensation.
  • Suitable for obese patients.
  • Thanks to it slow frame, easy to use even for elderly or handicapped patients.
  • Easy programmable ergometry parameters.
• 115 VAC, 50/60 Hz (230 VAC also available*).

Note: If you would like 230 VAC, please call or specify in the comments section during the checkout process.

Schiller ERG 911 S/Seat Ergometer Literature

Schiller Ergometry Brochure
