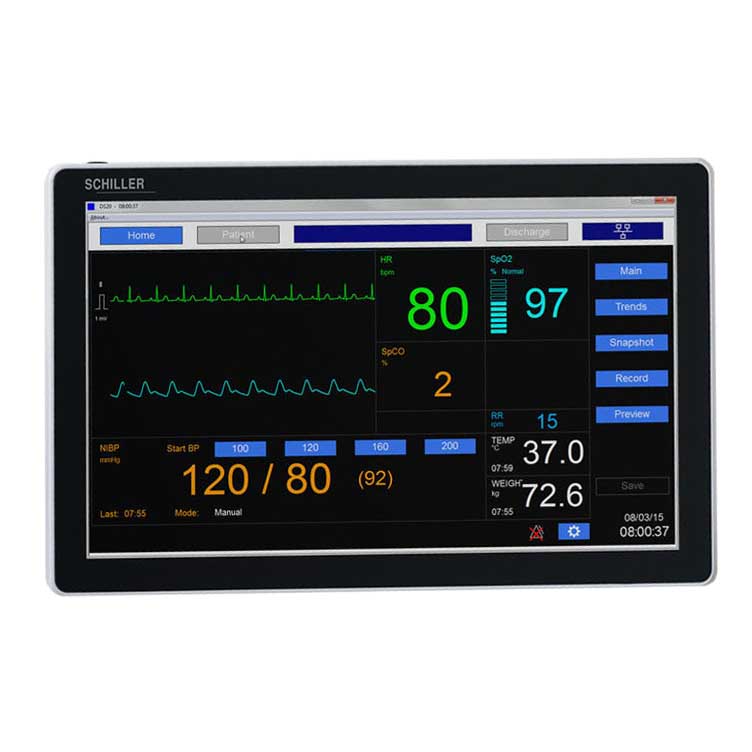

Schiller DS20 Diagnostic Station

The Schiller DS20 Diagnostic Station is specifically engineered to maximize efficiency and streamline clinical workflow through integration and advanced automation features:

• Consolidated Data Acquisition: It combines comprehensive vital signs monitoring (NIBP, SpO2, Respiration, and optional Temperature) with full ECG capabilities in a single unit, eliminating the need for multiple devices and generating an integrated final report.
• Intuitive Operation: The system features an 18.5” high-resolution multi-touch screen with a self-explanatory interface, minimizing staff training requirements.
• Seamless System Integration: It supports fast, bidirectional connectivity via Wi-Fi or physical LAN to major information systems, including EMR, HIS, PACS, HL7, DICOM, and Schiller’s SEMA3 system, ensuring data is instantly available across the network.
• Automated Setup: Workflow is accelerated by Automatic Sensor Detection, which immediately recognizes connected patient sensors and displays the corresponding parameters, simplifying setup and monitoring adjustments.
• Efficient Screening: The device supports rapid arrhythmia and atrial fibrillation screening using only three electrodes for ECG display, storage, and printing, often allowing procedures without requiring patient undressing.

Yes, the Schiller DS20 is designed for advanced, seamless network integration and supports bidirectional data exchange, making it a key selling point. The system connects easily and integrates with major clinical IT infrastructure:

• Connection Methods: Built-in Wi-Fi or a physical LAN connection.
• Integration Protocols: Supports EMR, HIS, HL7, DICOM, and Schiller’s dedicated SEMA3 system.

This connectivity ensures efficient data transfer and streamlined final reporting capabilities across the facility.

Yes, the Schiller DS20 features a large, 18.5-inch high-resolution multi-touch screen (1366 x 768 dots).

This screen is designed to enhance the user experience and clinical workflow:

• Clarity and Detail: It provides clear numerical representations of vital data and graphical waveform displays for ECG, respiration, and peripheral pulse.
• Ease of Use: The multi-touch screen utilizes a self-explanatory interface, which helps minimize necessary user training time for fast operation.

The battery provides approximately 2 hours of operating time. The charging time for the battery is approximately 2.5 hours.

Yes, the Schiller DS20 Diagnostic Station is a comprehensive, integrated monitoring system that efficiently consolidates key vital signs and diagnostic cardiac measurements into one unit. This system is designed for fast operation and detailed final report generation.

The DS20 is equipped to monitor the following parameters:

• ECG: Supports standard 3-Lead monitoring and is ideal for arrhythmia/atrial fibrillation screening using minimal electrodes. Optional configurations support full 12-Lead Resting ECG with pacer detection and ETM (Computer-Aided ECG Interpretation).
• SpO2 (Pulse Oximetry): Utilizes the highly advanced Masimo Rainbow SET technology/sensor.
• NIBP (Non-Invasive Blood Pressure): Measured using the reliable oscillometric method.
• Respiration: Measured via Impedance Pneumography using the ECG cable.
• Temperature: Temperature monitoring is supported; note that the temperature probe is included only with specific configuration variants.

Yes, the Schiller DS20 Diagnostic Station supports advanced 12-Lead Resting ECG, although it is available as an optional configuration.

The system is designed to handle both basic and comprehensive ECG monitoring:

• 3-Lead ECG: Included as a standard feature, ideal for quick arrhythmia and atrial fibrillation screening (using only three electrodes).
• 12-Lead Resting ECG (Optional): This configuration provides detailed analysis and includes crucial diagnostic capabilities:
  • Computer-Aided ECG Interpretation (ETM) for both adults and children.
  • Pacer detection.

The Schiller DS20 has dimensions of 18.1” x 10.8” x 3” (460 mm x 275 mm x 77 mm) and weighs 10 lb (4.5 kg).

The Schiller DS20 Diagnostic Station offers four standard configurations, built around two primary factors, allowing you to select the exact diagnostic capability and included accessories:

1. ECG Lead Capability:
   • 3-Lead ECG: This standard setup is optimized for core vital signs and efficient arrhythmia/atrial fibrillation screening.
   • 12-Lead Resting ECG: This option provides full 12-Lead Resting ECG capabilities, including advanced Computer-Aided ECG Interpretation (ETM) for both adults and children.
2. Temperature Measurement:
   • Includes Temperature Probe: The necessary temperature probe accessory is bundled with the unit.
   • Temperature Probe Not Included: The unit is supplied without the temperature probe.

Yes, the Schiller DS20 is specifically engineered for exceptional ease of use and features a design that minimizes staff training requirements. Its intuitive operation is driven by several key factors:

• High-Resolution Display: The 18.5-inch multi-touch screen provides a clear, self-explanatory user interface for visualizing all critical data.
• Automatic Setup: The system features Automatic Sensor Detection, instantly recognizing connected sensors and displaying the corresponding parameters, which streamlines setup and parameter changes.
• Integrated Workflow: By combining comprehensive vital signs monitoring and ECG capabilities into a single networked unit, the overall diagnostic workflow is simplified and made more efficient.

Yes, the Schiller DS20 Diagnostic Station is designed for versatile use, offering various mounting options. It can be easily mounted on a mobile cart for portability or on a desk stand for a more stationary setup, making it adaptable to different clinical environments.
